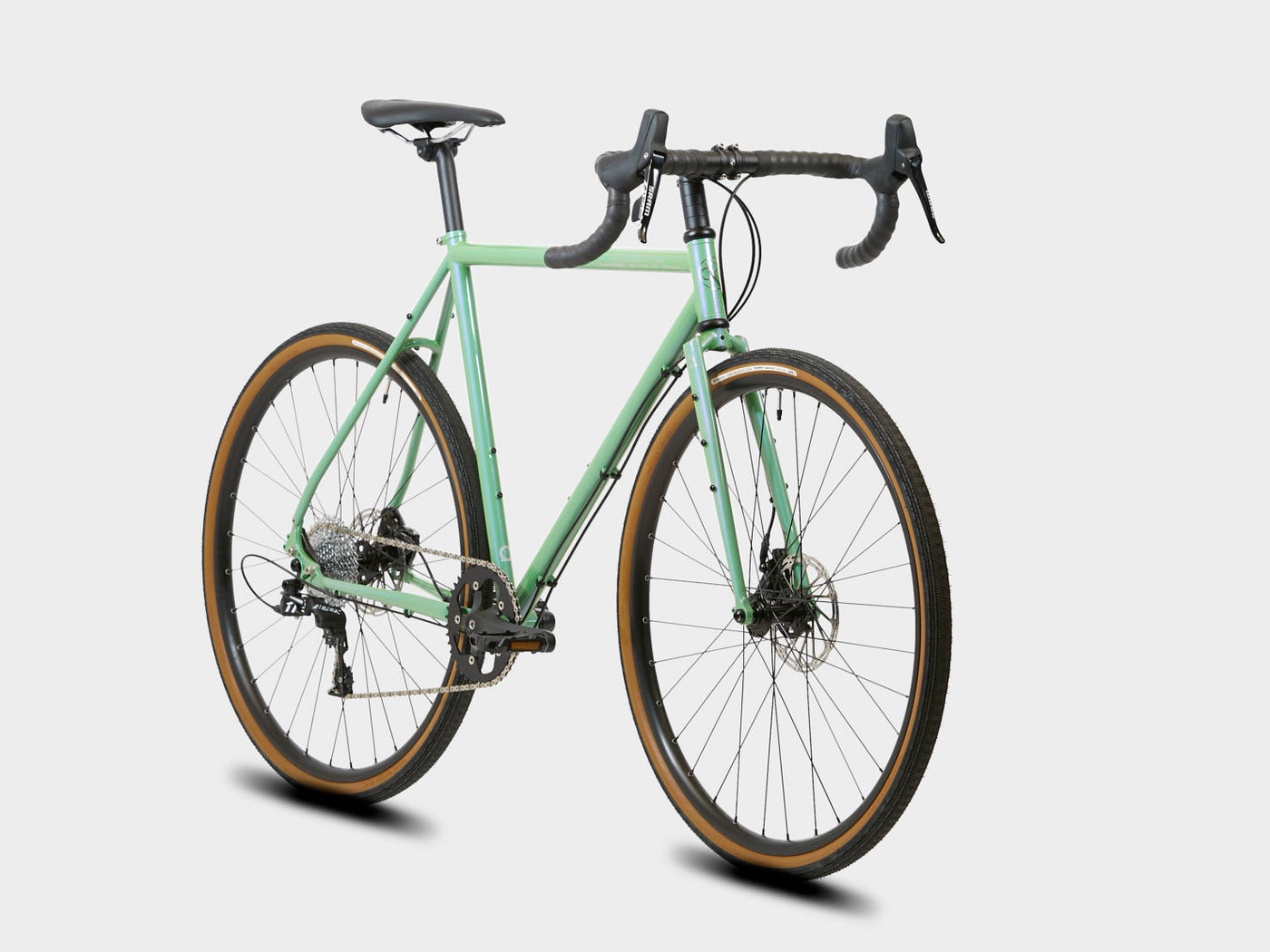

The Omnium CXC stands for Cyclo Cross City, and does just that. Commute, gravel, cyclocross, world tour, or alleycat – the CXC will work for you.

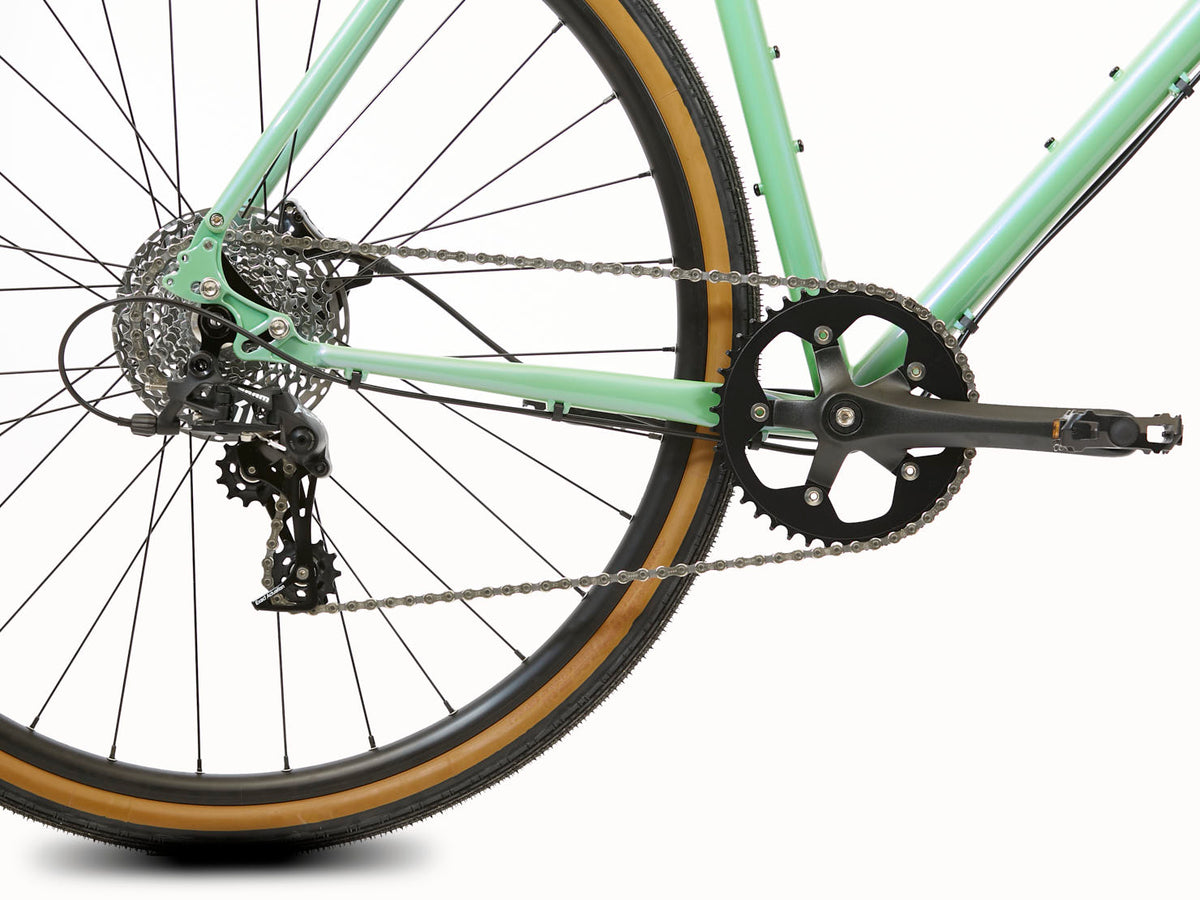

With 700x45c tire clearance and triple cage fork mounts, this thing is even adventure ready! Adjustable dropouts let you run singlespeed, fixed, Internal gear hub, or a derailleur. It‘s now also belt drive compatible!
We could go on about possibilities, but in short the CXC is a true Swiss Army knife. There is nothing more versatile.
Design
Frame Kit includes: Frame, fork, axles and seat post binder. Headset not included.

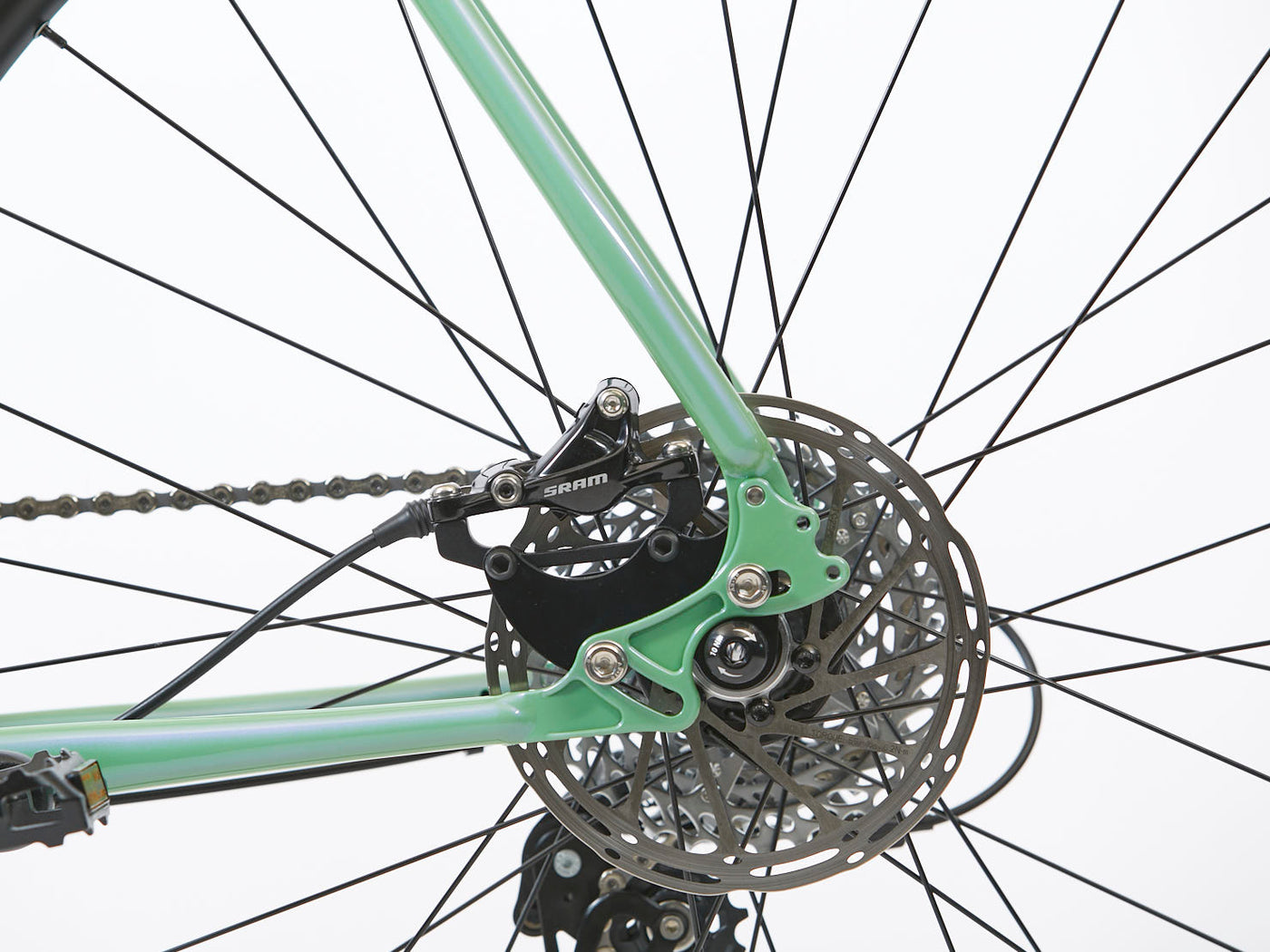

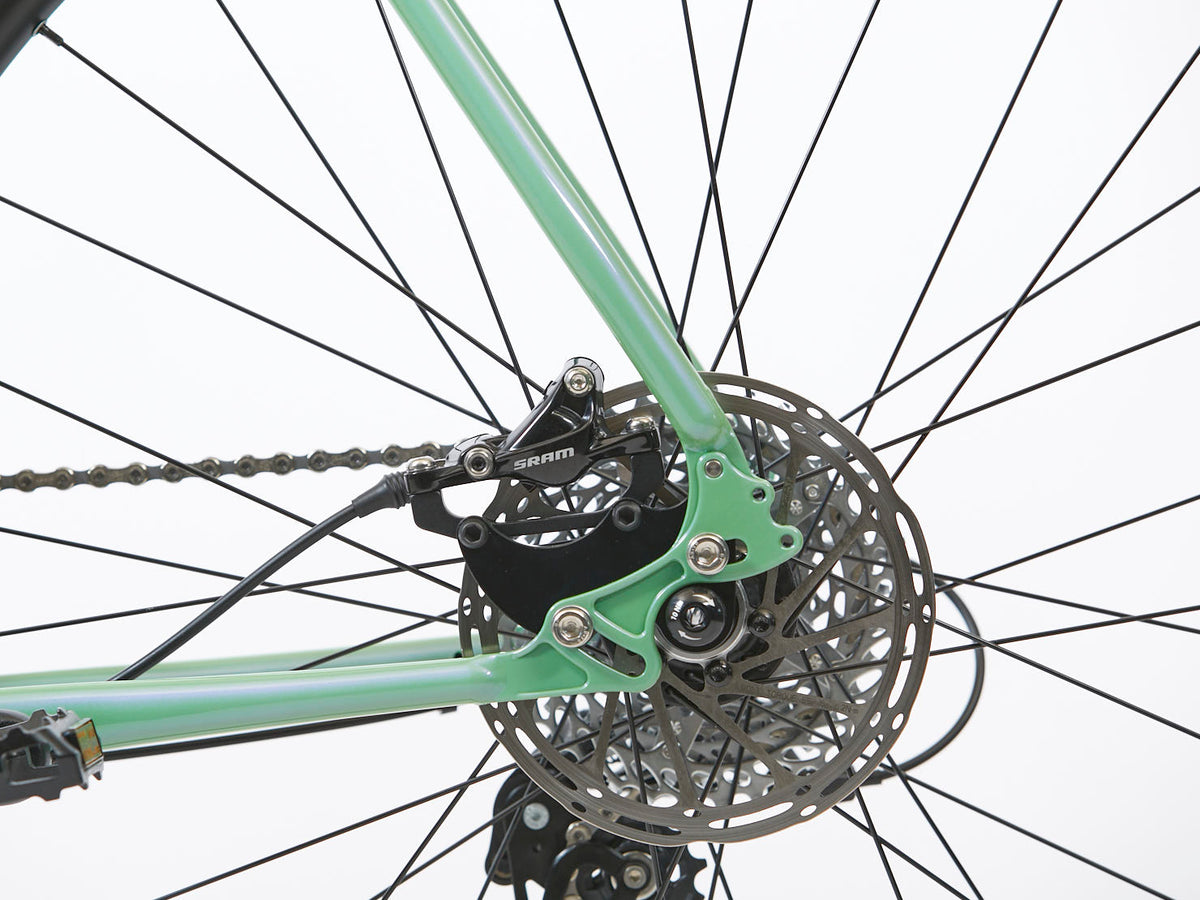

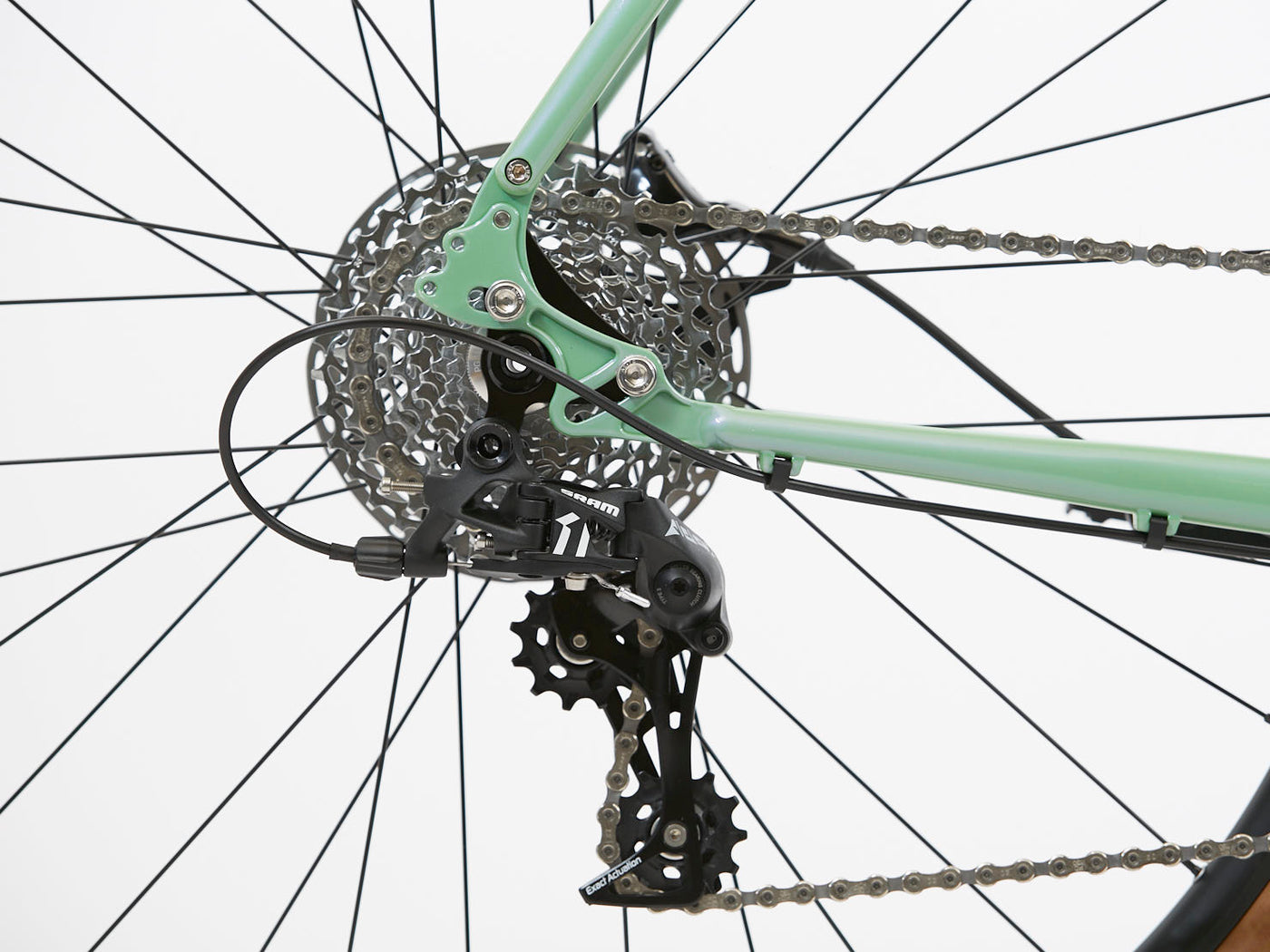

The adjustable rocker dropouts are available as a free replacement when buying a new frame kit, or available separately.
Choose between:
10 x 135 QR with IS brake mount – for internal gear hubs or QR rear hubs.
12 x 142 thru axle with IS brake mount – the standard choice for thru axle hubs like our Omnium Wheels.
Please note, all forks will be 12×100 thru axle and IS brake mount regardless of dropout choice.

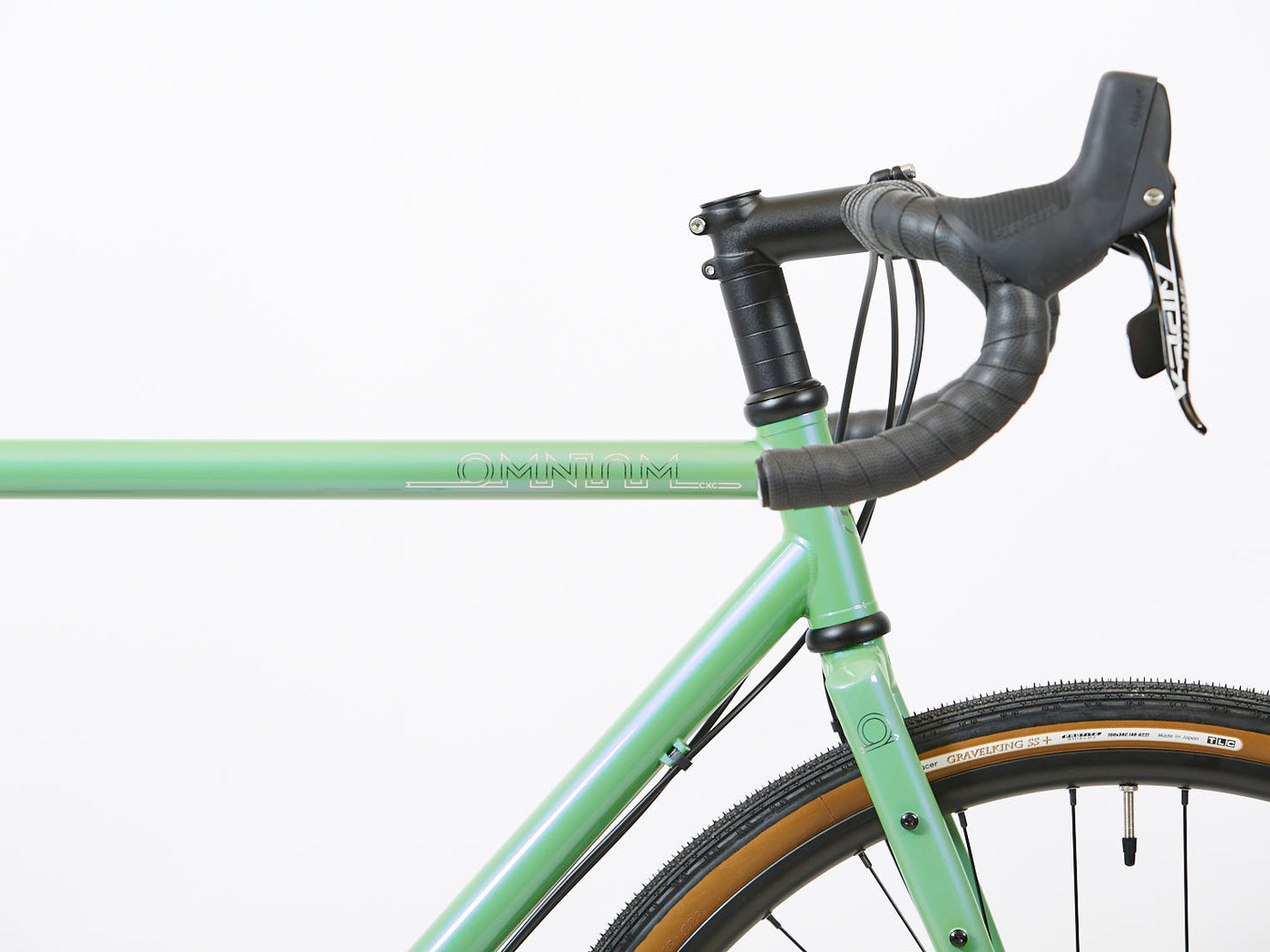

Thenew forknow features a segmented design, significantly reducing fork judder and flex under braking. It also hastriple cage mountson the fork legs for all your bikepacking needs.
Geometry
CXC V3 (700x40c tires) (unit: millimeters)
XS (51)
S (53)
M (56)
L (59)
XL (62)
XXL (64)
STL – seat tube length (c-t)
510
530
560
590
620
640
TTL – top tube length (c-c / actual)
520
535
555
575
595
610
Stack
497
512
543
573
602
617
Reach
395
402
409
422
434
434
SOH – standover height
782
797
828
858
888
902
BBD – bottom bracket drop
58
58
58
58
58
58
STA – seat tube angle
76°
75.5°
75°
75°
75°
74°
HTA – head tube angle
73.5°
74°
74.5°
75°
75°
75°
HTL – head tube length
66
80
110
140
170
185
WB – wheelbase
977
985
996
1012
1032
1036
A-C – axle to crown
396
396
396
396
396
396
R – rake
45
45
45
45
45
45
T – trail
58
55
52
49
49
49
CSL – chainstay length
410-427
410-427
410-427
410-427
410-427
410-427
Frame Specifications
6Sizes
XS (51), S (53), M(56), L (59), XL (62), XXL (64)
Material
Double-Butted Chromoly Steel Frame & Fork
Gears

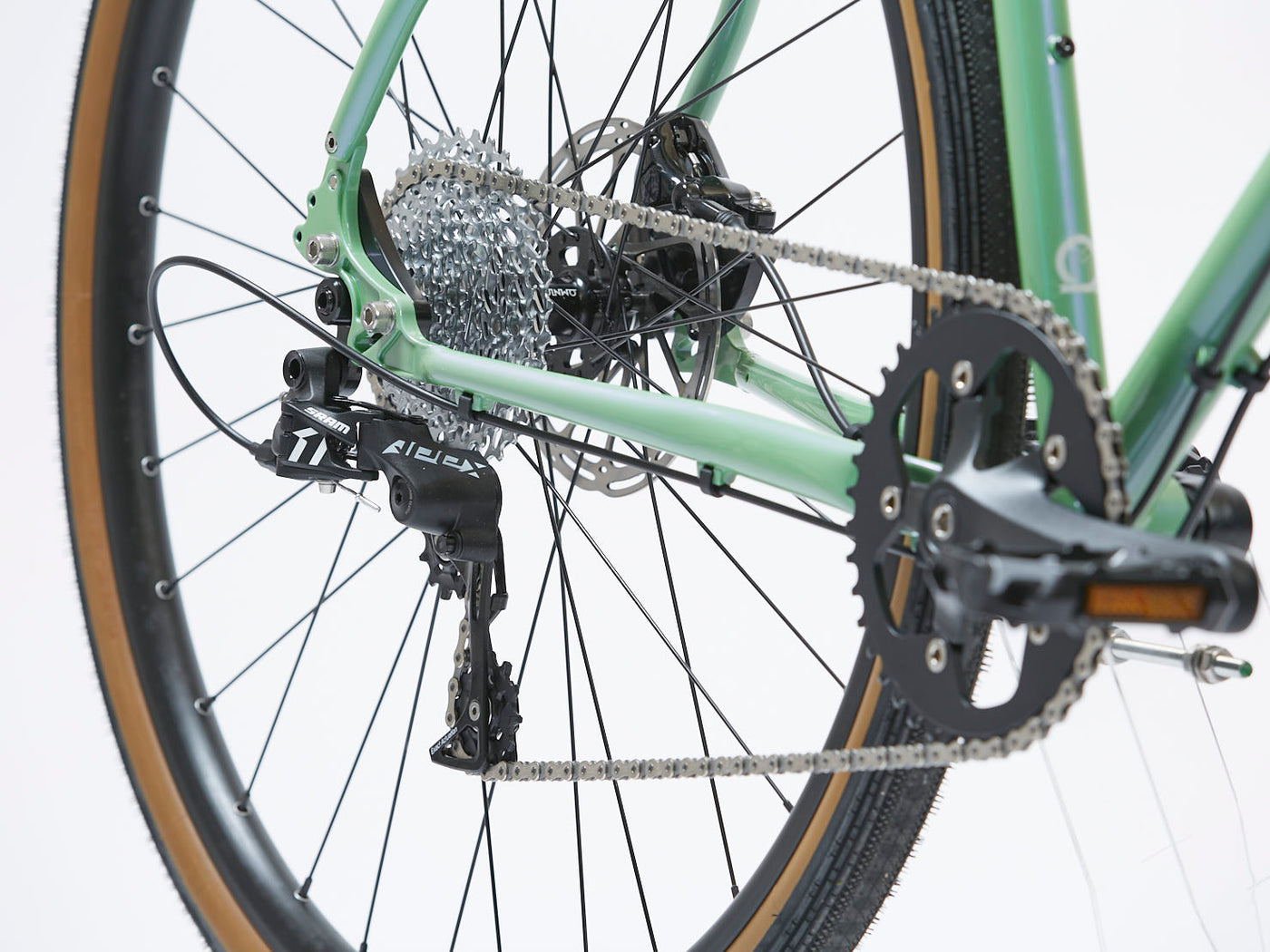

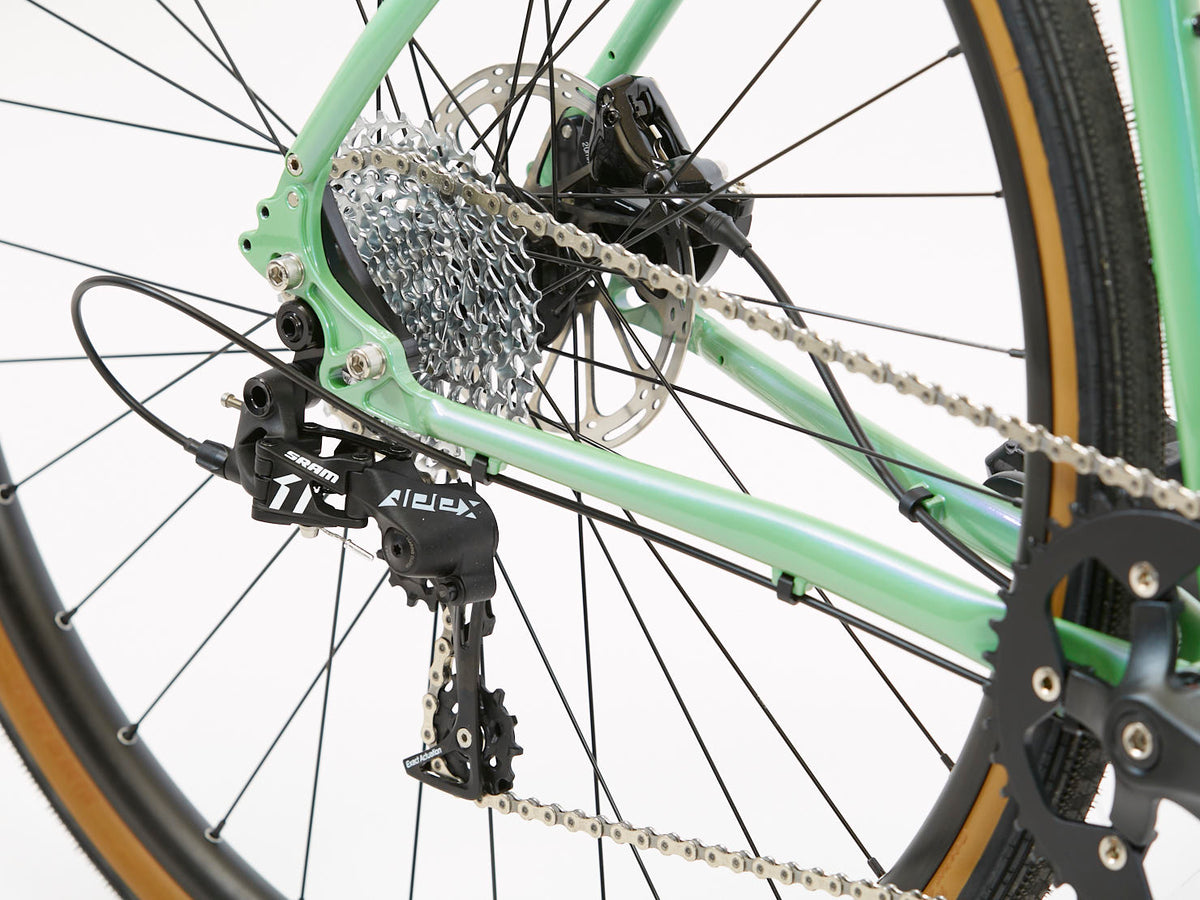

For 1x rear derailleur gear system

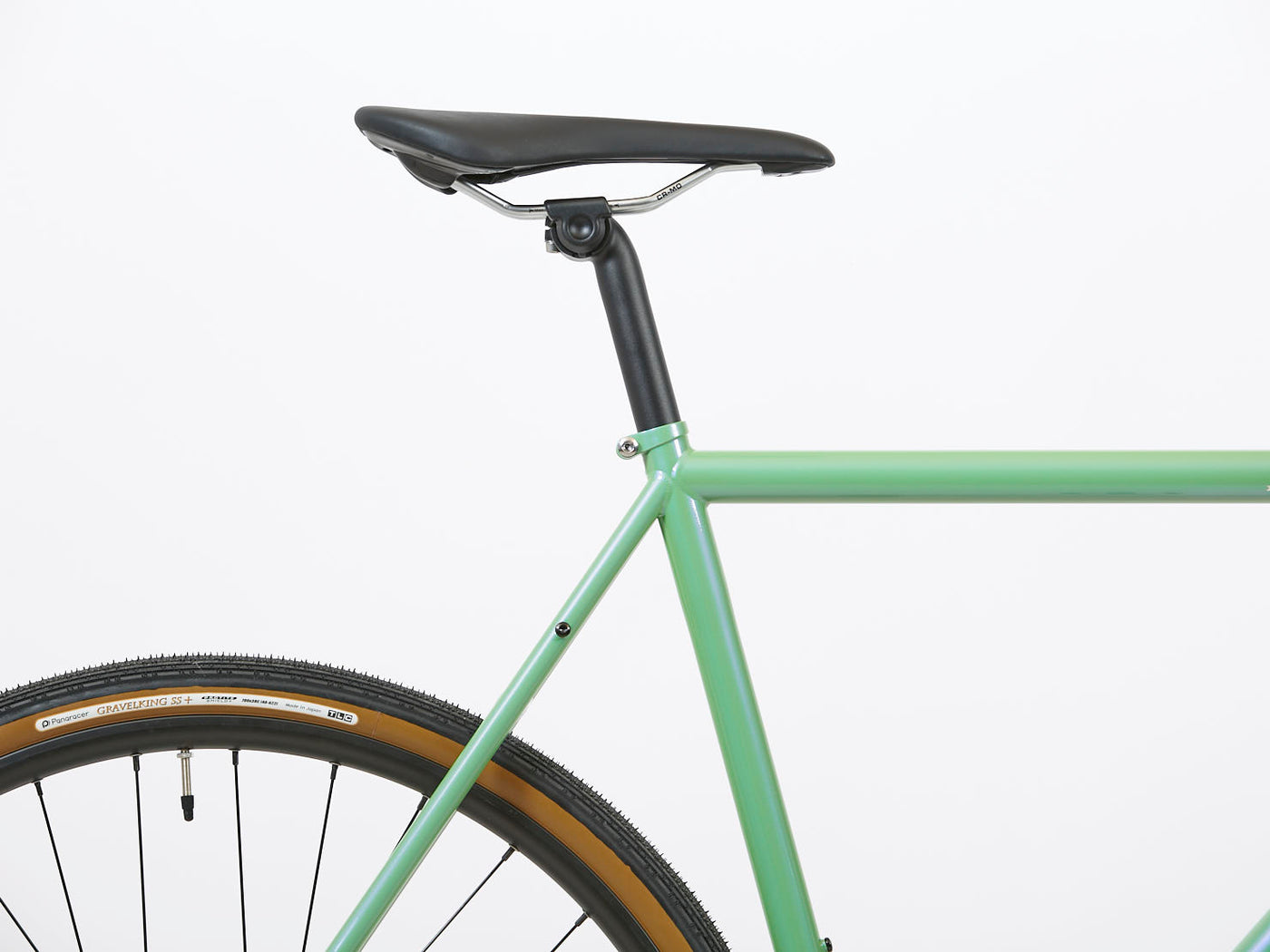

Seat post diameter:
27.2mm
Rear Wheel:
TA Insert: 622, 12 x 142mm spacing, disc only QR Insert: 622, 10 x 135mm spacing, disc only
Front Wheel:
622, 12 x 100mm spacing, disc only
Tyre clearance, front:
45mm clearance with mudguards
Tyre clearance, rear:
45mm clearance with mudguards (50mm chainstay clearence)
