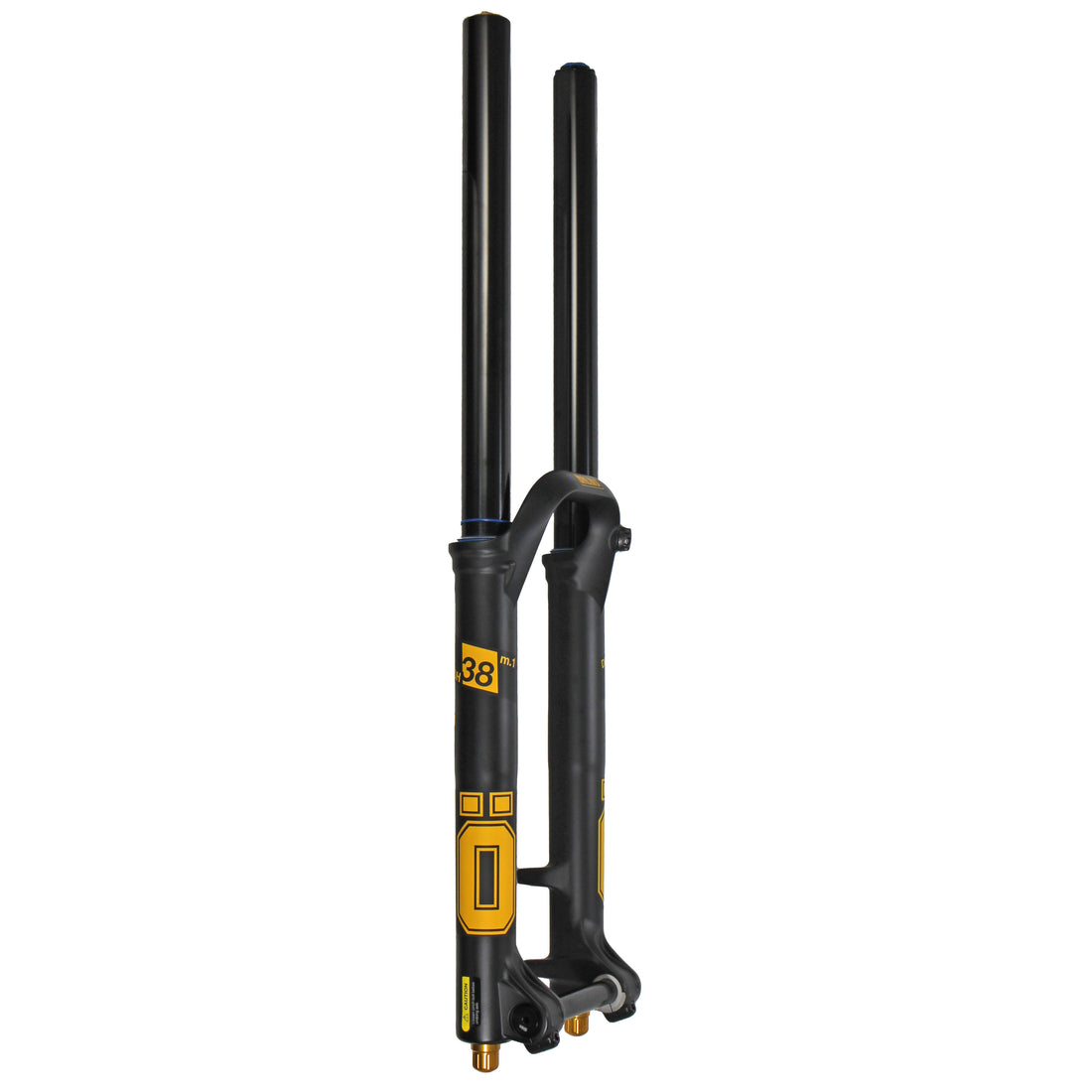

Ohlins DH Air Coil Race Fork 200mm Black

Join Waitlist

Wishlist Compare

TTX18 dampers 18mm piston provides optimal small bump sensitivity

15 clicks of low speed compression and low speed rebound

5 clicks of high-speed compression

Twin piston, three chamber air spring system, isolated from the upper tubes to reduced head build up

Total Tune Spring Curve System (TTSC) allowing total air spring tuning from the initial movement through to the bottom out

74mm post-mount disc brake mount

20x110mm DH Boost thru-axle

Max tire size: 29x2.8 inch or 27.5x3.0 inch

E-Bike approved

(CROWN NOT INCLUDED)

model	DH Air, Coil
wheel size	27.5"/29"
steerer (stem/race)	steerer and crown sold separately
offset	46-58mm
travel	200mm
spring type	coil
brake mount	disc only (74mm post mount)
dropout	20x110mm Boost
weight	2715g (without crowns and steer tube)
color	black
