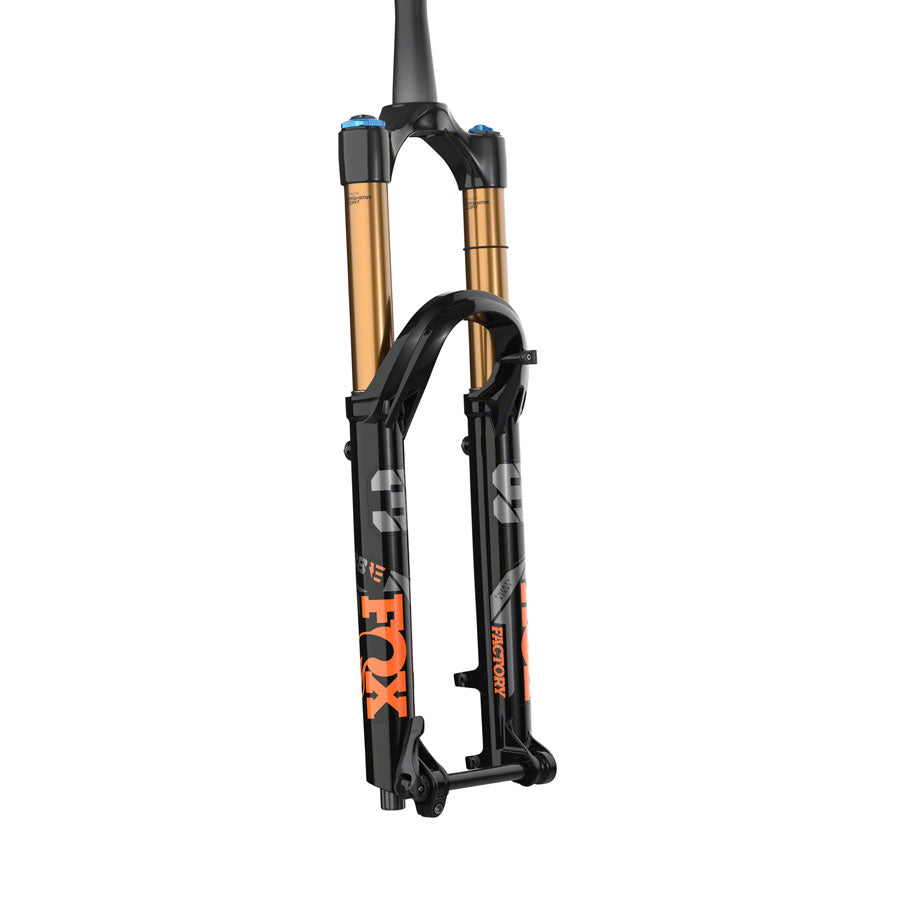

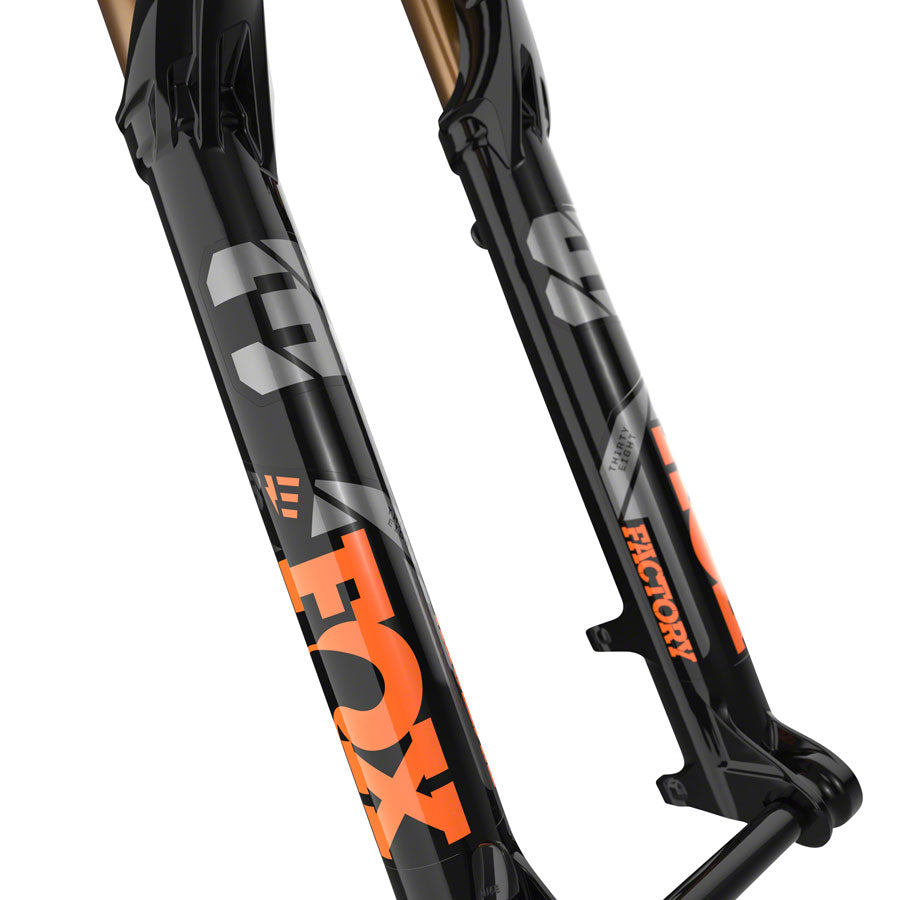

FOX 38 E-Optimized Factory Suspension Fork - 27.5" 170 mm 15QR x 110 mm 44 mm Offset Shiny Black Grip 2. E-Bike specific long-travel Enduro fork with 38mm stanchion tubes featuring floating axle new arch design and lower leg bleeders to release built-up pressure.
Genuine Kashima Coating on upper tubes

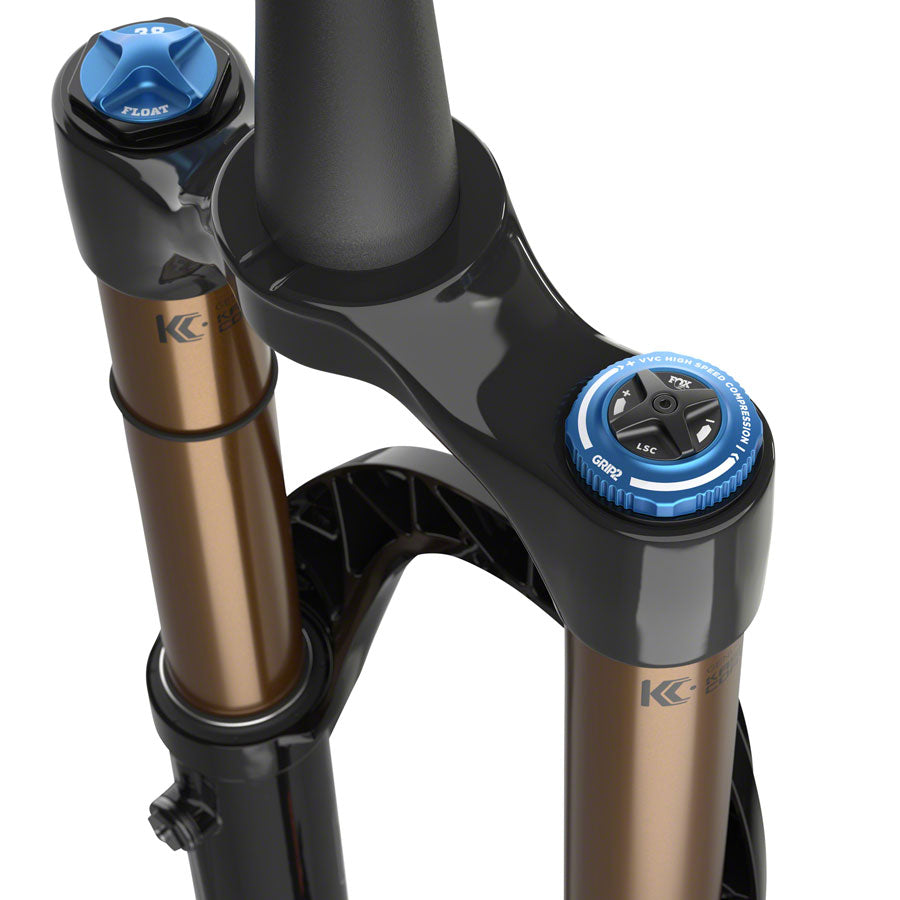

GRIP2 damper with Variable Valve Control
Next generation FLOAT EVOL with larger negative air chamber increases small bump sensitivity
Floating axle design
Lower leg bleeders
Direct mud guard mount
27.5: 723mm peak tire diameter
29: 762mm peak tire diameter
| Steerer Type | Tapered |
| Lockout Switch | None |
| Brake Type | Post Mount 180 |
| Negative Spring | Air |
| Travel (mm) | 180 |
| Offset | 44 |
| Axle to Crown Length | 575.7 |
| Front Axle | 15mm Thru x 110mm |
| Maximum Tire Width | 72 |
| S.H.I.S. Stem Clamp Diameter | 28.6 |
| Color | Shiny Black |
| Crown Race | 40 |
| Wheel Size | 27.5" |
| Designed for ebike | Yes |
| External Adjustments | High Speed Compression Damping |
| External Adjustments | Low Speed Compression Damping |
| External Adjustments | Rebound Damping |
| Defined Color | Black |
| Positive Spring | Air |
| Stanchion Diameter | 38 |
| Steerer Tube Length (mm) | 264 |
