- The most versatile, bombproof all-purpose rim
- 32 holes with an inner width of 26.5mm and outer width of 32mm
- The corrugated rim center adds exceptional strength, making it more rigid and allowing the rim to be wider without adding material
- Shot peen finish increases fatigue life and durability
- Delivers exceptional strength and stiffness at a remarkable value
- Non-Boost spacing / Not for use in tubeless applications
REAR WHEELS TO PAIR WITH:
 |
|---|
|

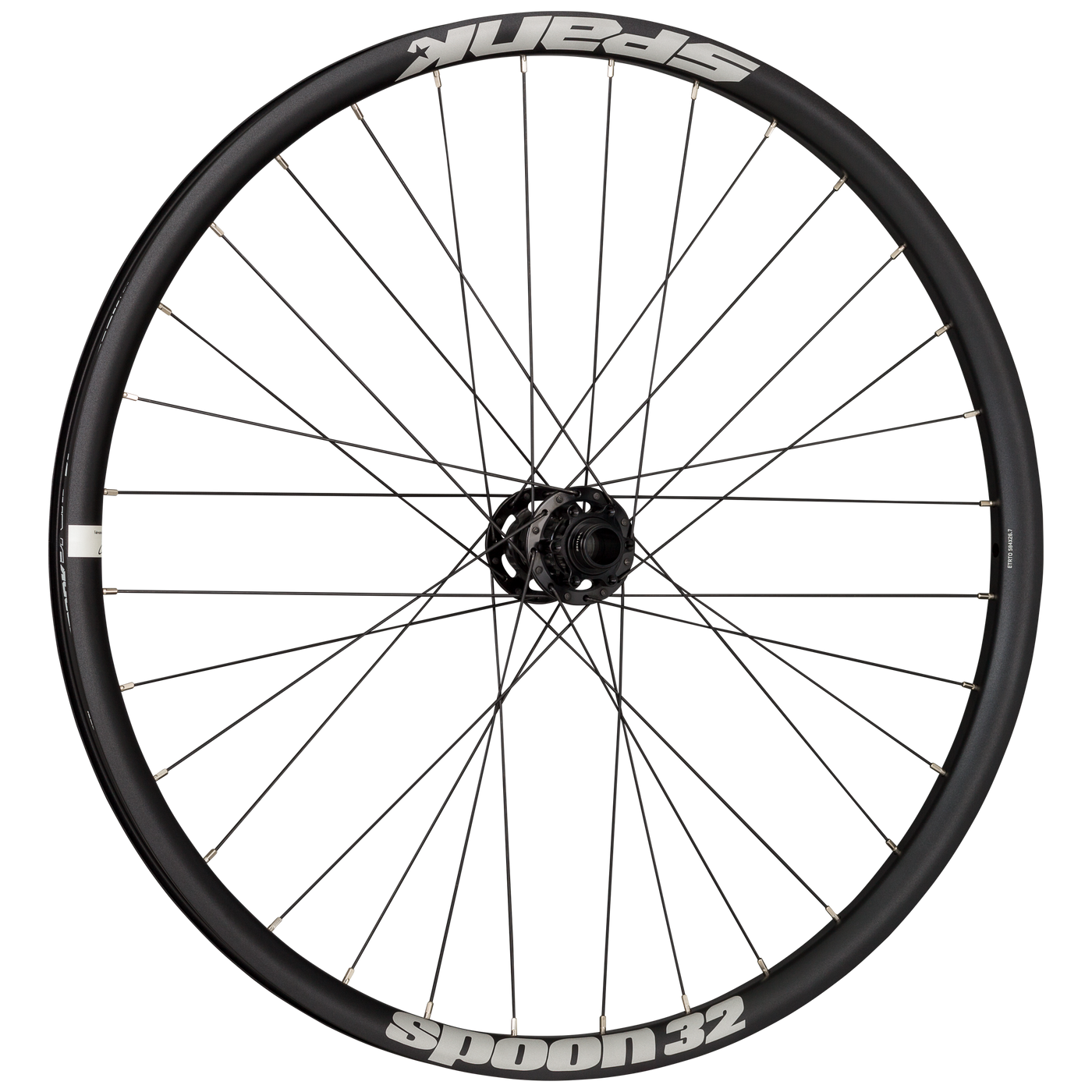

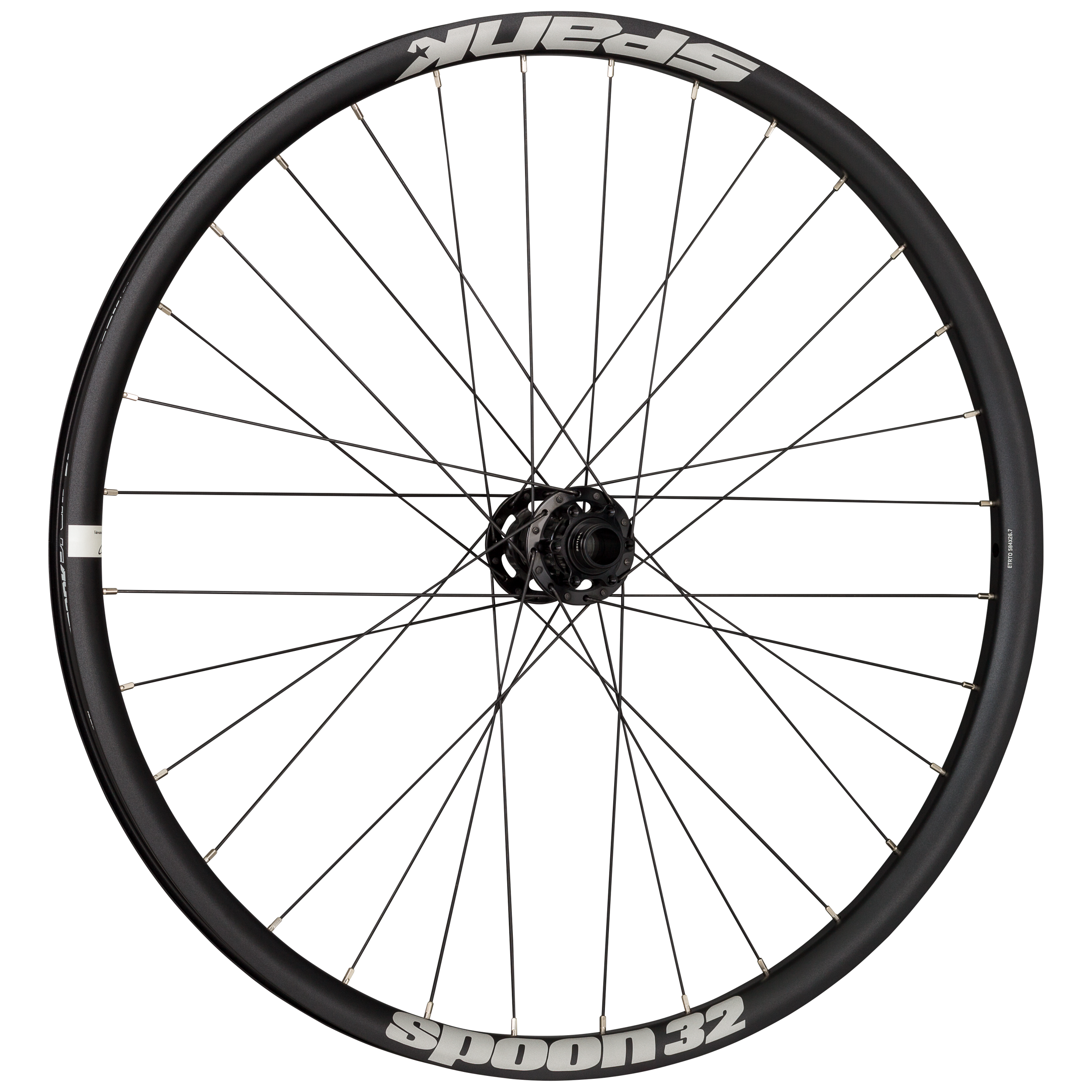

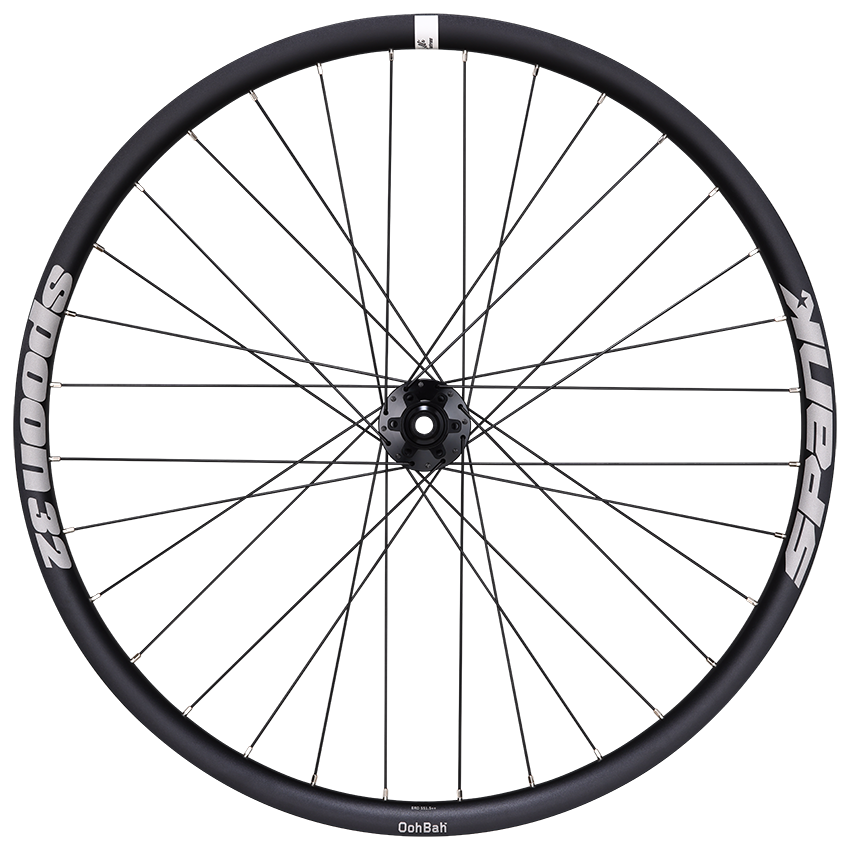

SPOON 32 |
VARIANT SPECS
| HUB | HUB SPACING | BOOST | HOLE COUNT | ADAPTER INCL. | WEIGHT | ERD | ETRTO | SPOKE LENGTH | SPOKE LENGTH | |
| 26" | SPANK SPIKE | 20x110 |
- | 32H | 15x100 |
1064g | 526.5++ | 559x26.5 | R-257 | L-255 |
| 27.5" |
SPANK SPIKE |
20x110 |
- | 32H | 15x100 |
1130g |
551.5++ | 584x26.5 | R-269 | L-267 |
| SPANK SPIKE | BOOST 15x110 |
BOOST |
32H | BOOST 20x110 |
959g | 551.5++ | 584x26.5 | R-269 | L-267 |
CLASSIFICATION & INTENDED USE: ASTM 5
| ALL MOUNTAIN |
TRAIL |
ENDURO |
FREERIDE |
|---|---|---|---|
| ✔ | ✔ | - |
✔ |
| DOWNHILL | GRAVEL | XC | E-BIKE |
| - | - | - | ✔ |
HUMAN FACTOR
SPANK's recommendations for what body type and ride style this product is suited to.
| BODY WEIGHT & RIDE STYLE: | Heavy Rider | Medium Rider | Light Rider |
|---|---|---|---|
| Heavy Impact |
✔ | ✔ |
✔ |
|
Medium Impact |
✔ | ✔ |
✔ |
| Light impact |
✔ | ✔ | ✔ |
RIM SPECIFICATIONS
| HOLE COUNT: |
32 |
|---|---|
| INNER WIDTH (mm): |
26.5 |
|
OUTER WIDTH (mm): |
32 |
| PROFILE HEIGHT: |
24 |
| TYRE FIT |
1.8" to 2.4" |
BUILD SPECIFICATIONS
| BUILD: |
Handbuilt |
|---|---|
| HUB: | SPANK SPIKE Hub with steel axle |
|
SPOKES: |
J-Hook |
| NIPPLES: |
Brass External |
| LACING: |
3 cross lacing |
| VALVE: | A/V Schrader Valve |
| TUBELESS: | No |
