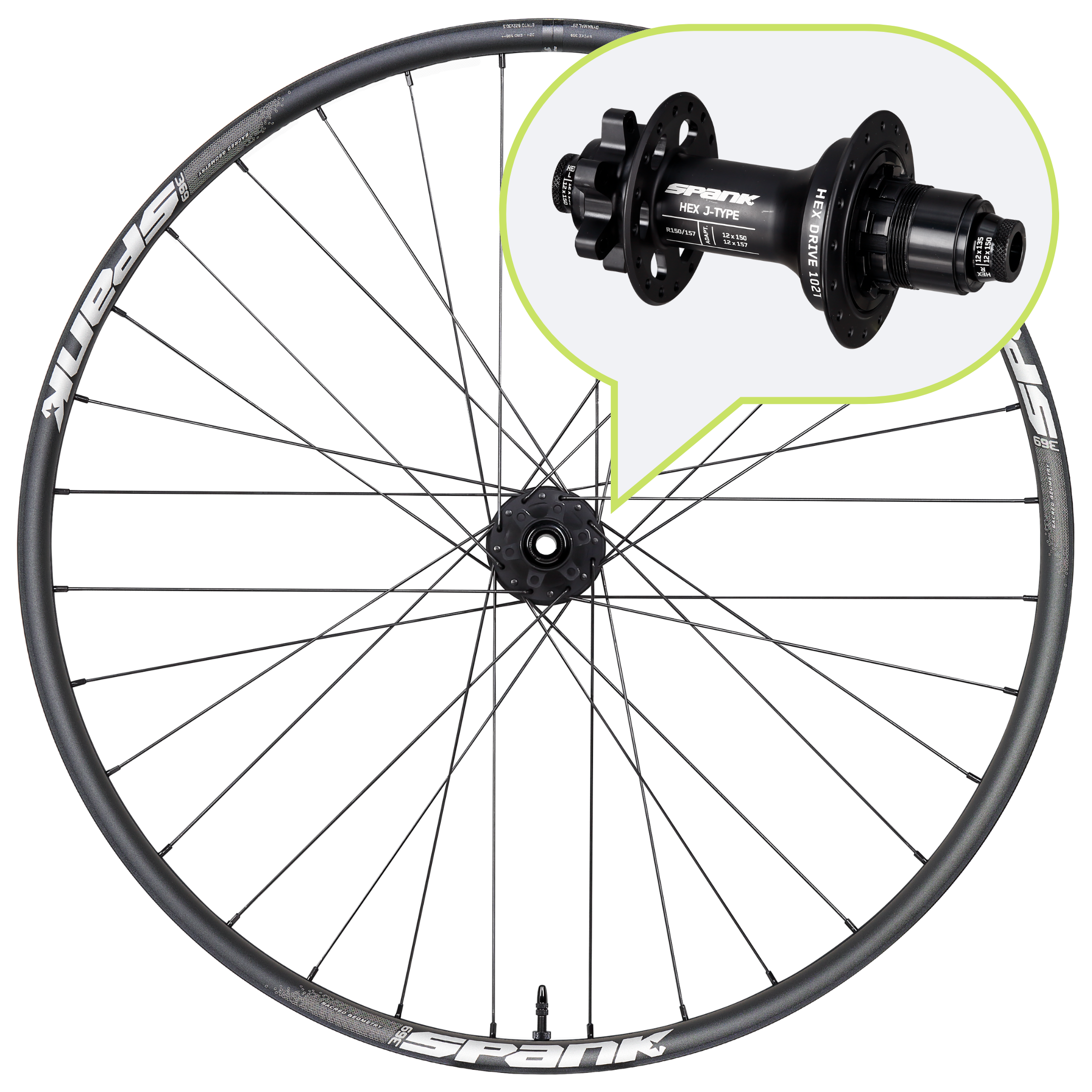

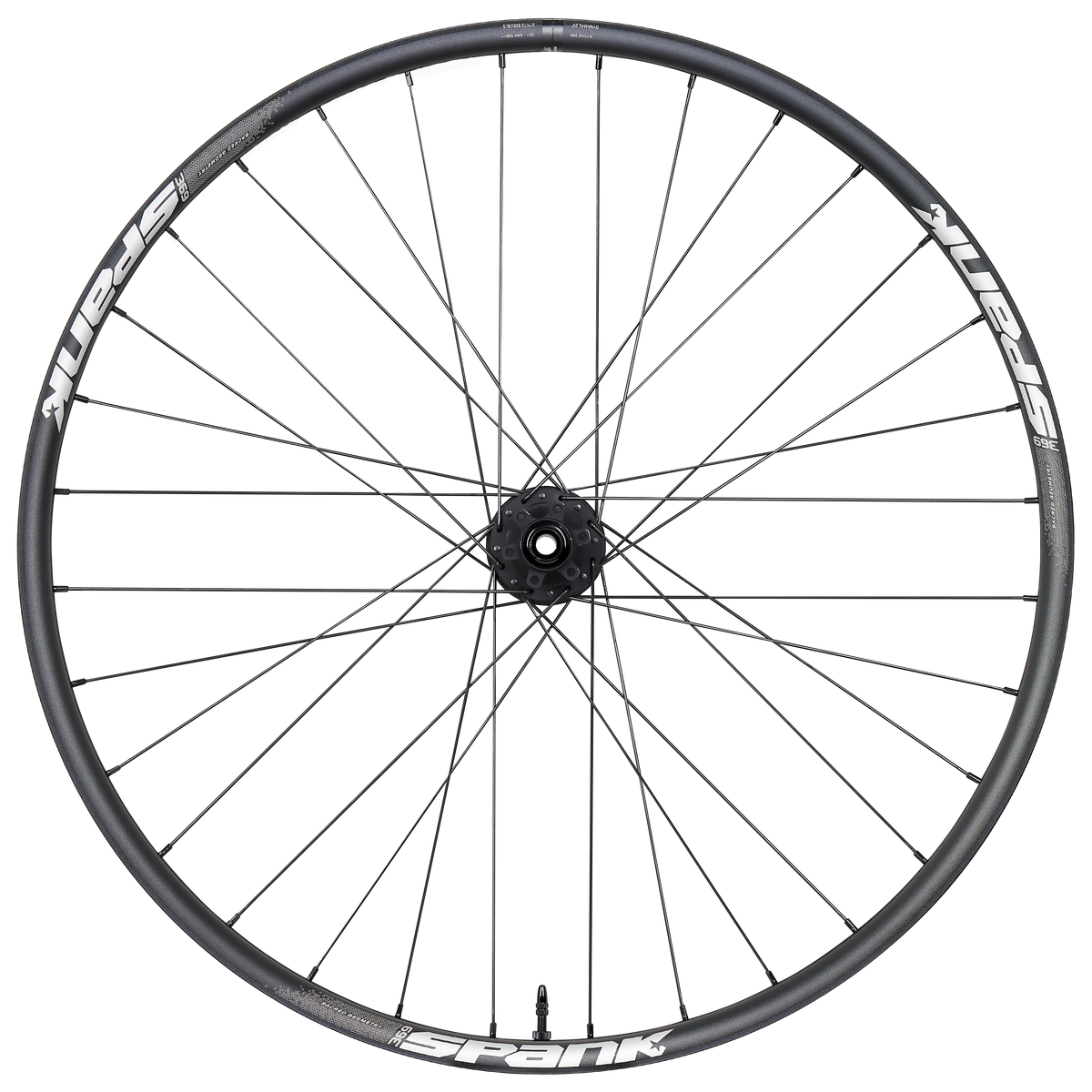

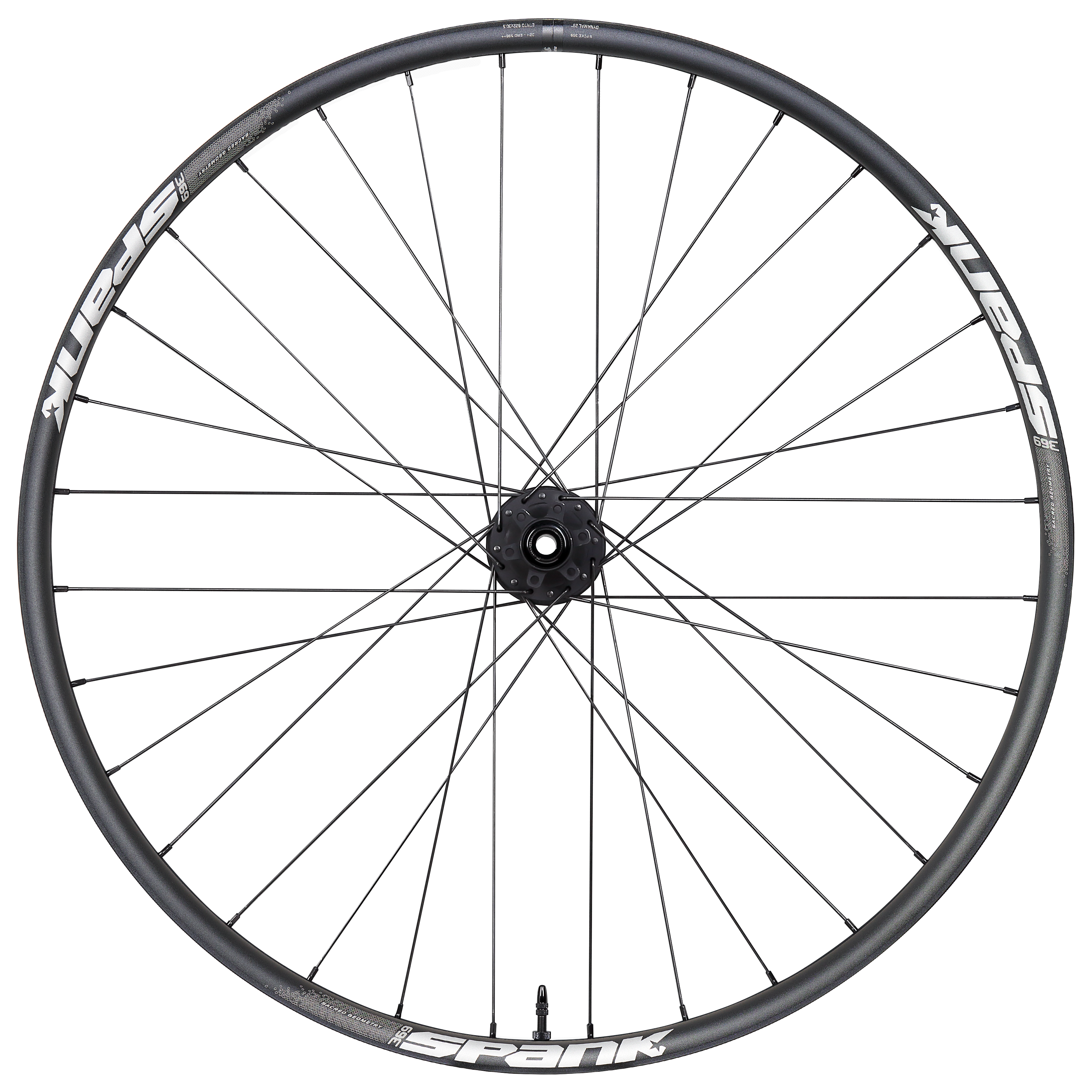

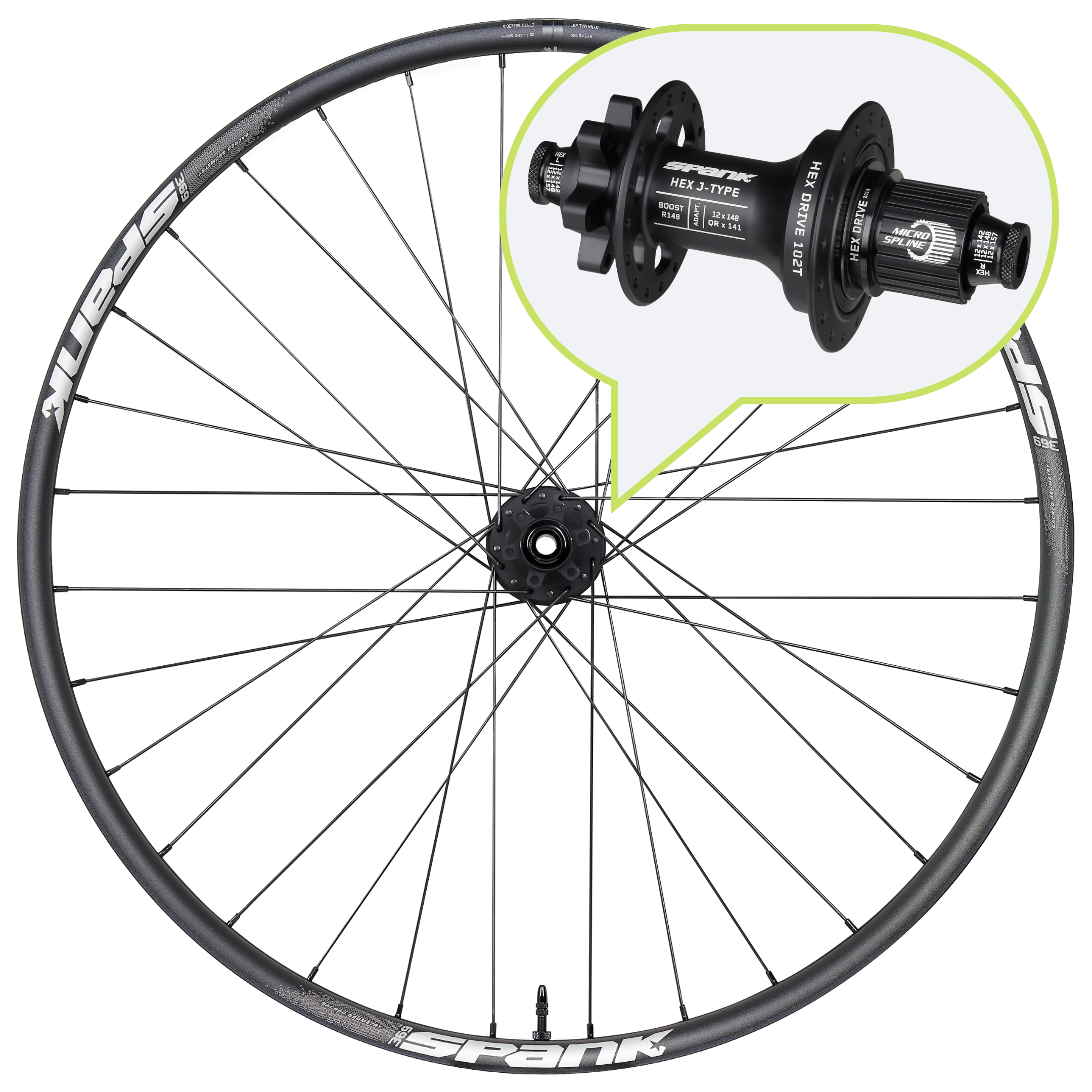

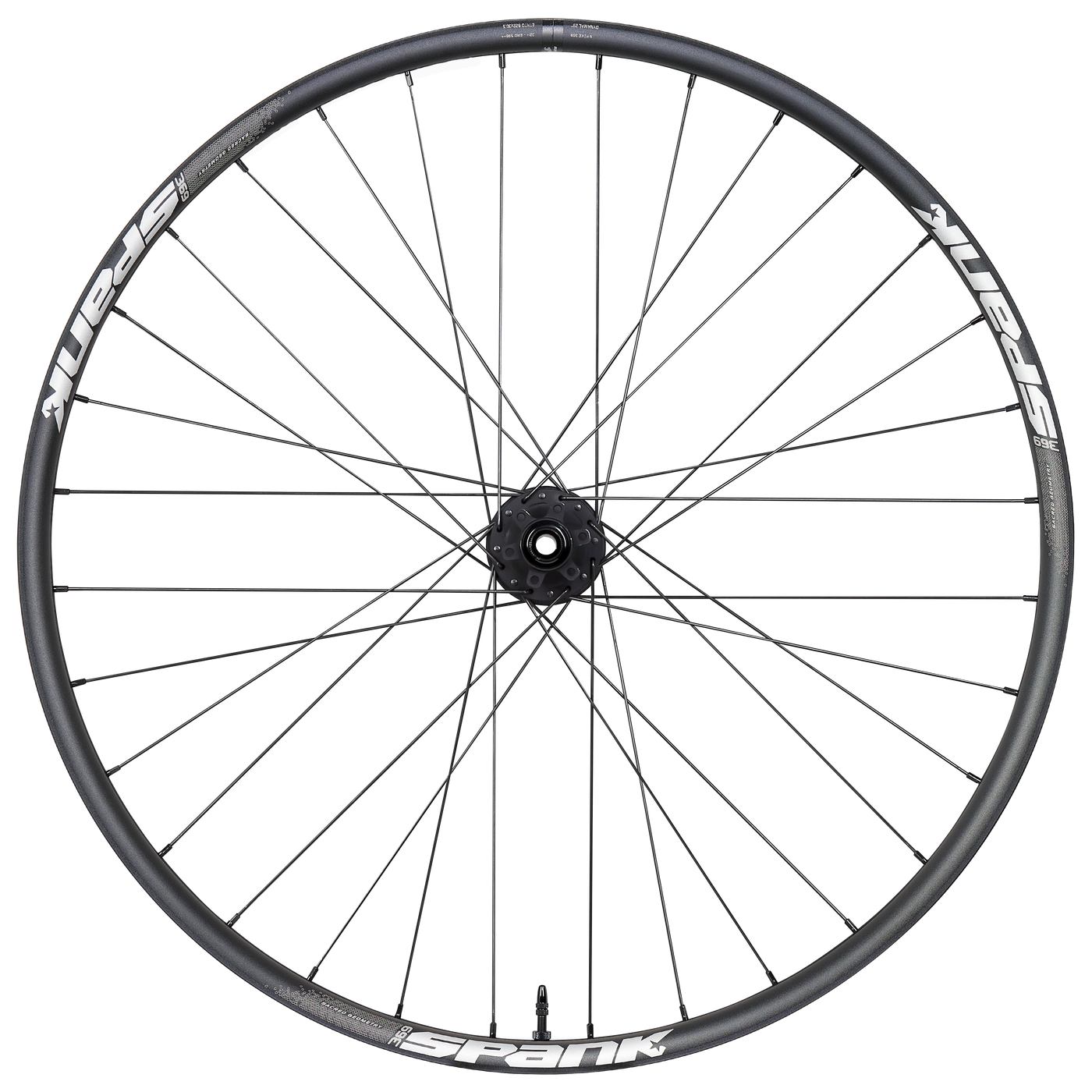

SPANK SPIKE 369 Rear Wheel

Spank 369 rear wheels are laced to the brand new SPANK HEX Drive Hub, with 102T 6-pawl ratchet offering 3.5 degrees of engagement - that's literally almost instant pick-up.  Hand-built to A-Class specifications, the 369 wheels with SPANK Hex Drive hub is the premium lightweight performance offer from the SPANK wheelhouse and is trusted by pros on the Enduro World Series circuit.

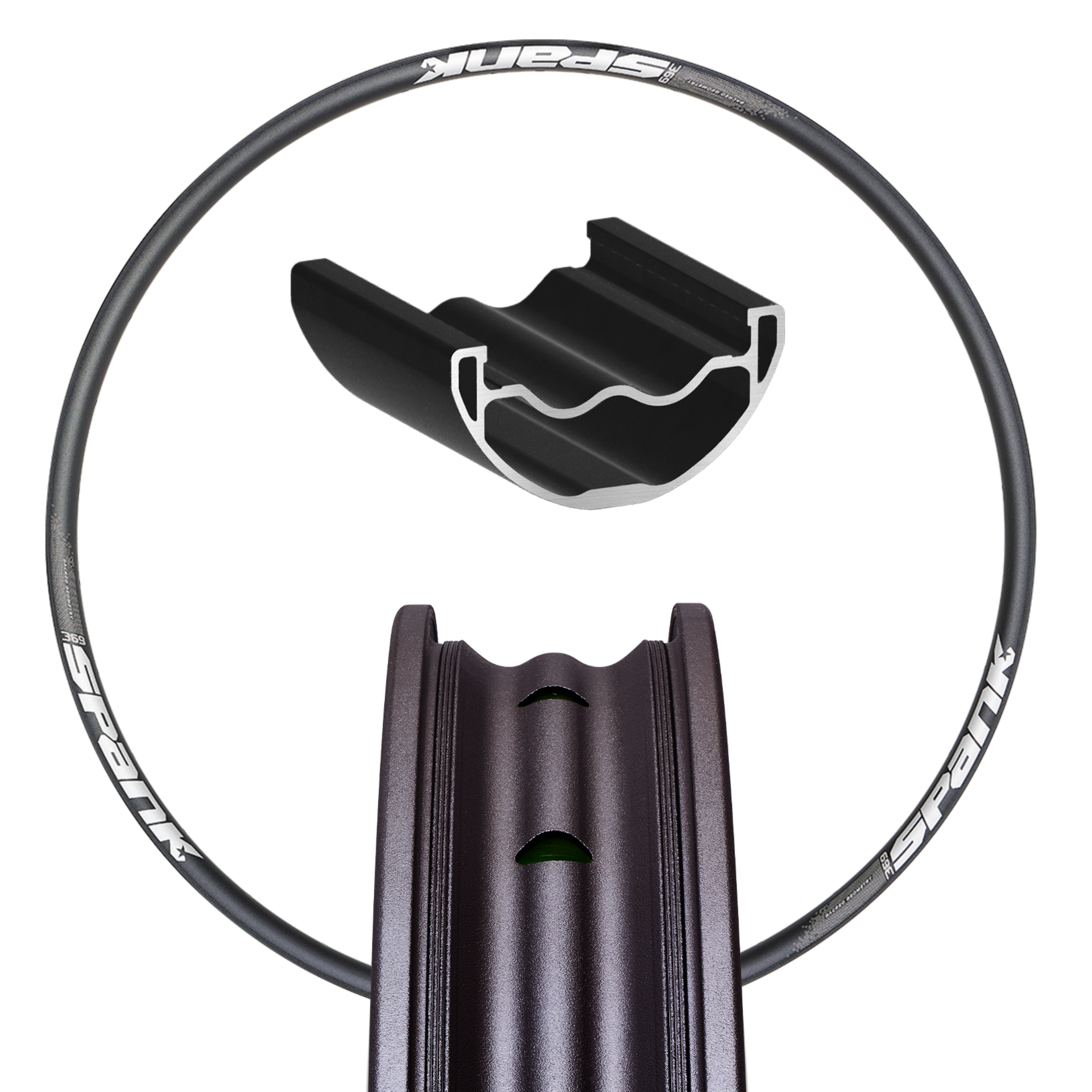

• Sacred Geometry hollow bead wall design improves lateral and vertical strength. Wider bead wall effectively reduces pinch flats and increases impact resistance.

• Moderately low 19mm profile height and wide width balances the benefits of radial compliance with high lateral stiffness and predictable handling
• Radial Compliance improves traction over bumps and chatter while reducing negative feedback to the rider. Performance and comfort are improved
• 30.5mm inner width is extremely versatile, fitting tires from 2.0” to 2.6”, and even allowing + size tire use without negative squaring off of tire profiles
• Bead Bite tubeless hooks enhance tubeless performance and tire security, even at lower pressures

• 150/157 wheels will also fit Superboost applications - Evil, Pivot, Devinci, etc.

REAR WHEELS TO PAIR WITH:

SPIKE 369 VIBROCORE FRONT WHEEL	SPIKE 369 FRONT WHEEL	SPIKE 359 VIBROCORE FRONT WHEEL



VARIANT SPECS

(Available factory standard in XD and Shimano HG.  Micro spine freehubs available).

	HUB	HUB SPACING	BOOST	FREEHUB	HOLE COUNT	ADAPTER INCL.	WEIGHT	ERD	ETRTO	SPOKE LENGTH	SPOKE LENGTH
27.5"	HEX J TYPE	12x148	BOOST	HG	32H	-	1123g	560++	584x30.5	R-270	L-273
	HEX J TYPE	12x148	BOOST	XD	32H	-	1106g	560++	584x30.5	R-270	L-273
	HEX J TYPE	12x150	-	HG	32H	12x157	1124g	560++	584x30.5	R-270	L-273
	HEX J TYPE	12x150	-	XD	32H	12x157	1116g	560++	584x30.5	R-270	L-273
29"	HEX J TYPE	12x148	BOOST	HG	32H	-	1187g	598++	622x30.5	R-289	L-292
	HEX J TYPE	12x148	BOOST	XD	32H	-	1159g	598++	622x30.5	R-289	L-292
	HEX J TYPE	12x150	-	HG	32H	12x157	1168g	598++	622x30.5	R-289	L-292
	HEX J TYPE	12x150	-	XD	32H	12x157	1160g	598++	622x30.5	R-289	L-292

COMPATIBLE REAR ADAPTERS

Boost R148:	HEX Rear Hub QRx135/141 Adapter
R150/157:	N/A
R135/142:	HEX Rear Hub QRx135/141 Adapter
	HEX Rear Hub 10x135 Adapter

COMPATIBLE SERVICE KITS

HEX Rear HG/HGR Hub Replacement Bearing Kit

HEX Rear XD/XDR Hub Replacement Bearing Kit

HEX Boost Rear Hub Alloy Axle Shaft

HEX Rear Hub 135/142mm Alloy Axle Shaft

HEX Rear Hub 150/157mm Alloy Axle Shaft

HEX Rear Hub HG Alloy Anti-Bite Freehub

HEX Rear Hub XD Alloy Freehub

CLASSIFICATION & INTENDED USE:  ASTM 5

ALL MOUNTAIN	TRAIL	ENDURO	FREERIDE
✔	✔	✔	✔
DOWNHILL	GRAVEL	XC	E-BIKE
✔	-	-	*

 * Recommended for E-Bike when adapting with SPANK HEX DRIVE steel freehub (available as a separate purchase in HG, XD, and Microspline.  (See Hex Drive Service Parts)

HUMAN FACTOR

SPANK's recommendations for what body type and ride style this product is suited to.

BODY WEIGHT & RIDE STYLE:	Heavy Rider	Medium Rider	Light Rider
Heavy Impact	✔	✔	✔
Medium Impact	✔	✔	✔
Light impact	✔	✔	✔

RIM SPECIFICATIONS

HOLE COUNT:	32
INNER WIDTH (mm):	30.5
OUTER WIDTH (mm):	35
PROFILE HEIGHT:	19
TYRE FIT	2.0" to 2.6"

BUILD SPECIFICATIONS

BUILD:	A-Class Handbuilt
HUB:	SPANK HEX J-TYPE
SPOKES:	J-Hook, tripple butted 2.2/1.8/2.0
NIPPLES:	Brass external
LACING:	3 cross lacing
VALVE:	F/V Presta
TUBELESS:	Tubeless taped & valved

HUB SPECIFICATIONS:

ENGAGEMENT:	HEX DRIVE 102T / 3.5° / 6 Pawl
HOLE COUNT:	32H J-Hook
DISC MOUNT:	6-bolt
MATERIAL:	CNC optimized forged alloy hub body, alloy axle, alloy freehub body



FREEHUB COMPATIBILITY – What freehub do I need?
