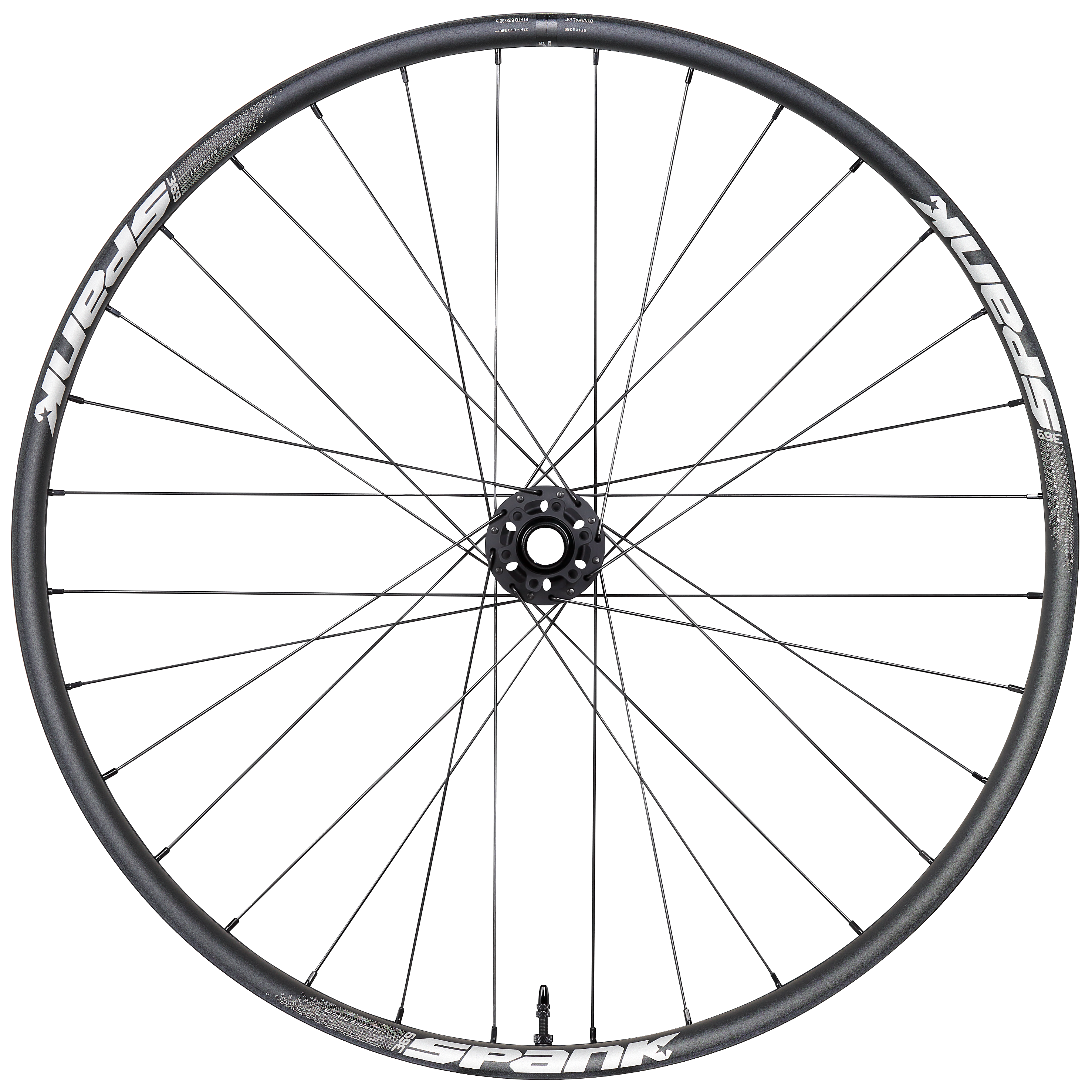

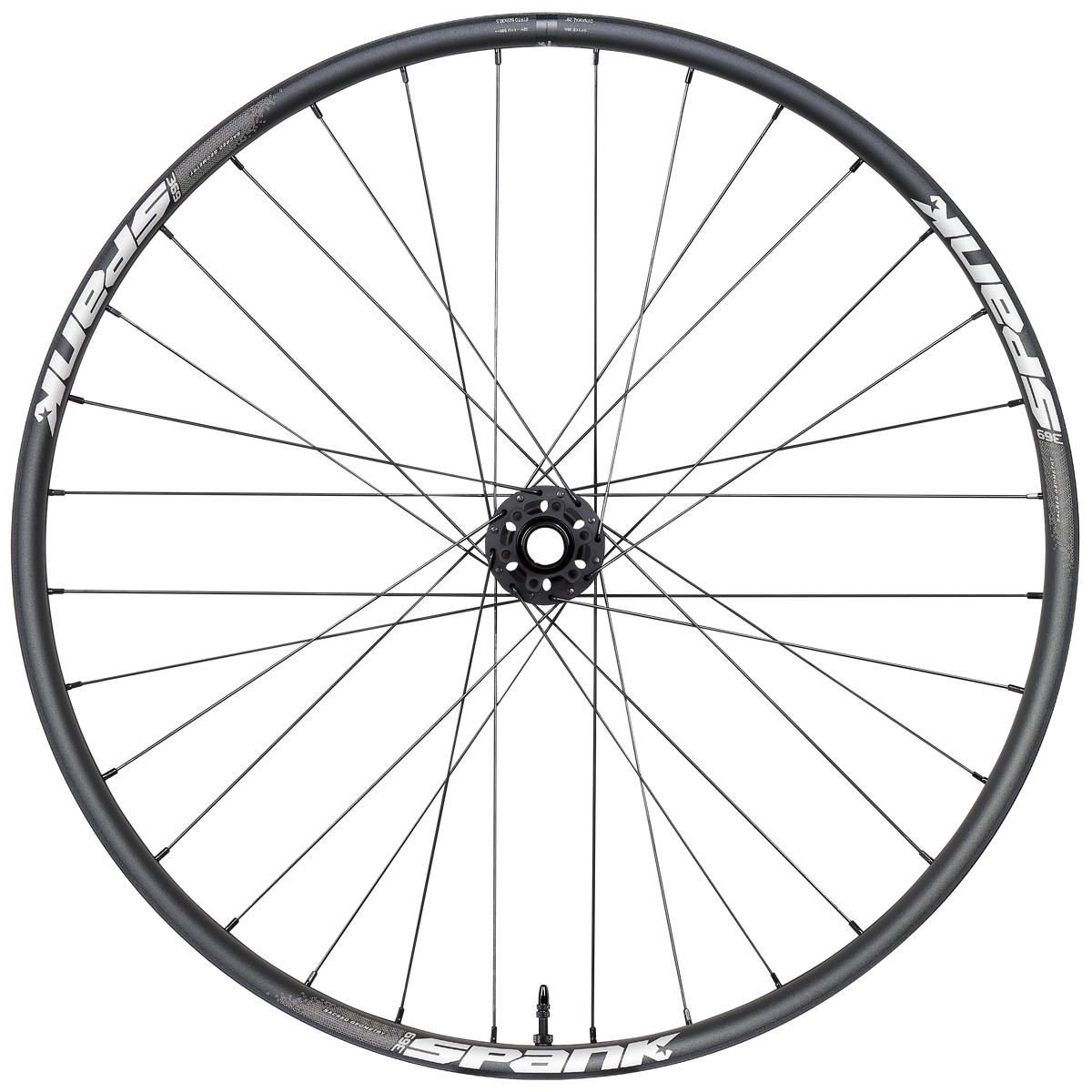

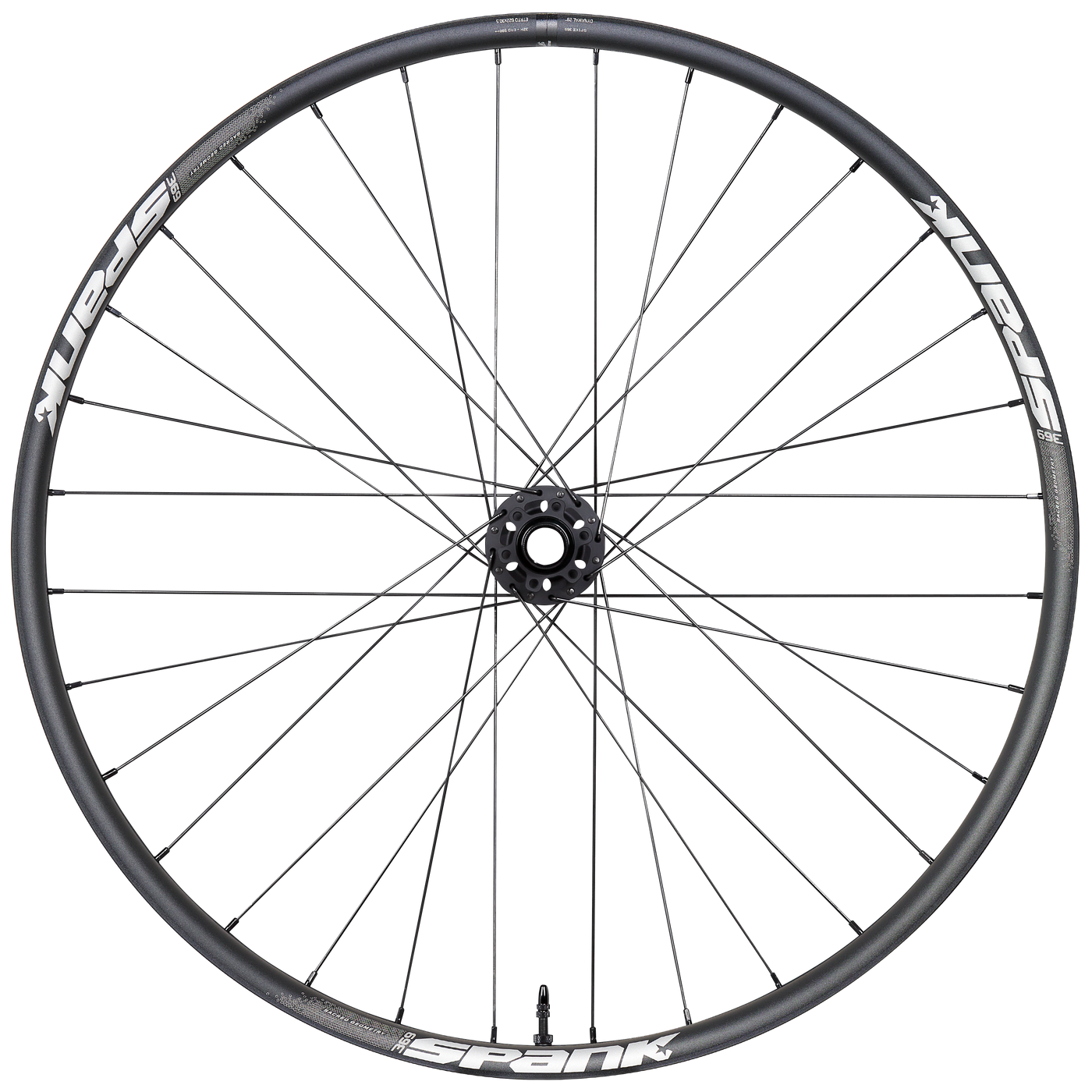

SPANK SPIKE 369 FRONT Wheel

Hand-built to A-Class specifications, the 369 wheels with SPANK Hex Drive hub is the premium lightweight performance offer from the SPANK wheelhouse and is trusted by pros on the Enduro World Series circuit.

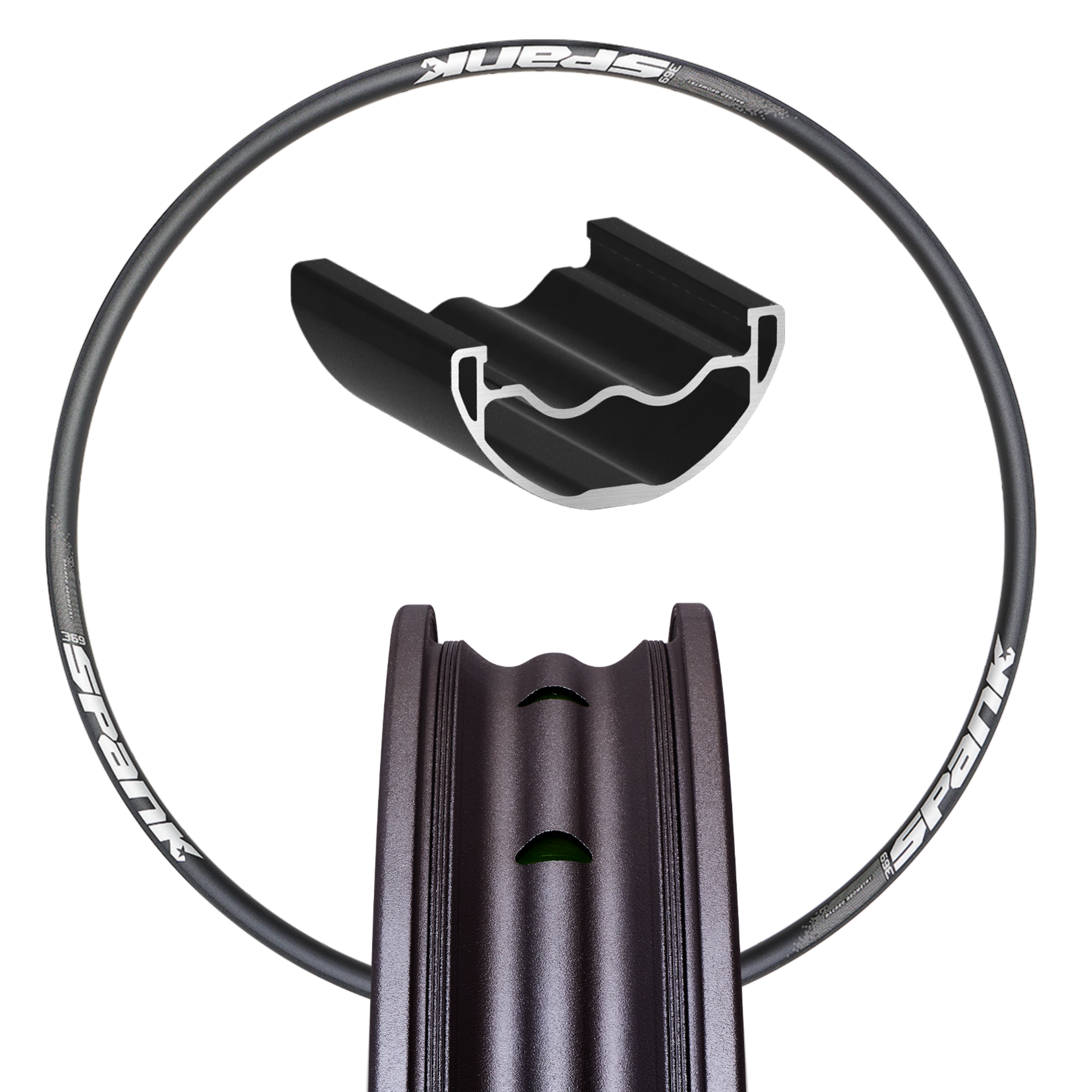

• Sacred Geometry hollow bead wall design improves lateral and vertical strength. A wider bead wall effectively reduces pinch flats and increases impact resistance.
• Moderately low 19mm profile height and wide width balances the benefits of radial compliance with high lateral stiffness and predictable handling
• Radial Compliance improves traction over bumps and chatter while reducing negative feedback to the rider. Performance and comfort are improved
• 30.5mm inner width is extremely versatile, fitting tires from 2.0” to 2.6”, and even allowing + size tire use without negative squaring off of tire profiles
• Bead Bite tubeless hooks enhance tubeless performance and tire security, even at lower pressures

REAR WHEELS TO PAIR WITH:



SPIKE 369 VIBROCORE REAR WHEEL	SPIKE 369 REAR WHEEL	SPIKE 359 VIBROCORE REAR WHEEL



VARIANT SPECS

	HUB	HUB SPACING	BOOST	HOLE COUNT	ADAPTER INCL.	WEIGHT	ERD	ETRTO	SPOKE LENGTH	SPOKE LENGTH
27.5"	HEX J TYPE	BOOST 15X110	BOOST	32H	BOOST 20X110	978g	560++	584x30.5	R-272	L-270
	HEX J TYPE	20X110	-	32H	15X100	966g	560++	584x30.5	R-272	L-270
	HEX STRAIGHT PULL	BOOST 15X110	BOOST	28H	-	895g	560++	584x30.5	R-285	L-284
29"	HEX J TYPE	BOOST 15X110	BOOST	32H	BOOST 20X110	977g	598++	622x30.5	R-292	L-290
	HEX J TYPE	20X110	-	32H	15X100	1009g	598++	622x30.5	R-292	L-290
	HEX STRAIGHT PULL	BOOST 15X110	BOOST	28H	-	938g	598++	622x30.5	R-285	L-284

COMPATIBLE ADAPTERS FOR SPANK HEX J-TYPE FRONT HUBS

Boost F15/20	HEX Ø32 Boost Front Hub Torque Caps Adapter
F15/20	HEX Ø32 Front Hub QRx100 Adapter
	HEX Ø32 Front Hub 12x100 Adapter
All Hex J-Type Front Hubs	HEX Ø32 Front Hub Boost 15x110 Conversion Kit
	HEX Ø32 Front Hub Boost 20x110 Conversion Kit

COMPATIBLE SERVICE KITS FOR SPANK HEX J-TYPE FRONT HUBS

HEX Ø32 Front Hub Replacement Bearing Kit

COMPATIBLE ADAPTERS FOR SPANK HEX STRAIGHTPULL FRONT HUBS

Boost F15	HEX Ø28 Boost Front Hub Torque Caps Adapter

COMPATIBLE SERVICE KITS FOR SPANK HEX STRAIGHTPULL FRONT HUBS

HEX Ø28 Front Hub Replacement Bearing Kit

CLASSIFICATION & INTENDED USE:  ASTM 5



ALL MOUNTAIN	TRAIL	ENDURO	FREERIDE
✔	✔	✔	✔
DOWNHILL	GRAVEL	XC	E-BIKE
✔	-	-	*

 * Recommended for E-Bike when adapting with SPANK HEX DRIVE steel freehub (available as a separate purchase in HG, XD, and Microspline.  (See Hex Drive Service Parts)

HUMAN FACTOR

SPANK's recommendations for what body type and ride style this product is suited to.

BODY WEIGHT & RIDE STYLE:	Heavy Rider	Medium Rider	Light Rider
Heavy Impact	✔	✔	✔
Medium Impact	✔	✔	✔
Light impact	✔	✔	✔

RIM SPECIFICATIONS

HOLE COUNT:	32 / 28
INNER WIDTH (mm):	30.5
OUTER WIDTH (mm):	35
PROFILE HEIGHT:	19
TYRE FIT	2.0" to 2.6"

BUILD SPECIFICATIONS

	32H	28H
BUILD:	A-Class Handbuilt	A-Class Handbuilt
HUB:	SPANK HEX J-TYPE	SPANK HEX STRAIGHT PULL
SPOKES:	J-Hook, triple-butted 2.2/1.8/2.0	J-Hook, triple-butted 2.2/1.8/2.0
NIPPLES:	Brass external	Alloy External
LACING:	3 cross lacing	3 cross lacing
VALVE:	F/V Presta	F/V Presta
TUBELESS:	Tubeless taped & valved	Tubeless taped & valved
