The fastest distance between two points.

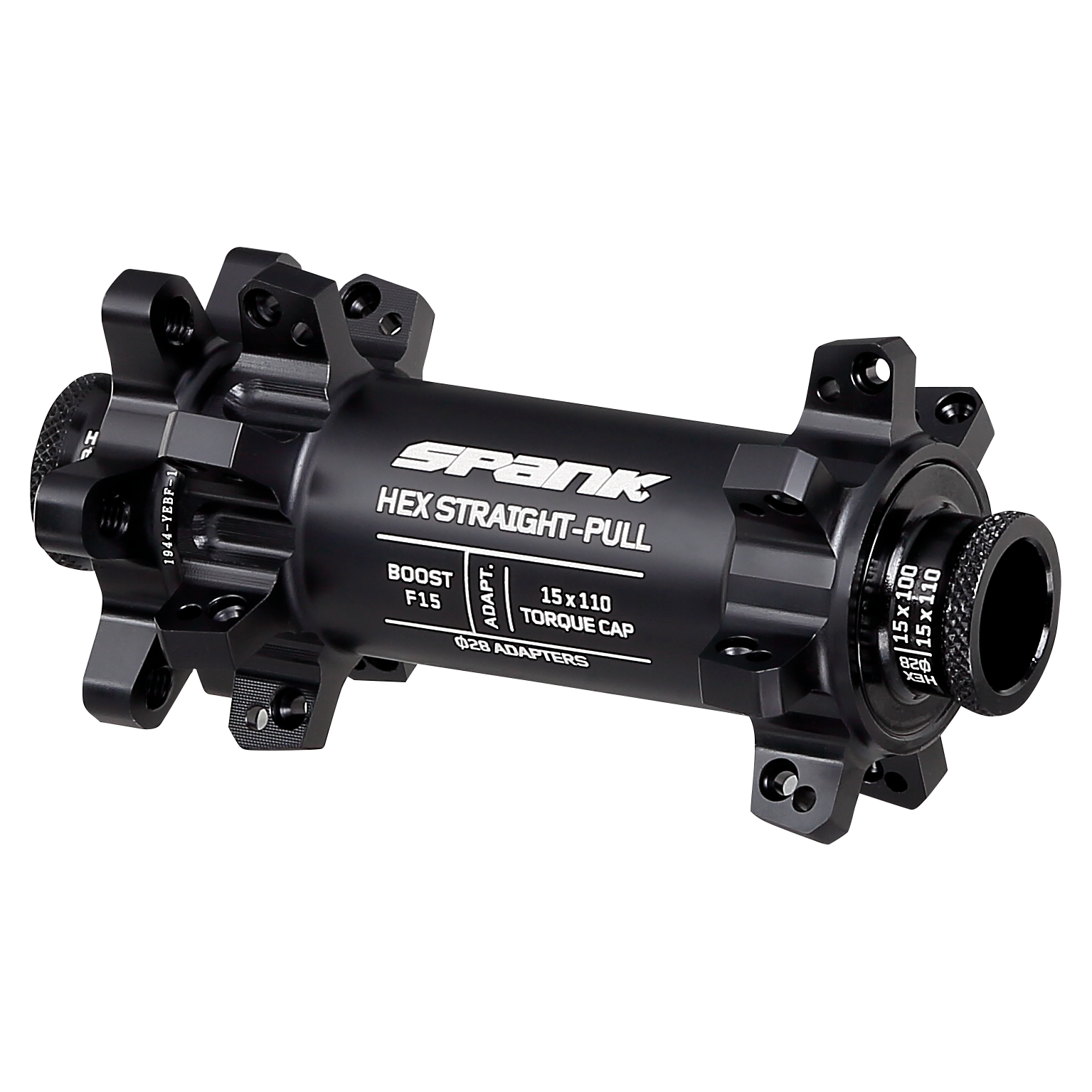

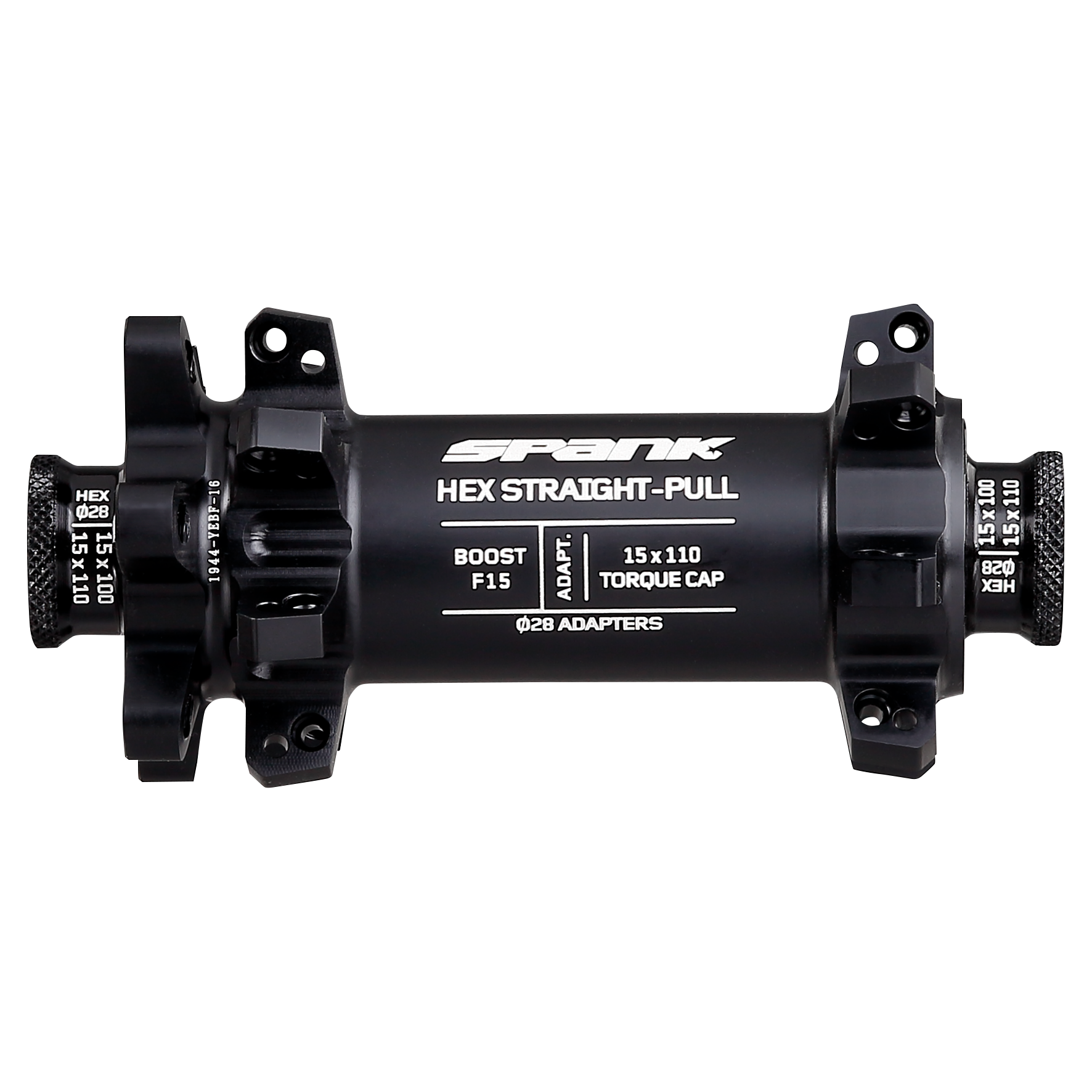

The New SPANK HEX DRIVE HUB, featuring:
- Oversized bearings for optimal adaptability
- Simple to maintain
- Light weight
- Advanced seal system
CLOSEOUTS: All Sales final.
CLASSIFICATION & INTENDED USE
| ALL MOUNTAIN |
TRAIL |
ENDURO |
FREERIDE |
DOWNHILL |
GRAVEL |
XC |
| ✔ |
✔ |
✔ |
|
|
|
|
- Highly weight optimized, race inspired front hub
- Ø28 bearings minimize overall weight, and allow adaptability up to 15mm thru axles
- Unique flange design reduces dish requirement and minimizes tension range between drive side and non-drive side spokes
- Compatible with Ø28 HEX Boost front hub adapters only
- Advanced seal system improves prevention of bearing contamination
SPECIFICATIONS
|
HOLE COUNT:
|
28H Straight Pull
|
|
DISC MOUNT:
|
6-bolt
|
|
MATERIAL:
|
CNC optimized forged alloy hub body
|
|
FINISH:
|
Matte anodized, laser logos
|
BOOST F15
|
CONFIGURATION:
|
Boost 15x110, Straightpull |
|
WEIGHT +/- (g):
|
136
|
|
ADAPTORS INCLUDED:
|
none
|
|
ADAPTORS AVAILABLE SEPARATELY:
|
Ø28 Torque Caps
|
ADAPTERS COMPATIBLE WITH SPANK HEX STRAIGHT PULL FRONT HUBS
|
Boost F15
|
HEX Ø28 Boost Front Hub Torque Caps Adapter
|
SERVICE KITS COMPATIBLE WITH SPANK HEX STRAIGHT PULL FRONT HUBS
