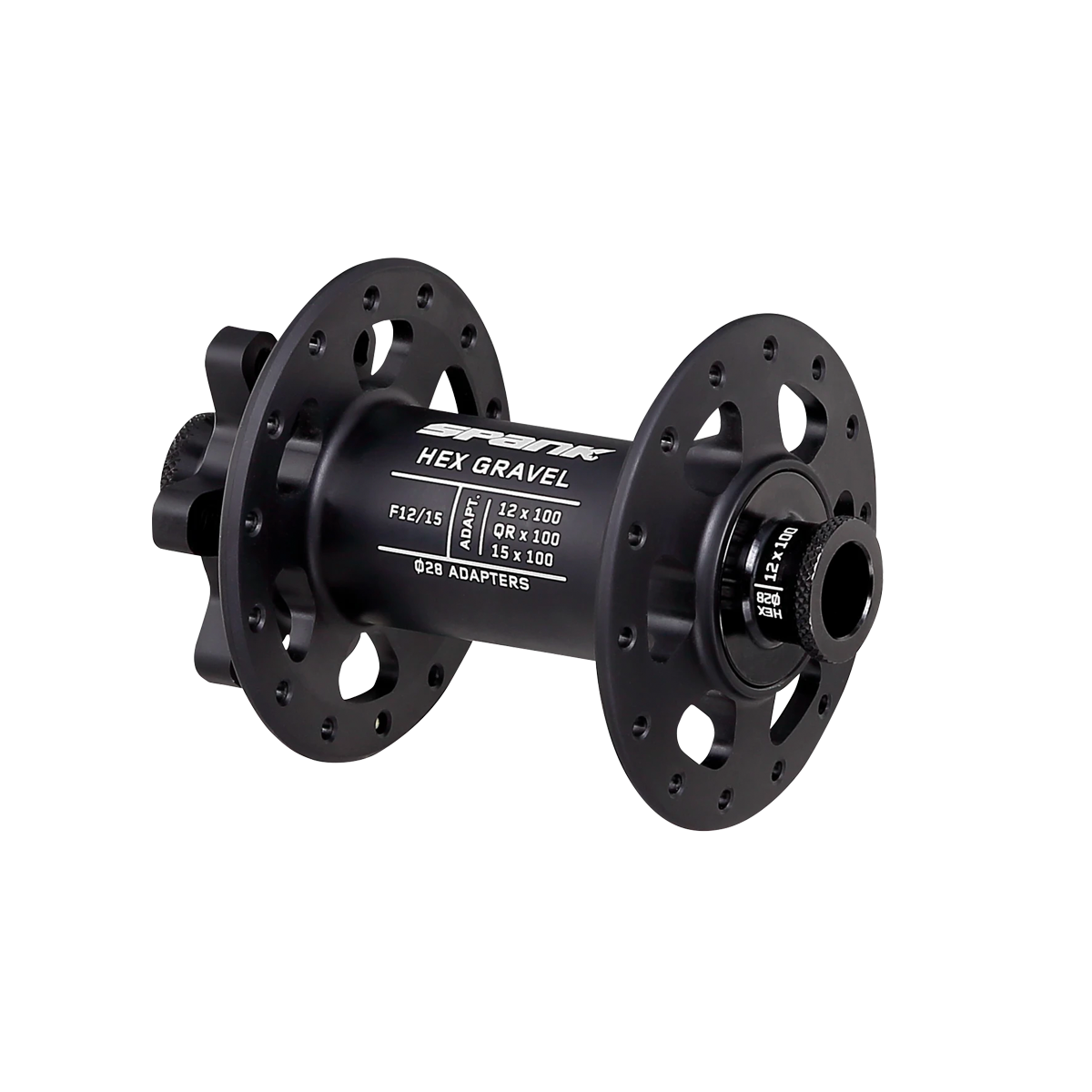

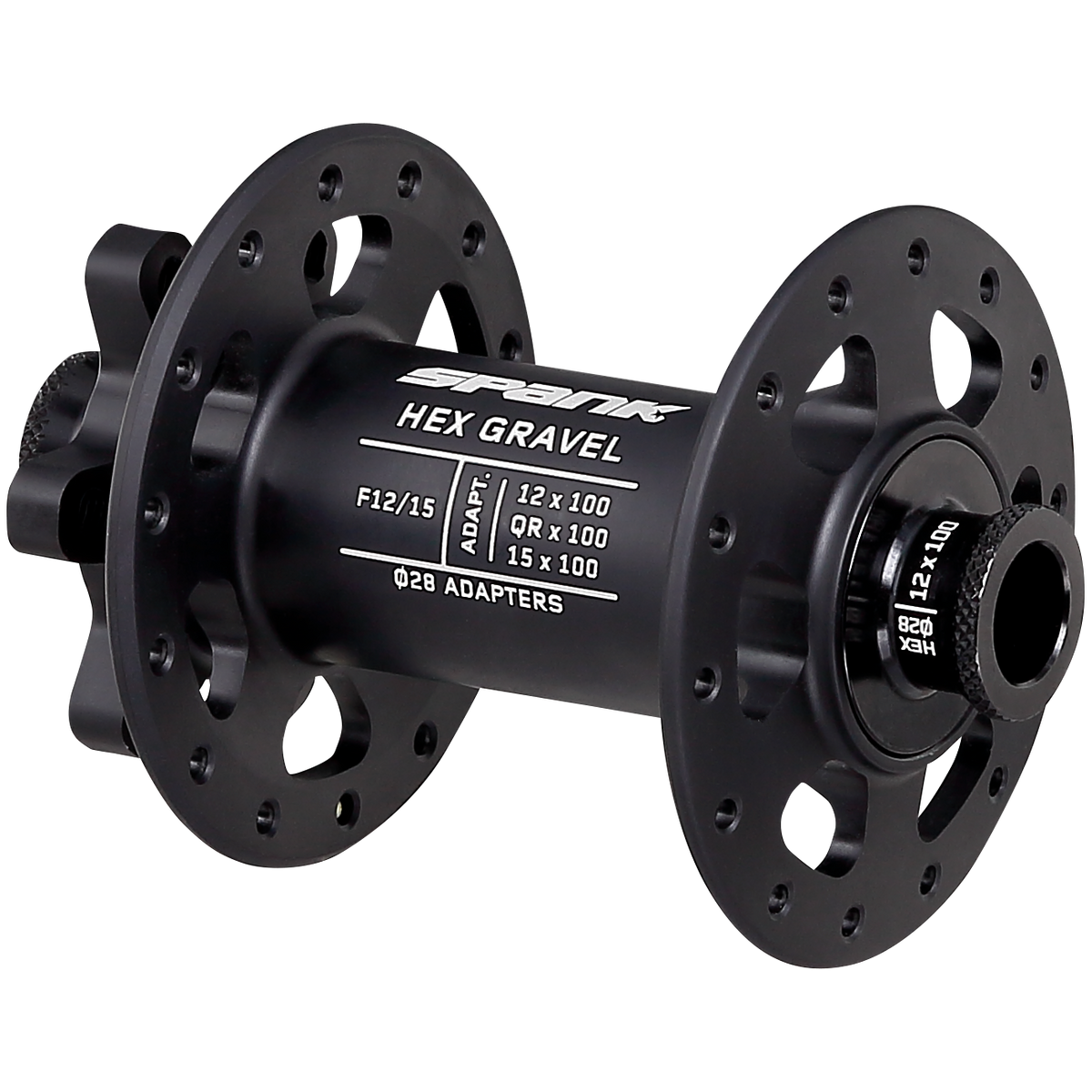

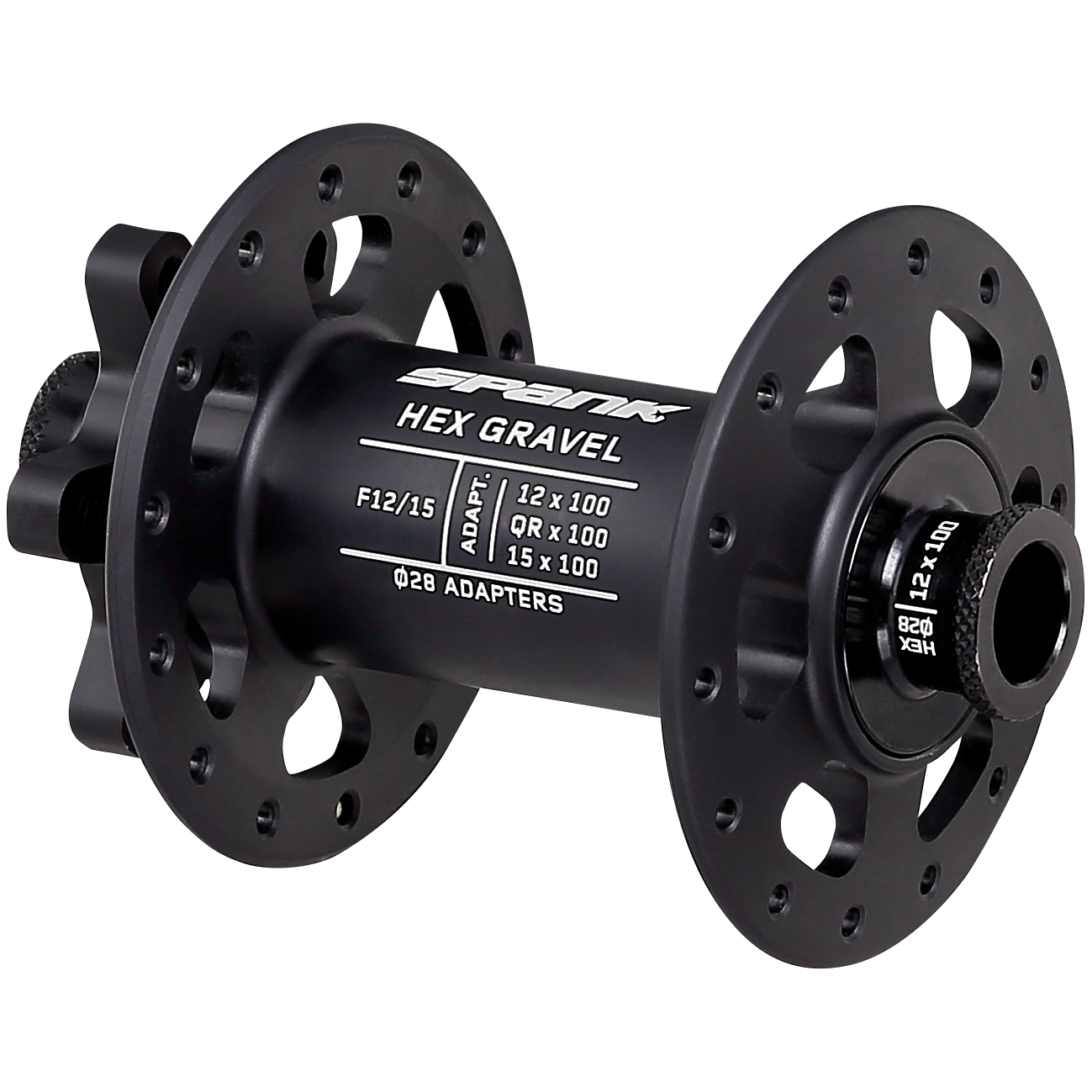

The perfect gravel hub.
The New SPANK HEX DRIVE HUB, featuring:
- Oversized bearings for optimal adaptability
- Simple to maintain
- Lightweight
- Advanced seal system
CLASSIFICATION & INTENDED USE
| ALL MOUNTAIN |
TRAIL |
ENDURO |
FREERIDE |
DOWNHILL |
GRAVEL |
XC |
|
|
|
|
|
✔ |
✔ |
- Highly weight-optimized front hub, ideal for Gravel and XC.
- Ø28 bearings minimize overall weight, and allow adaptability up to 15mm thru axles
- Unique flange design reduces dish requirement and minimizes tension range between drive side and non-drive side spokes
- Compatible with Ø28 HEX front hub adapters only
- Advanced seal system improves prevention of bearing contamination
SPECIFICATIONS
|
HOLE COUNT:
|
28H J-Hook
|
|
DISC MOUNT:
|
6-bolt
|
|
MATERIAL:
|
CNC optimized forged alloy hub body
|
|
FINISH:
|
Matte anodized, laser logos
|
F12/15
|
CONFIGURATION:
|
12x100, J-hook |
|
WEIGHT +/- (g):
|
147
|
|
ADAPTORS INCLUDED:
|
Ø28 QRx100
|
|
ADAPTORS AVAILABLE SEPARATELY:
|
Ø28 15x100
|
ADAPTERS COMPATIBLE WITH SPANK HEX GRAVEL FRONT HUBS
|
F12/15
|
HEX Ø28 Front Hub 15x100/110 Adapter
|
SERVICE KITS COMPATIBLE WITH SPANK HEX GRAVEL FRONT HUBS
HEX Ø28 Front Hub Replacement Bearing Kit
