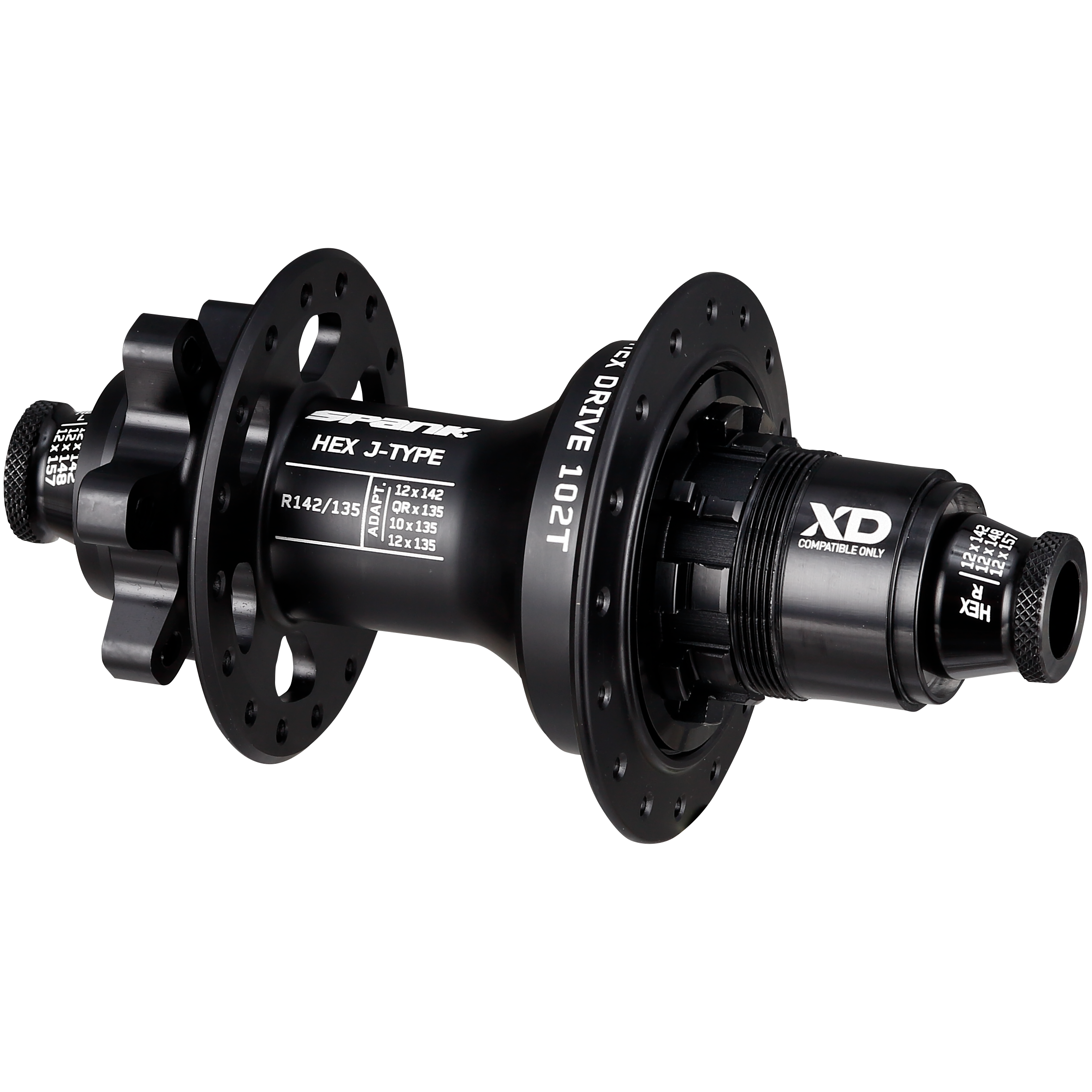

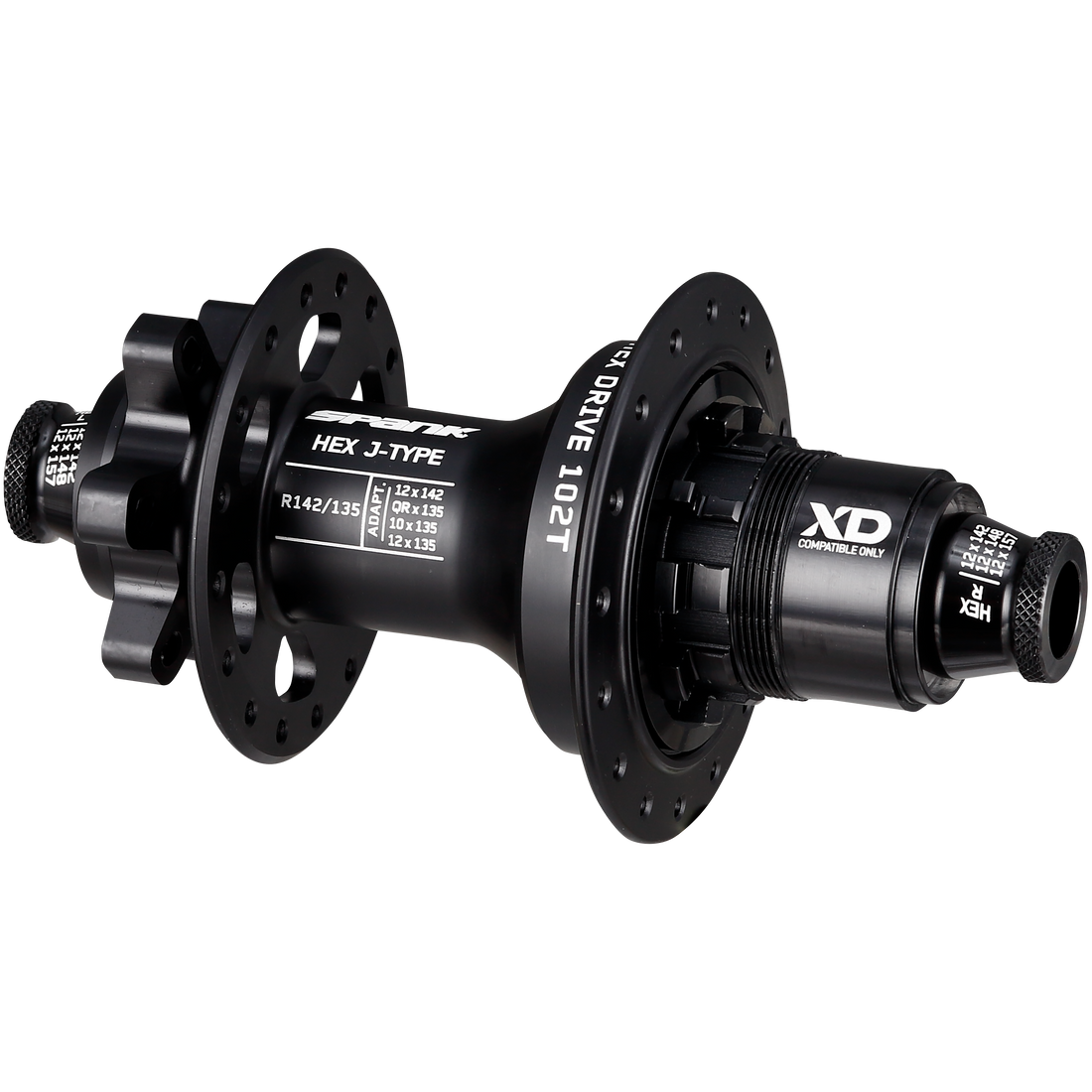

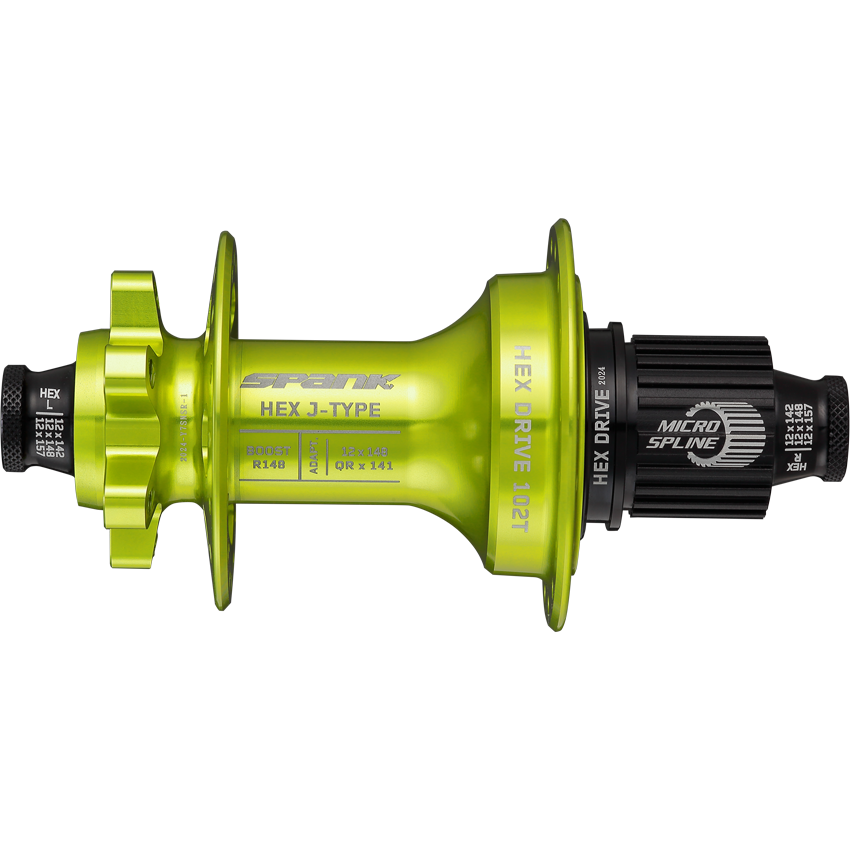

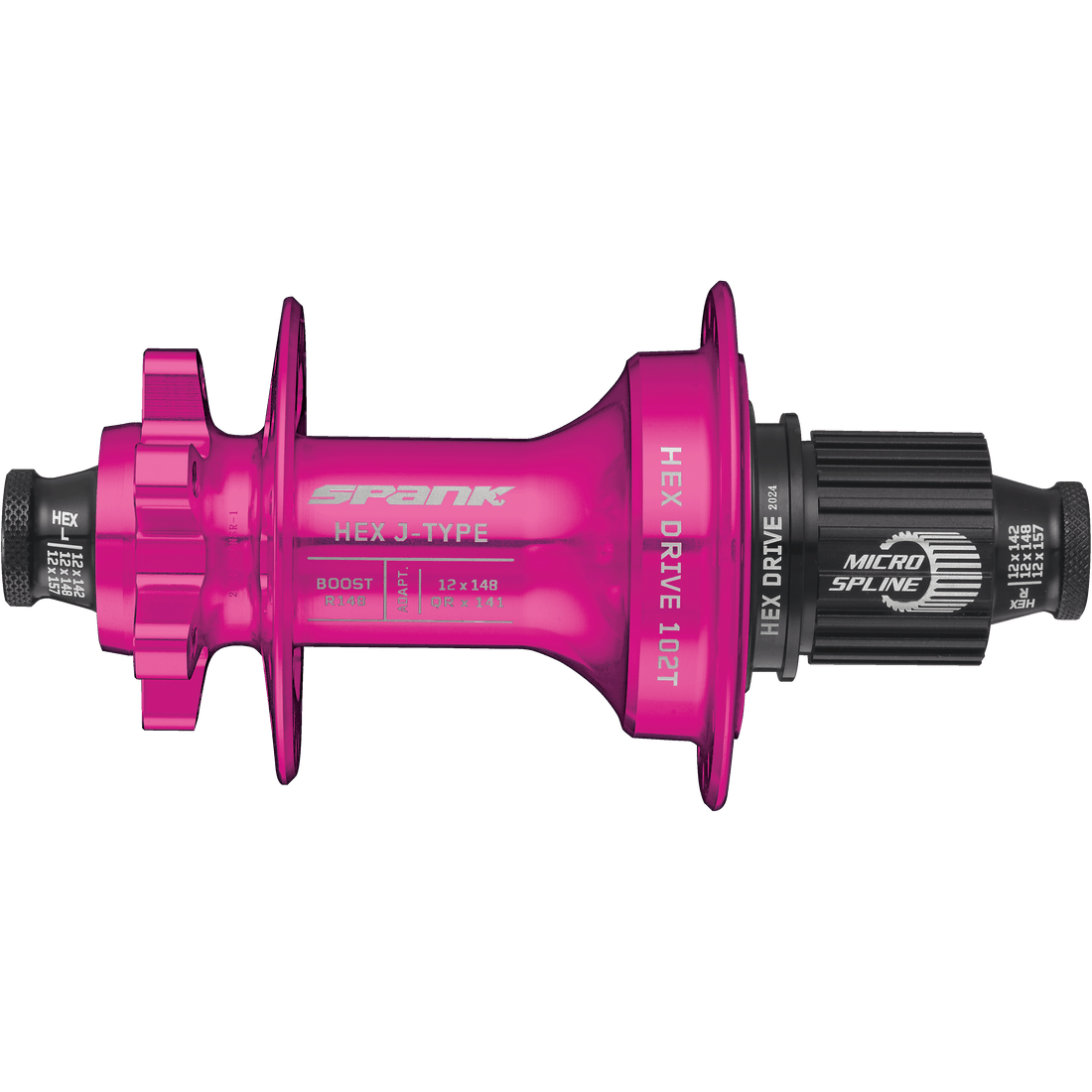

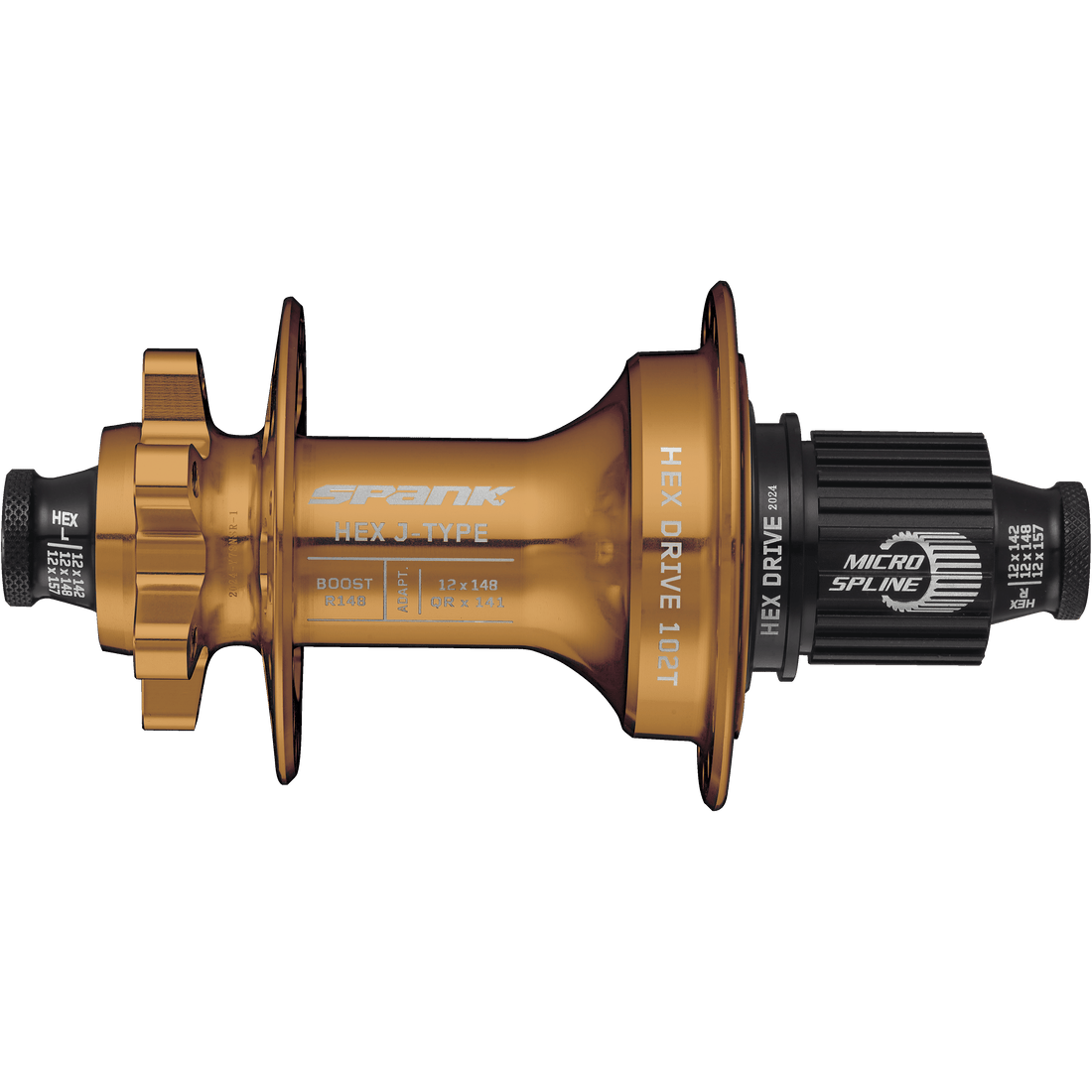

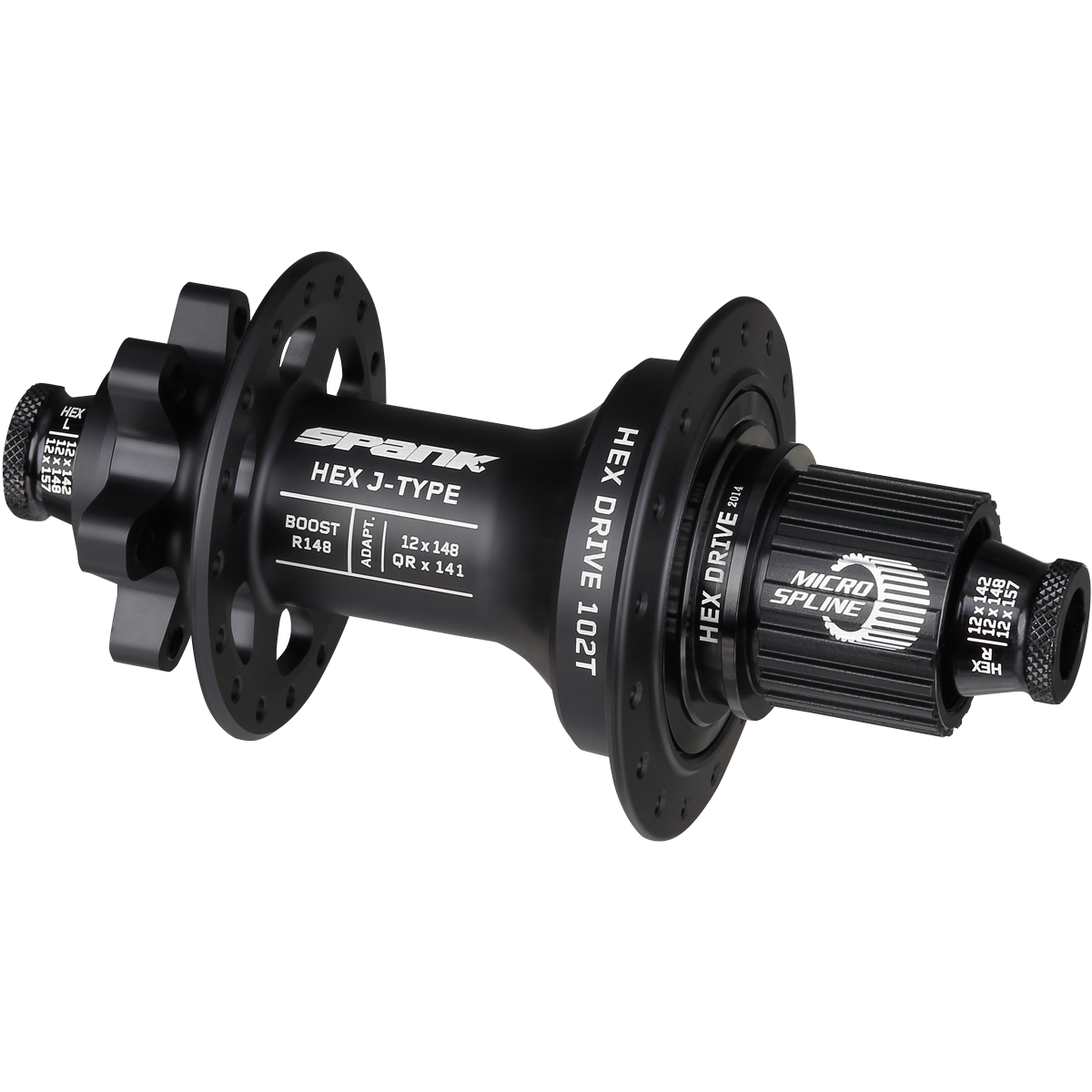

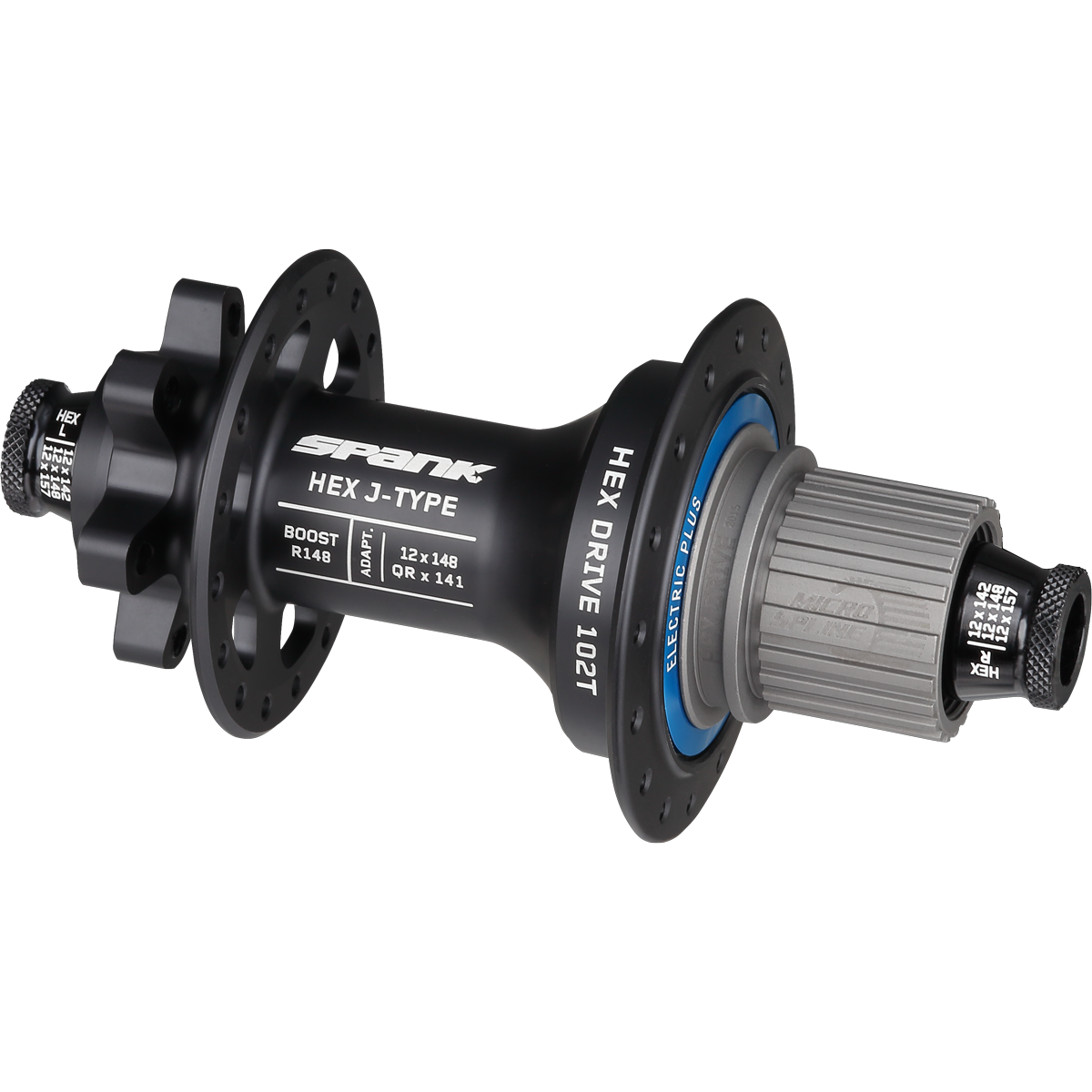

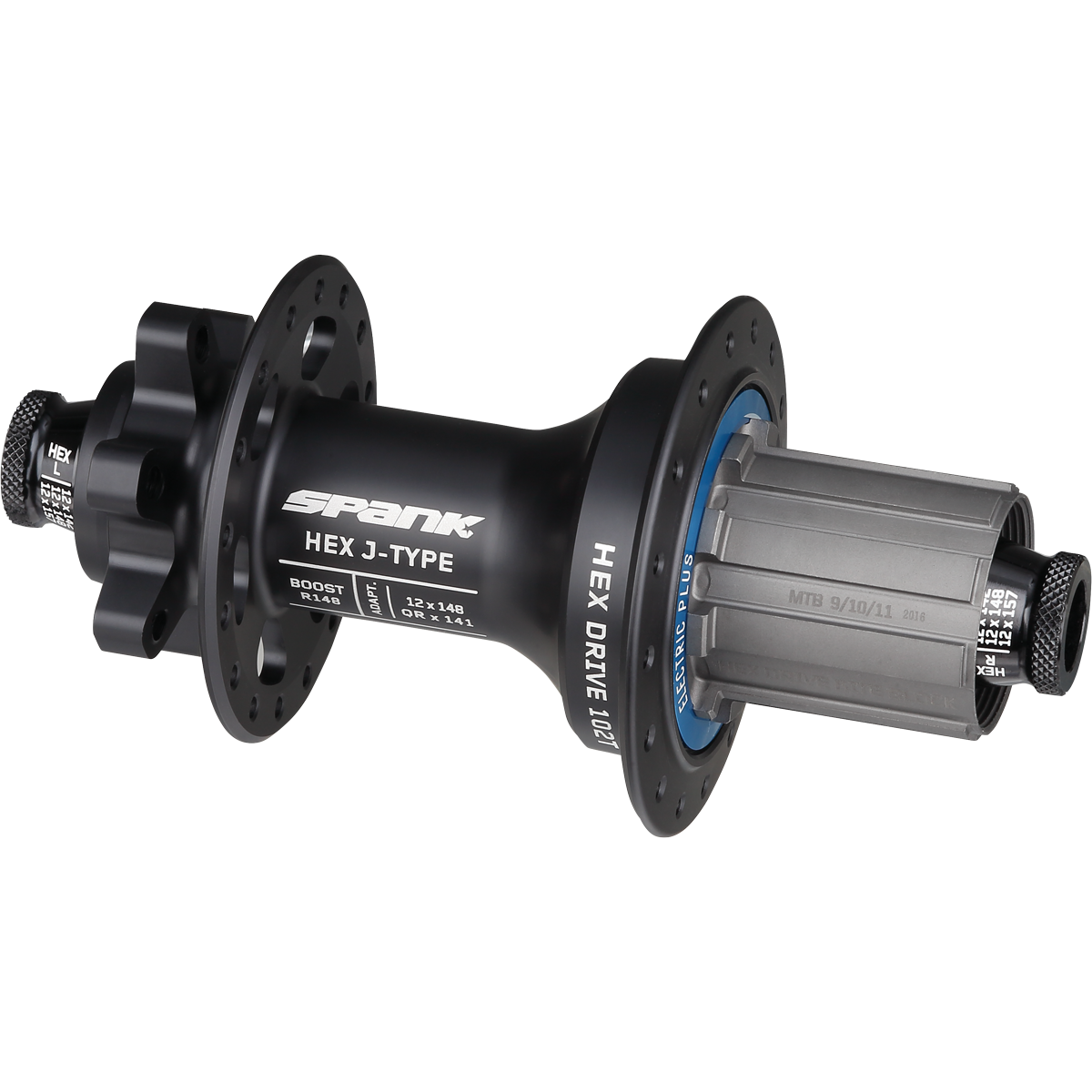

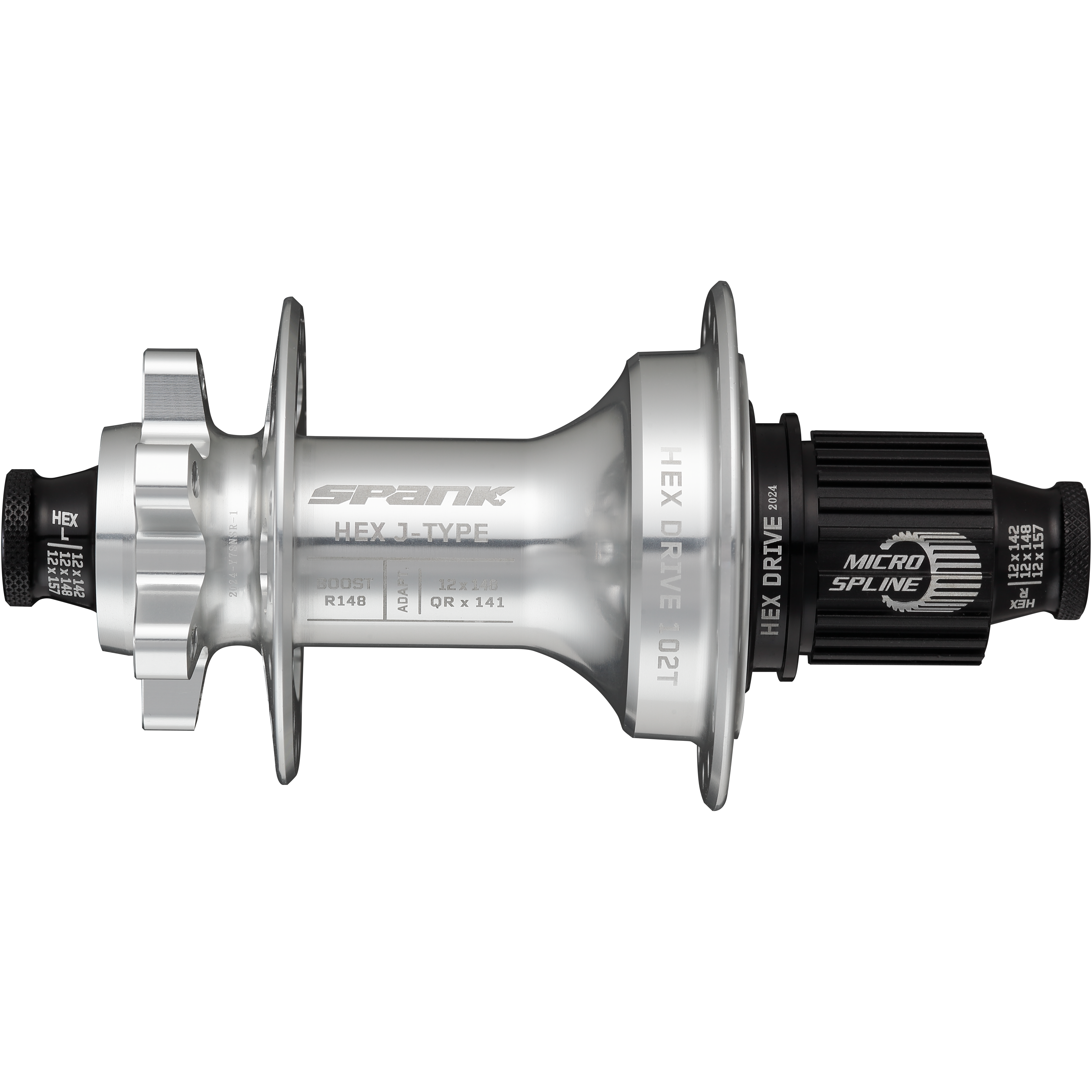

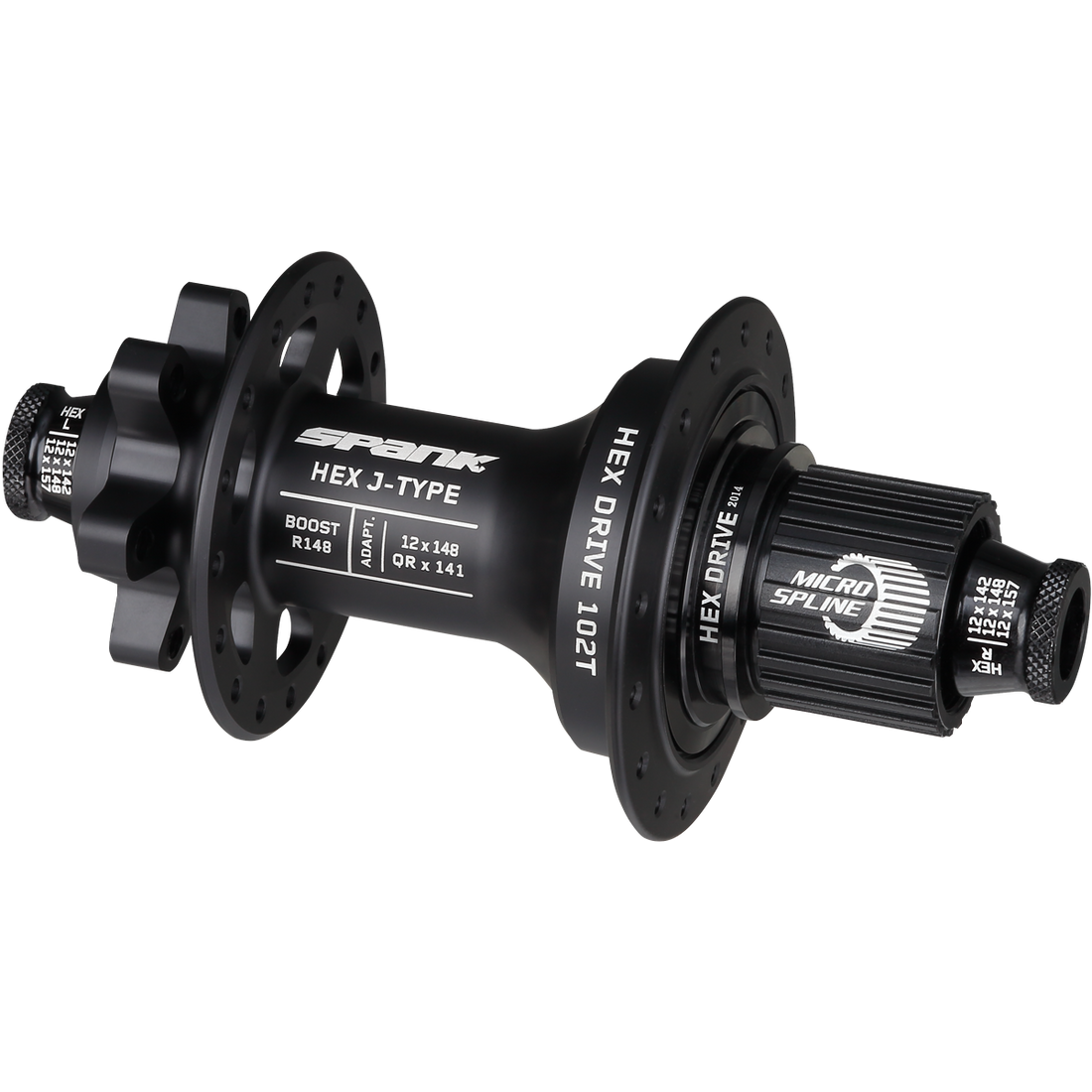

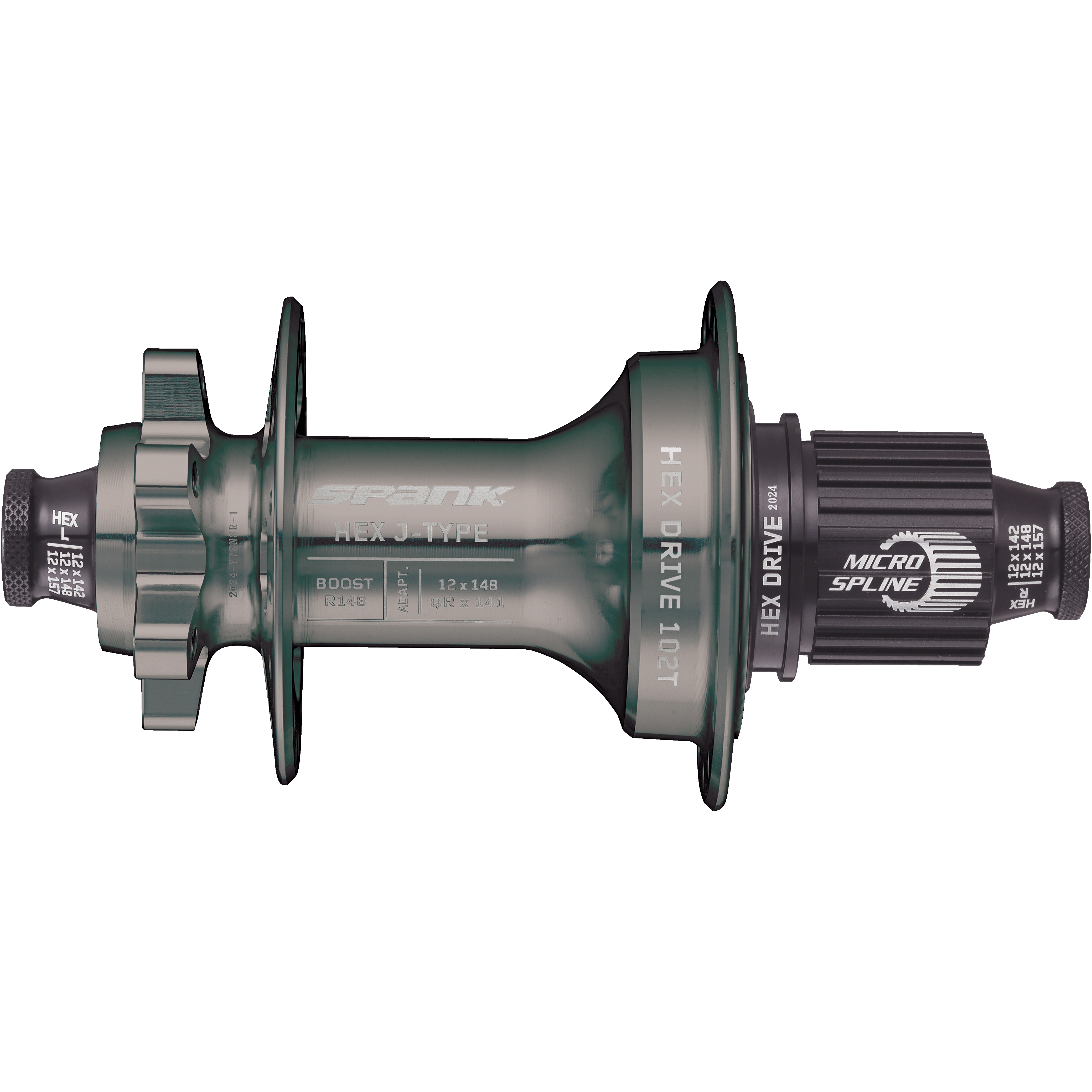

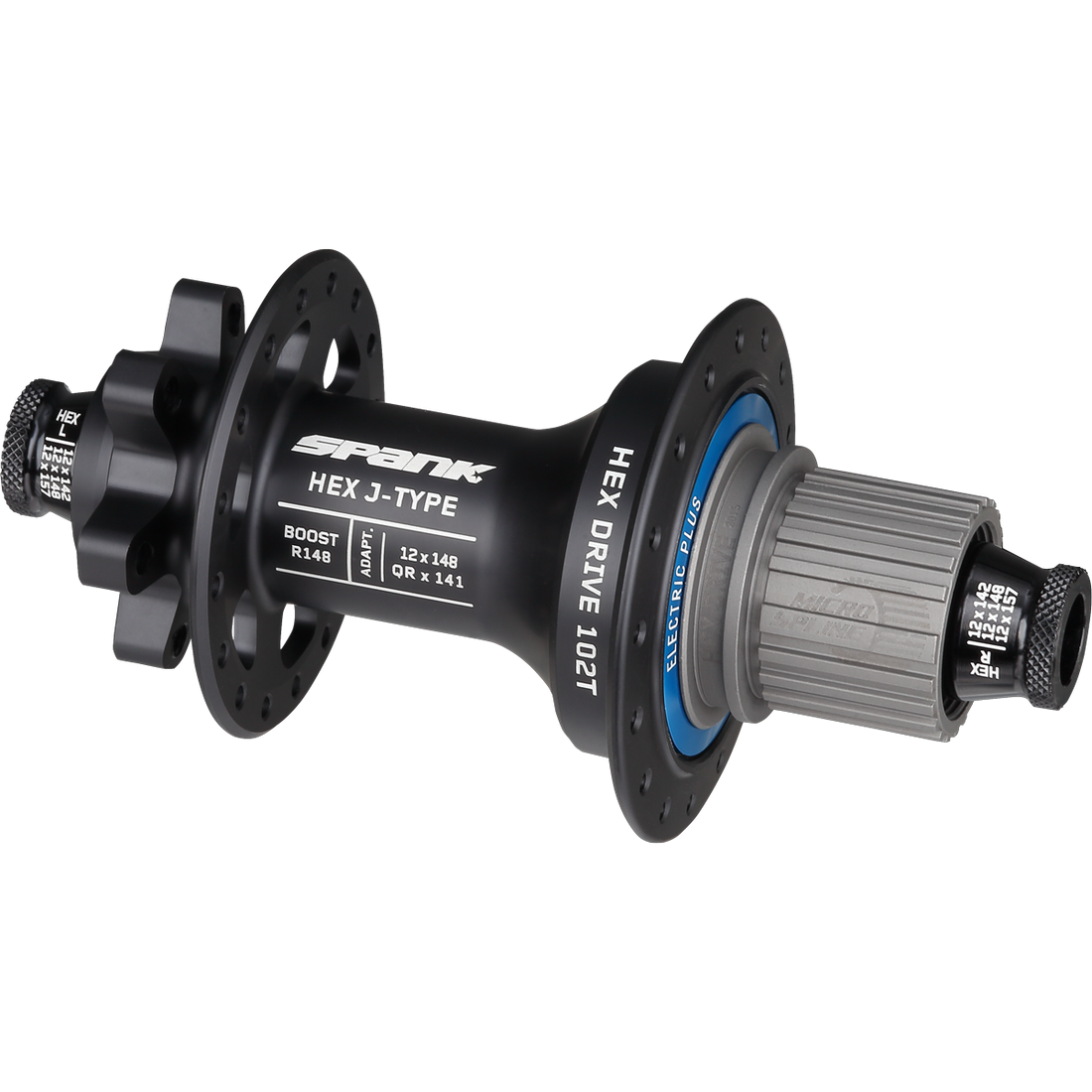

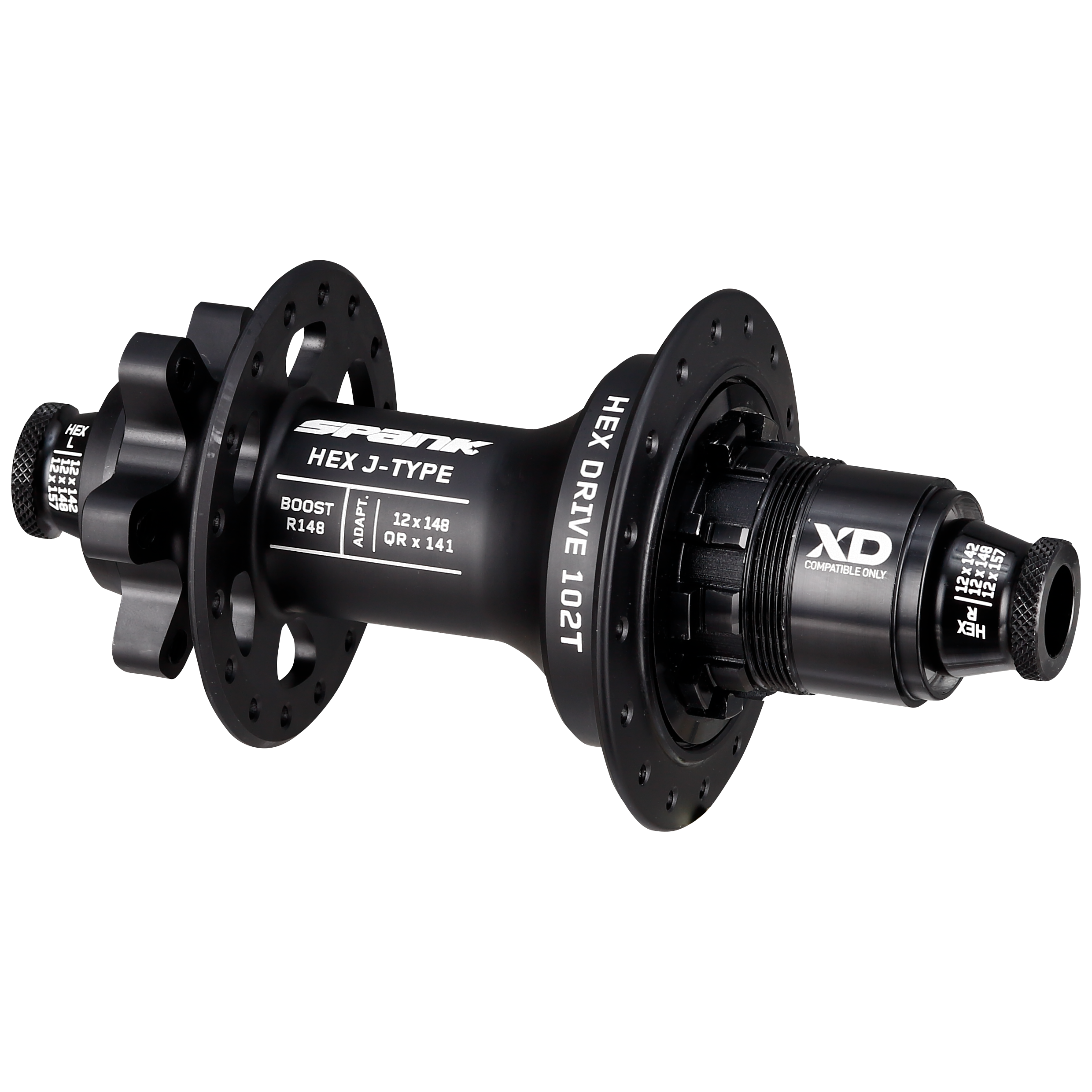

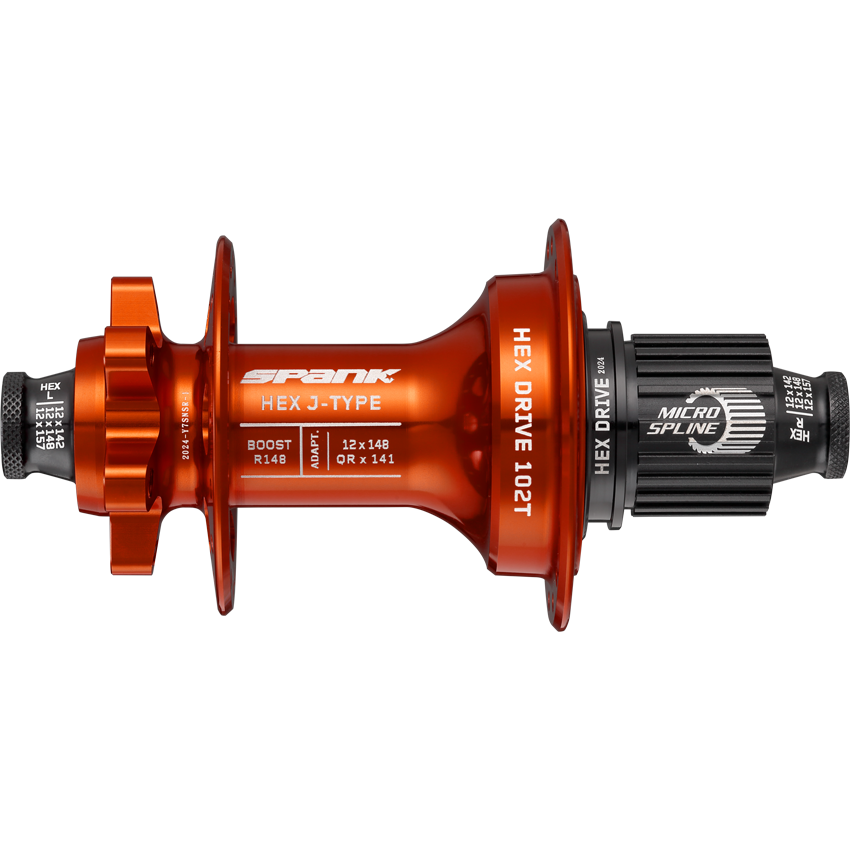

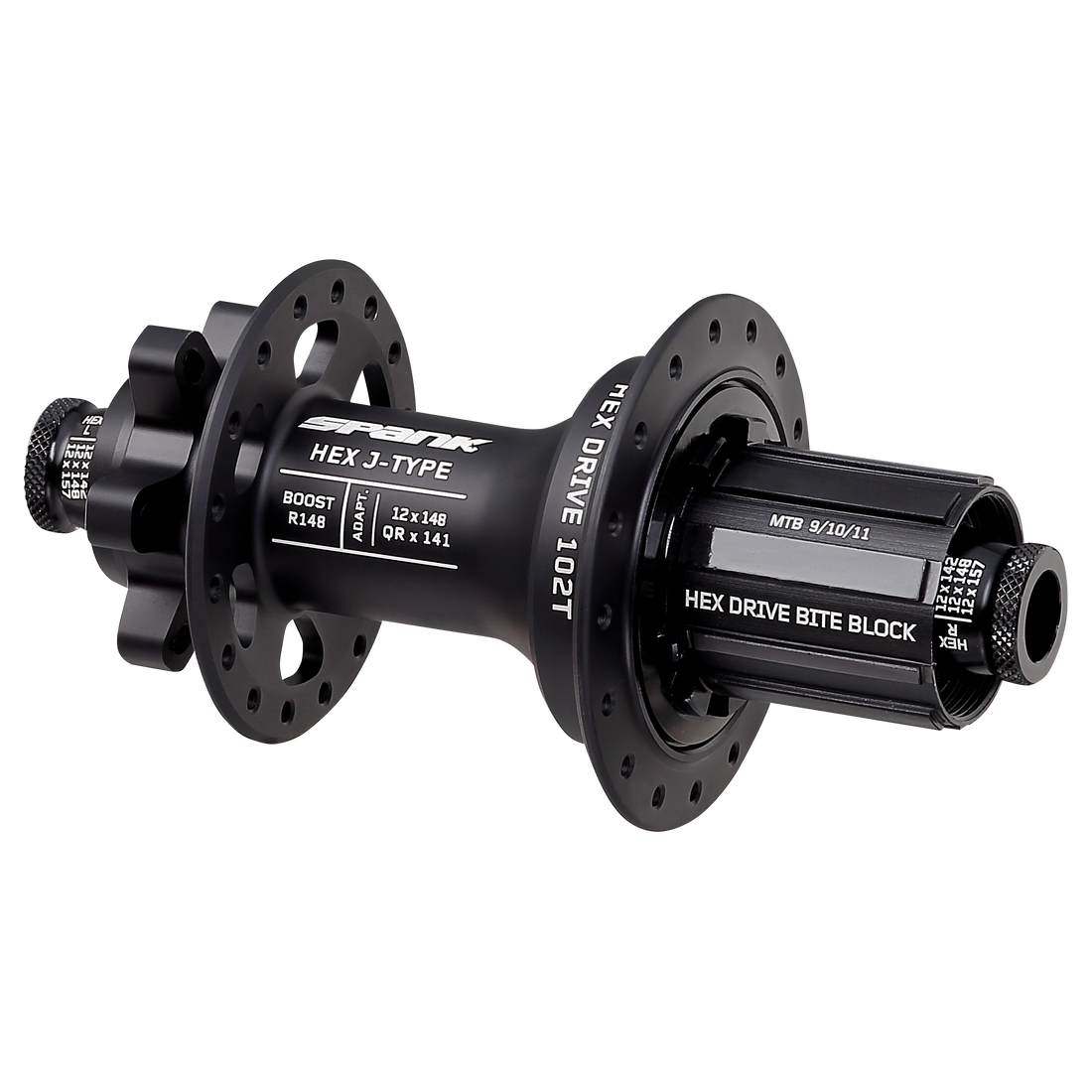

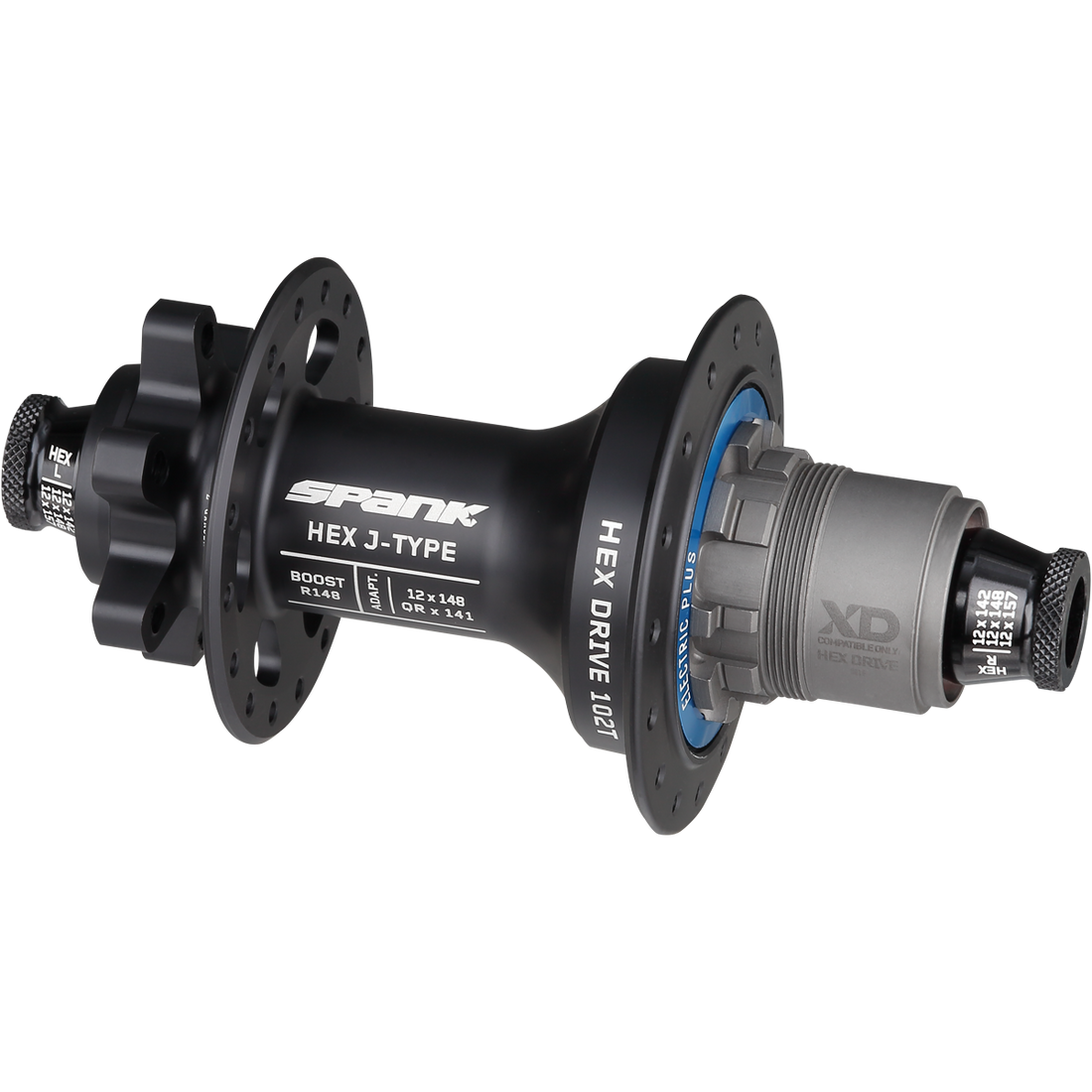

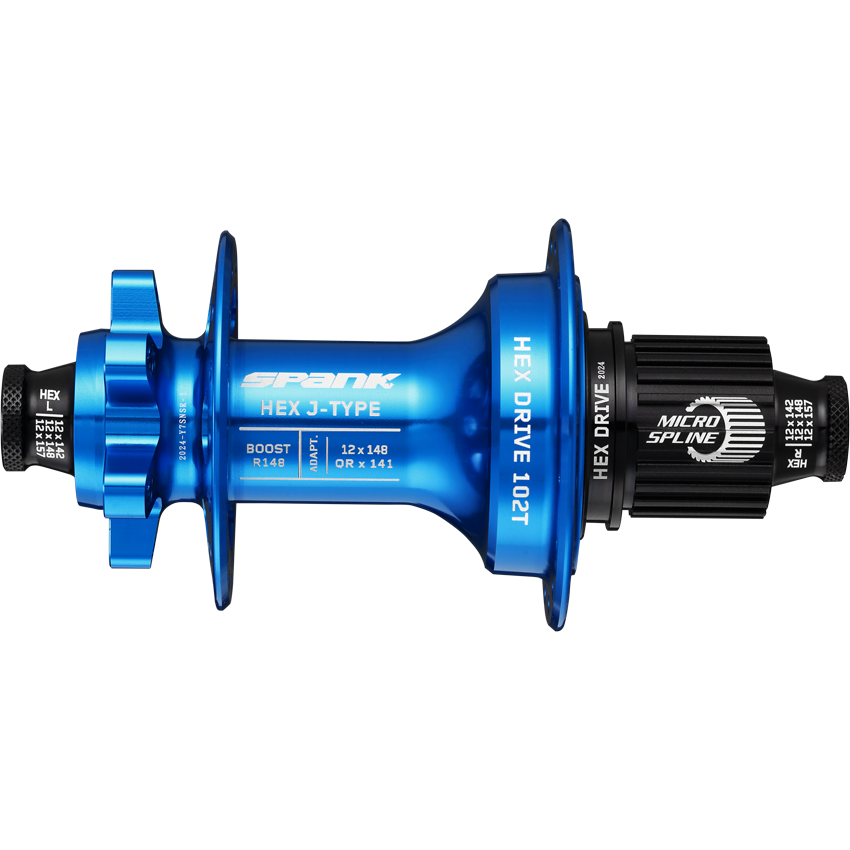

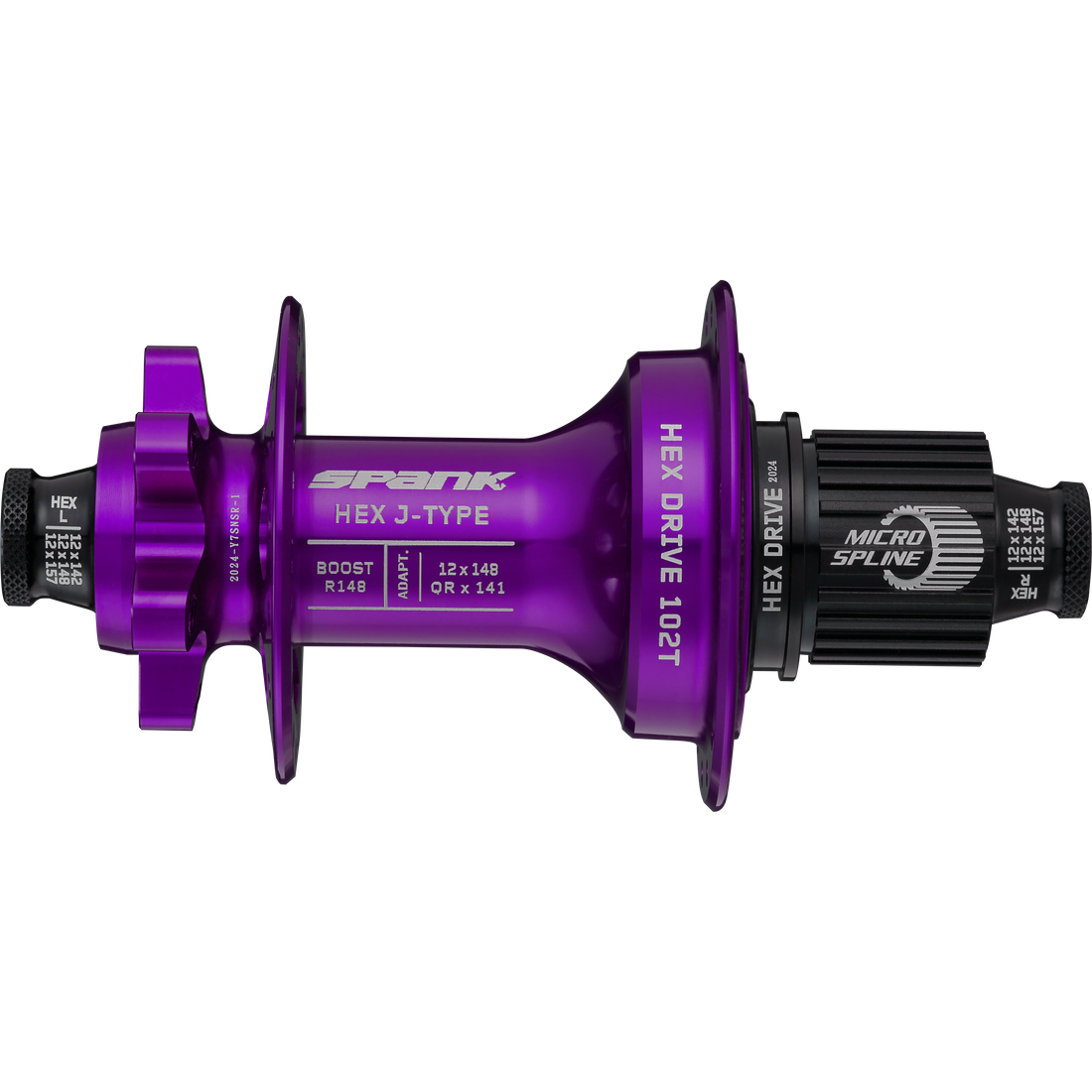

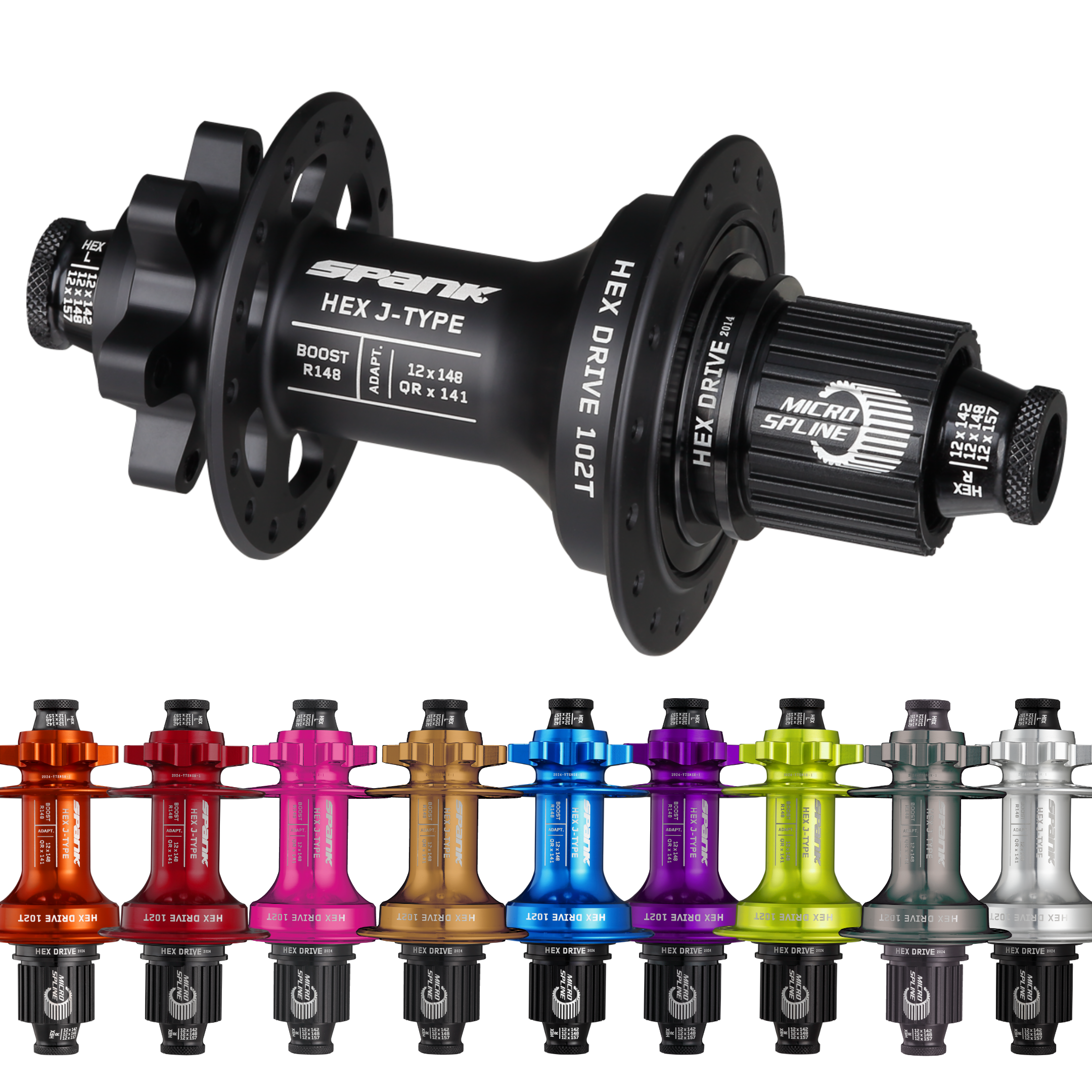

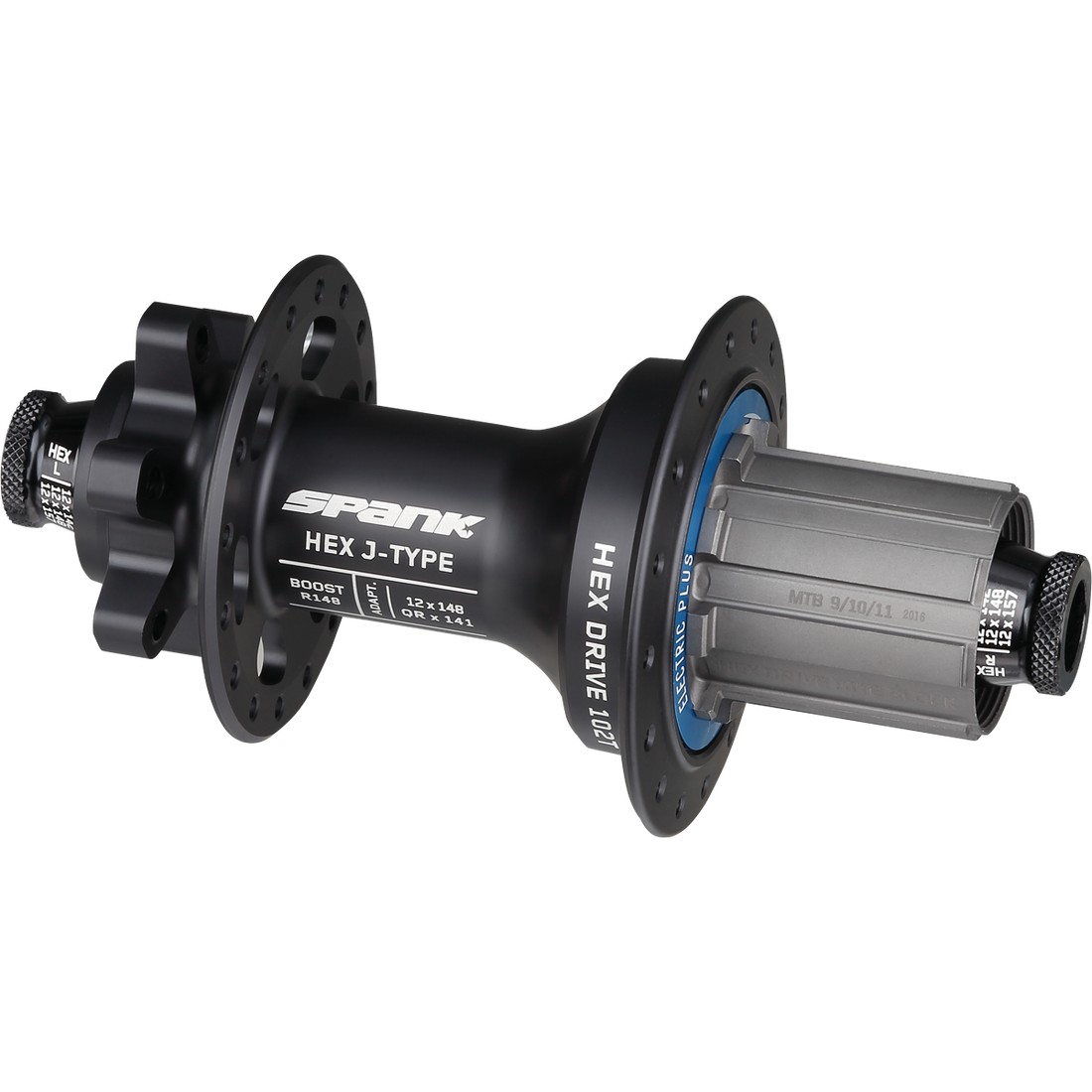

SPANK HEX Boost R141/148 Hubs

The New SPANK HEX DRIVE HUB, featuring:

ALL MOUNTAIN	TRAIL	ENDURO	FREERIDE	DOWNHILL	GRAVEL	XC
✔	✔	✔	✔	✔

SPANK’s HEX DRIVE 102T technology delivers 3.5° engagement, for almost instant pickup
6 independent pawls with 3 steps per pawl, work in unison, meaning 18 engagement points per click
Bite-Block Alloy HG and XD Freehub bodies resist damage from cassettes without the weight penalty of steel
Unique flange design reduces dish requirement and minimizes tension range between drive side and non-drive side spokes
Advanced seal system improves prevention of bearing/drive system contamination

ENGAGEMENT:	HEX DRIVE 102T / 3.5° / 6 Pawl
HOLE COUNT:	32H J-Hook
DISC MOUNT:	6-bolt
MATERIAL:	CNC optimized forged alloy hub body, alloy axle, alloy freehub body
FINISH:	Matte anodized, laser logos

CONFIGURATION:	Boost 12x148mm, J-hook
FREEHUB:	Alloy HG / Alloy XD
WEIGHT +/- (g):	318 (HG) / 310 (XD)
ADAPTORS INCLUDED:	none
ADAPTORS AVAILABLE SEPARATELY:	Boost QRx141

Boost R148:	HEX Rear Hub QRx135/141 adapter

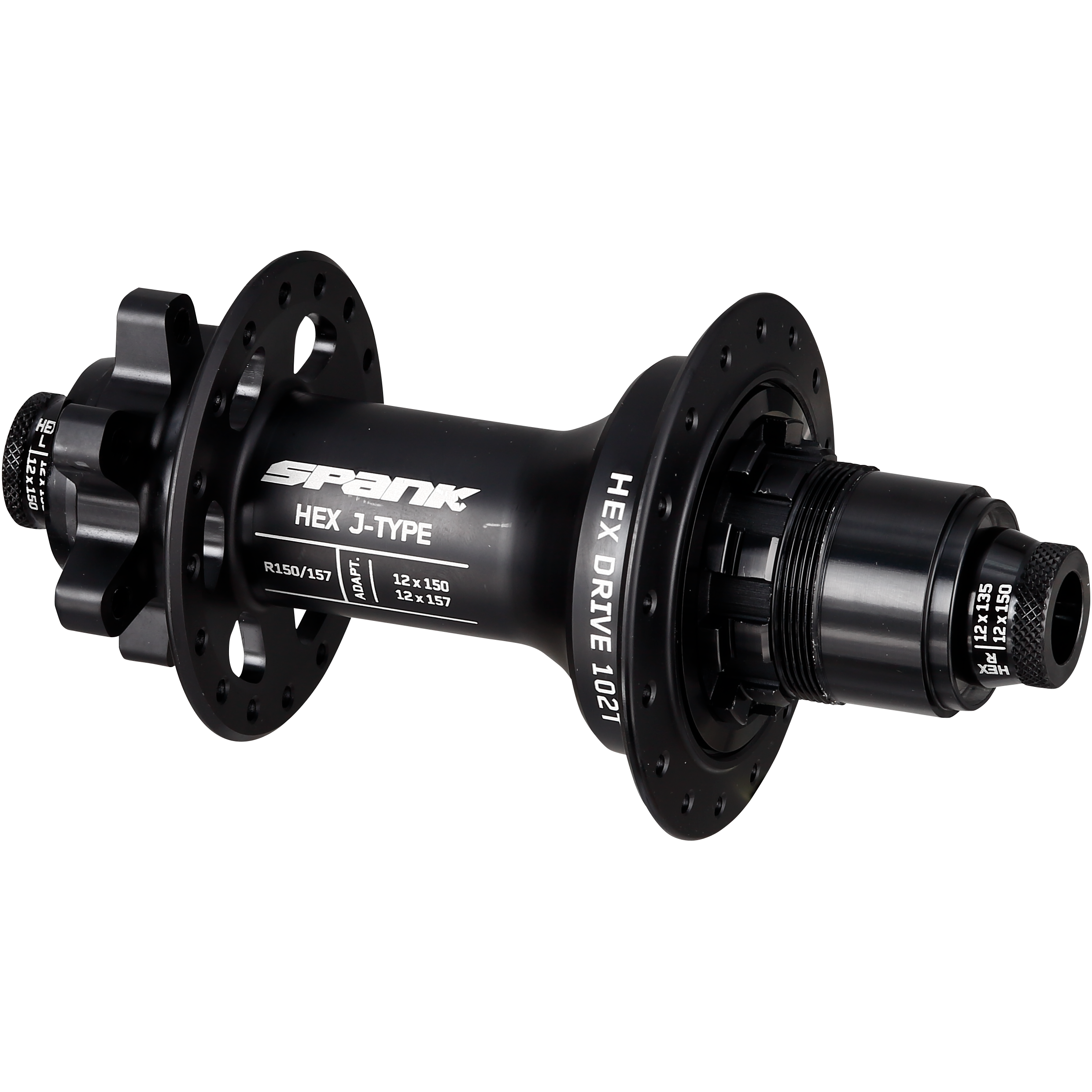

R150/157:	N/A

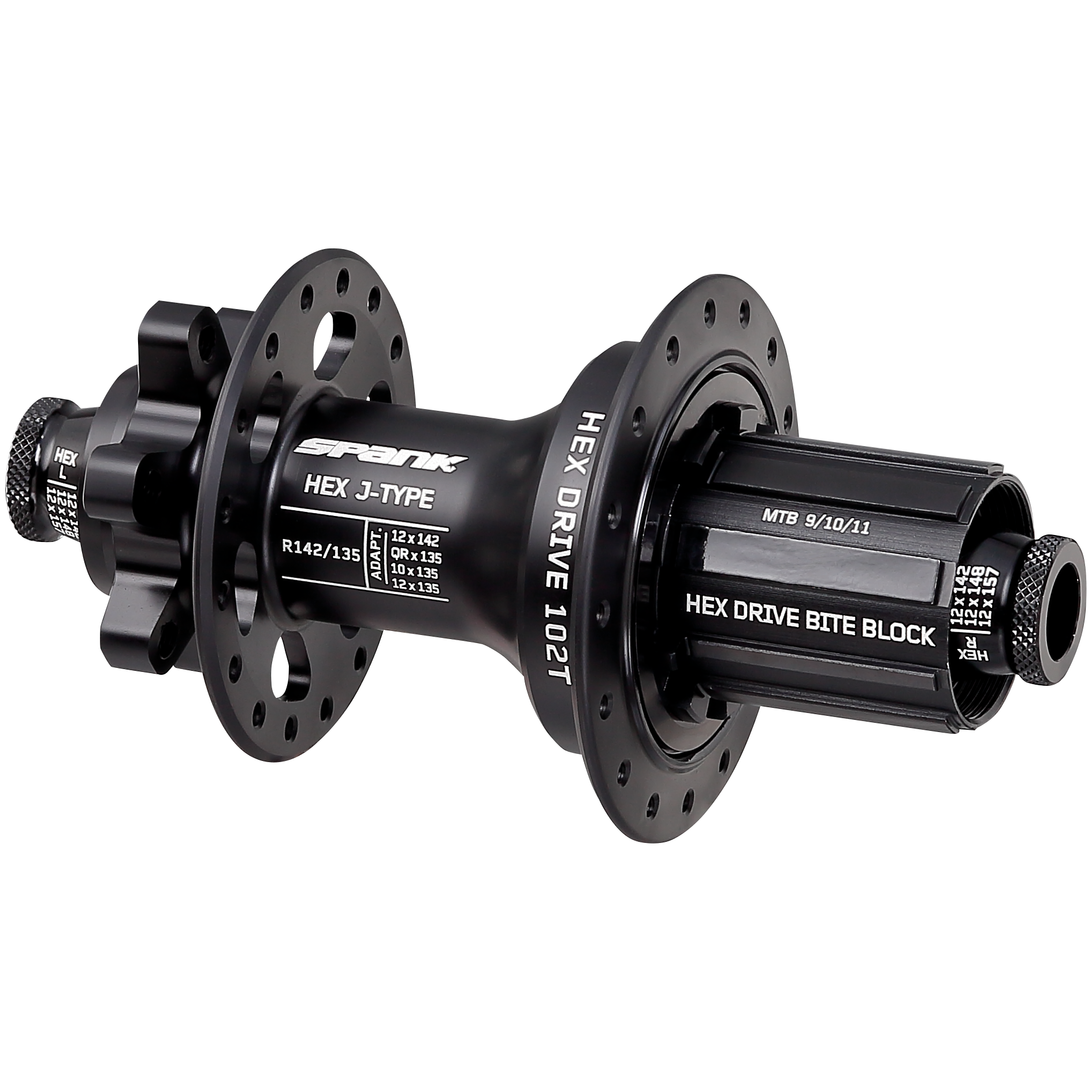

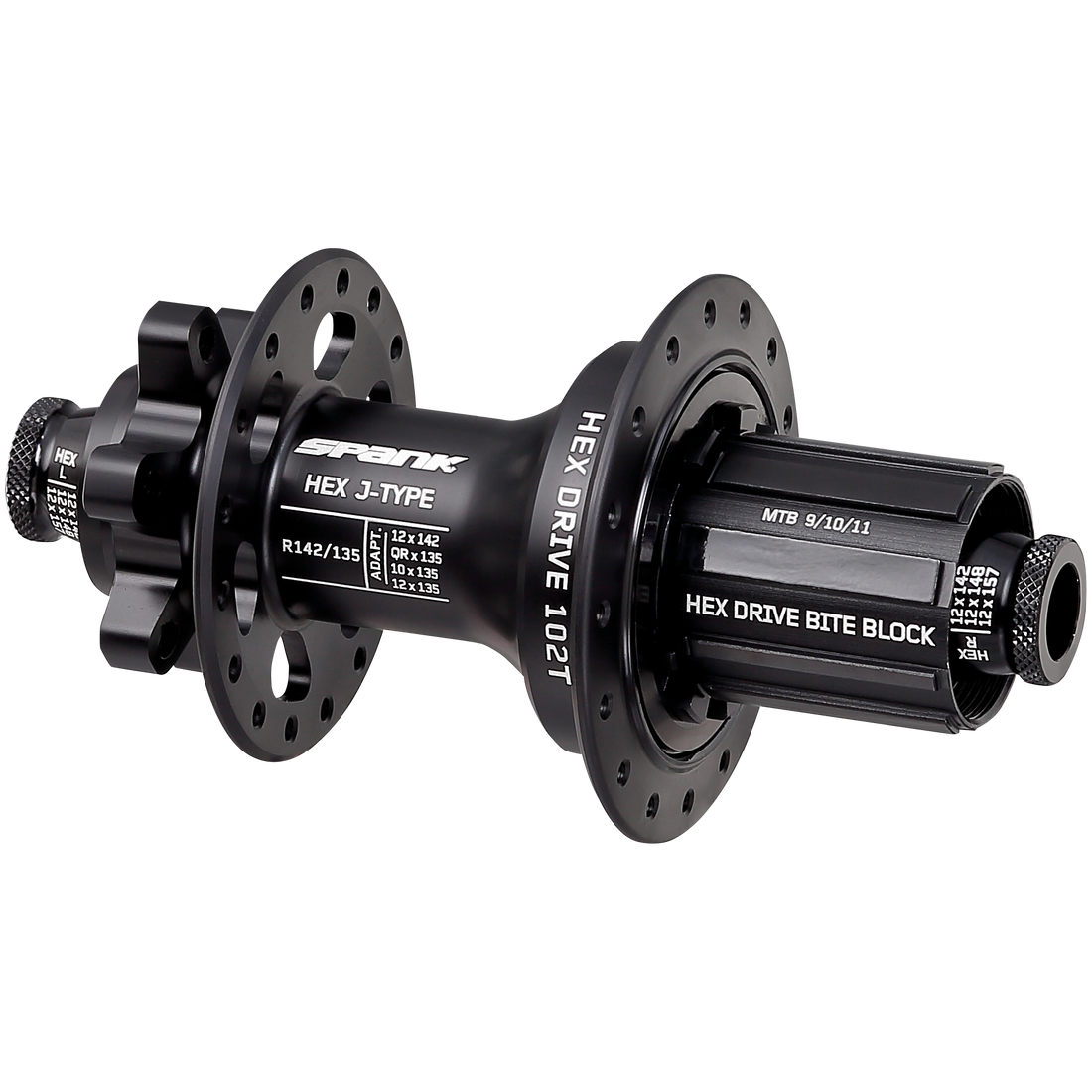

R135/142:	HEX Rear Hub 12x135 thru-axle adapter
	HEX Rear Hub QRx135 or 10x135 thru-axle adapter

HEX Rear HG/HGR Hub Replacement Bearing Kit

HEX Rear XD/XDR Hub Replacement Bearing Kit

HEX Boost Rear Hub Alloy Axle Shaft

HEX Rear Hub 135/142mm Alloy Axle Shaft

HEX Rear Hub 150/157mm Alloy Axle Shaft

HEX Rear Hub HG Alloy Anti-Bite Freehub

HEX Rear Hub XD Alloy Freehub
