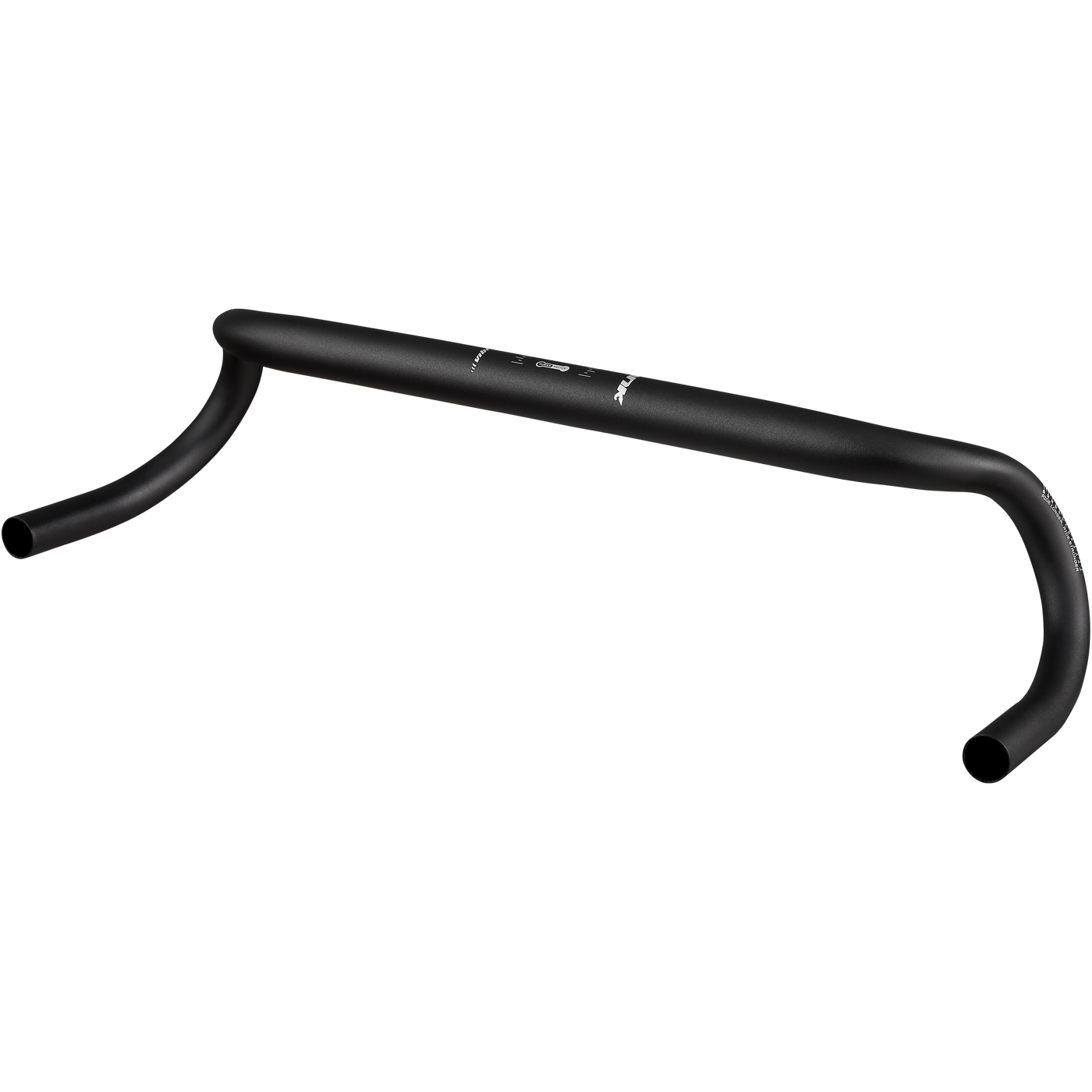

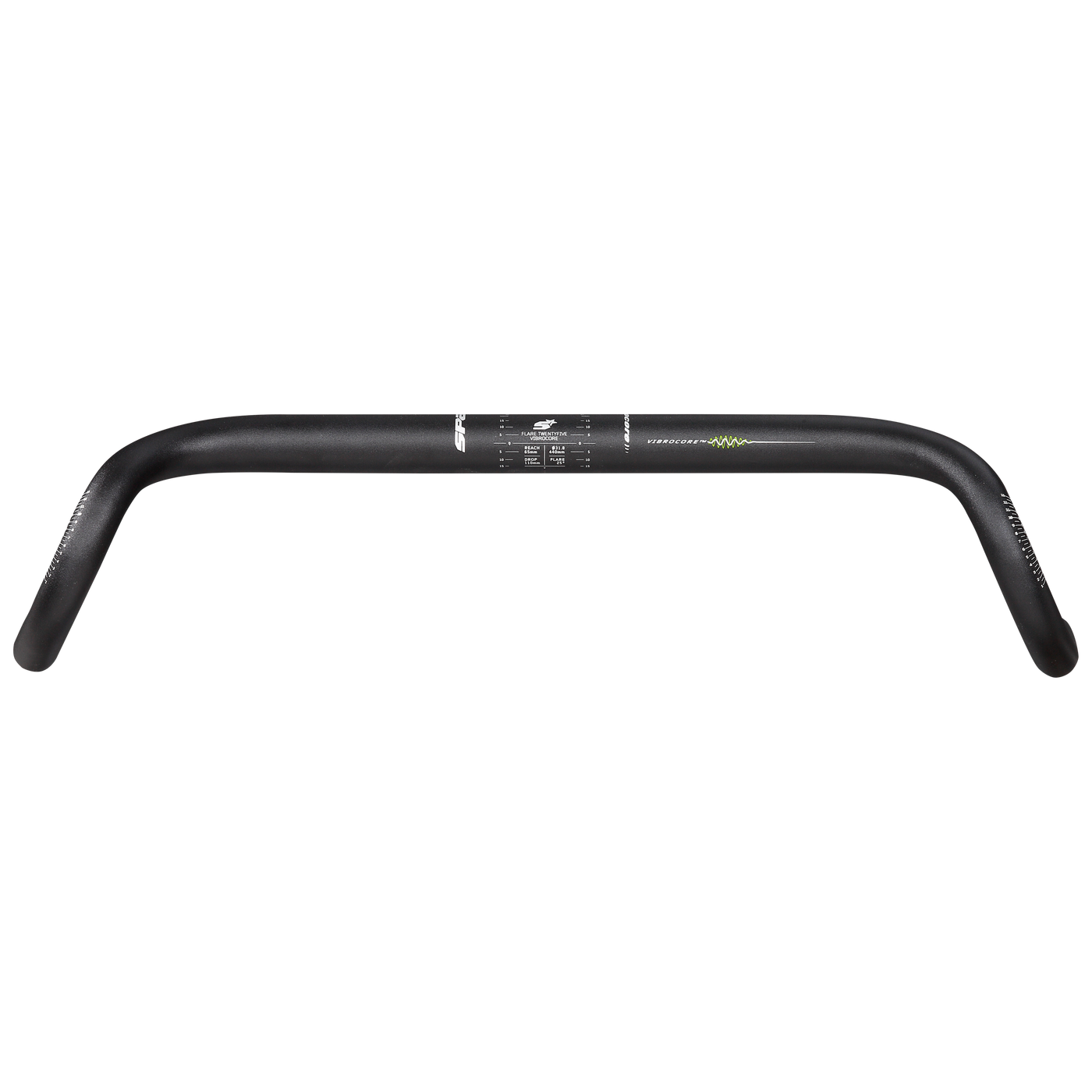

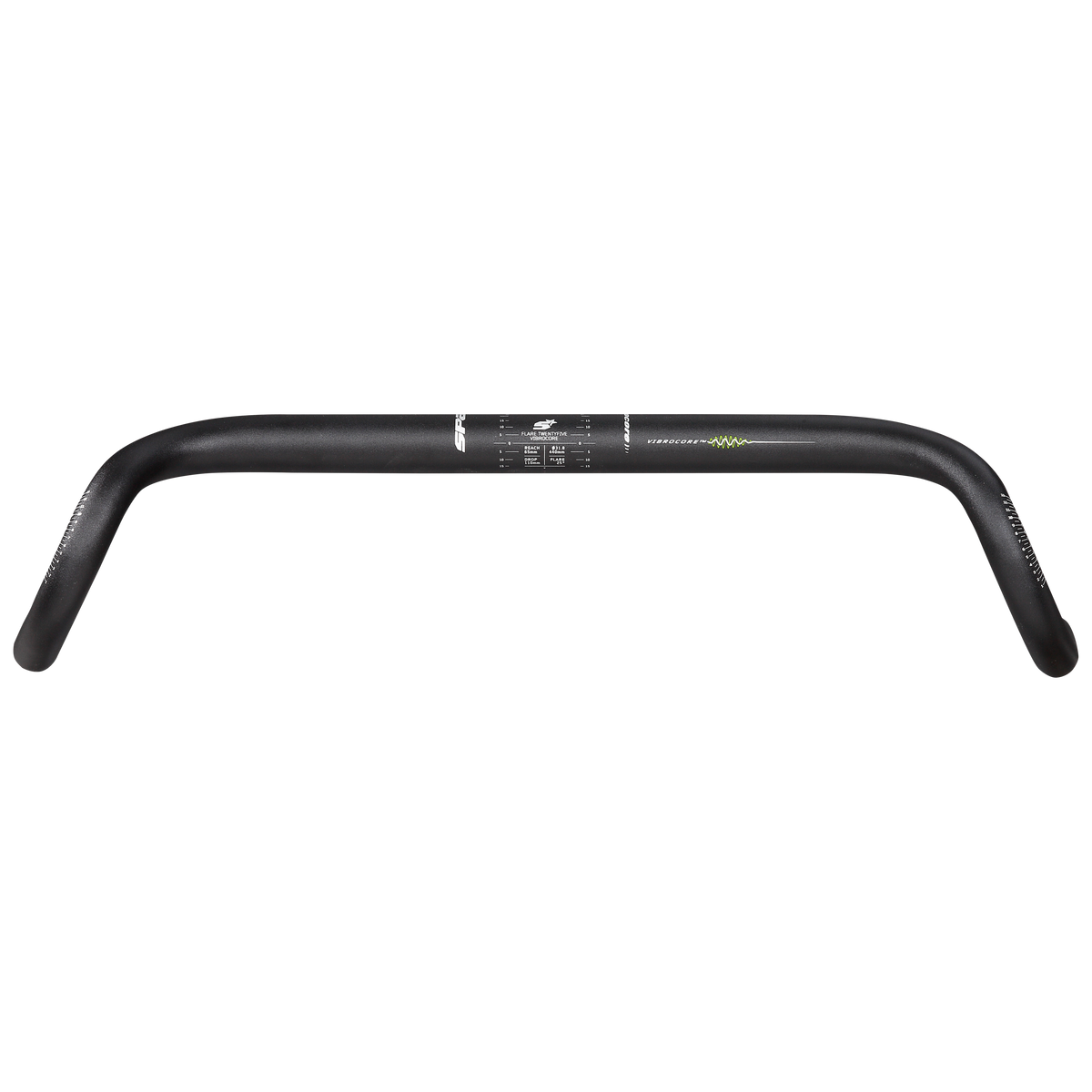

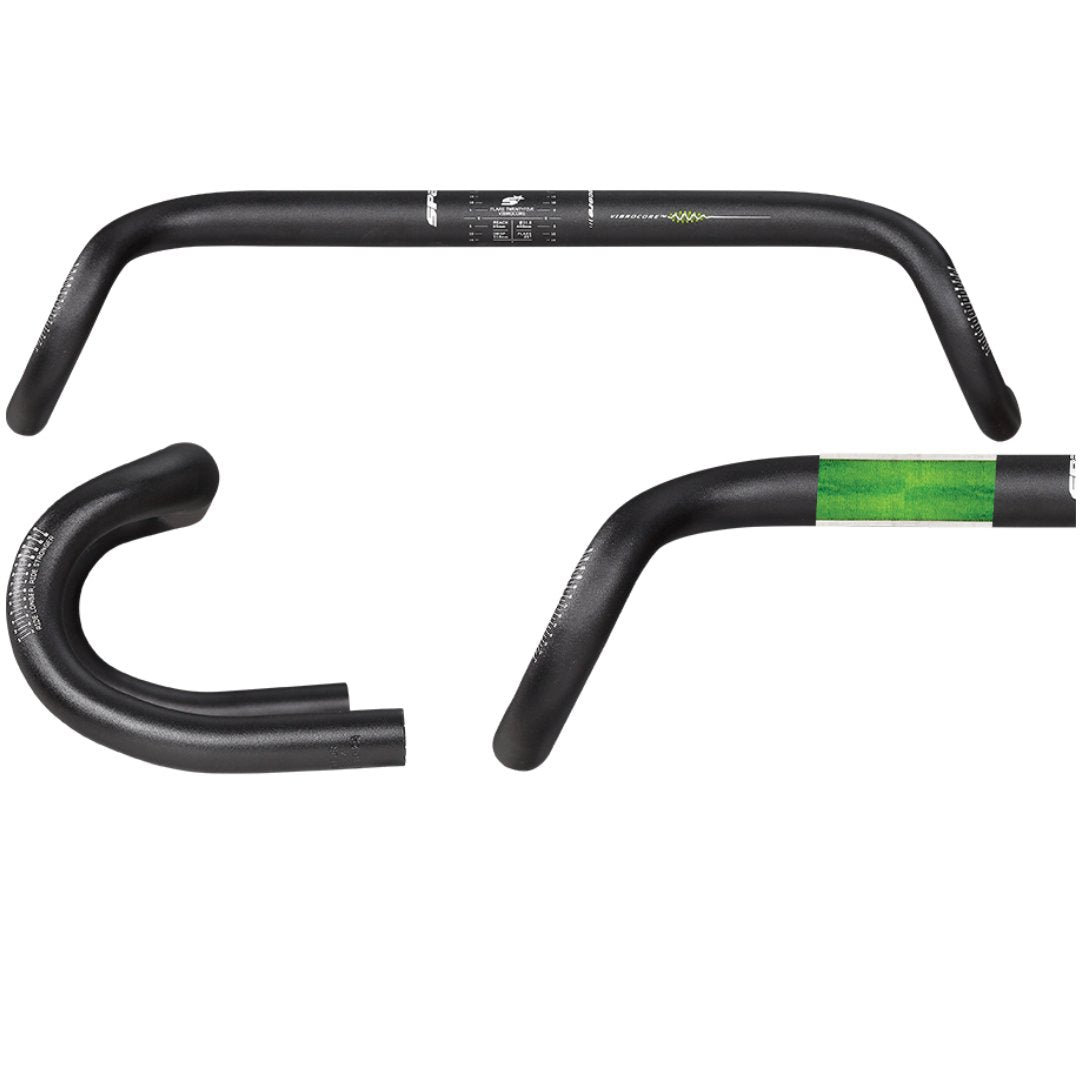

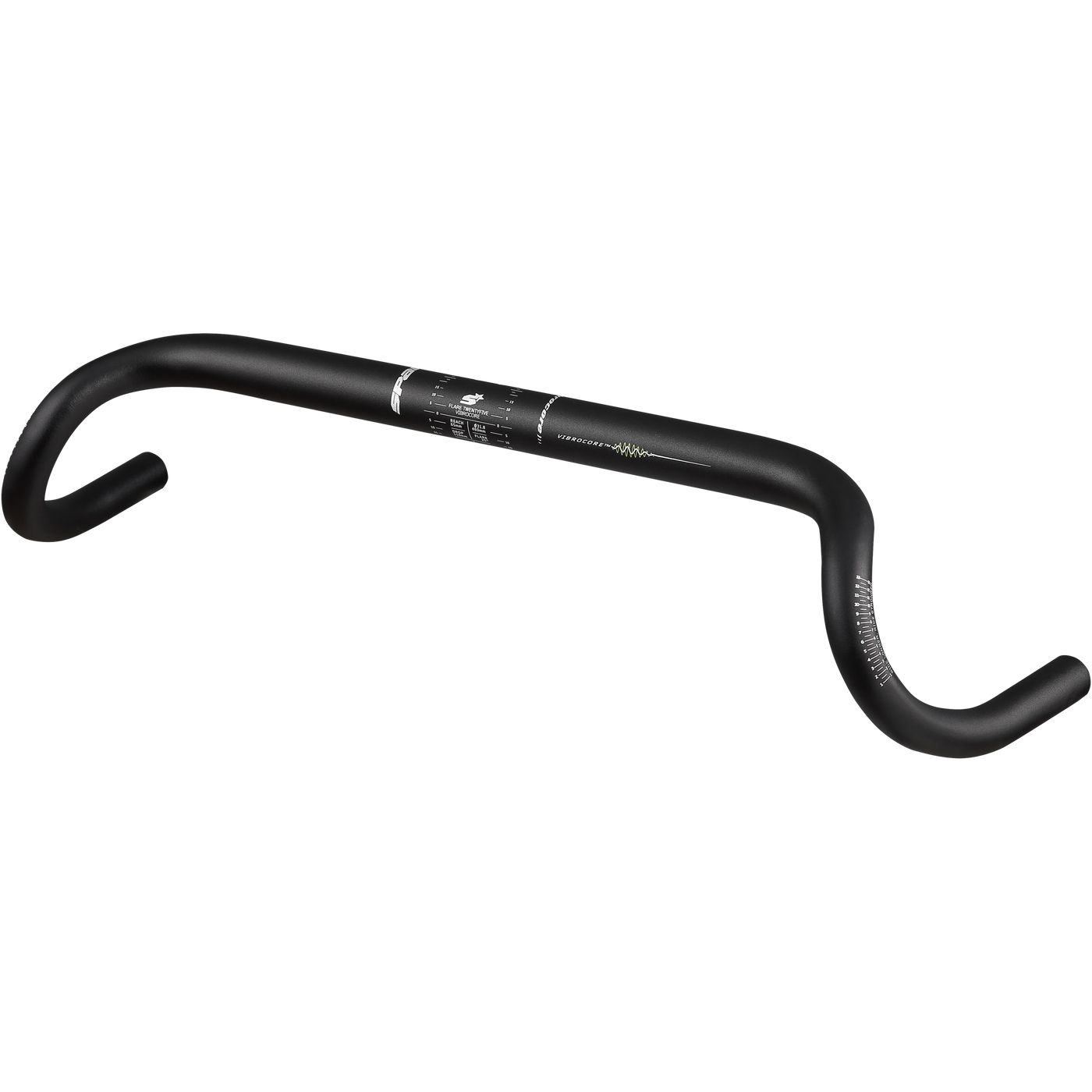

SPANK Flare 25 Vibrocore™ Drop Bar

Size :

420mm x 31.8ø 440mm x 31.8ø 460mm x 31.8ø 480mm x 31.8ø 500mm x 31.8ø 520mm x 31.8ø

Color :

Wishlist Compare

25° aggressively flared, wide drop bar for true off-road performance and comfort

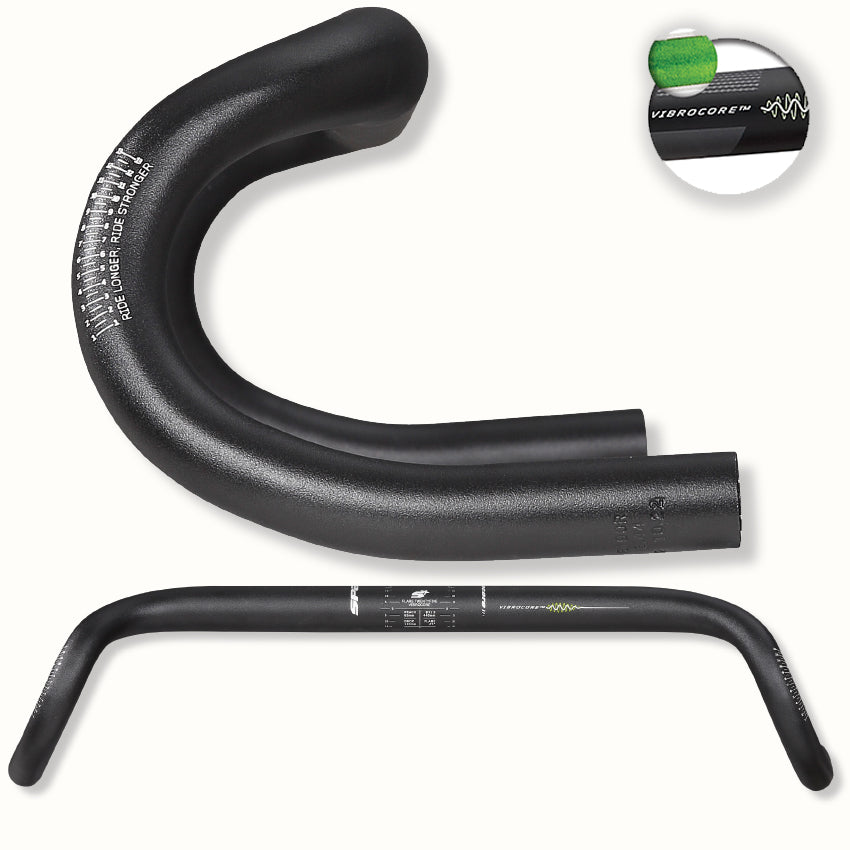

Vibrocore™ foam core reduces transmission of harmful frequencies of vibration and increases bar fatigue life and ultimate strength

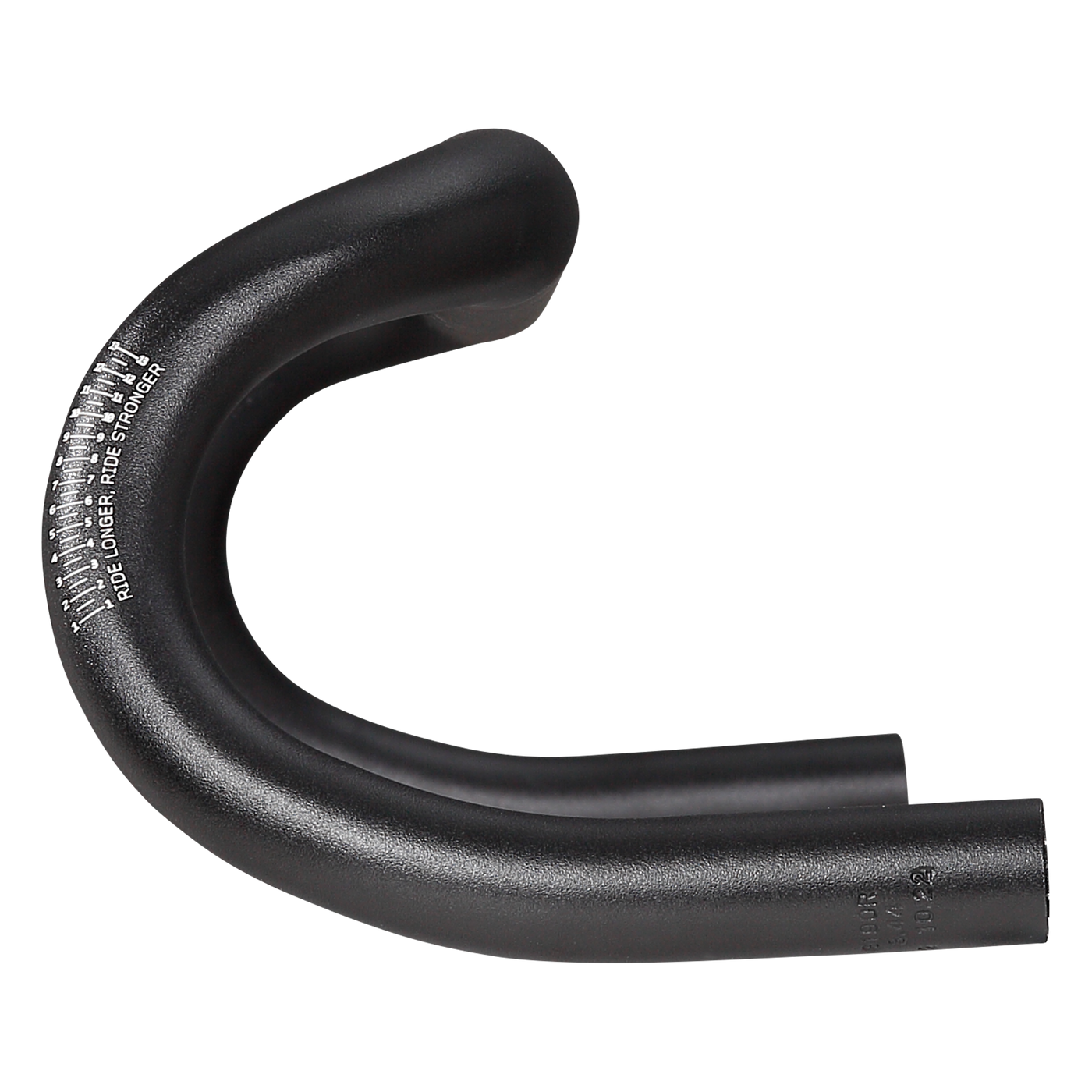

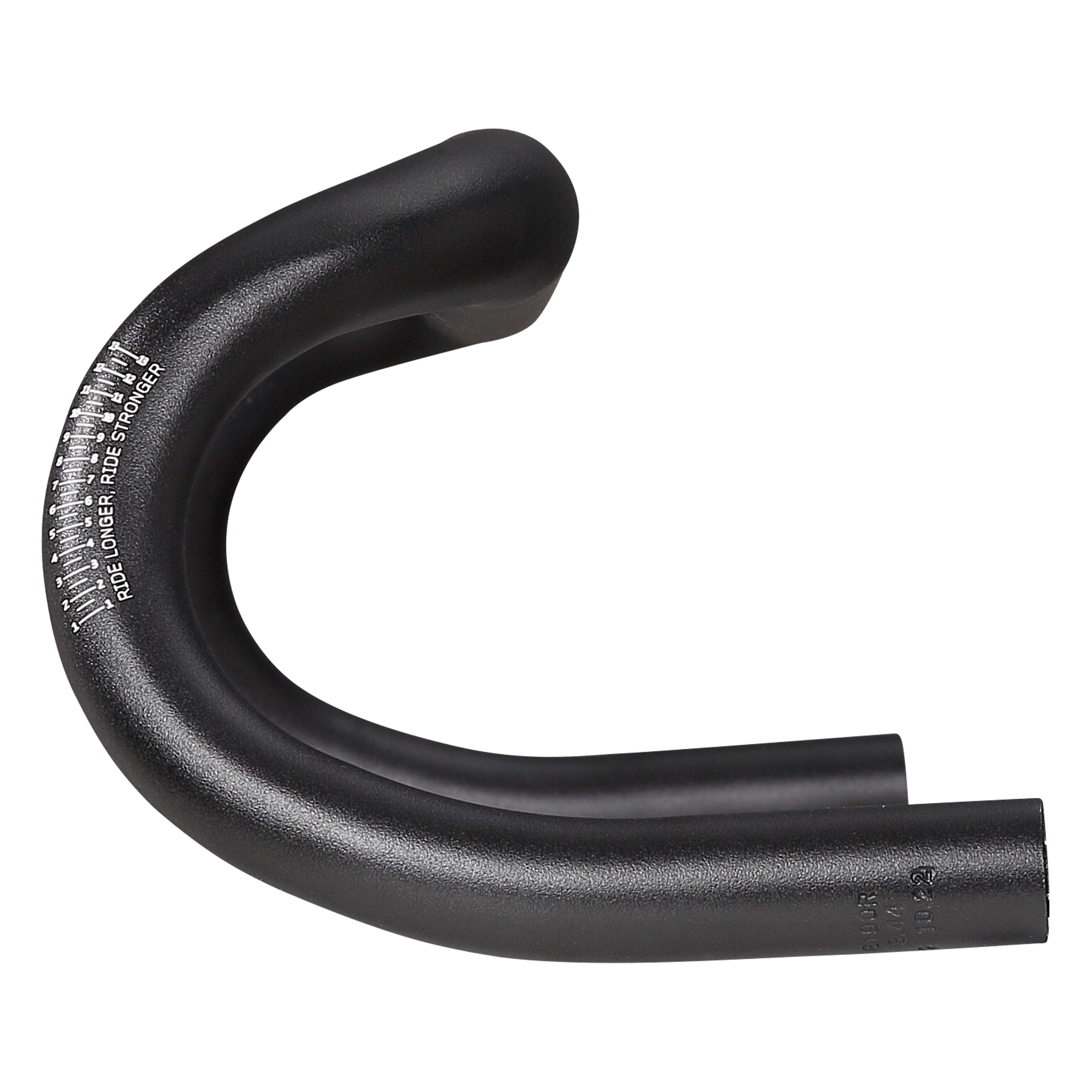

Short 110mm drop and 65mm reach geometry is perfect for aggressive riding in a more upright, balanced stance
31.8mm bar clamp extends through the top section providing enhanced hand support and comfort without multiple wraps of tape to increase diameter
Round profile upper section facilitates a wide range of rider/hand positions and maximizes grip on the bars in rough terrain

KEY TECHNOLOGIES	Vibrocore, On-Off Road Geometry
MATERIAL	Zirconium Doped 7-Series Alloy
WIDTH HOOD TO HOOD (c-c):	420 / 440 / 460mm
WIDTH BAREND to BAREND (o-o)	562 / 582 / 602mm
WEIGHT	345 / 350 / 355g
DROP / REACH:	110mm / 65mm (all sizes)
BAR CLAMP / TOP SECTION:	31.8mm
FLARE	25°
RAMP	14°
