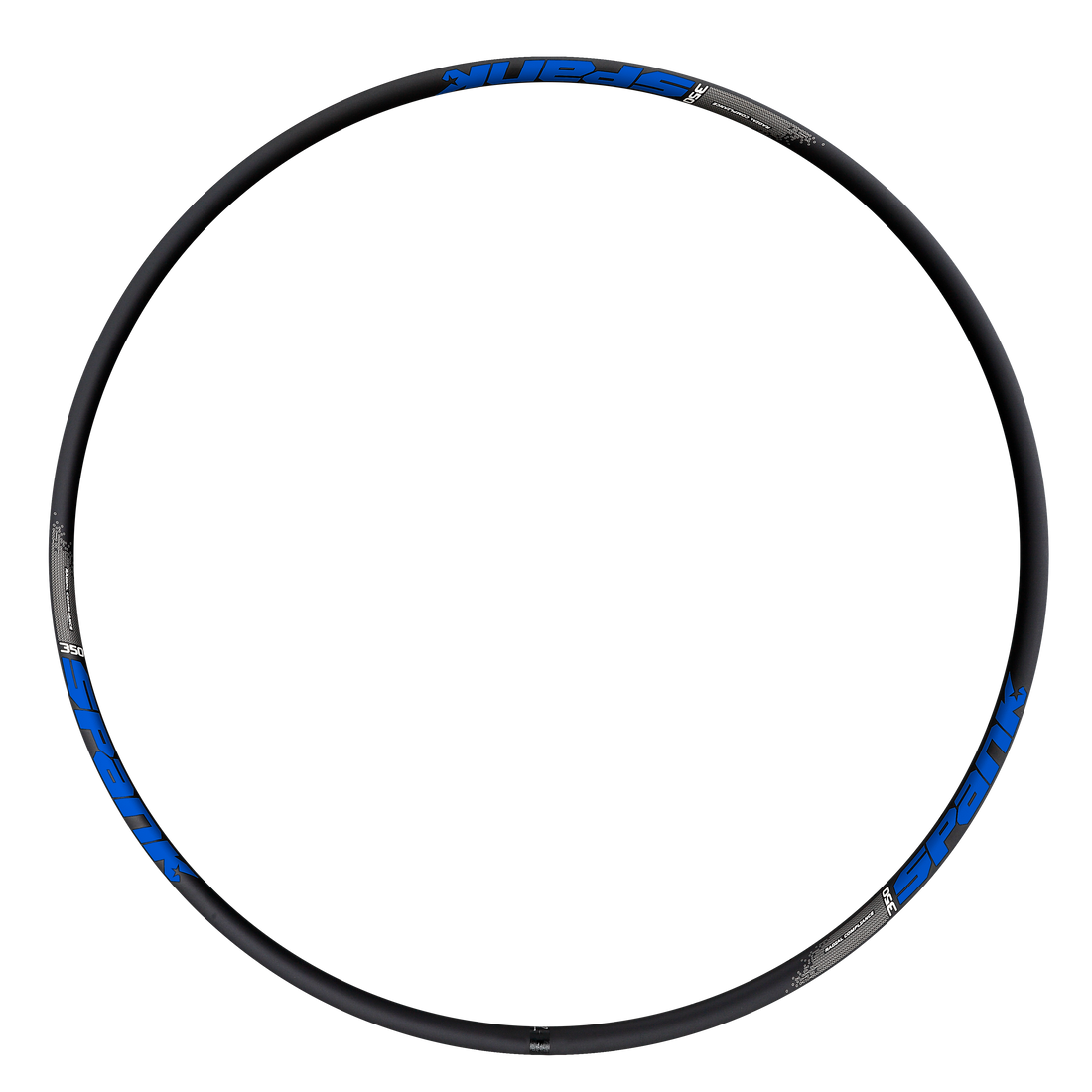

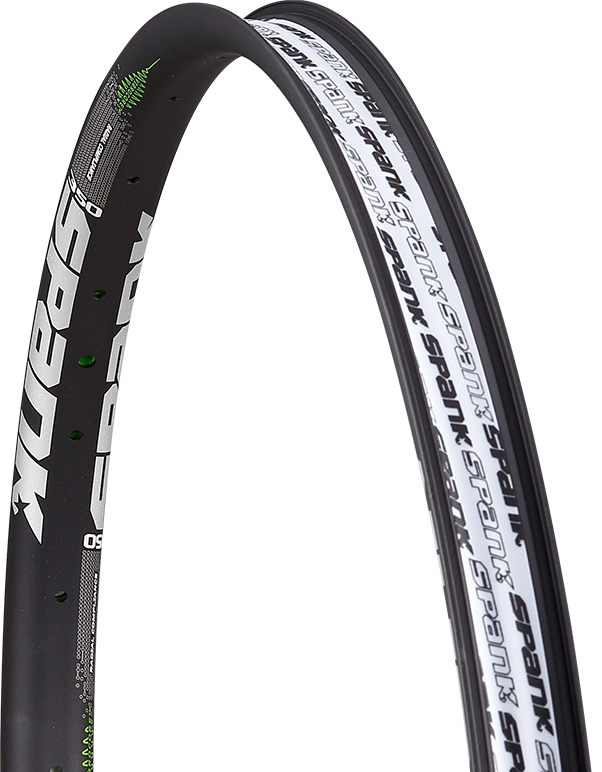

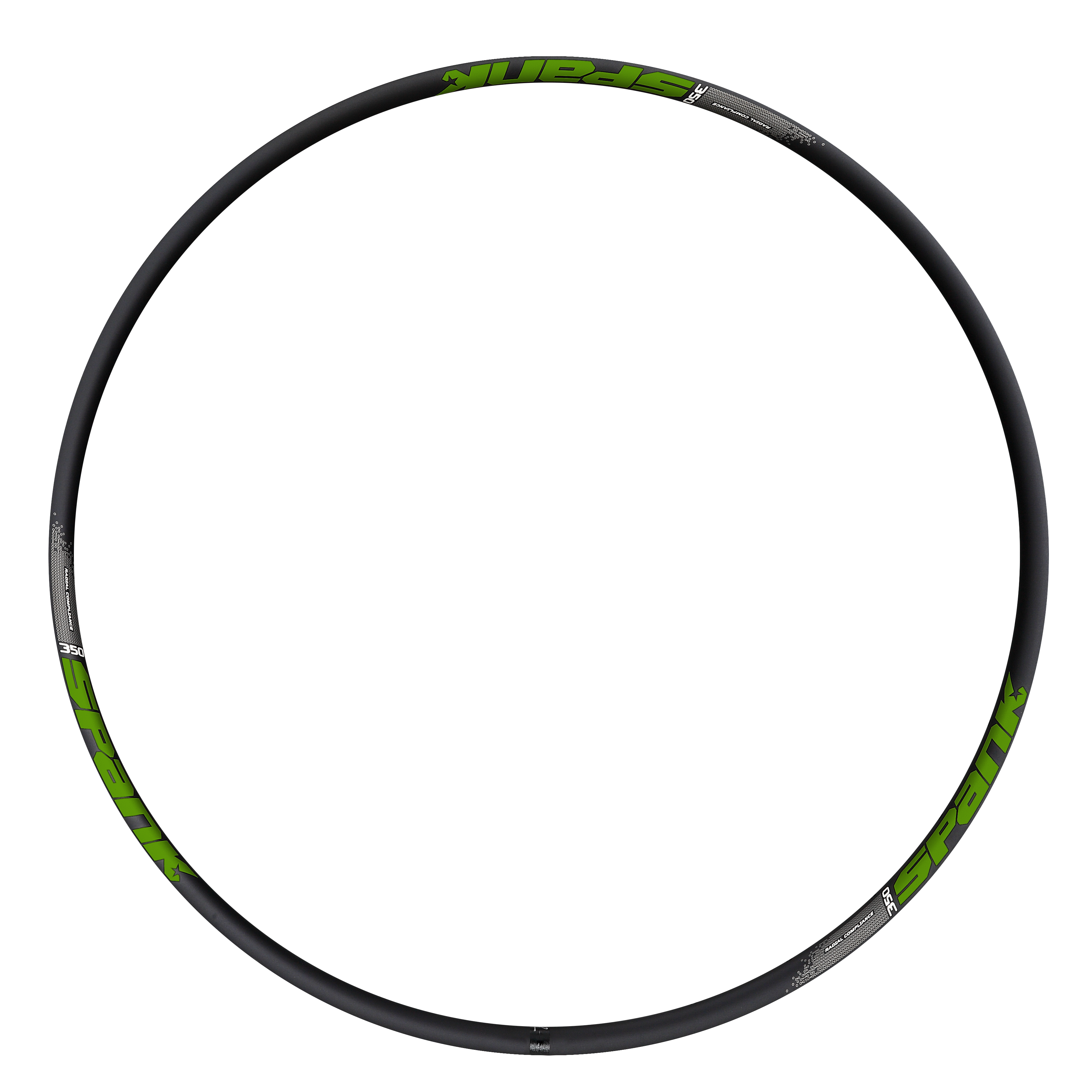

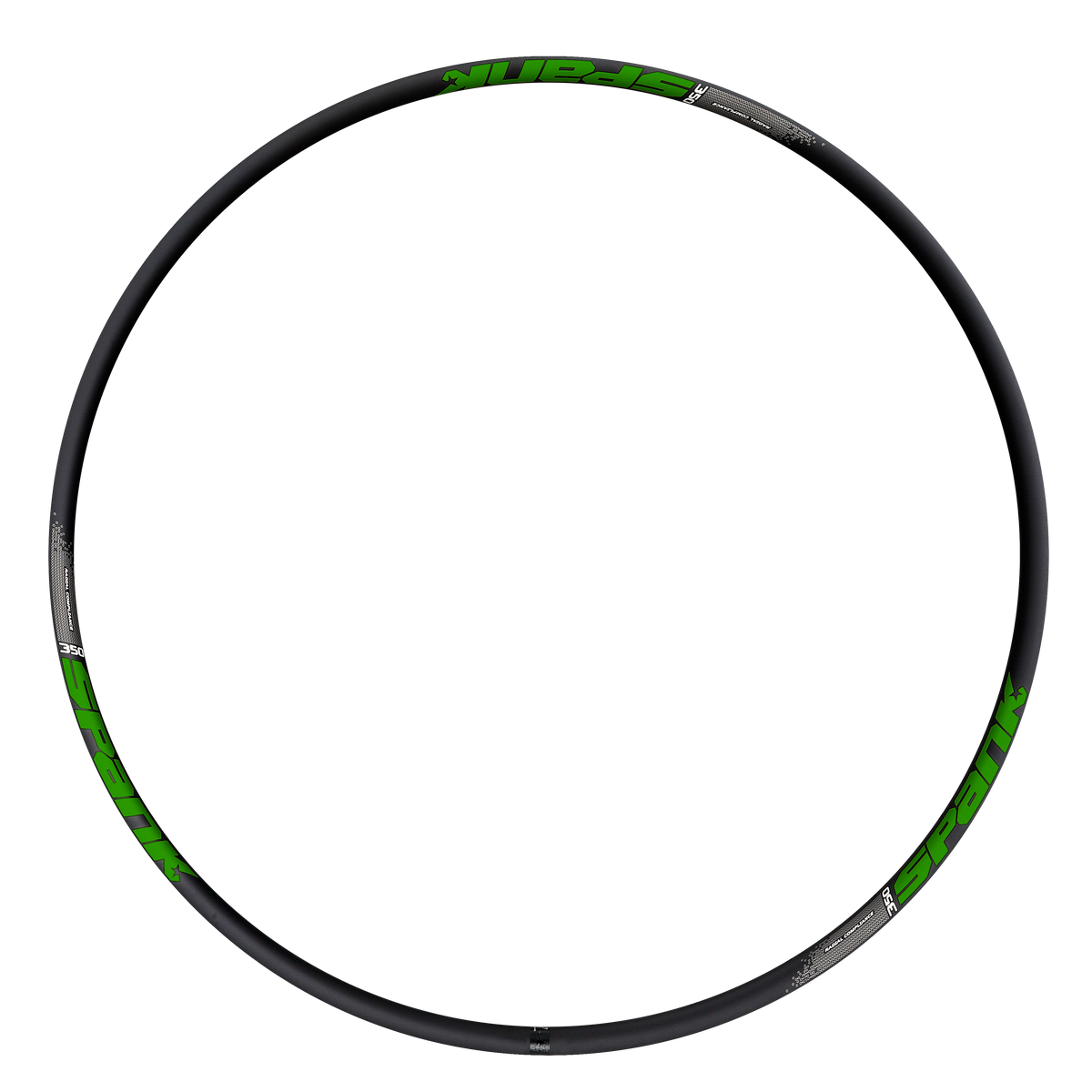

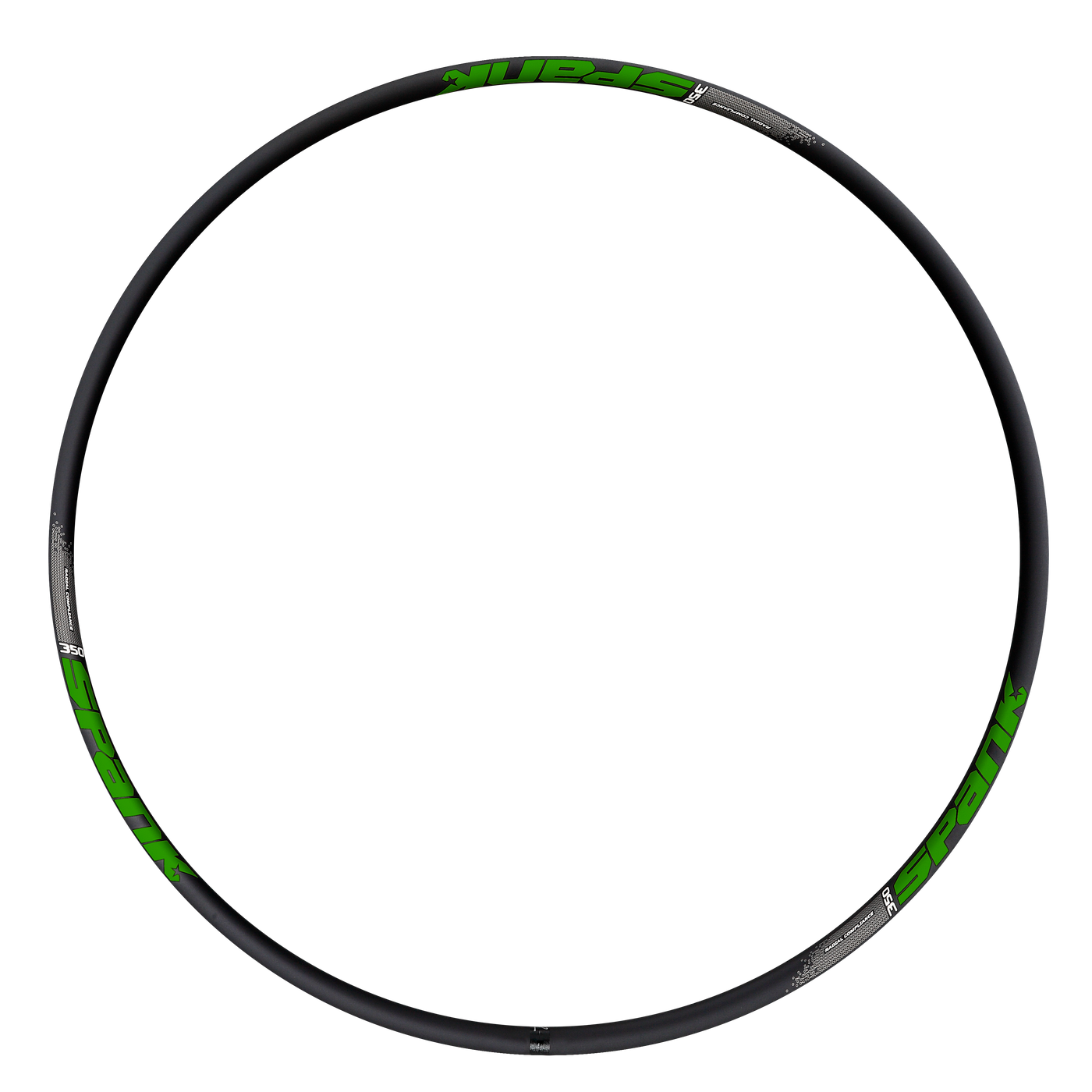

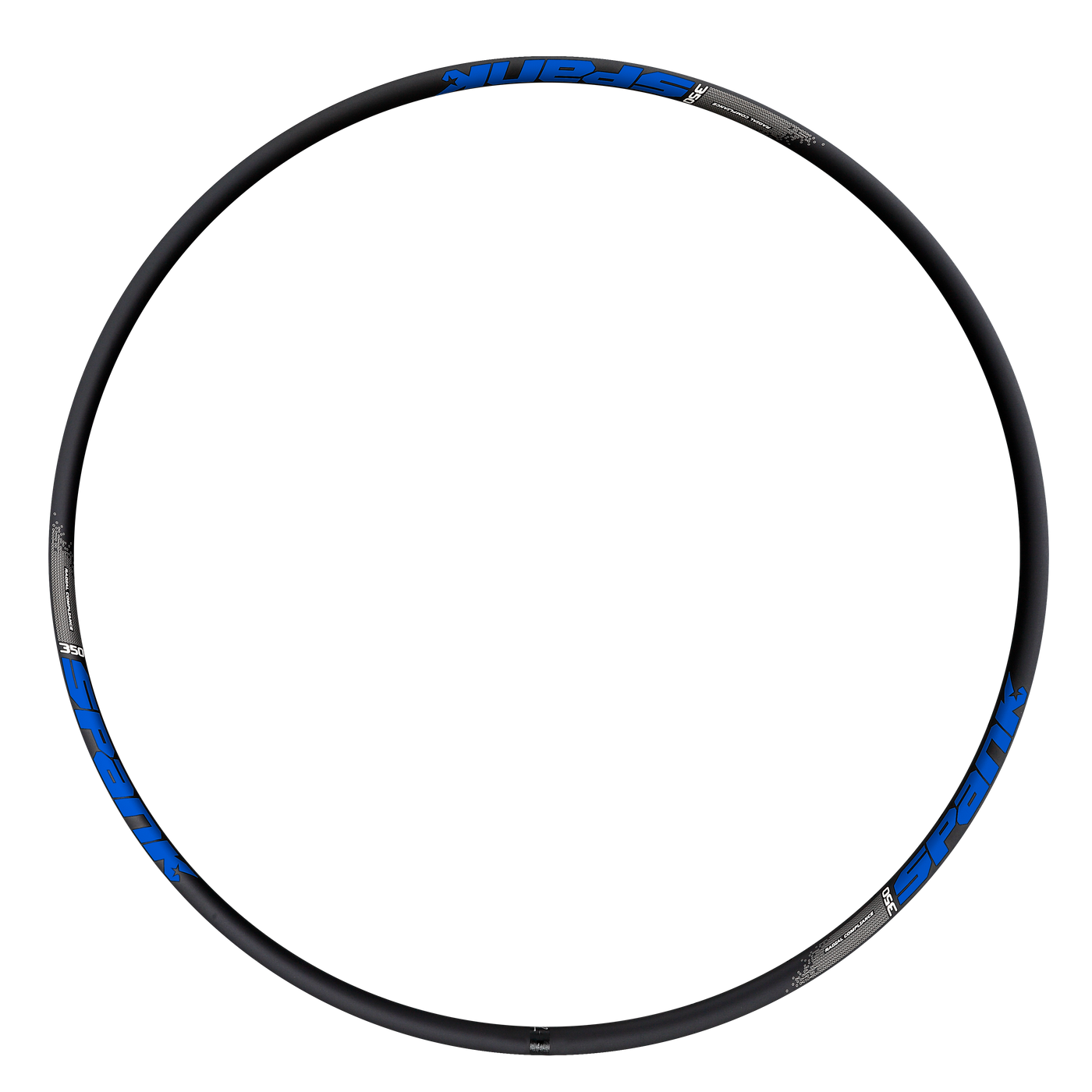

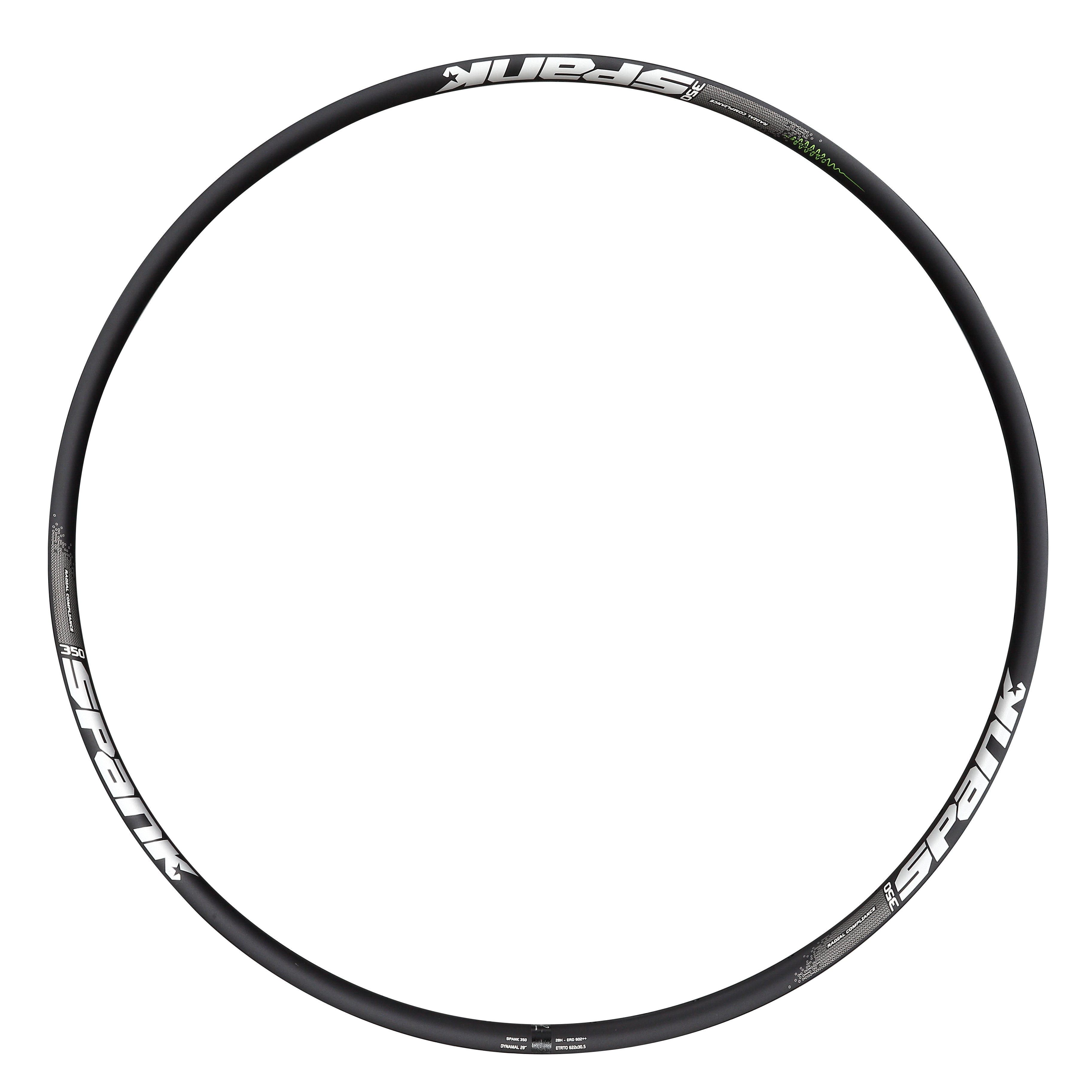

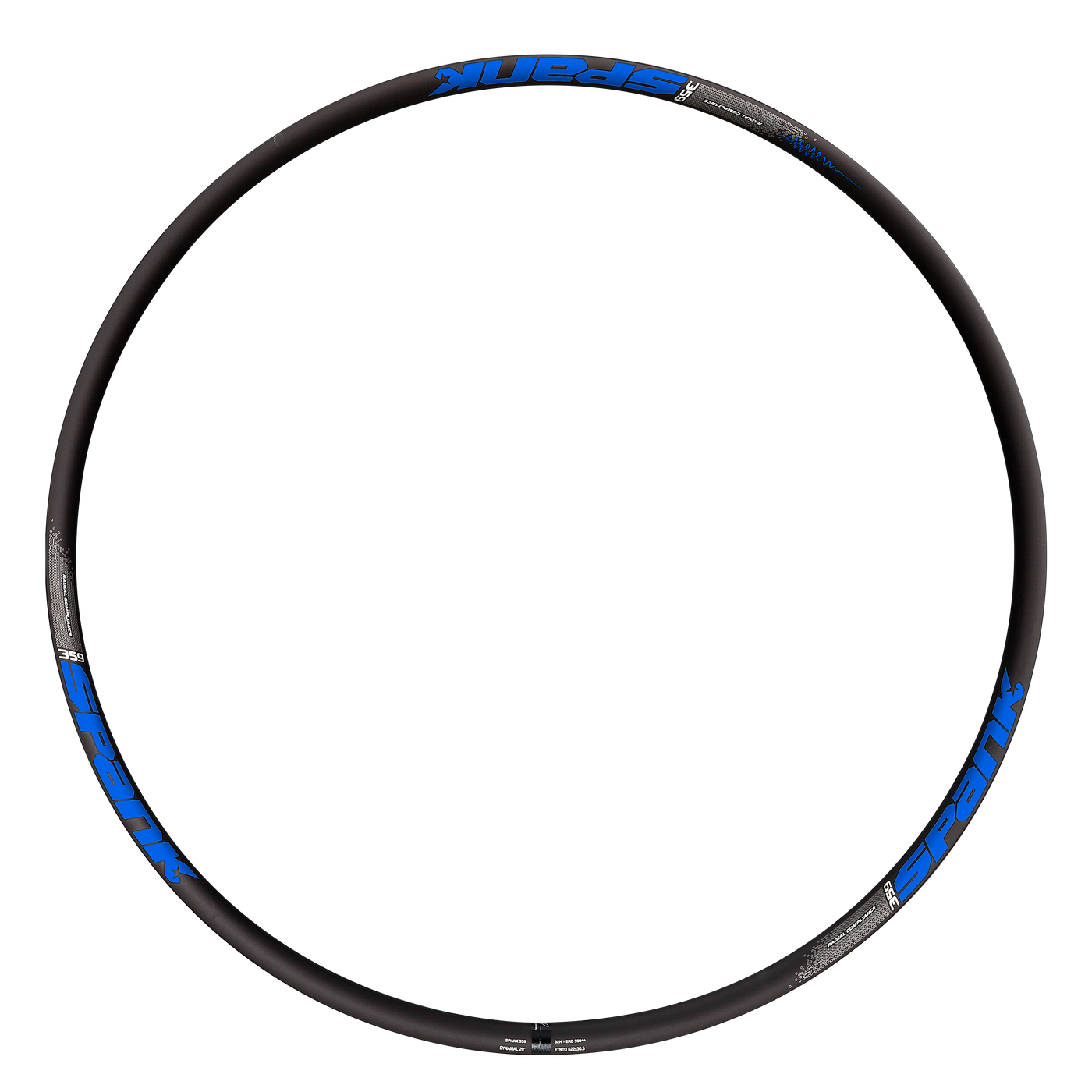

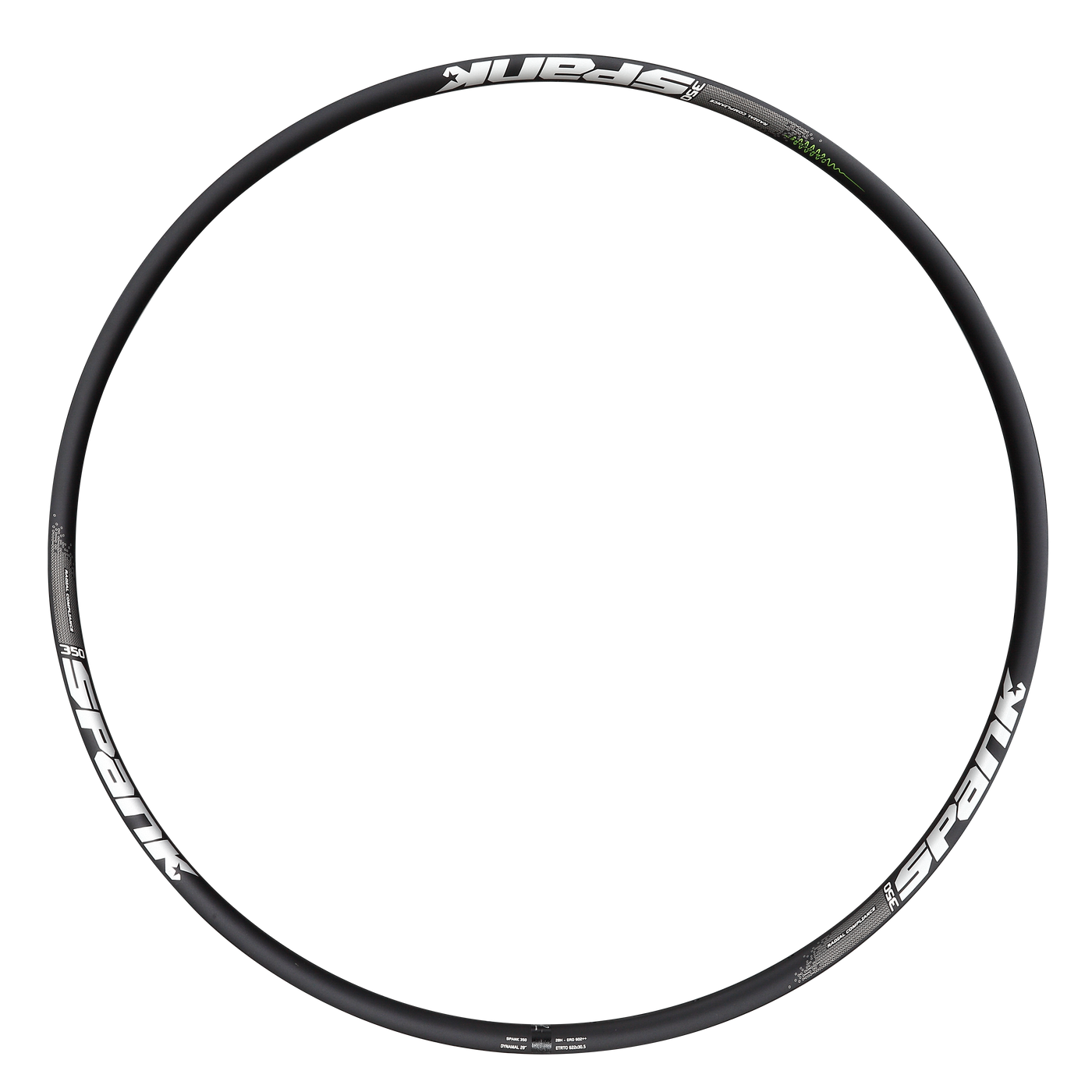

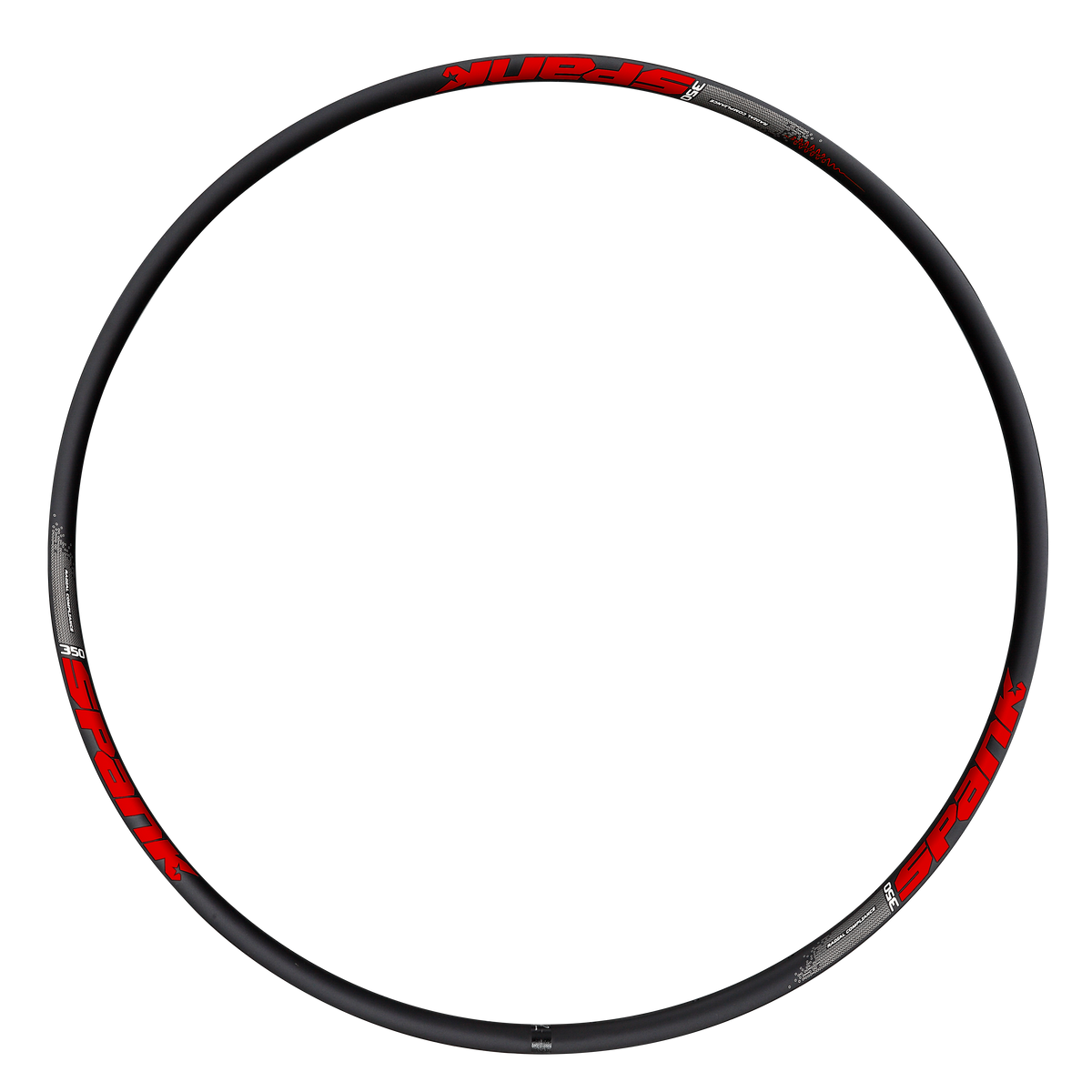

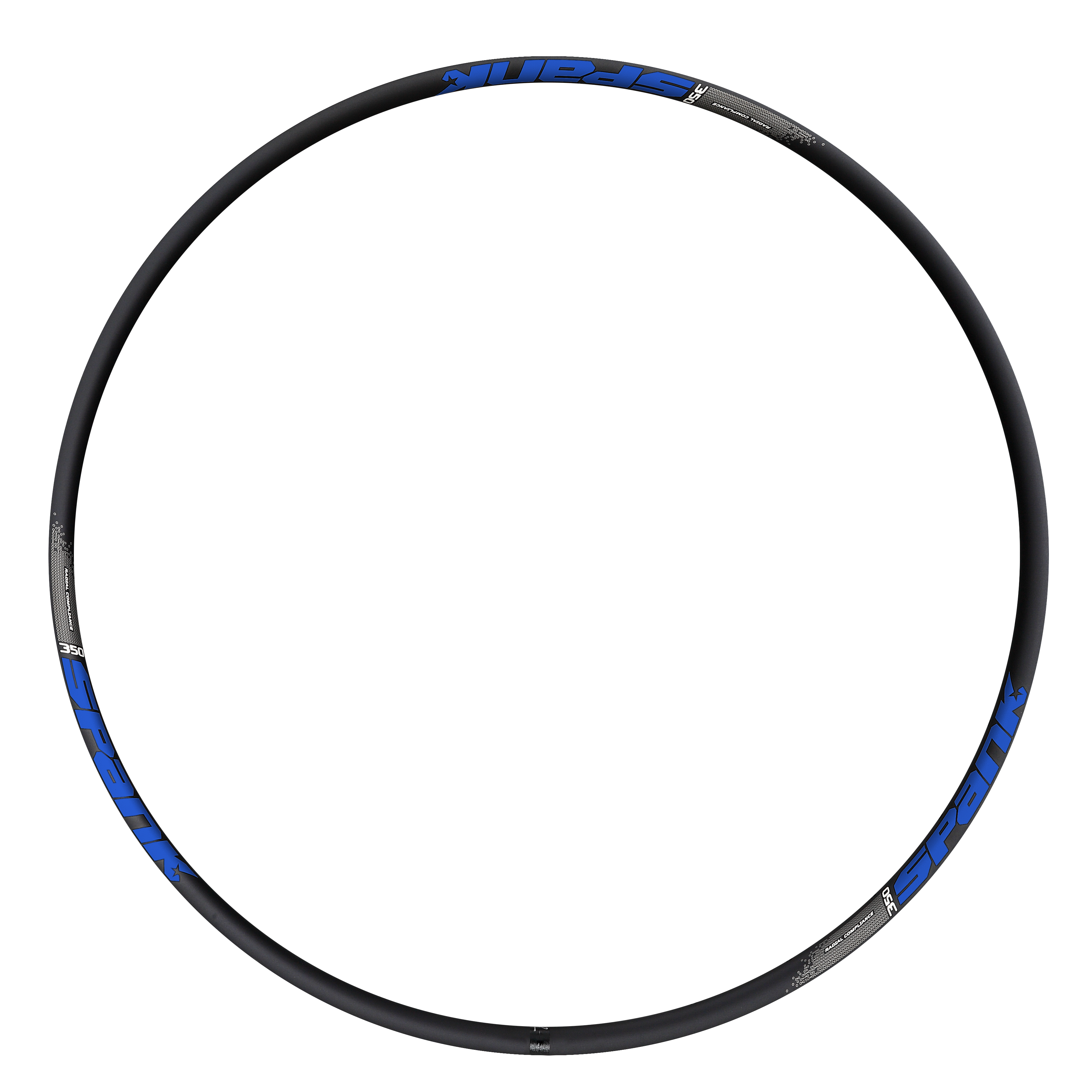

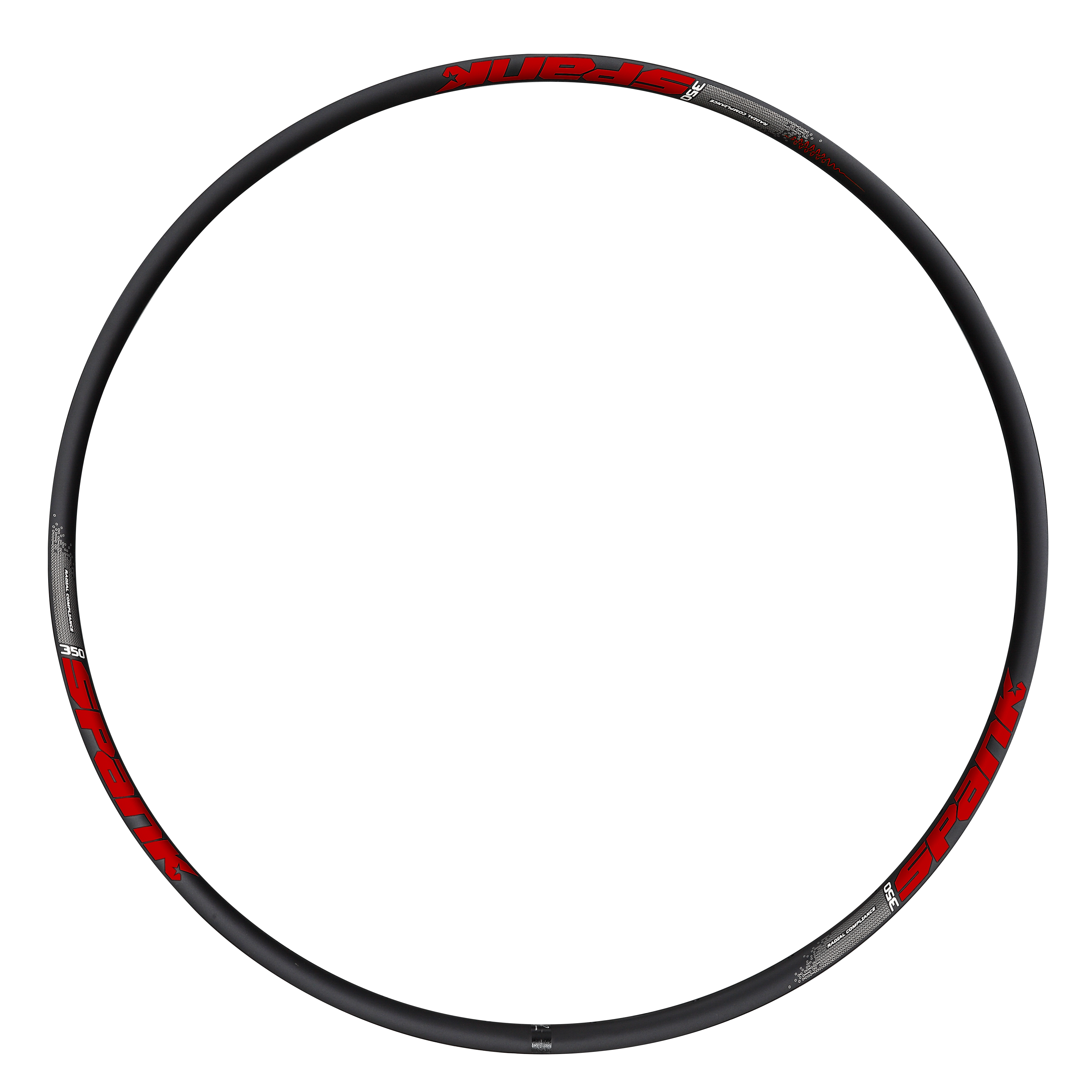

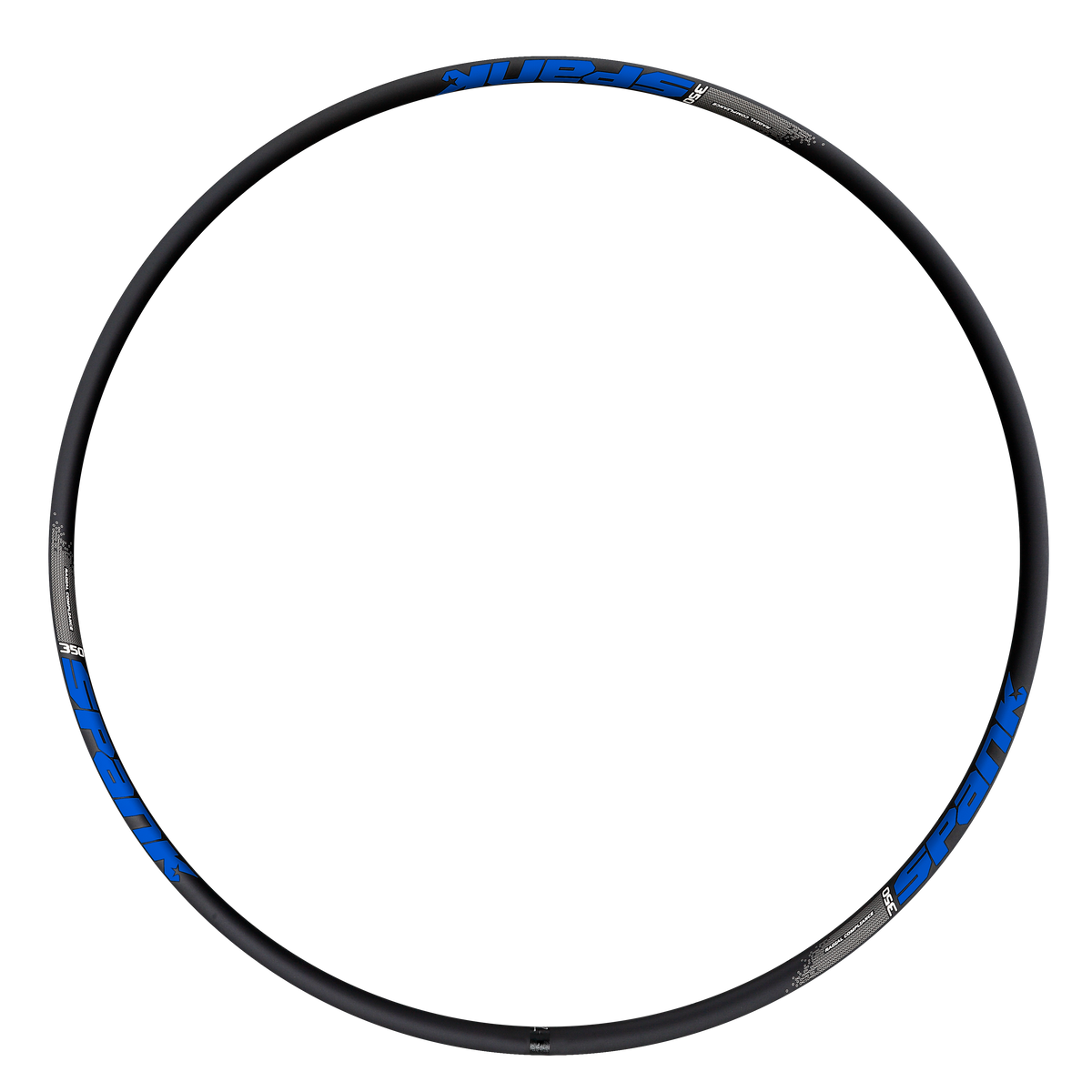

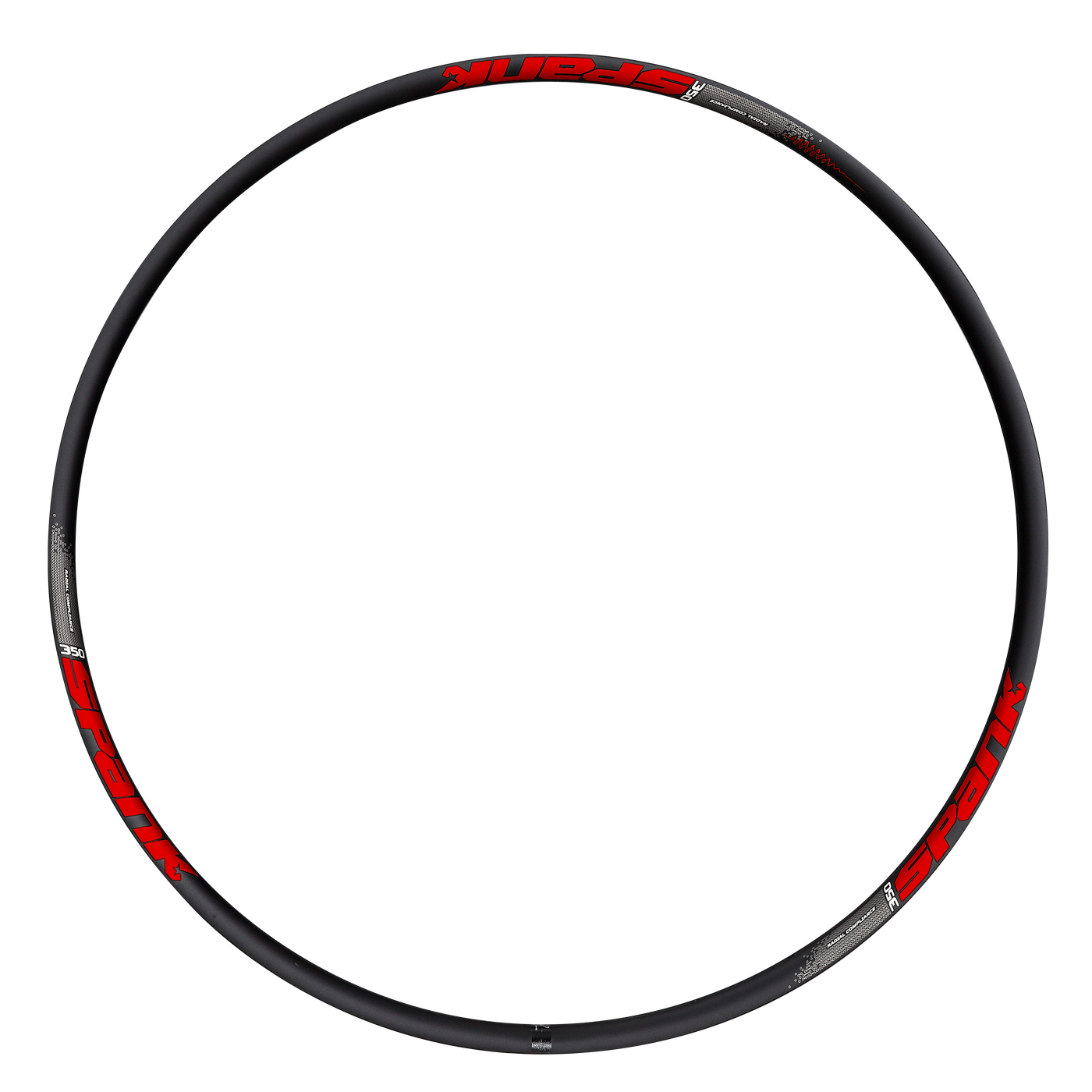

SPANK 350 Vibrocore™ Rim

Unique profile with low sectional height & wide width adds radial compliance & lateral stiffness
Improved radial compliance for better traction over bumps & chatter while reducing negative feedback to the rider gives enhanced performance & comfort

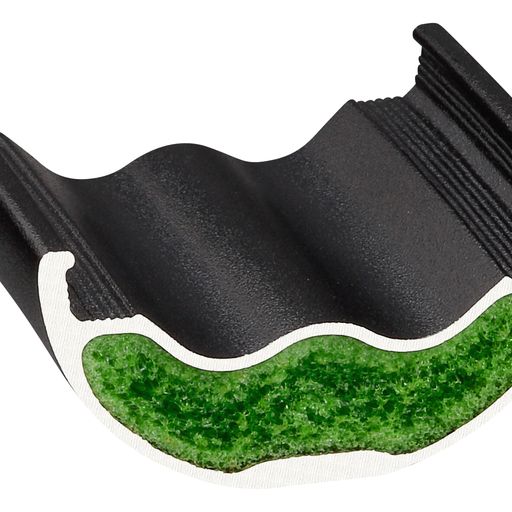

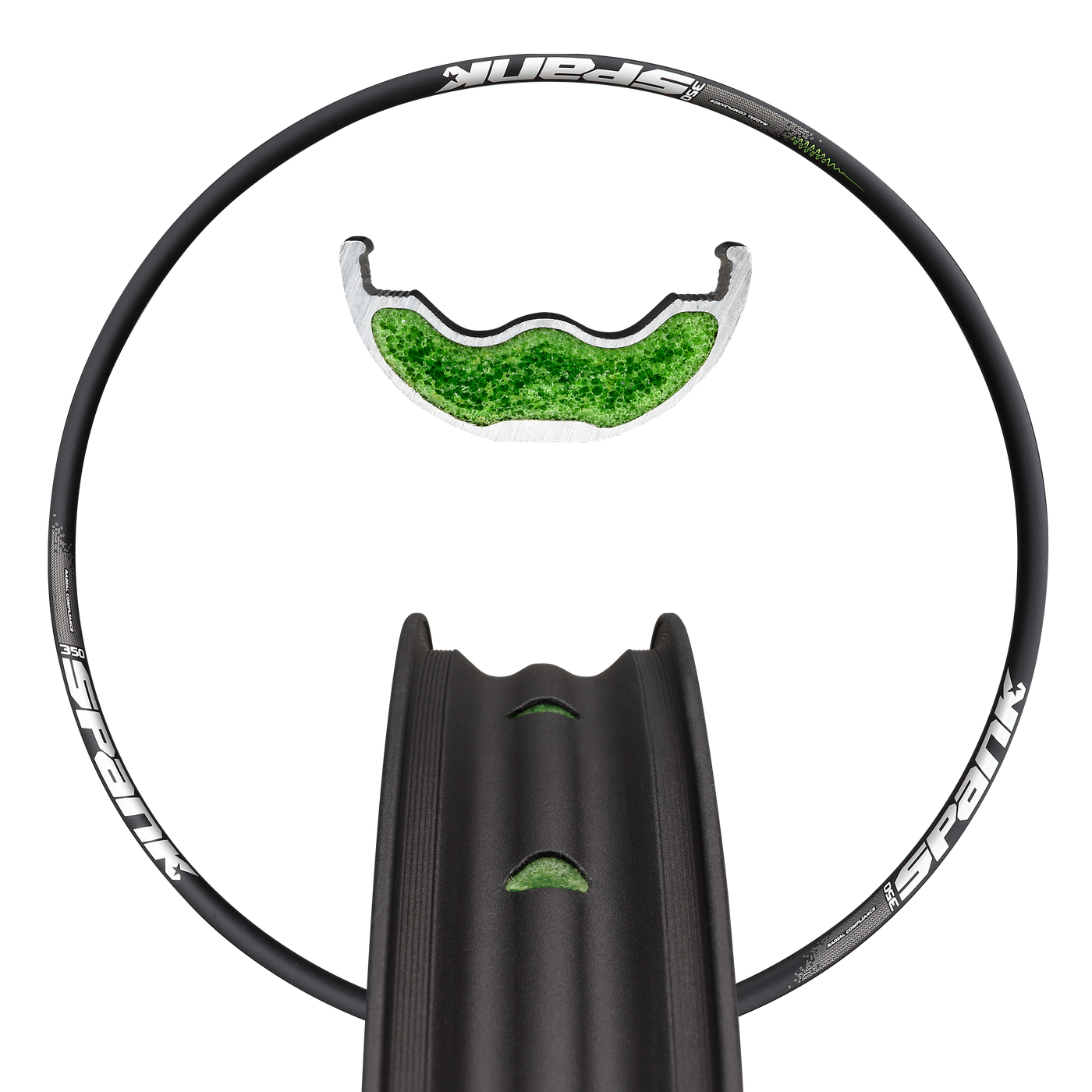

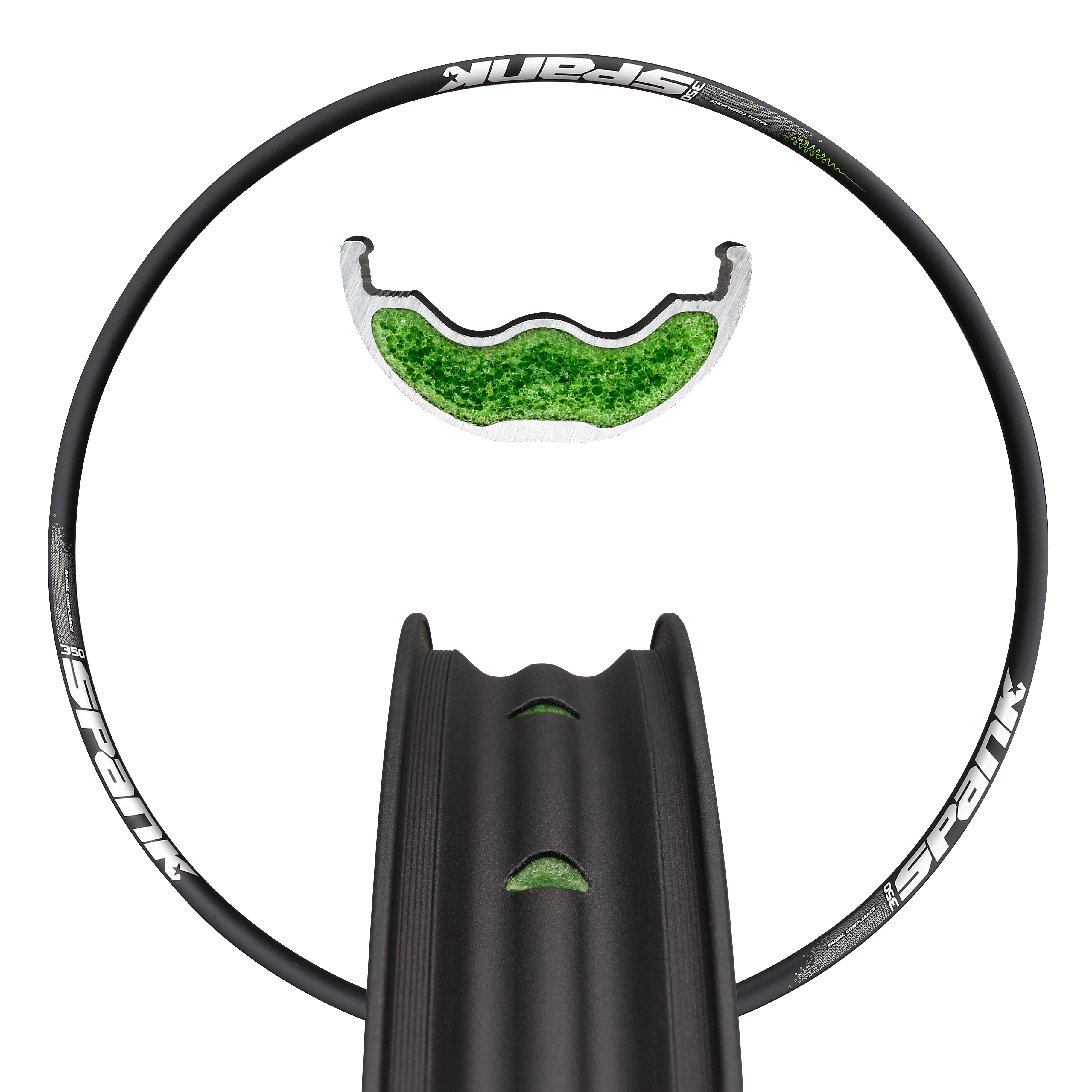

Vibrocore™ inner well reduces the transmission of harmful vibration frequencies & increases the fatigue life of the rim
30.5mm internal width is versatile fitting tires from 2.0” to 2.6” and allows plus size tire use without negative squaring off of tire profiles
RECOMMENDED FOR: ASTM 5, All mountain, trail, short-travel bikes
RIDER TYPE: MEDIUM TO LIGHT RIDER: Medium to Light Impact

HOLE COUNT:	28 / 32
SIZES (inches):	26 / 27.5 / 29
WEIGHT +/- (g):	540 / 560 / 600
INNER WIDTH (mm):	30.5
OUTER WIDTH (mm):	35
PROFILE HEIGHT (mm):	17
ETRTO:	559x30.5 / 584x30.5 / 622x30.5
ERD++ (mm):	539++ / 564++ / 602++
TUBELESS:	Tubeless Ready
VALVE:	F/V Presta
TIRE FIT:	2.0” to 2.6”
FEATURES:	Radially compliant gravity rim with Vibrocore, Oohbah Inverted Inner Wall, BeadBite anti-burp
++: SPANK ERD	= Rim diameter (mm) with 2x spoke bed thickness (mm) included. (++) = add your own nipple head height in mm x2
