ShiftMount

ShiftMounts are adapter mounts that allow you to integrate SRAM and Shimano shifters with several different brakes from Shimano, SRAM, and Magura, or mount shifters directly to handlebars independent of brakes. Handlebar space is prime real estate and the ShiftMount seamlessly integrates brakes and shifters for a clean look.

Mount Type

ShiftMount naming convention is [shifter type - brake type]

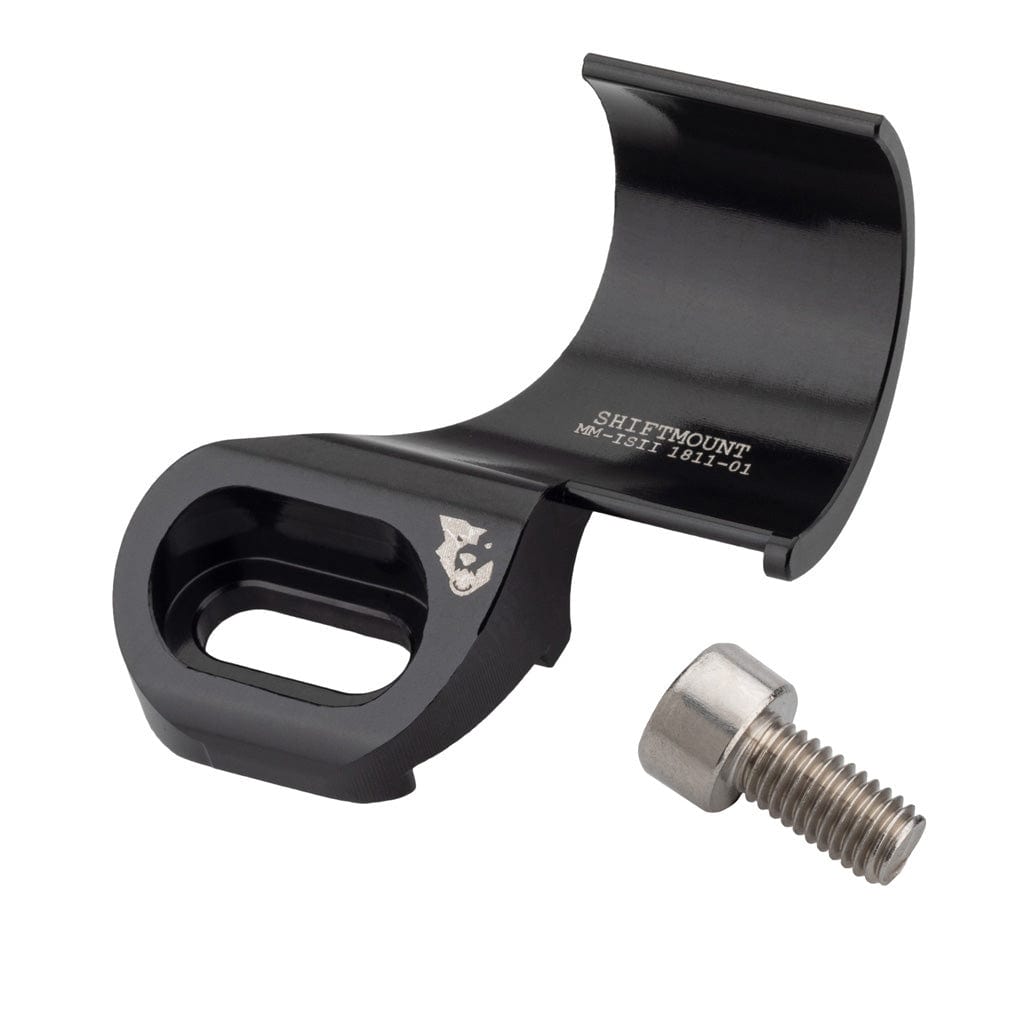

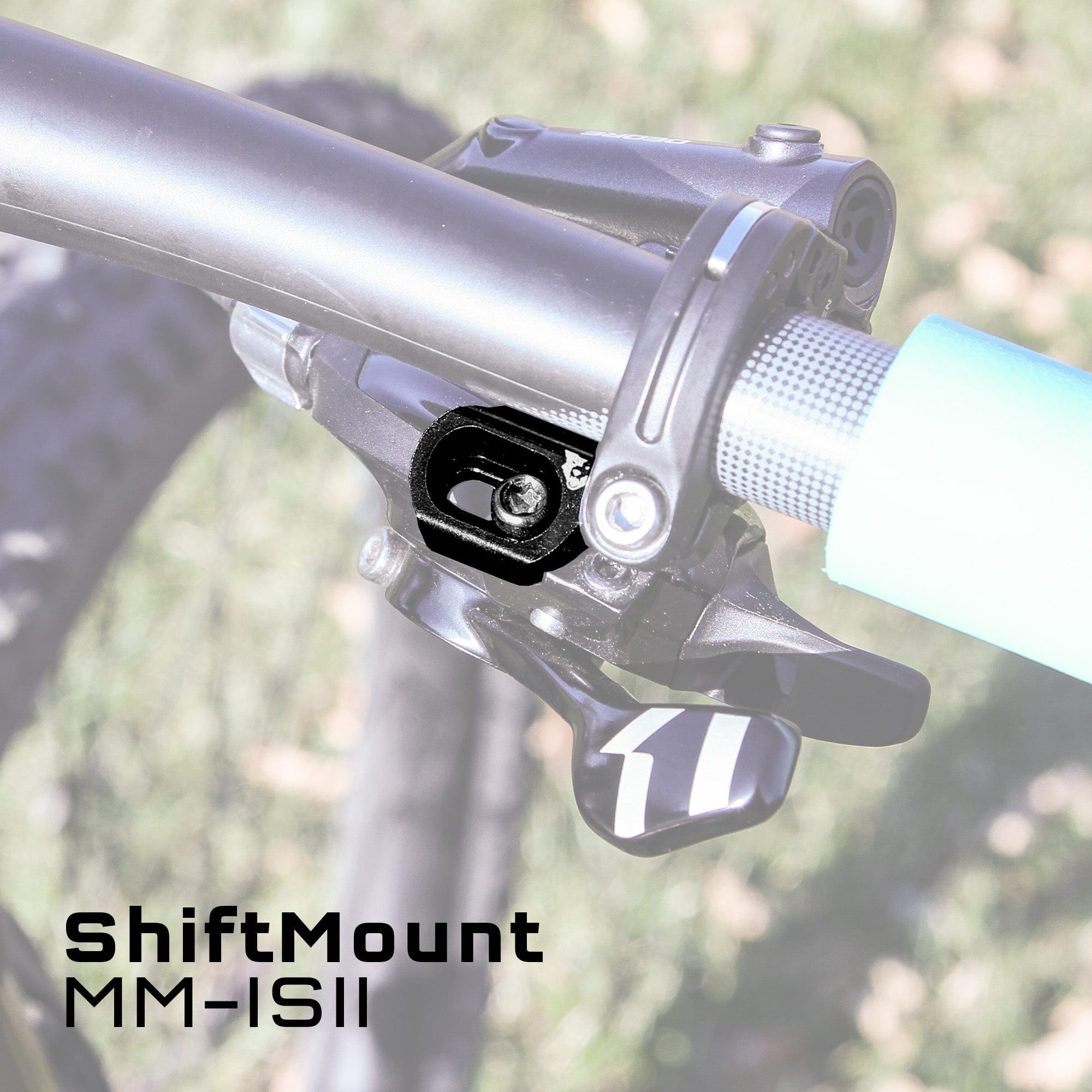

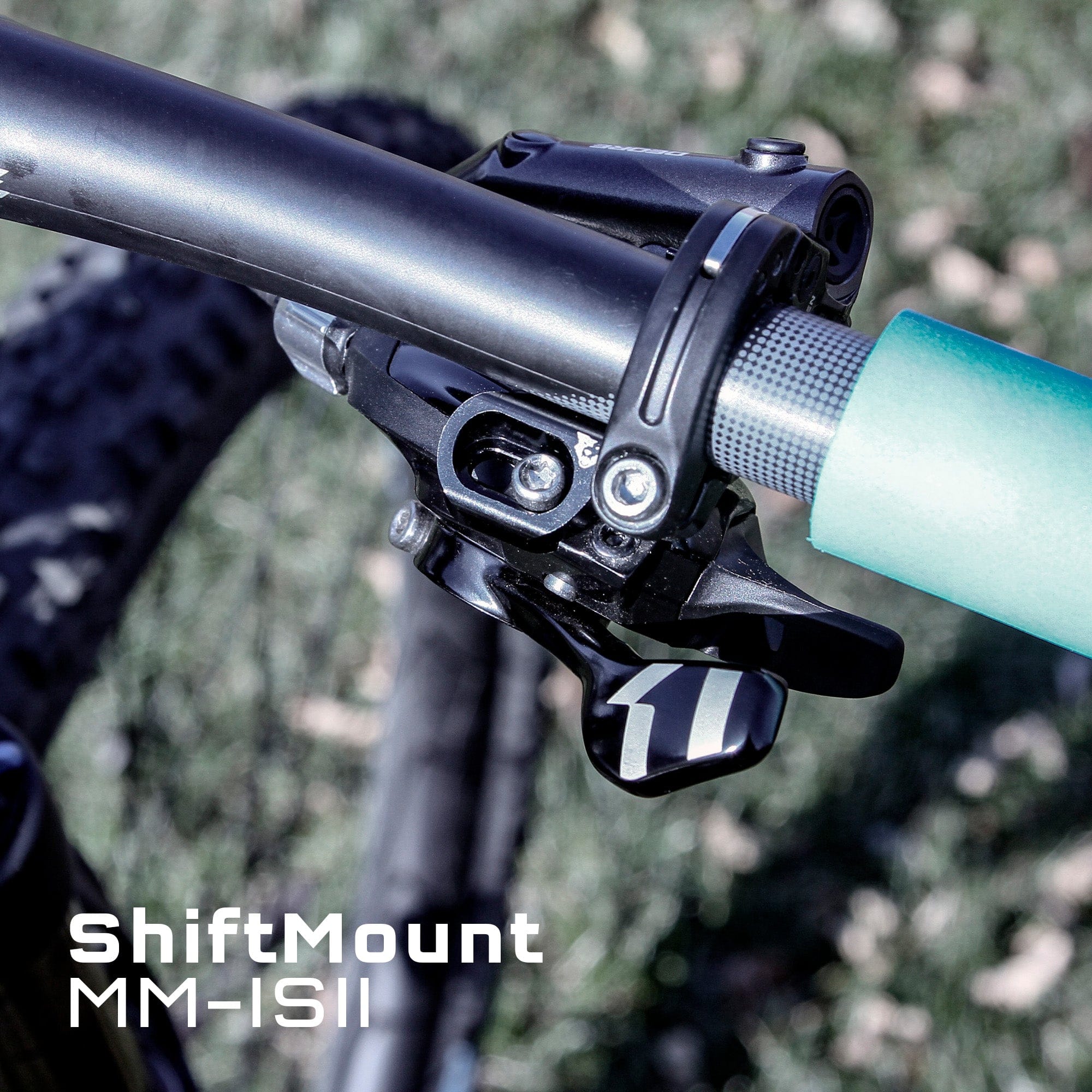

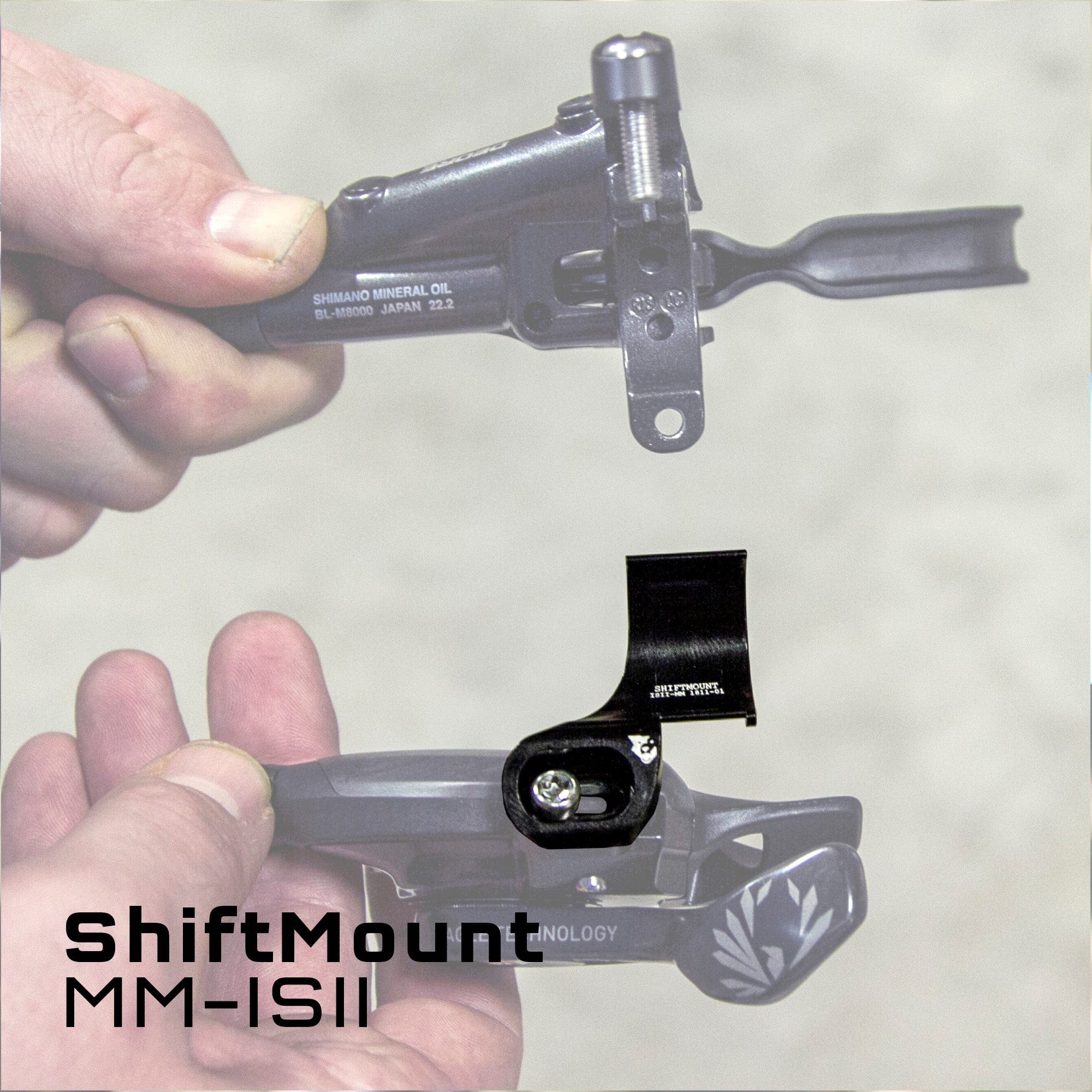

• MM-ISII is for a SRAM MatchMaker shifter mounting to a Shimano I-SPEC II brake

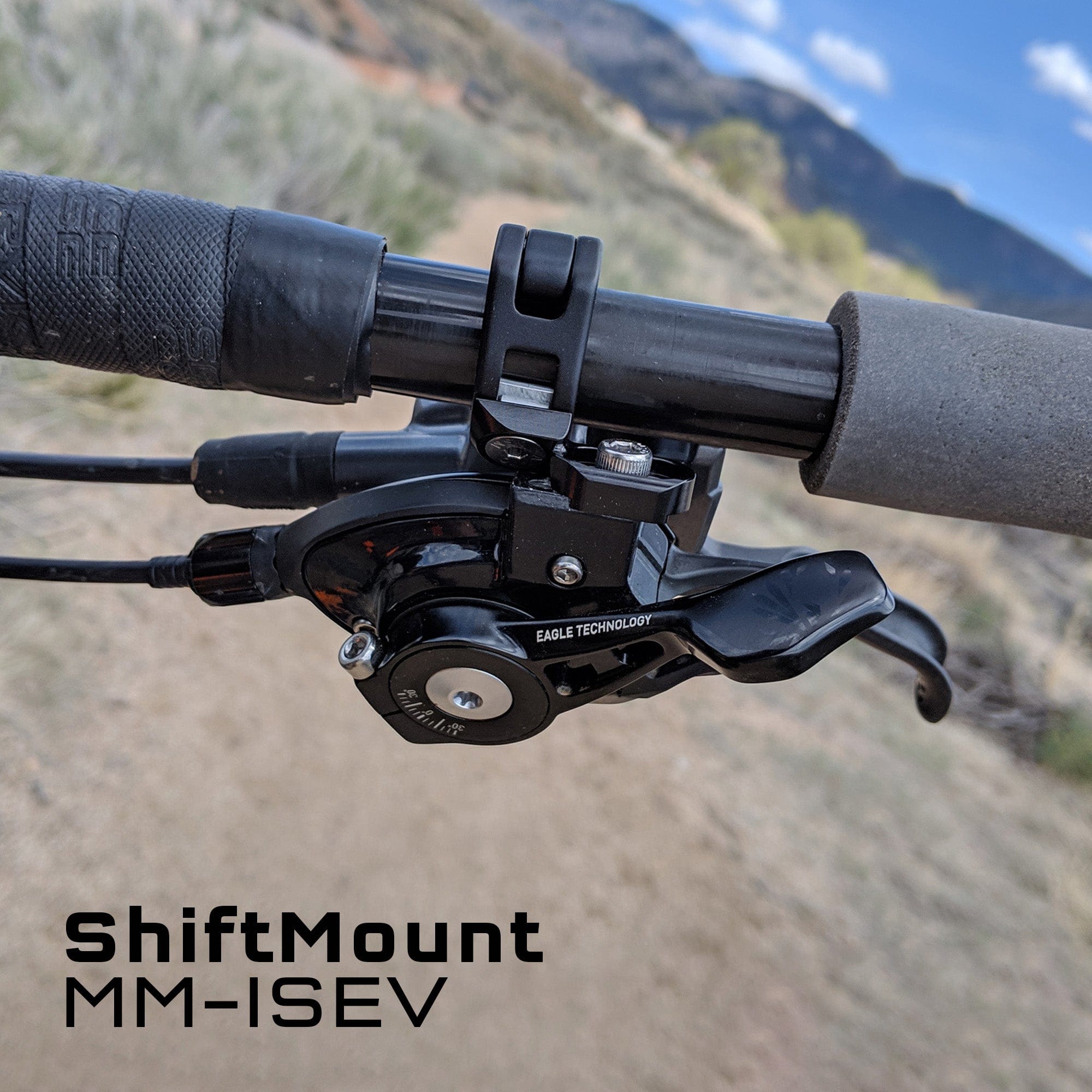

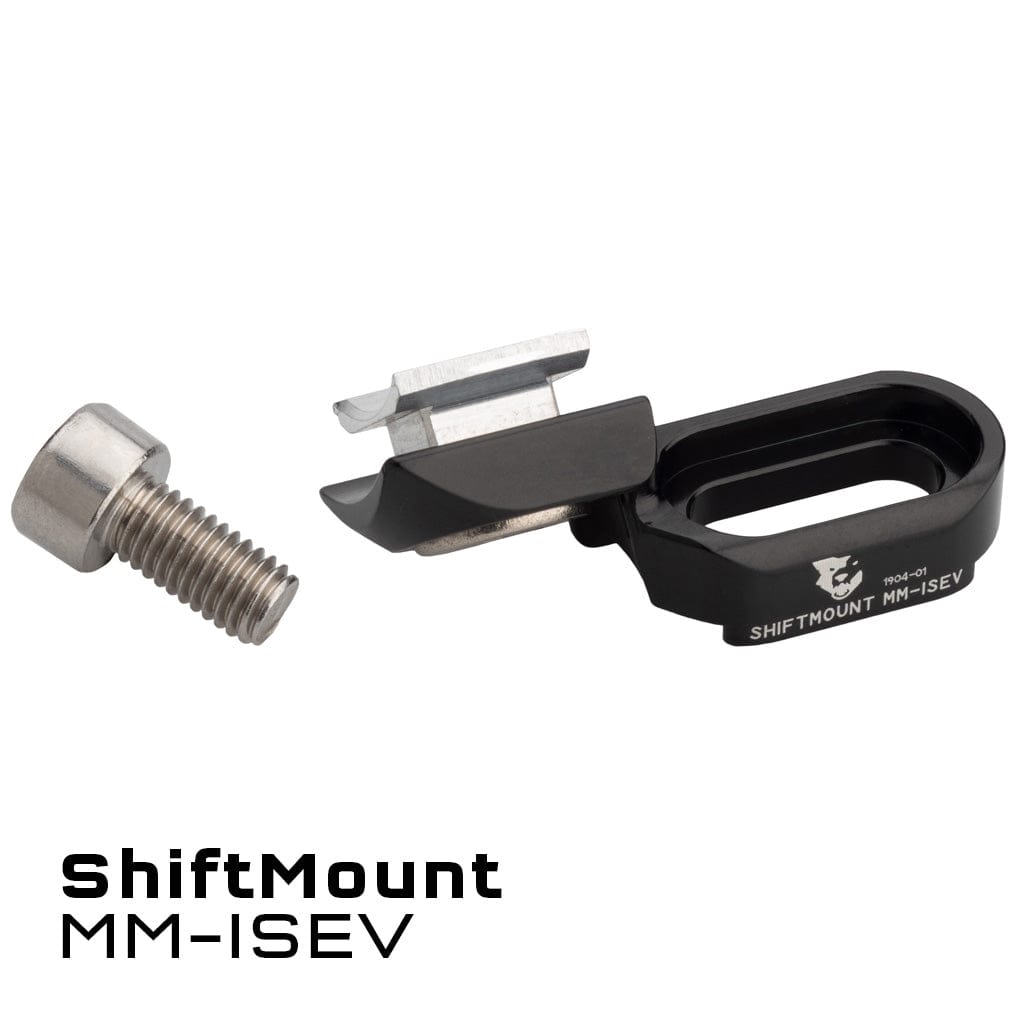

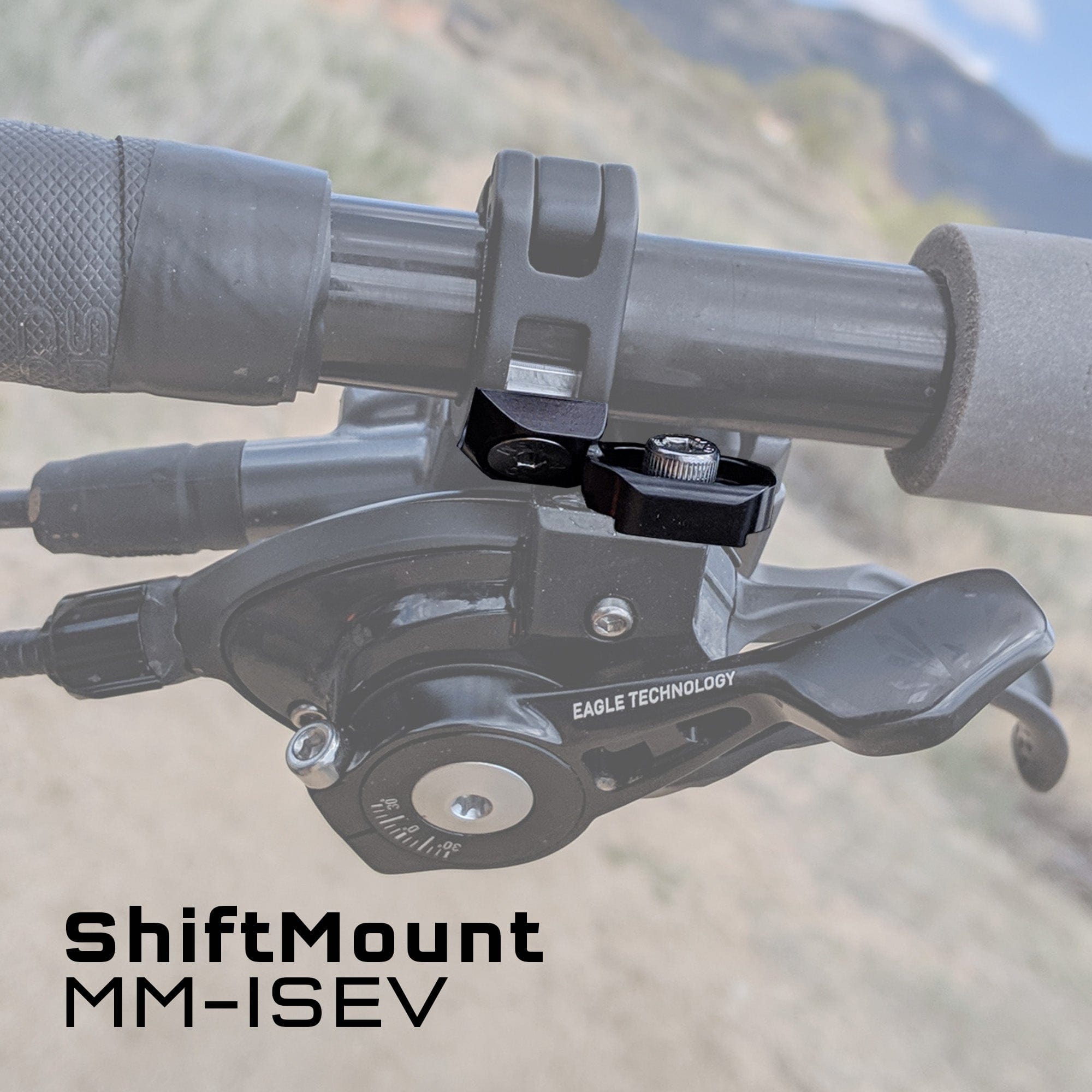

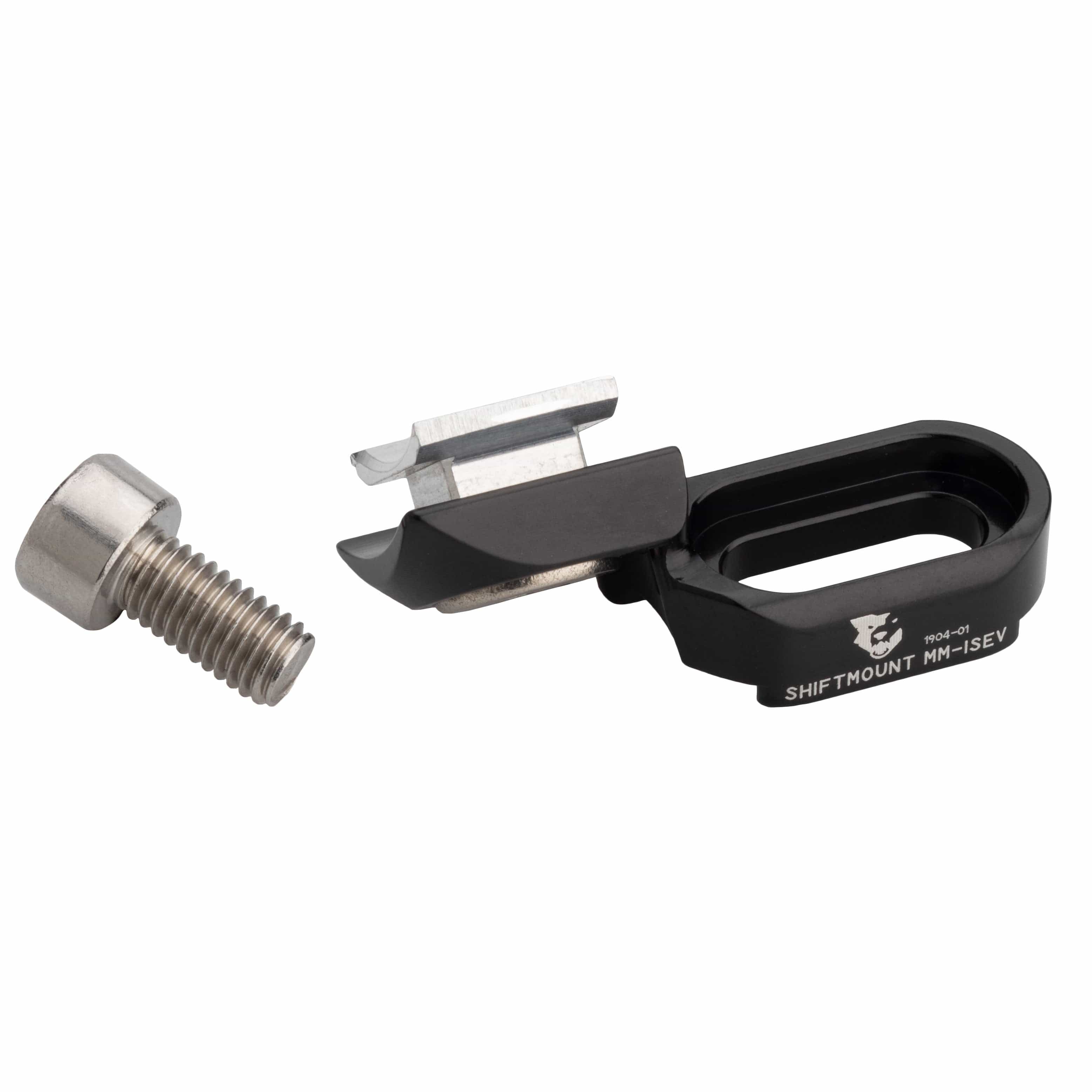

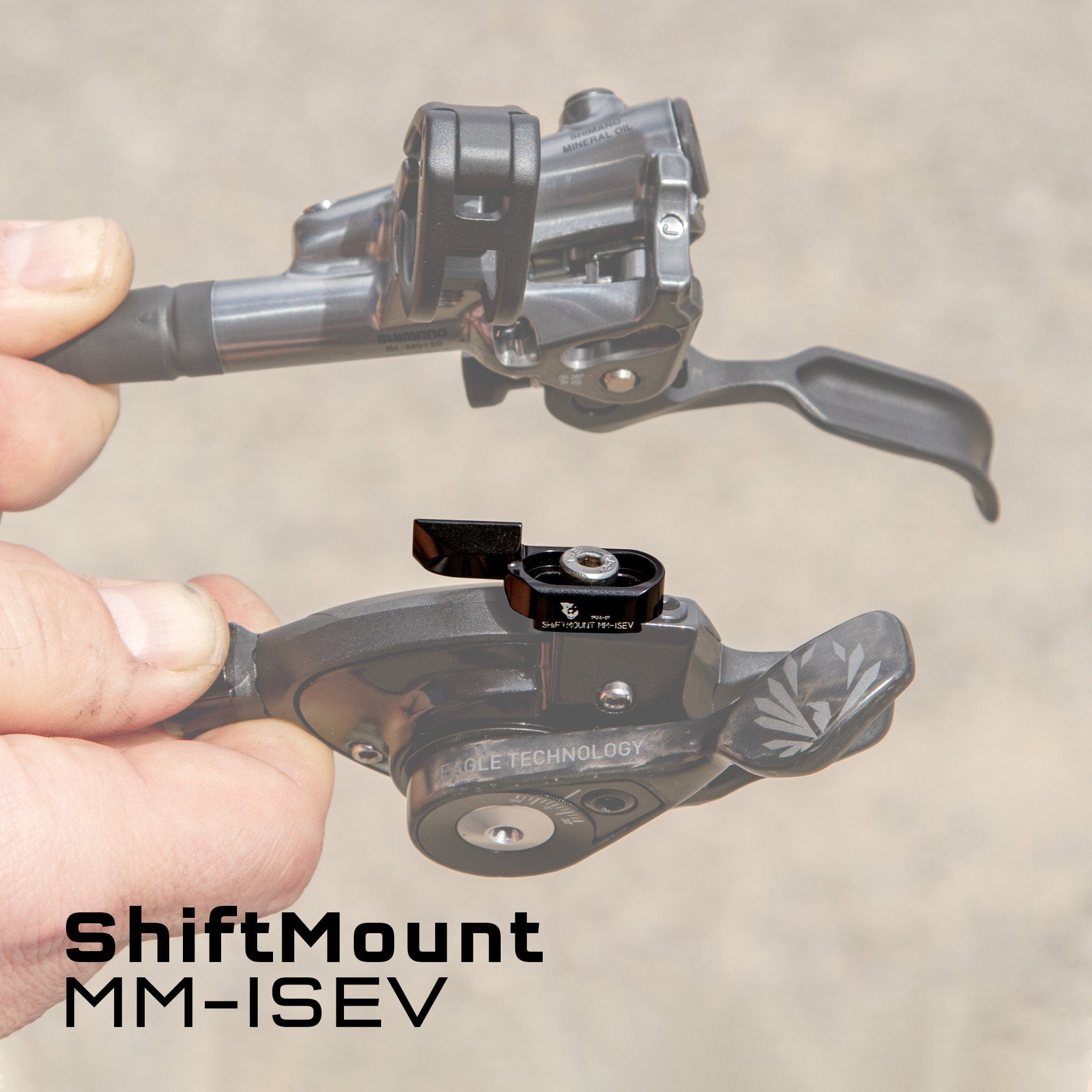

• MM-ISEV is for a SRAM MatchMaker shifter mounting to a Shimano I-SPEC EV brake

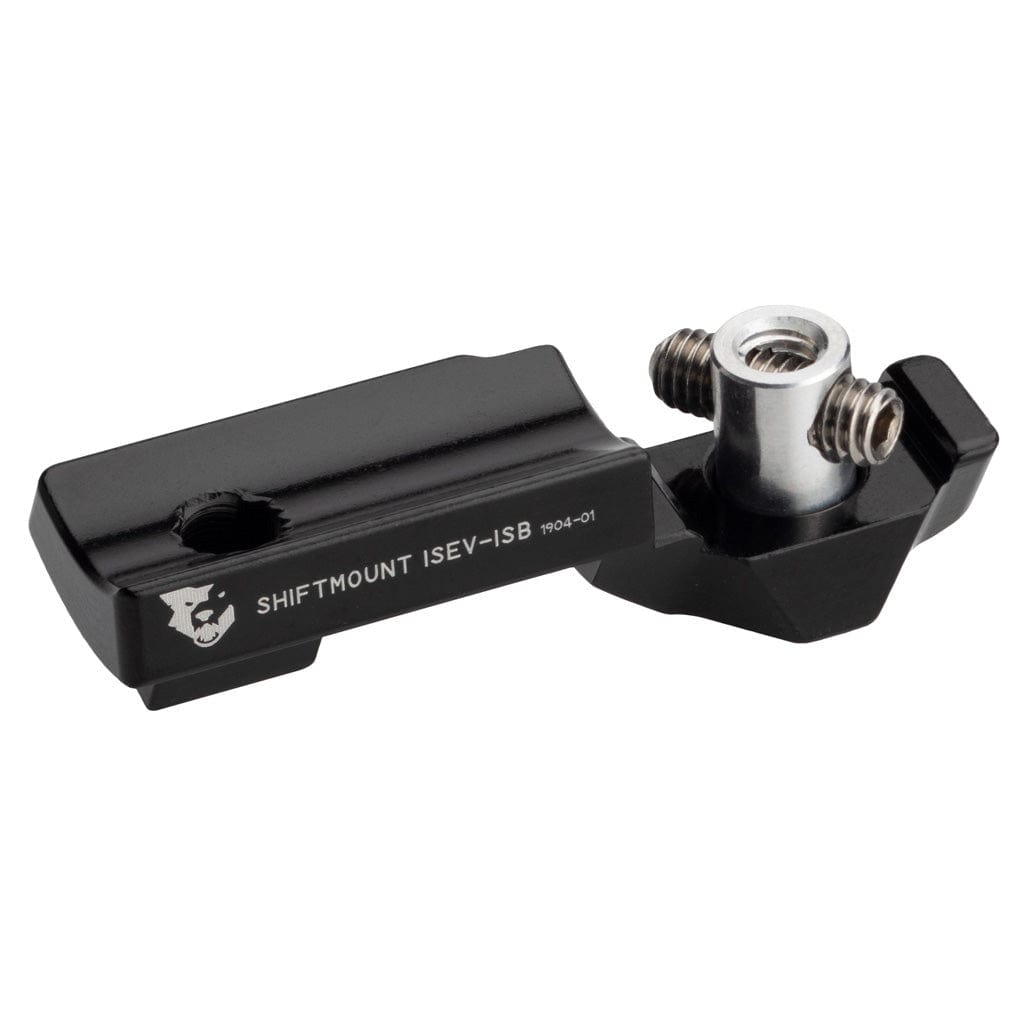

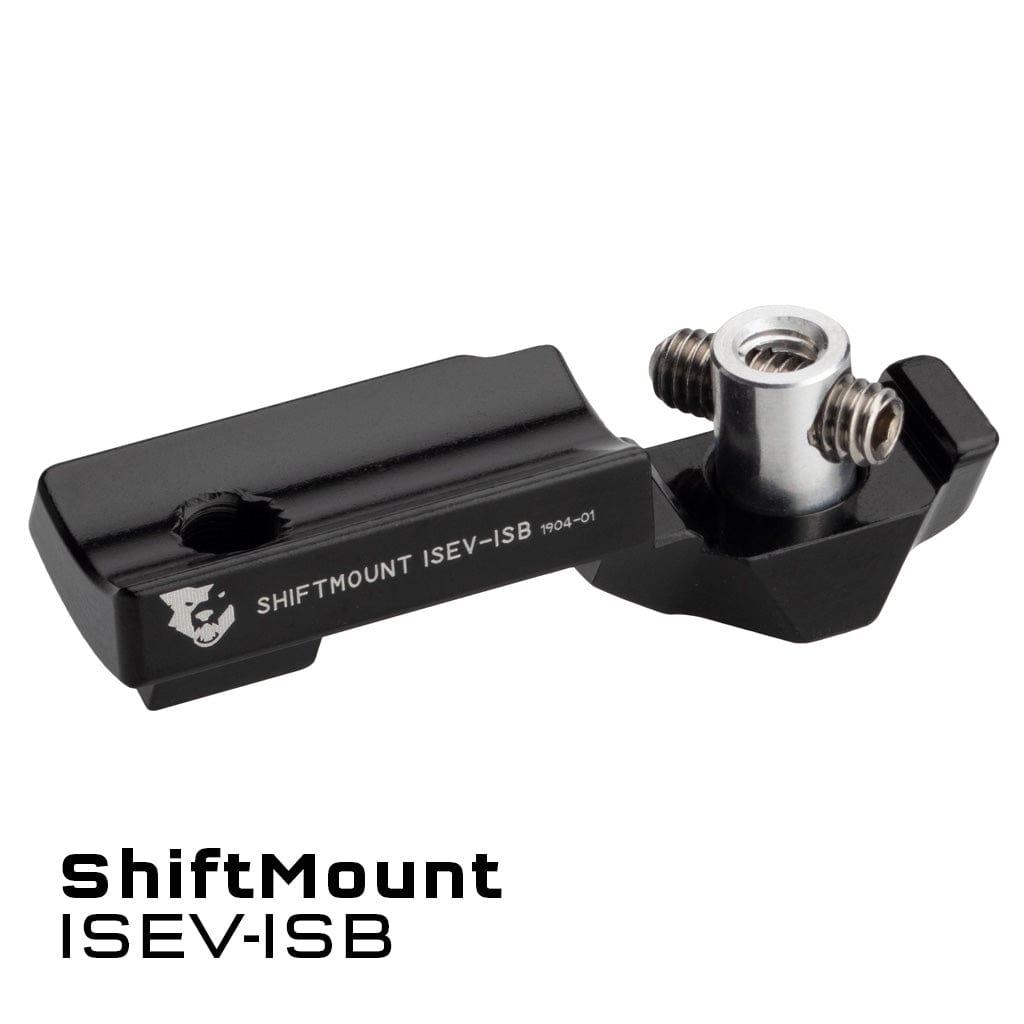

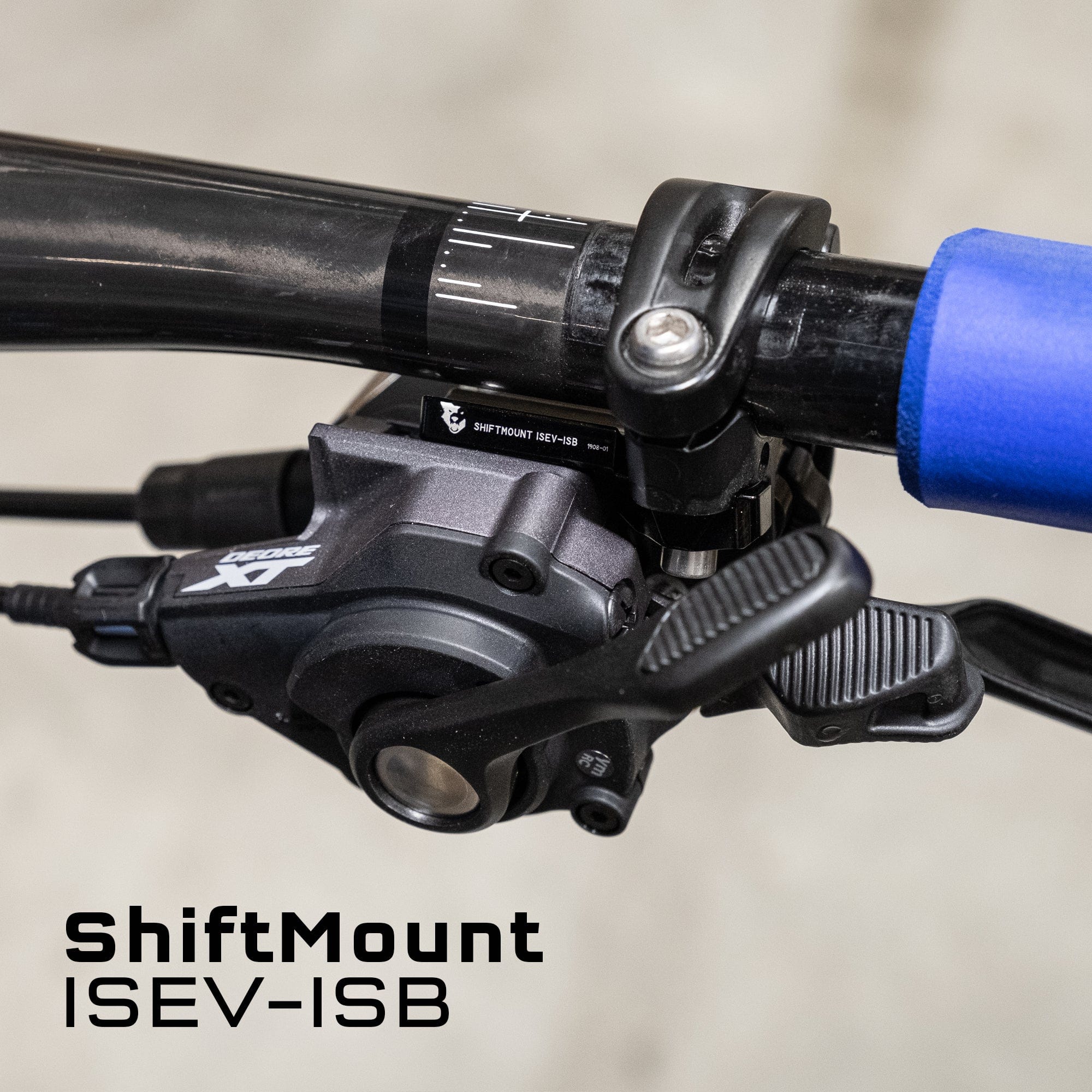

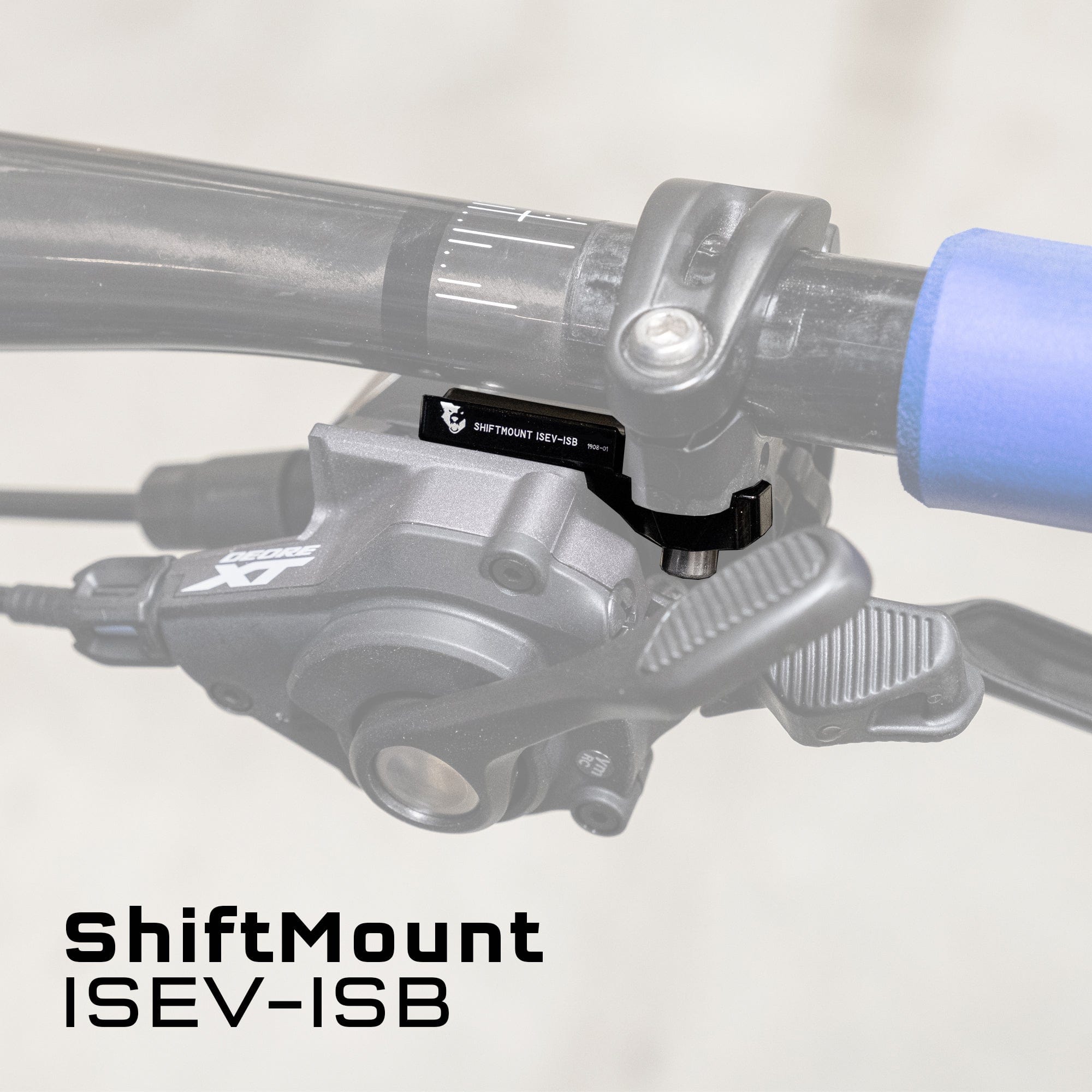

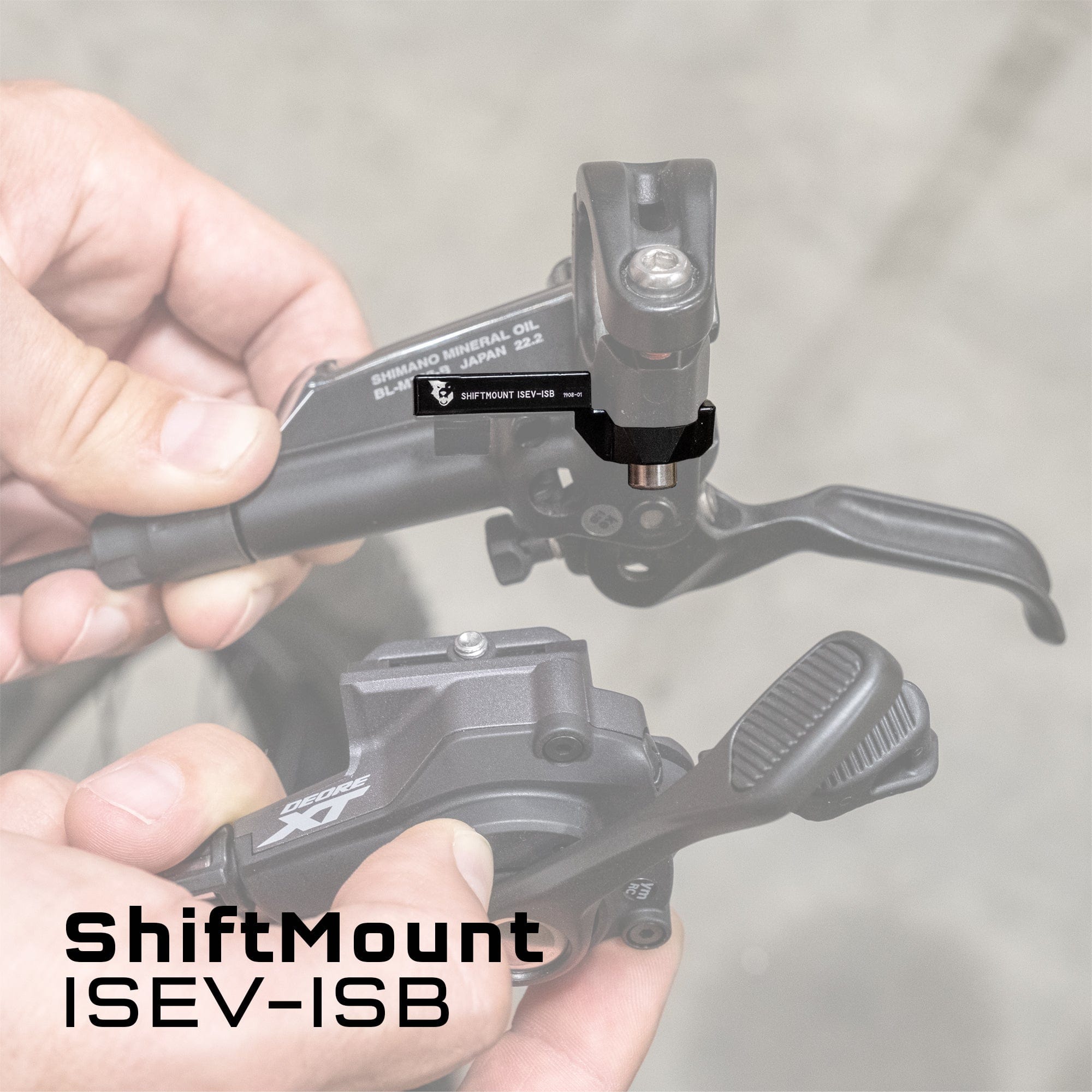

• ISEV-ISB is for a Shimano I-SPEC EV shifter mounting to a Shimano I-SPEC B brake

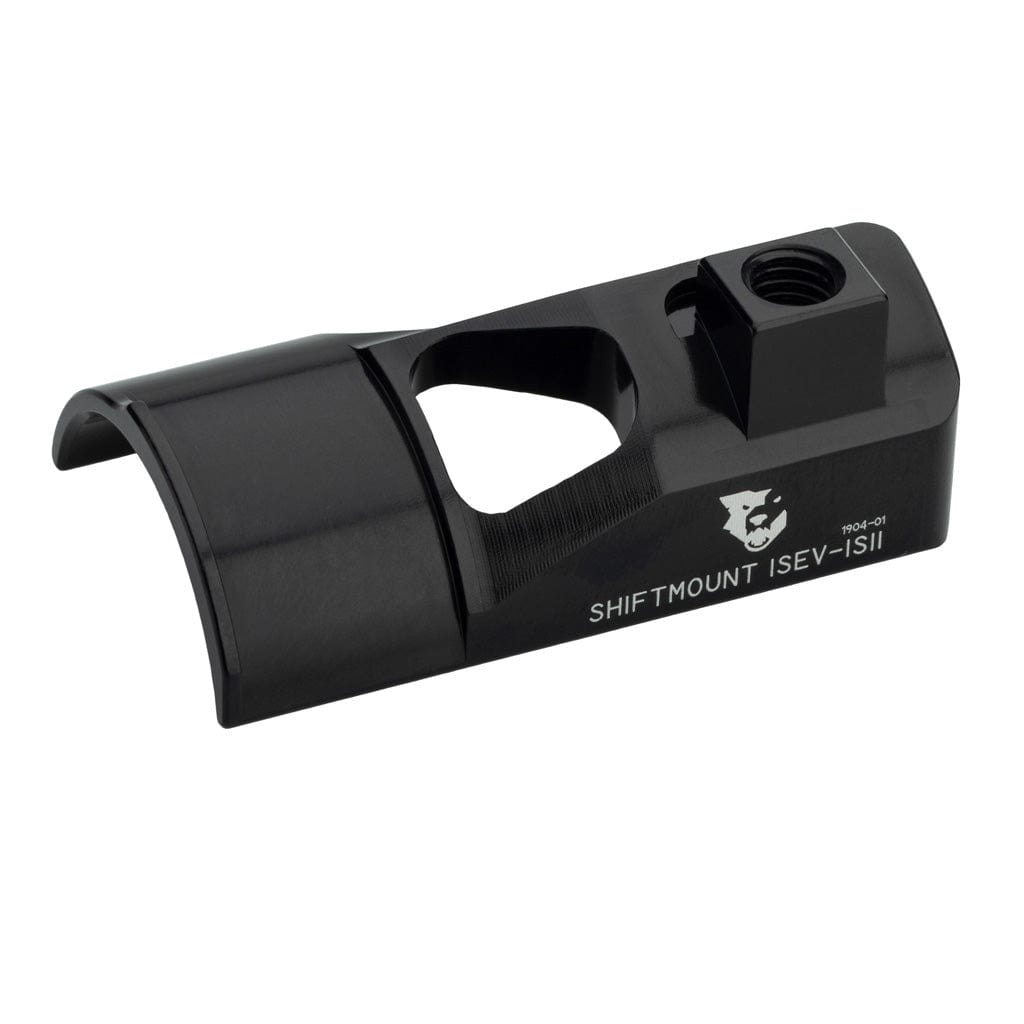

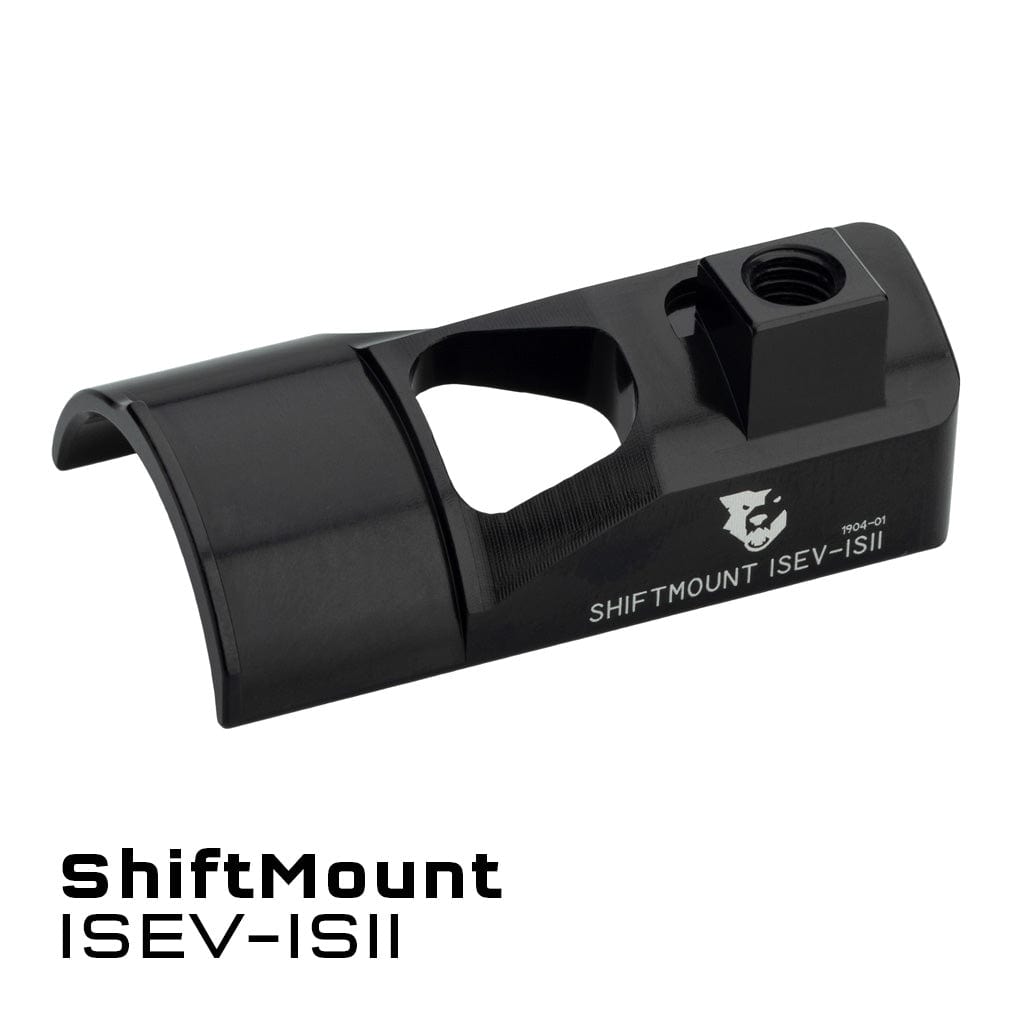

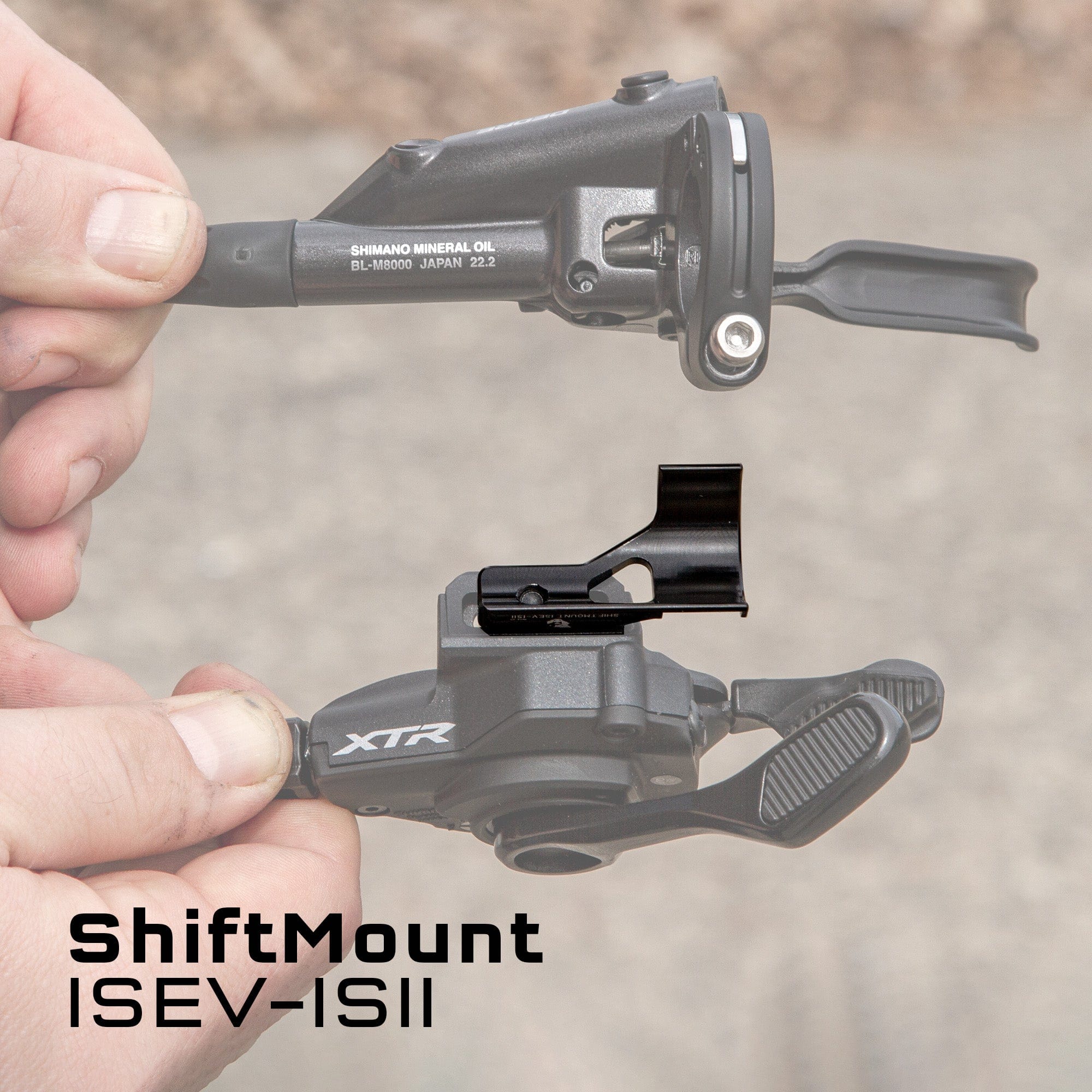

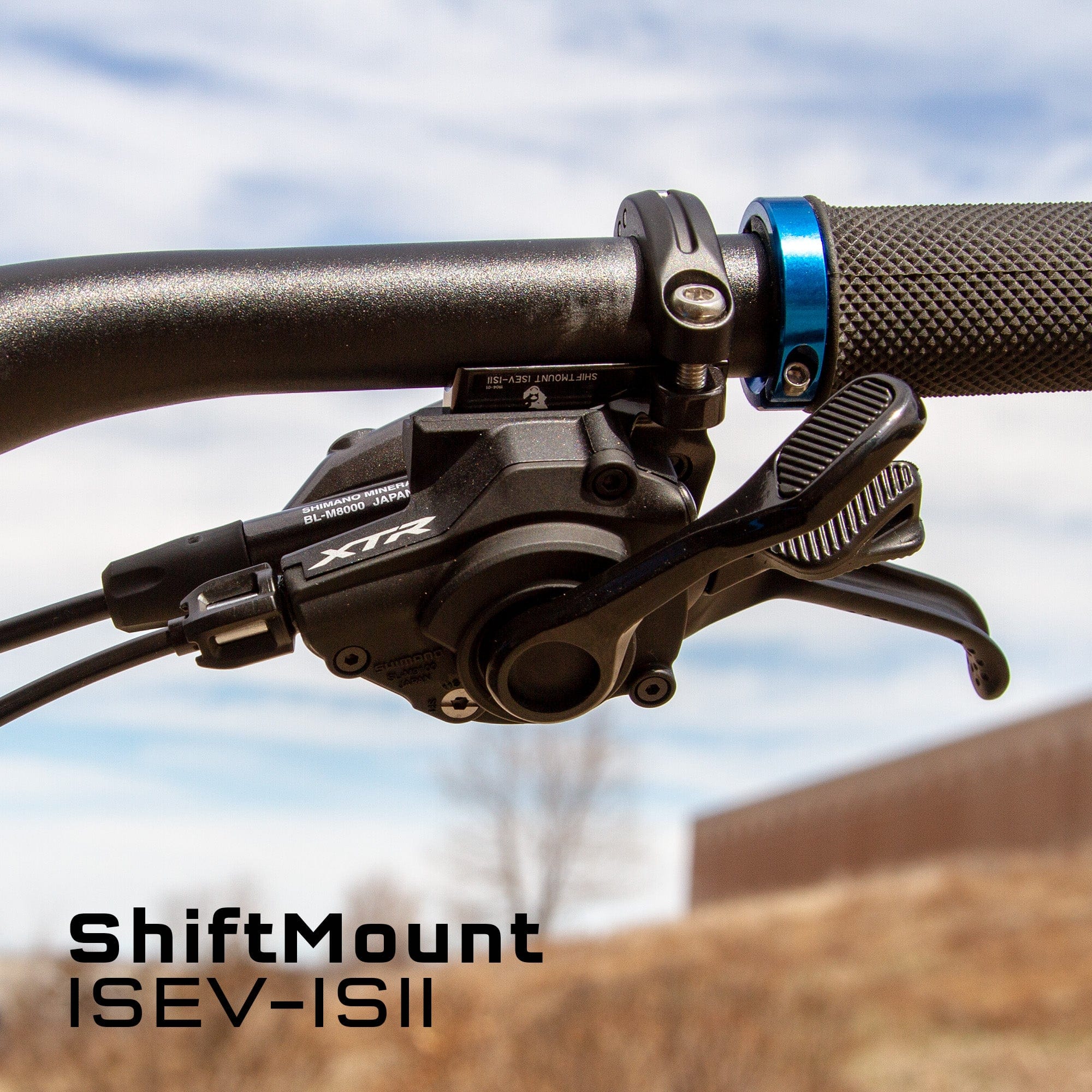

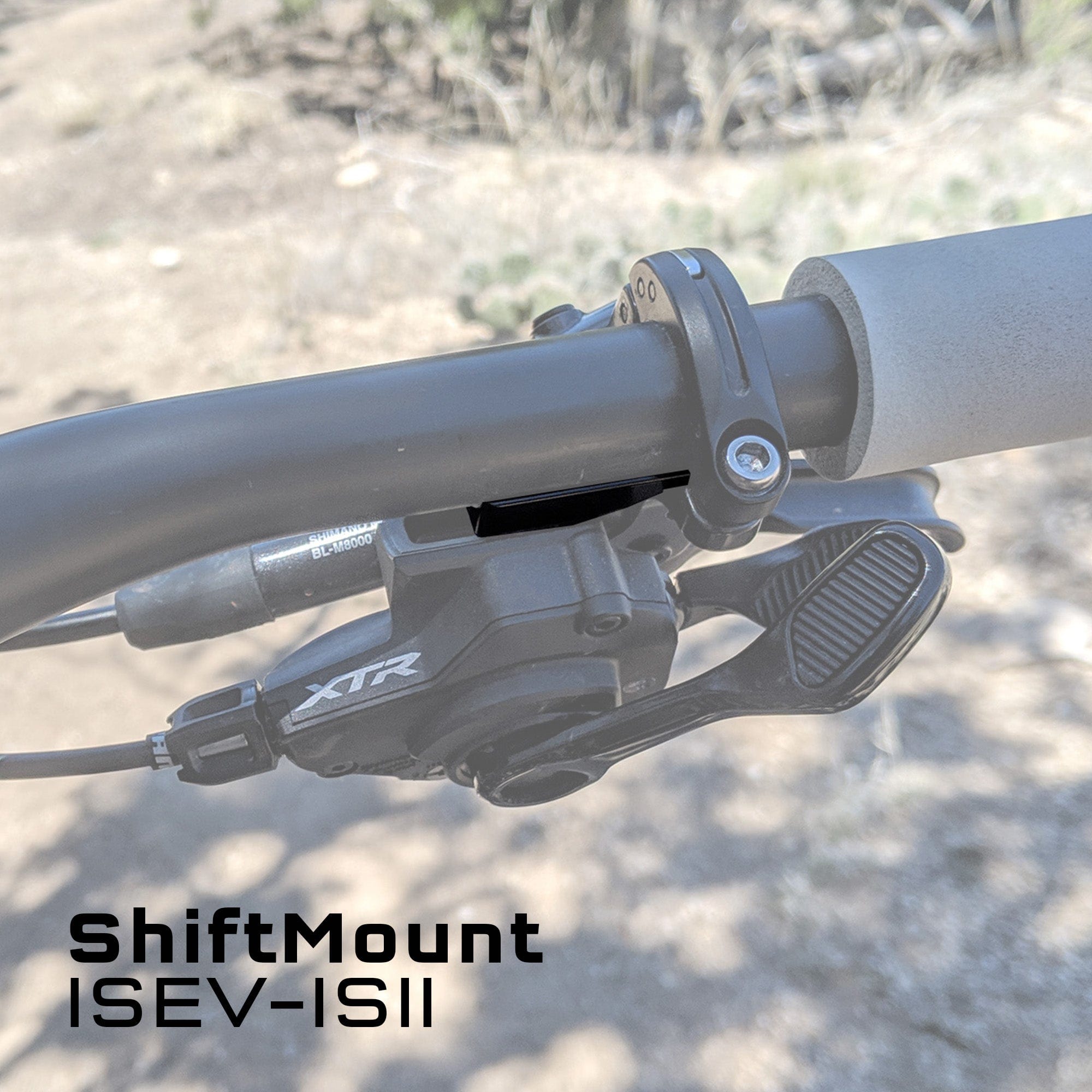

• ISEV-ISII is for a Shimano I-SPEC EV shifter mounting to a Shimano I-SPEC II brake

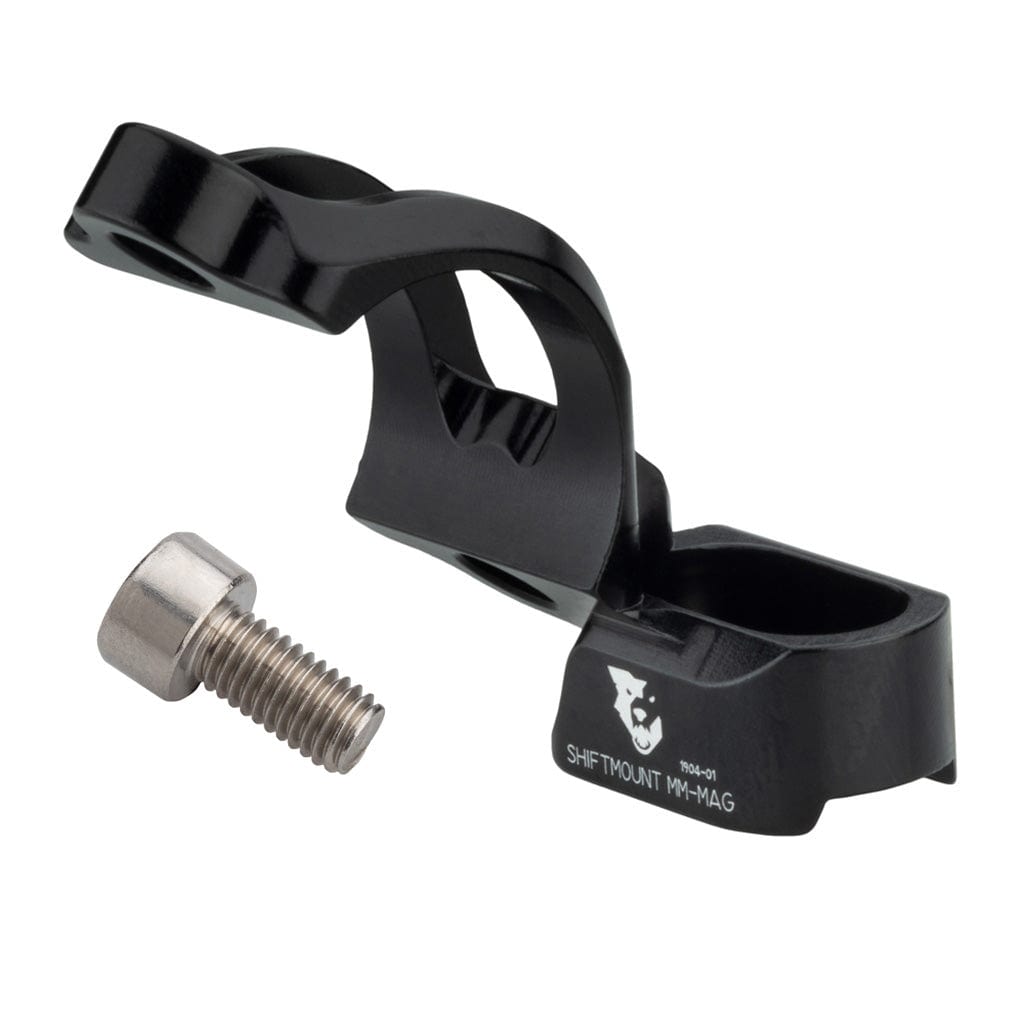

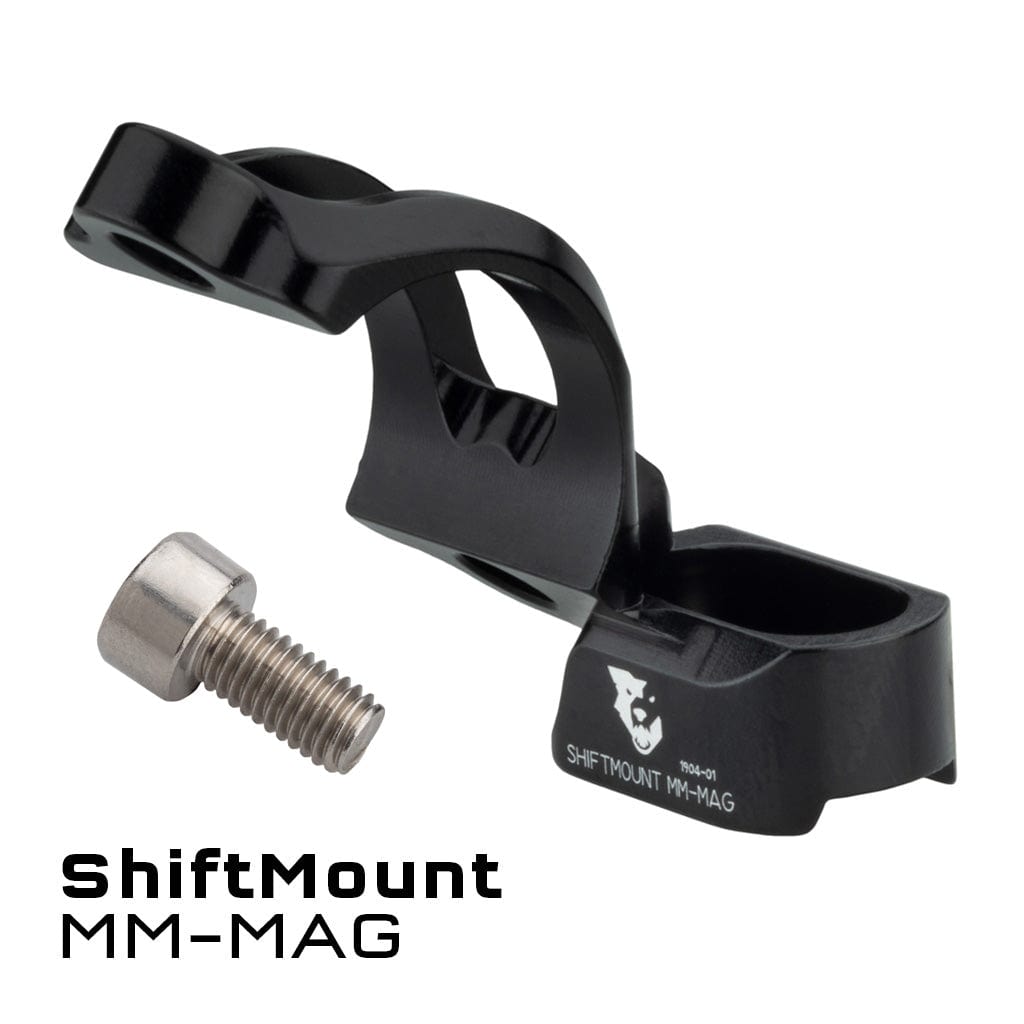

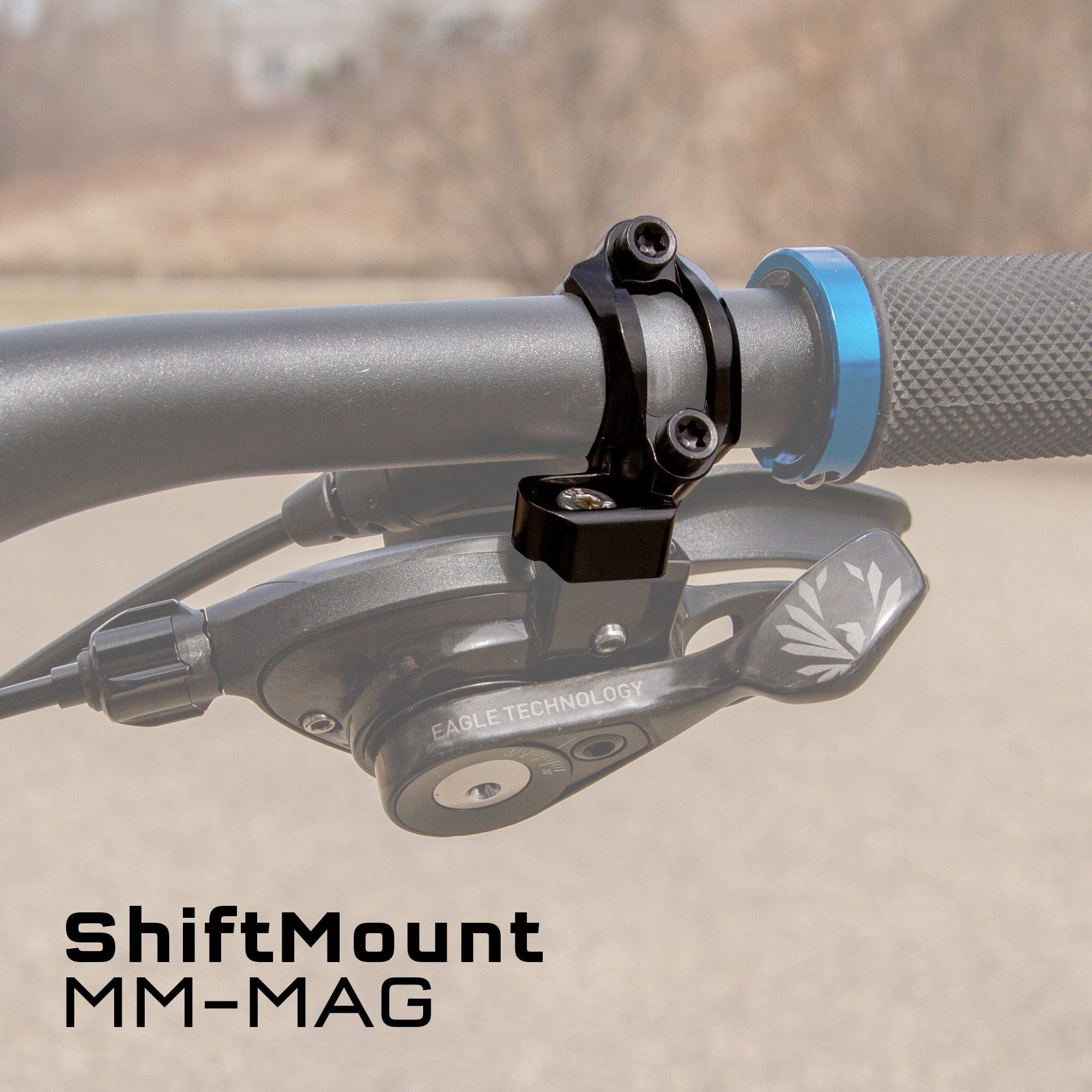

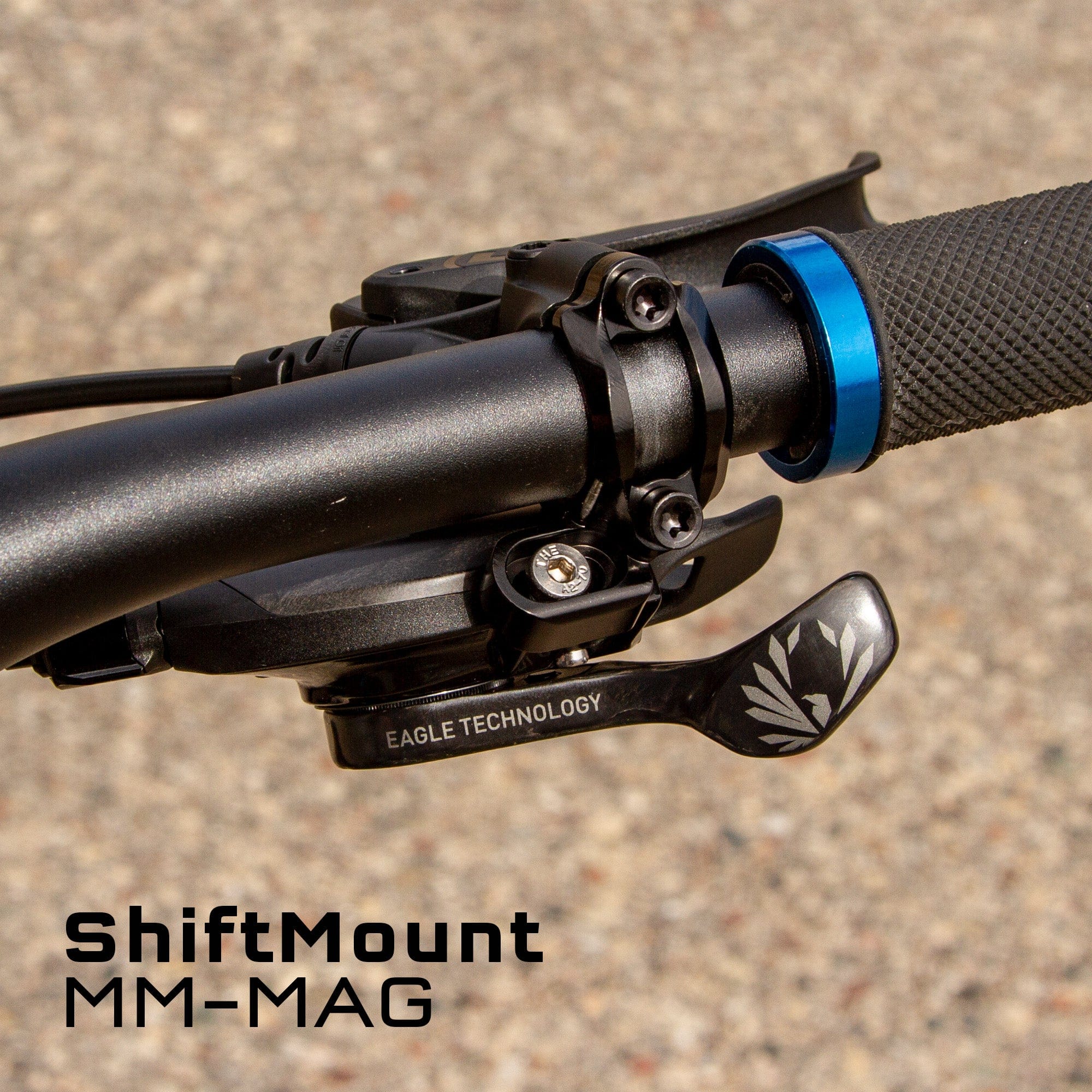

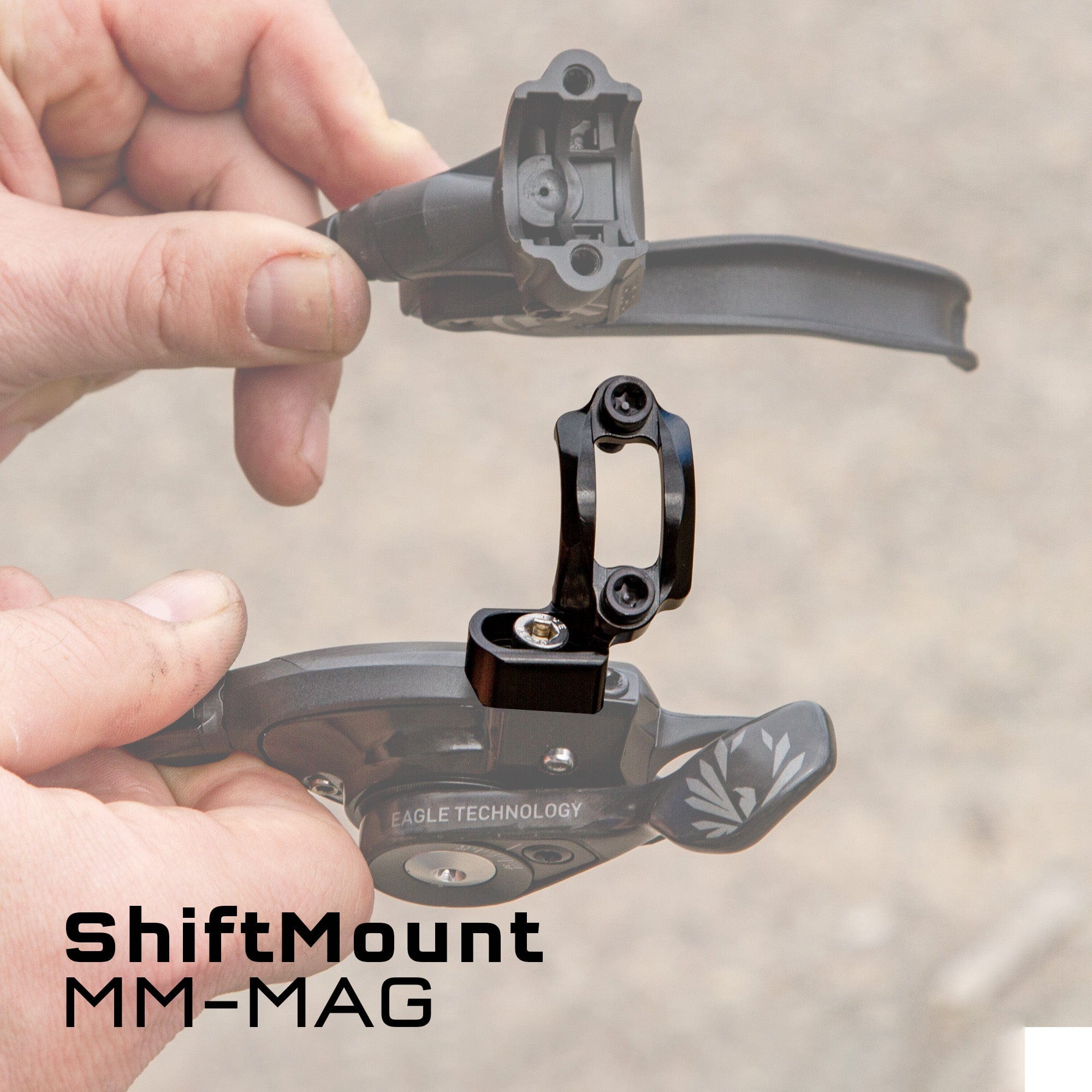

• MM-MAG is for a SRAM MatchMaker shifter mounting to a Magura brake

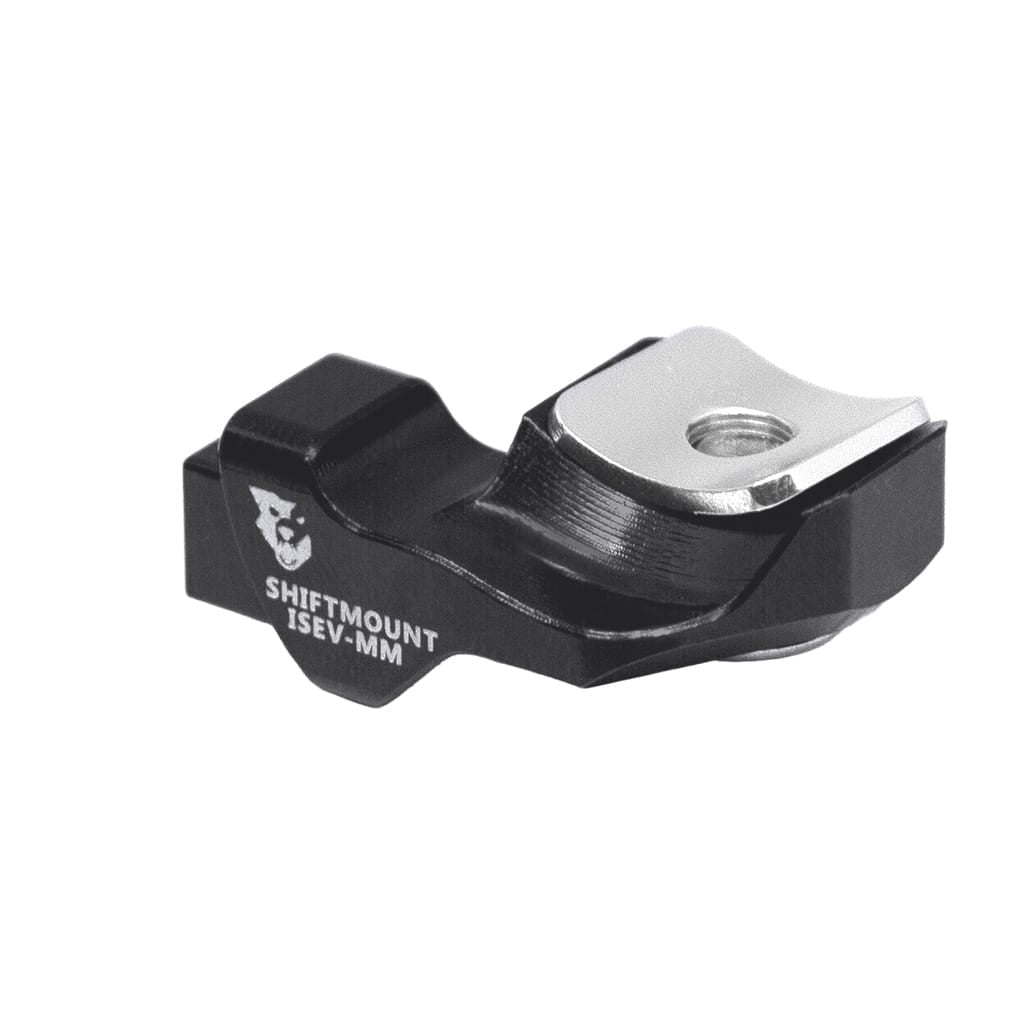

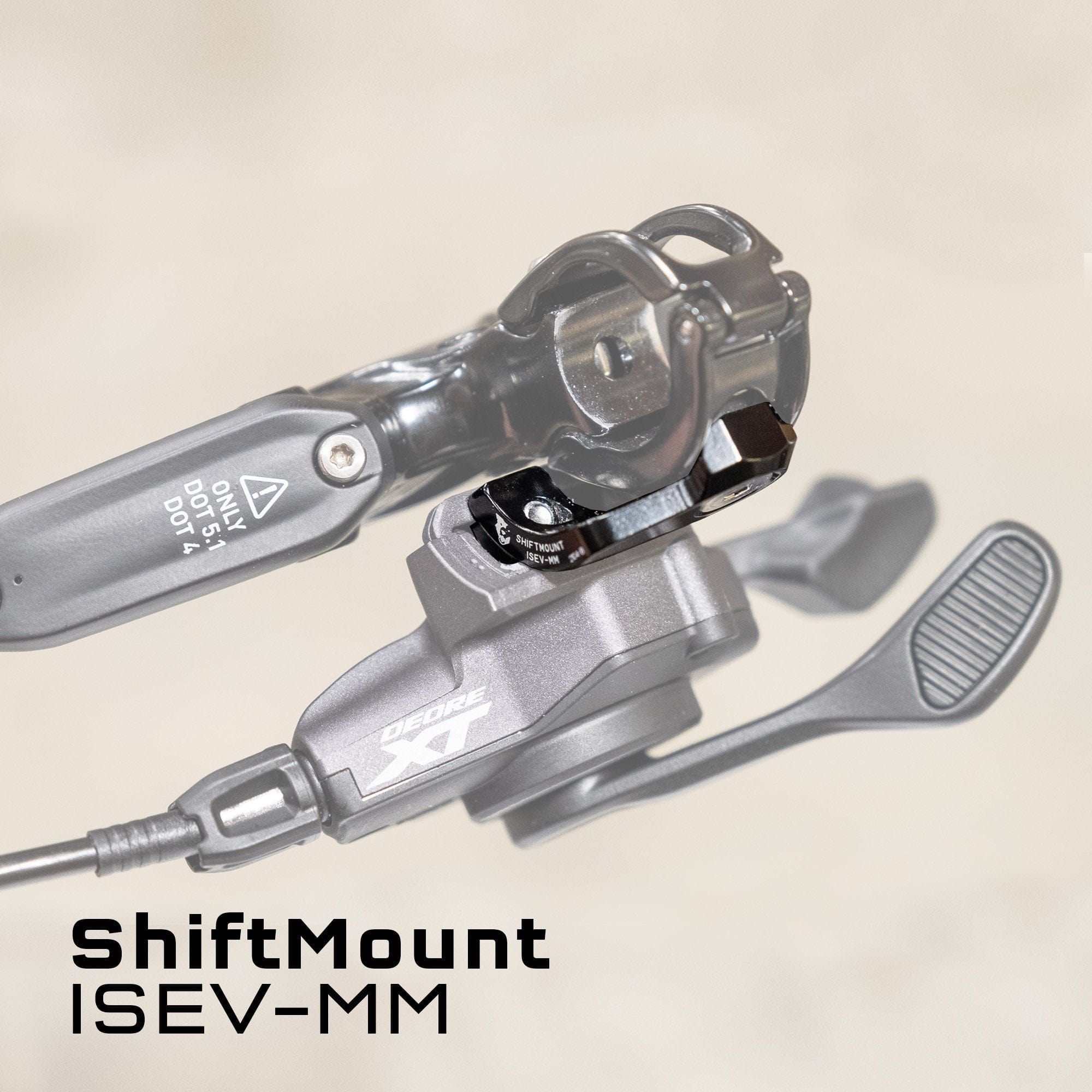

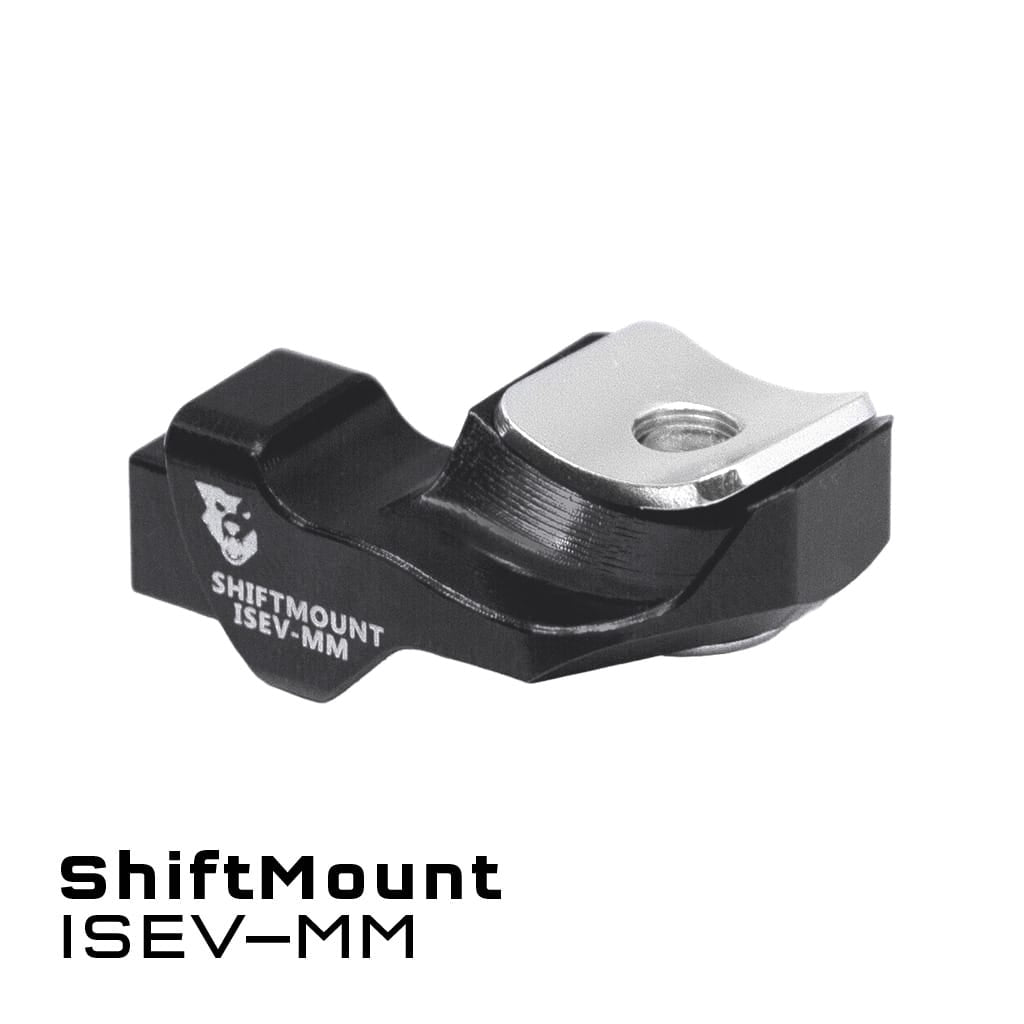

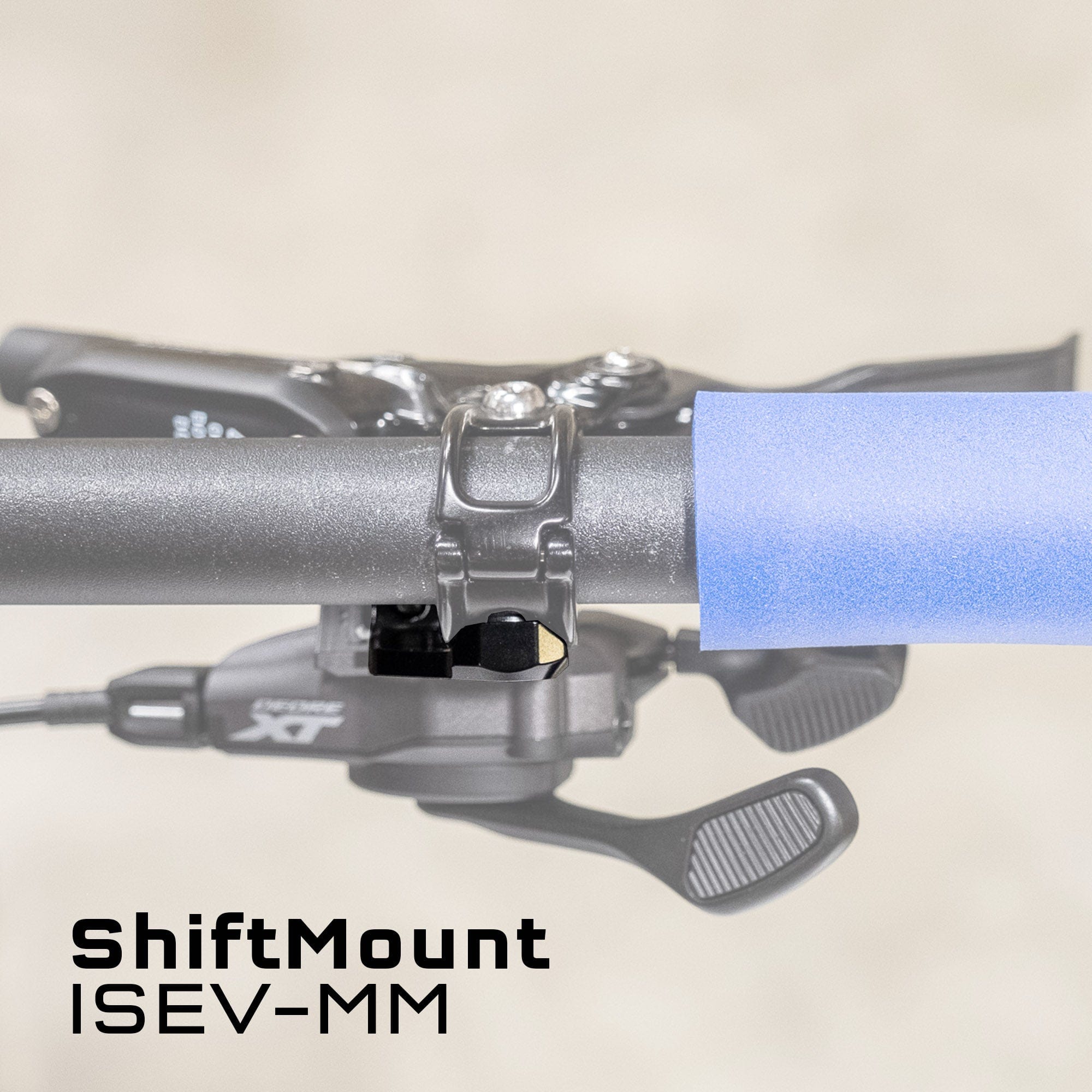

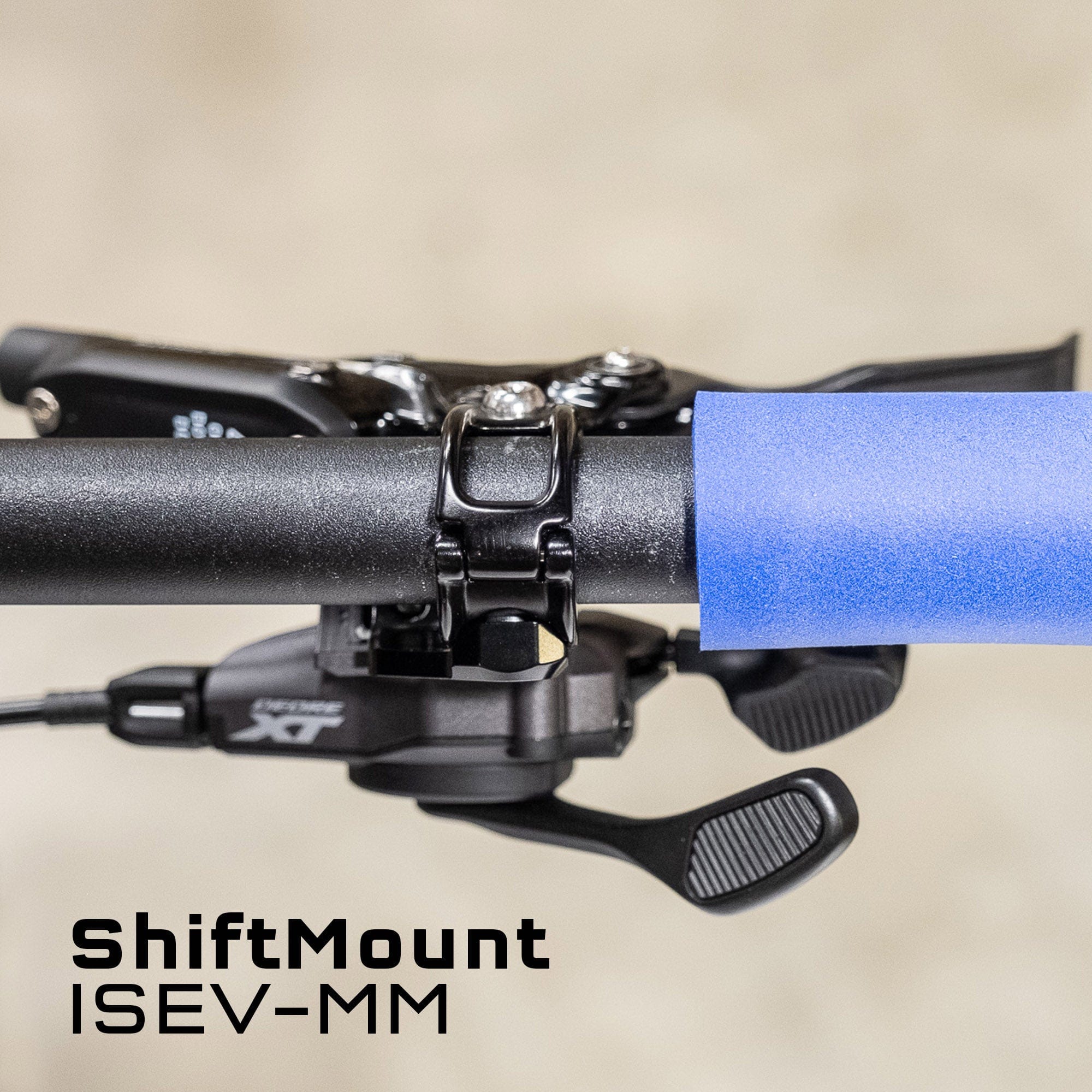

• ISEV-MM is for a Shimano I-SPEC EV shifter mounting to a SRAM MatchMaker brake

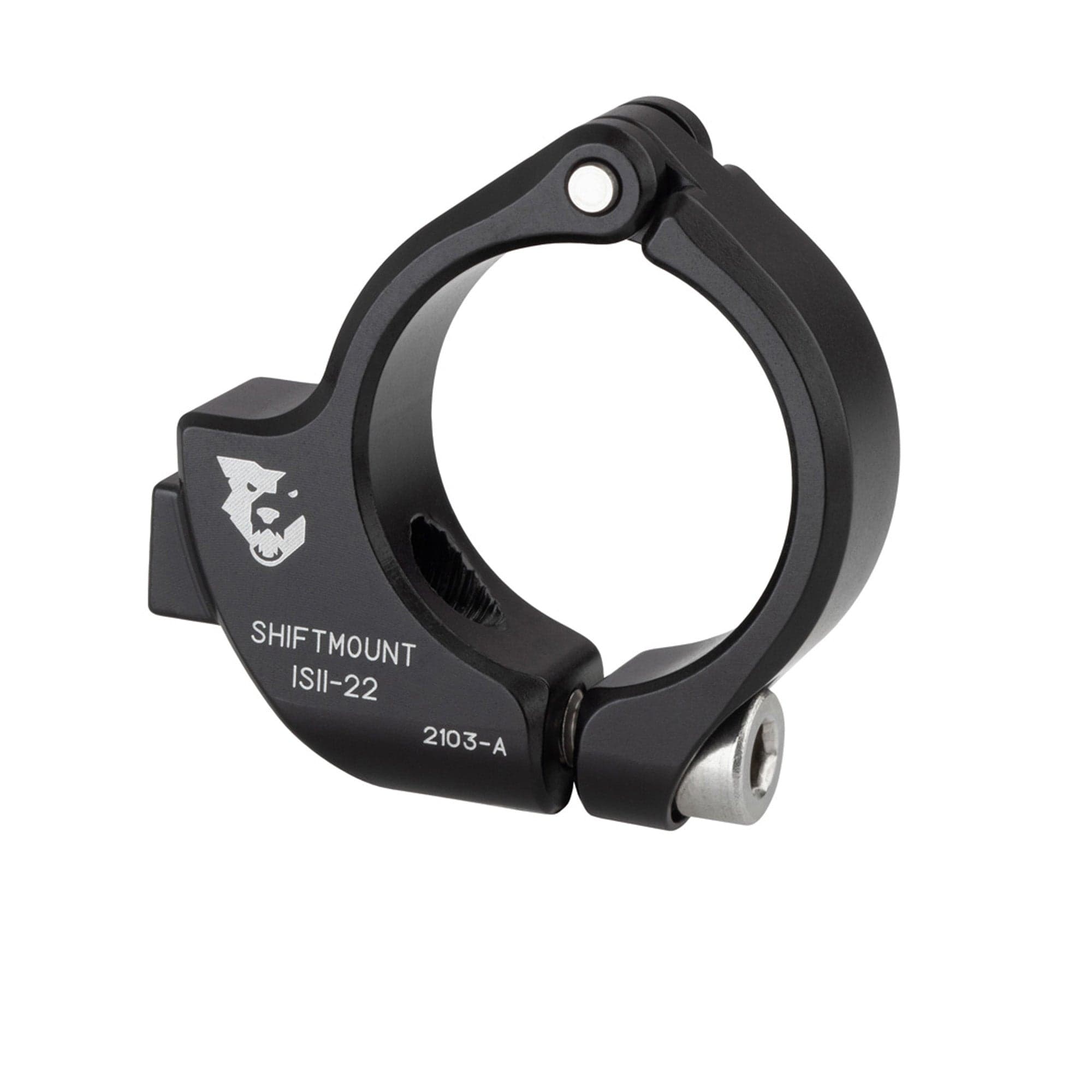

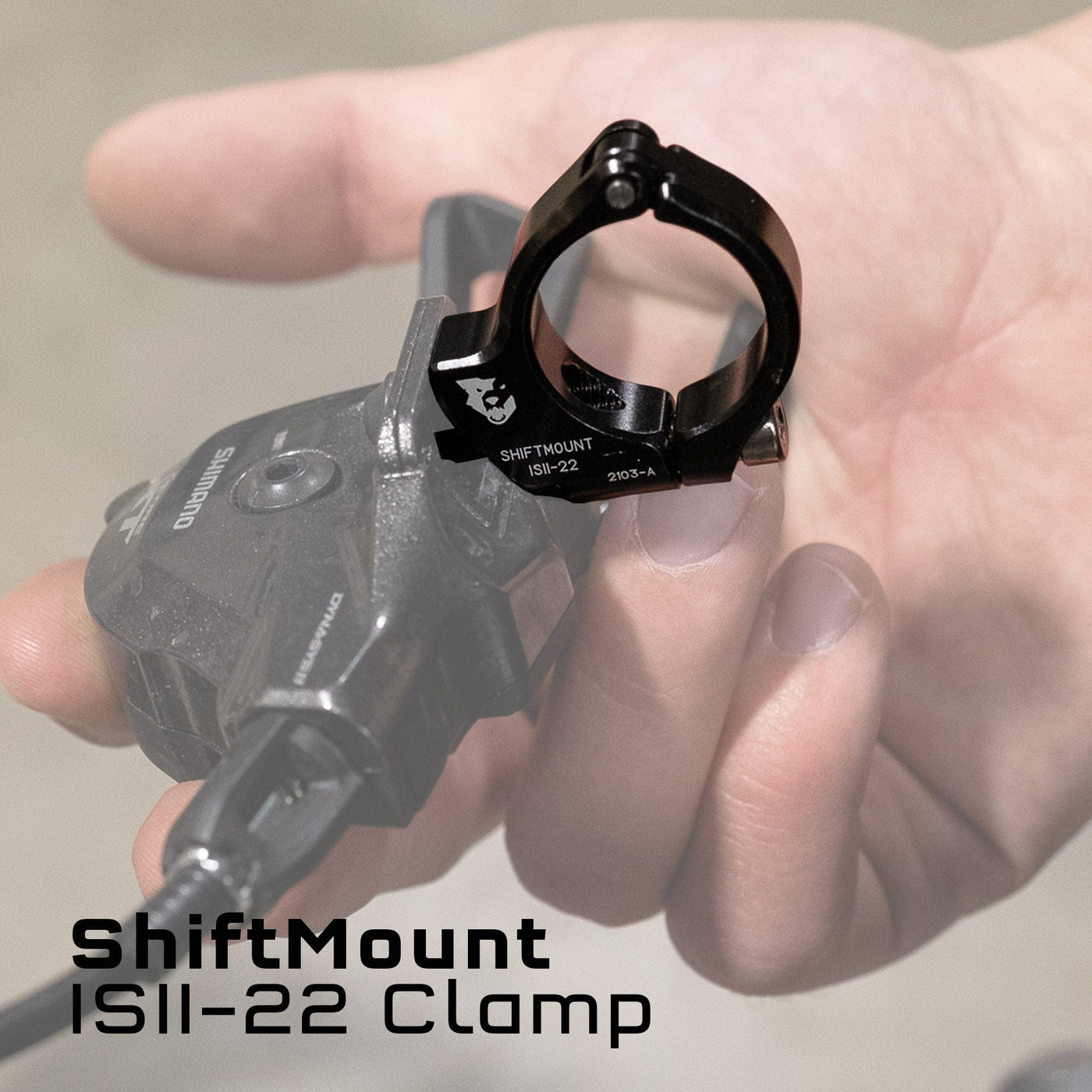

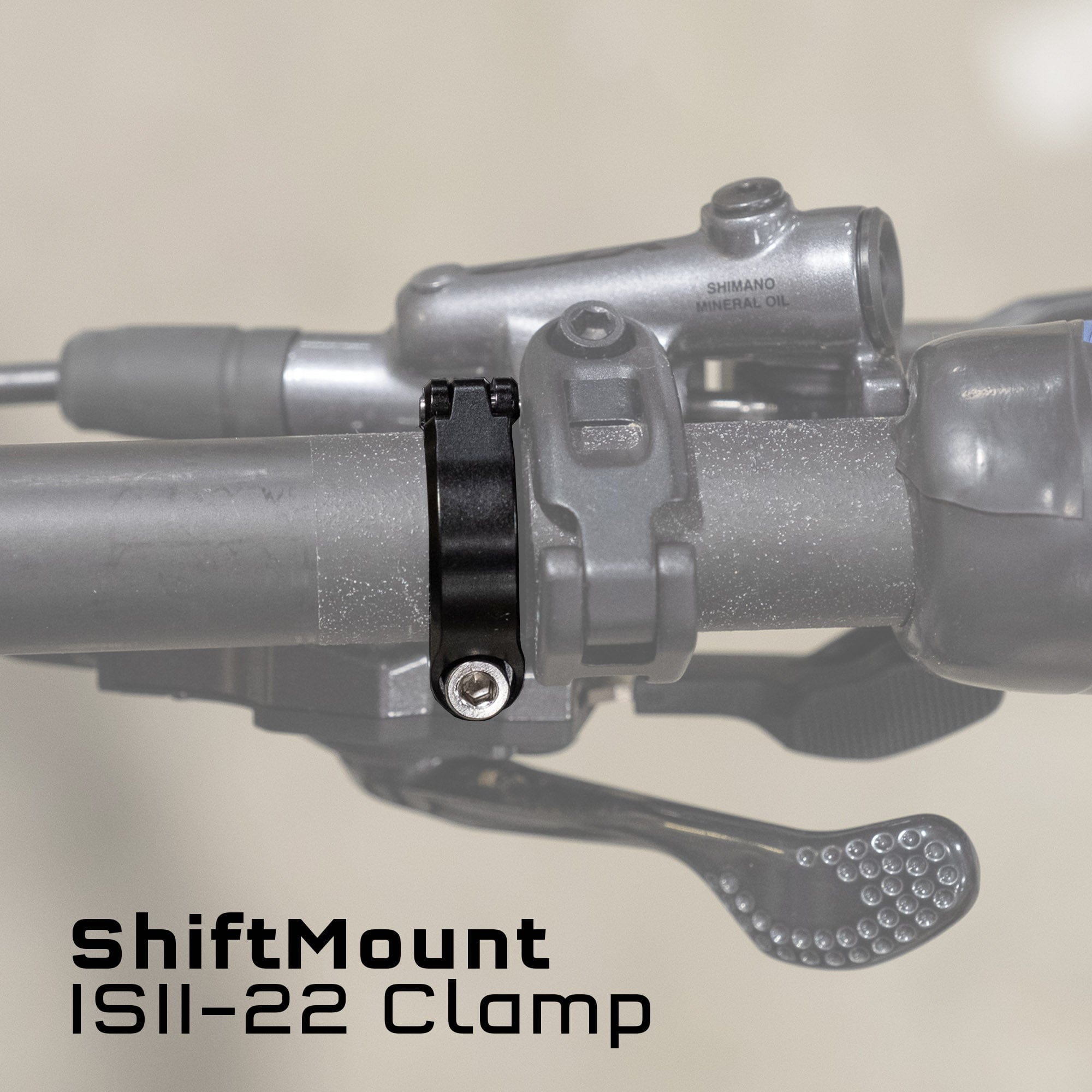

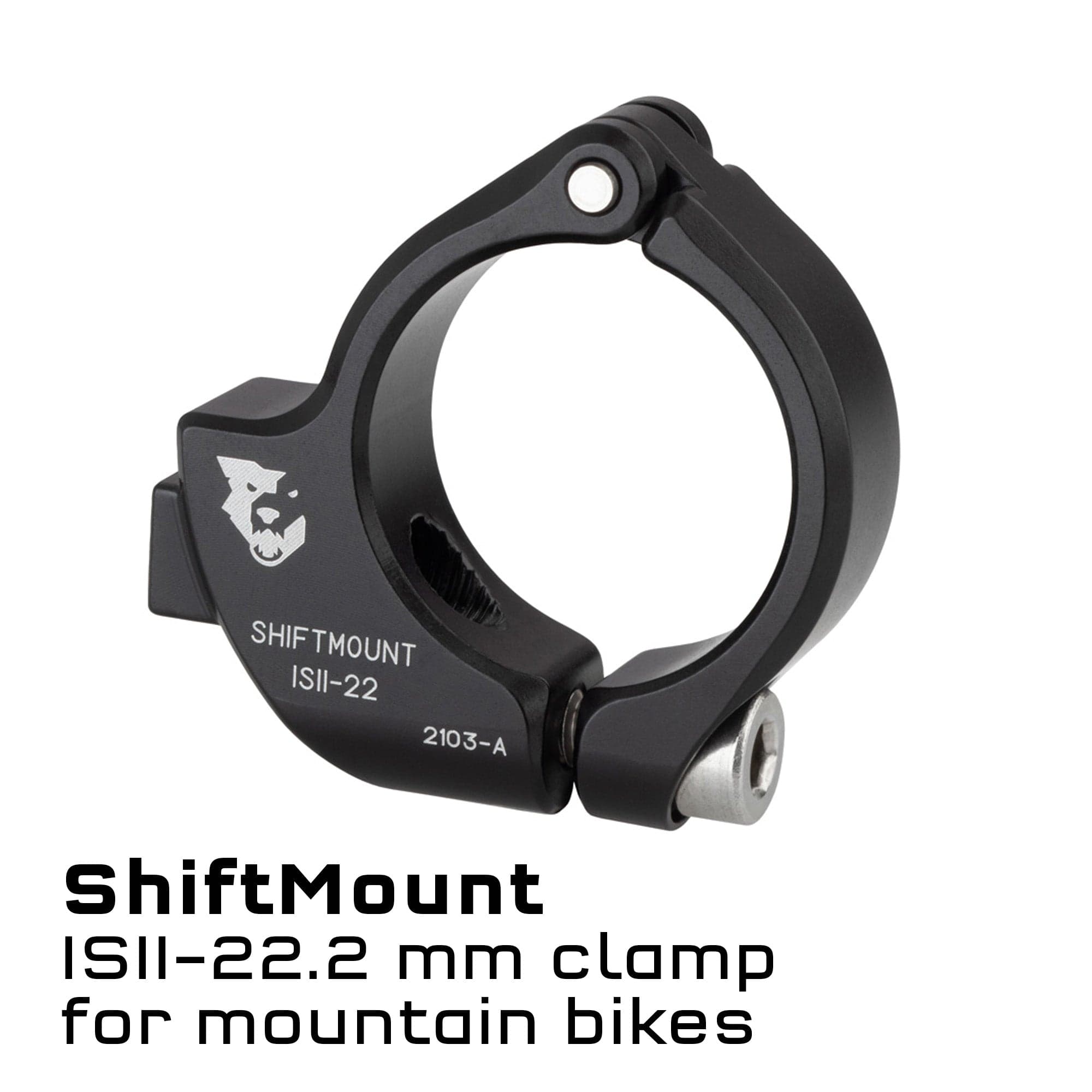

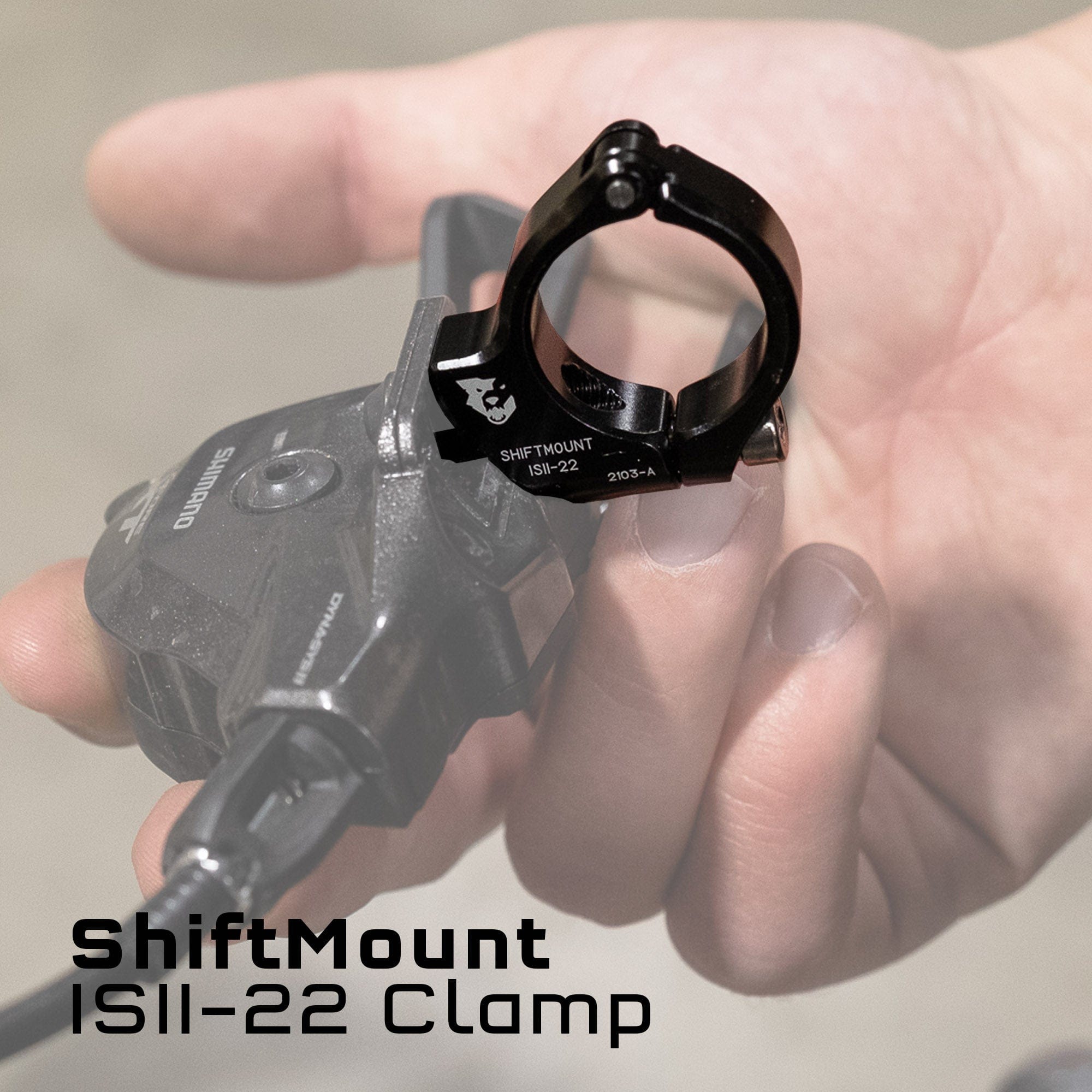

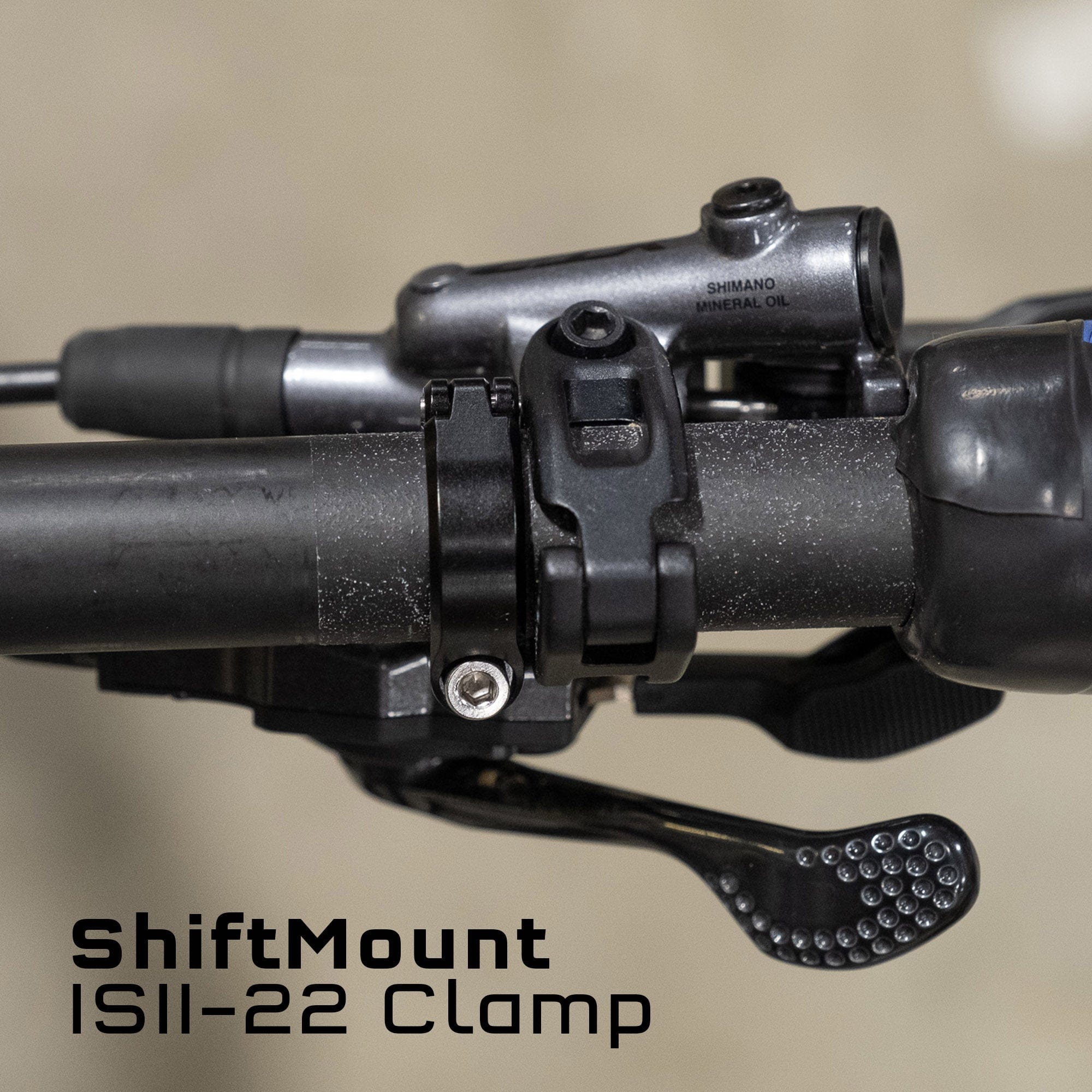

• ISII- 22 Clamp is for a Shimano I-SPEC II shifter (SL-M9000-IR and SL-M8000-IR only) mounting directly to a 22 mm diameter mountain handlebar

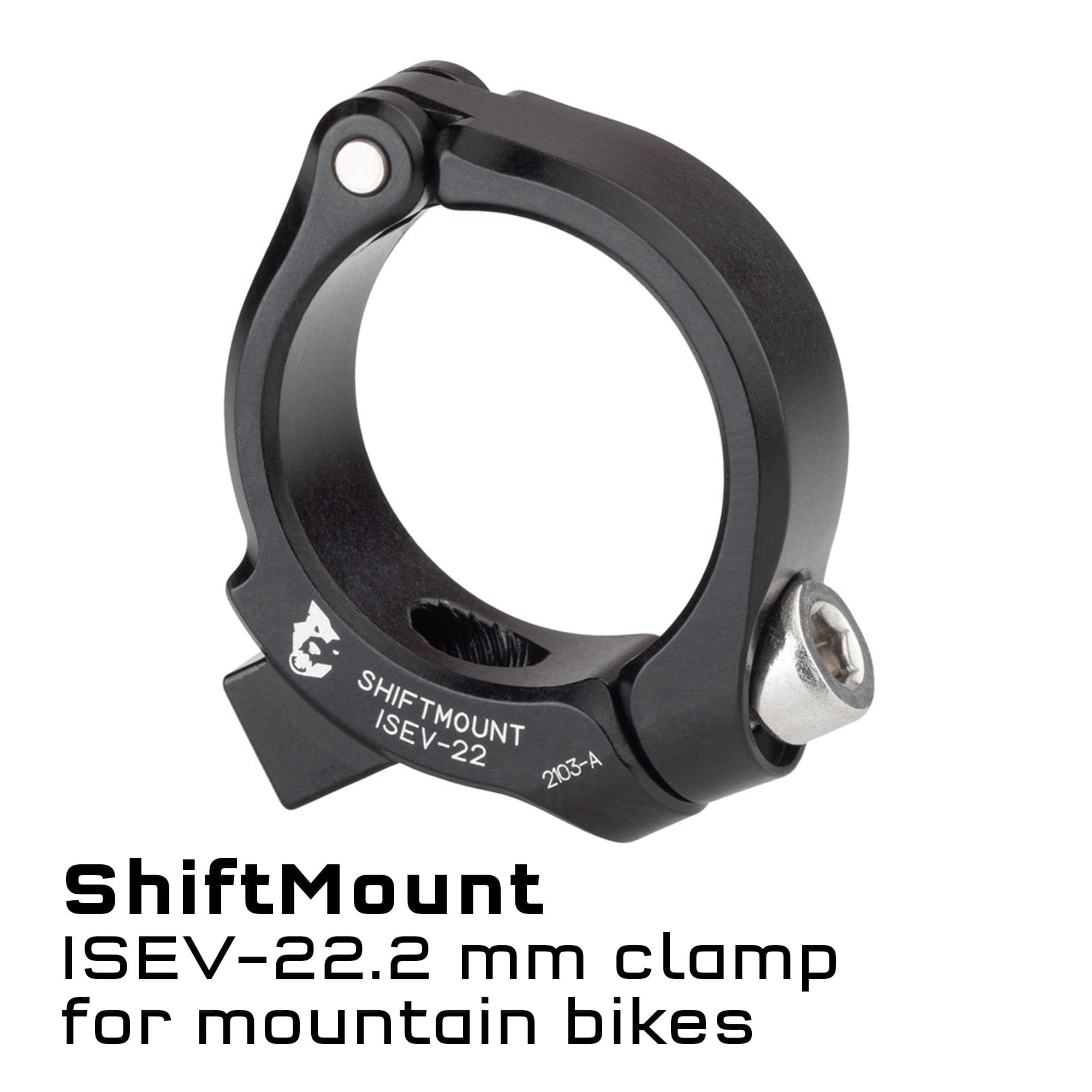

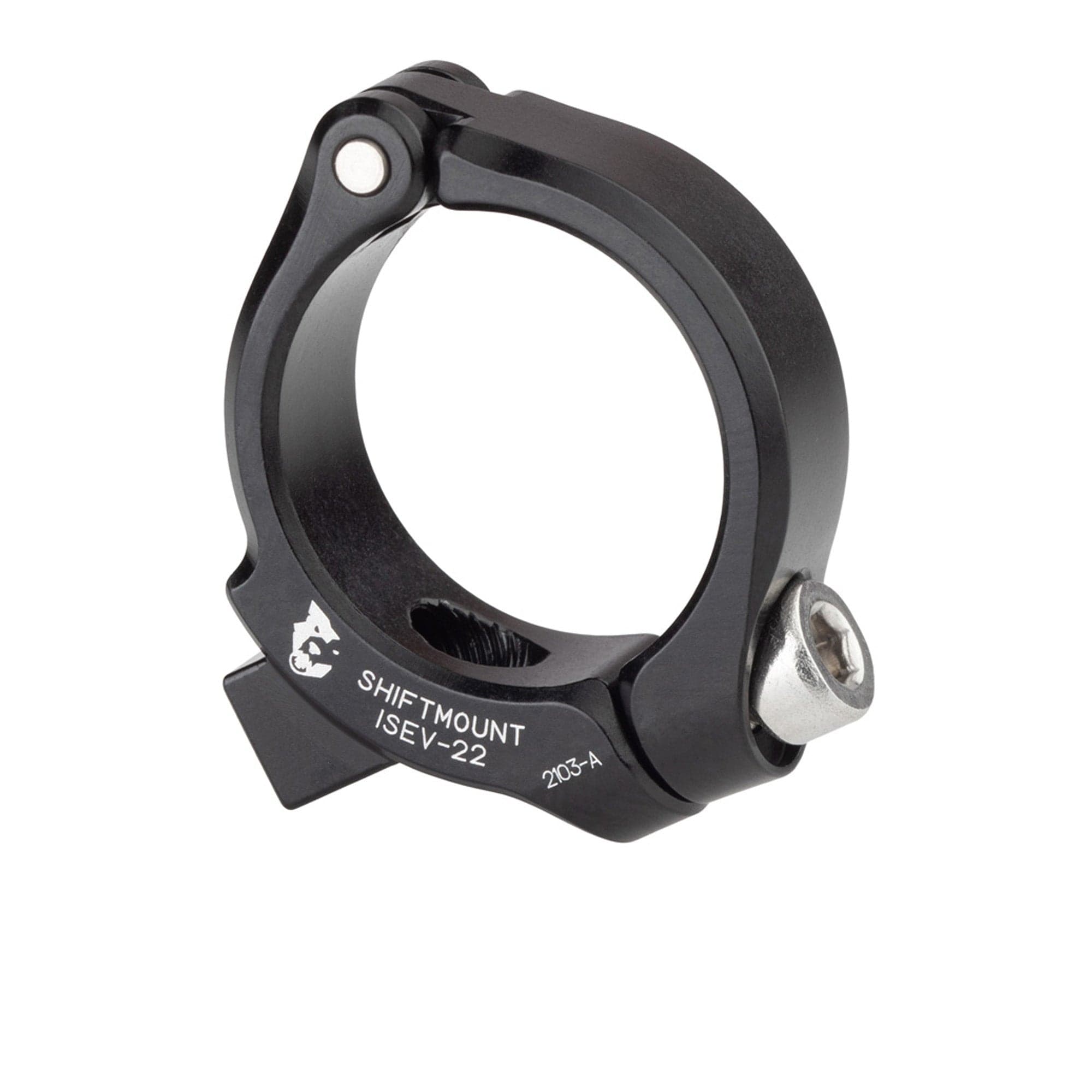

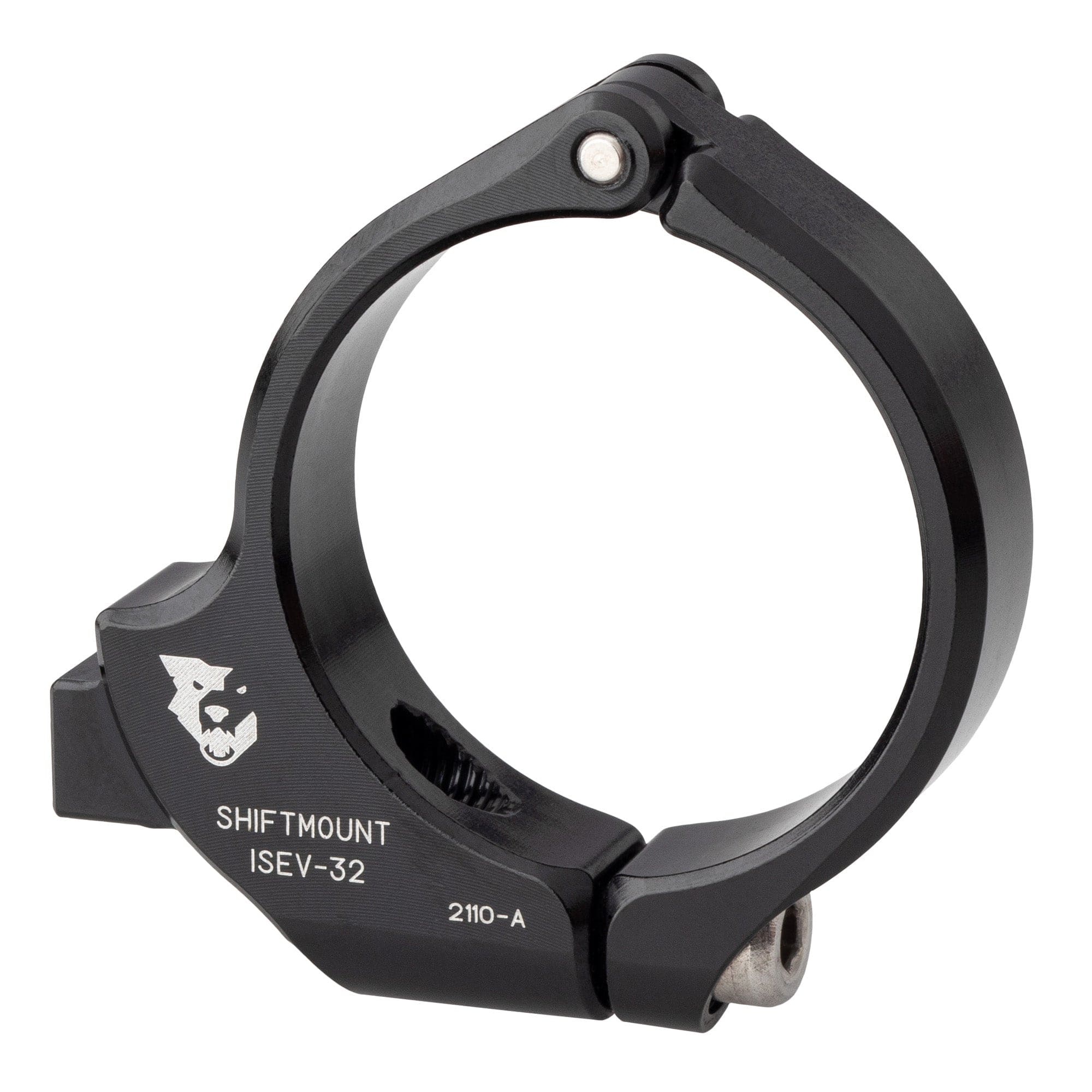

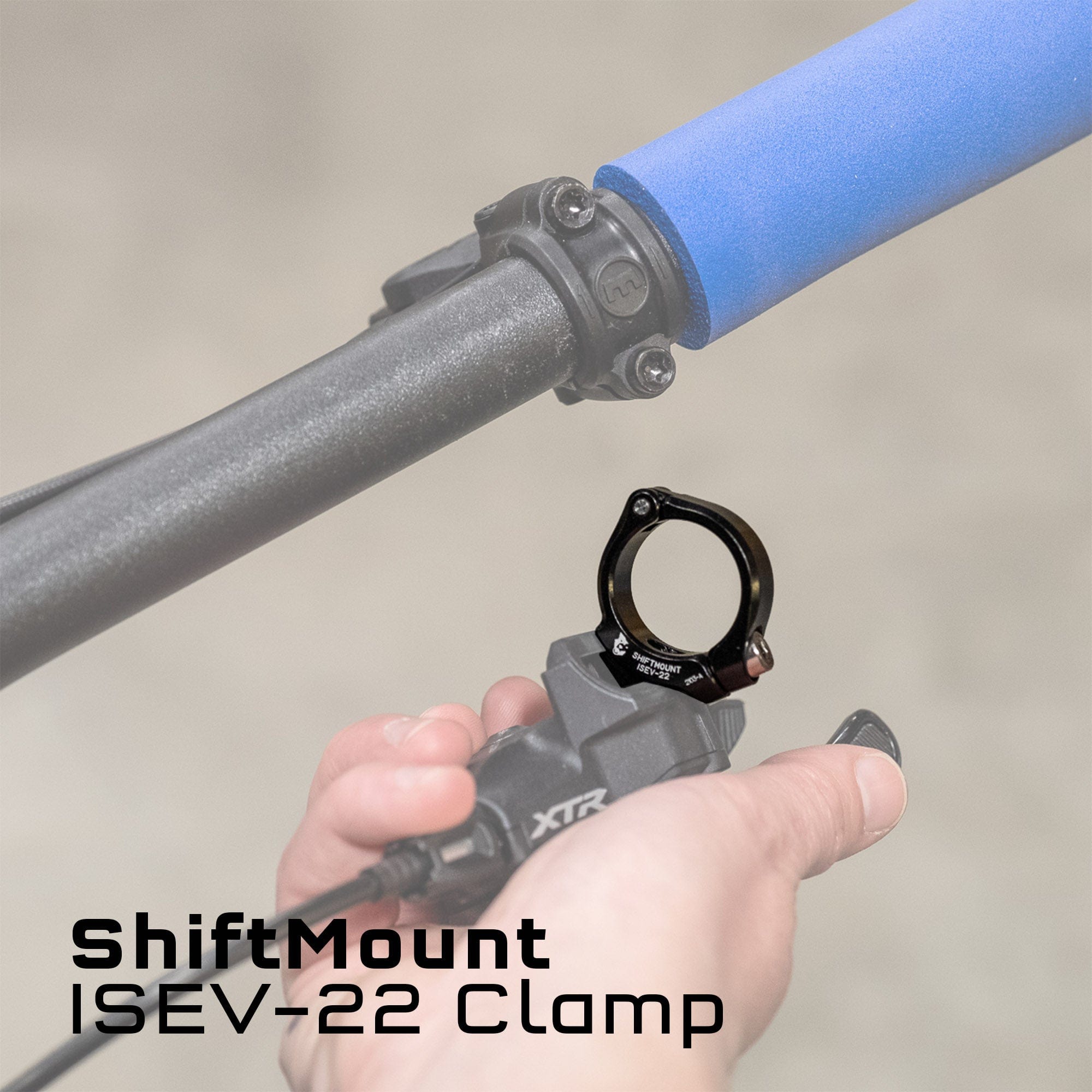

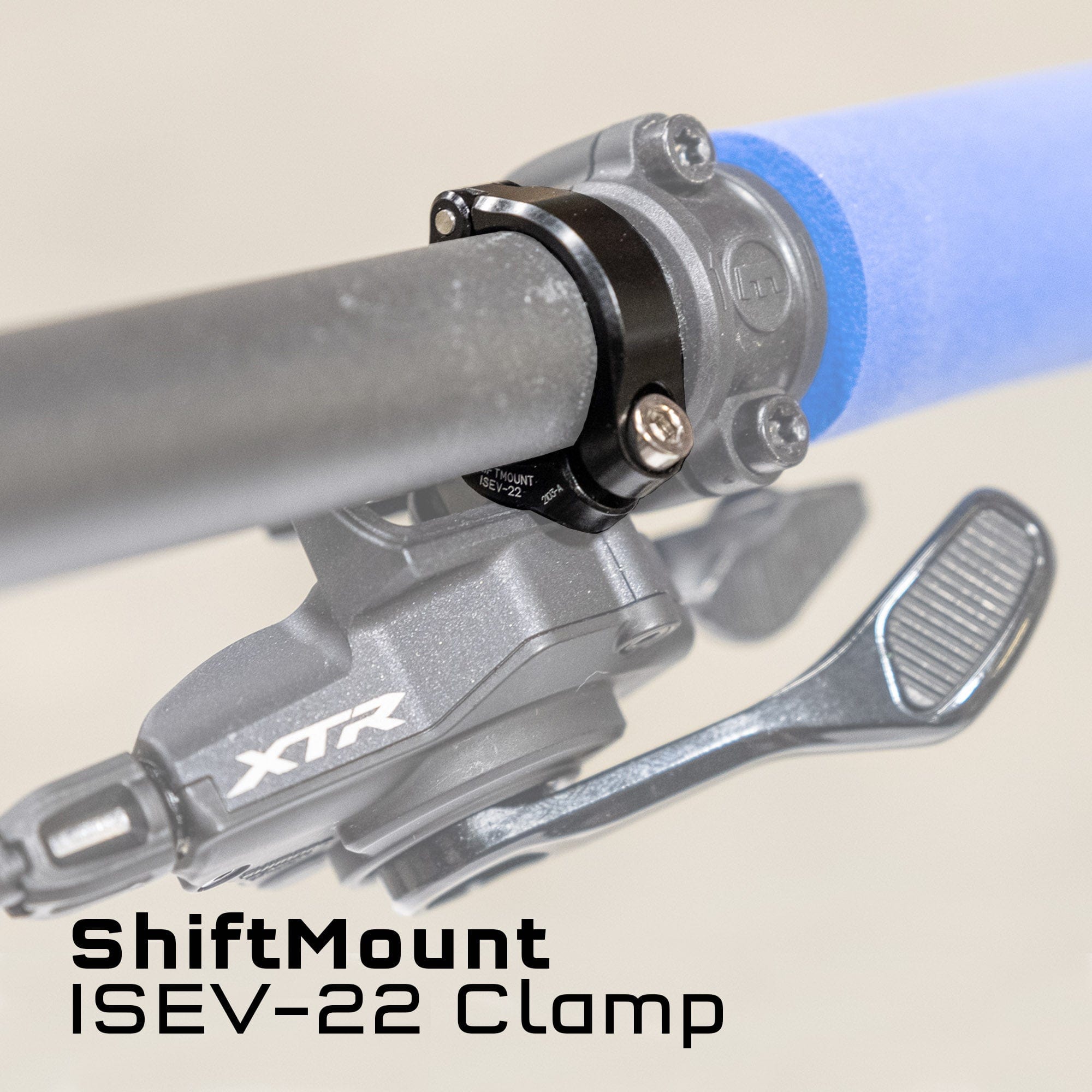

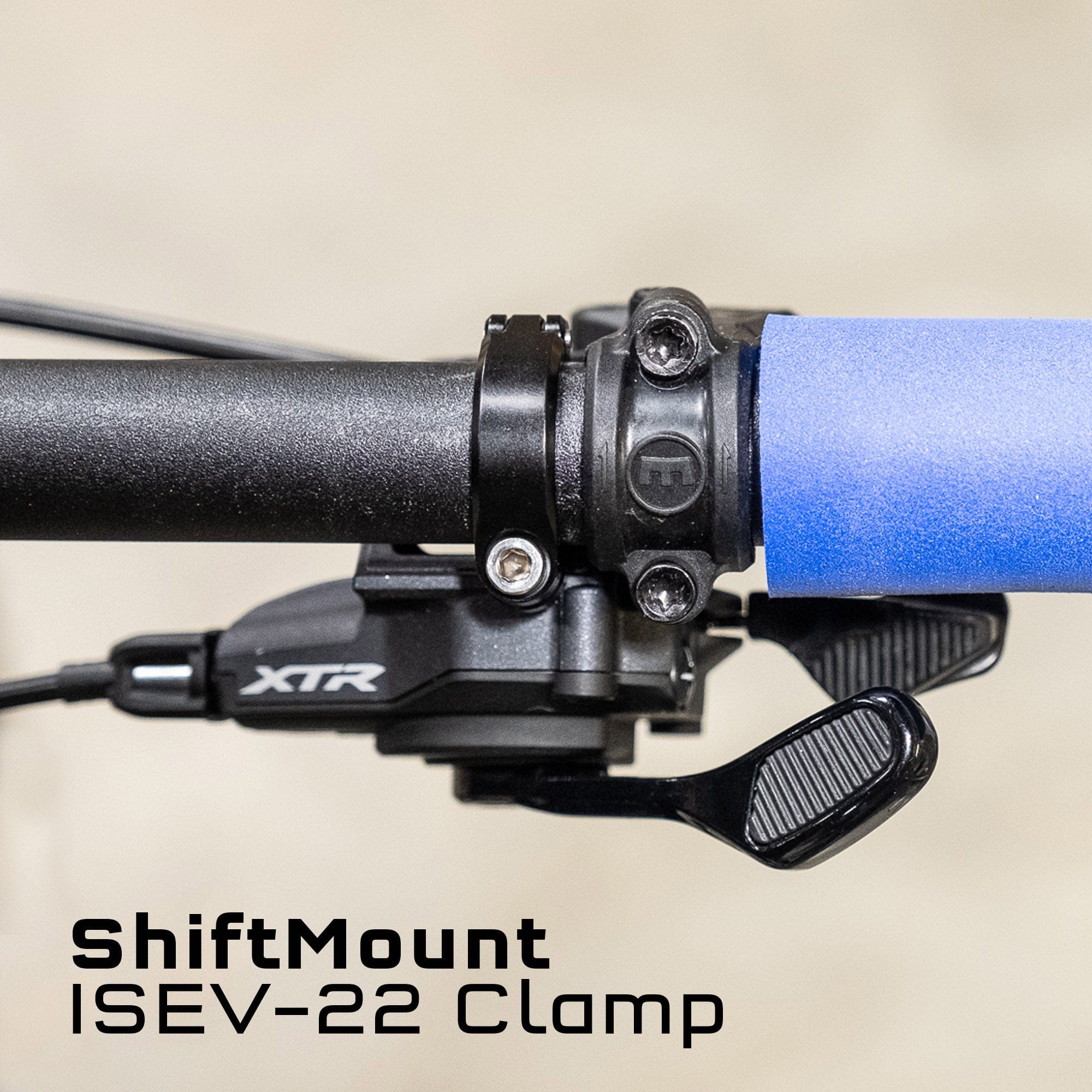

• ISEV- 22 Clamp is for a Shimano I-SPEC EV shifter mounting directly to a 22 mm diameter mountain handlebar

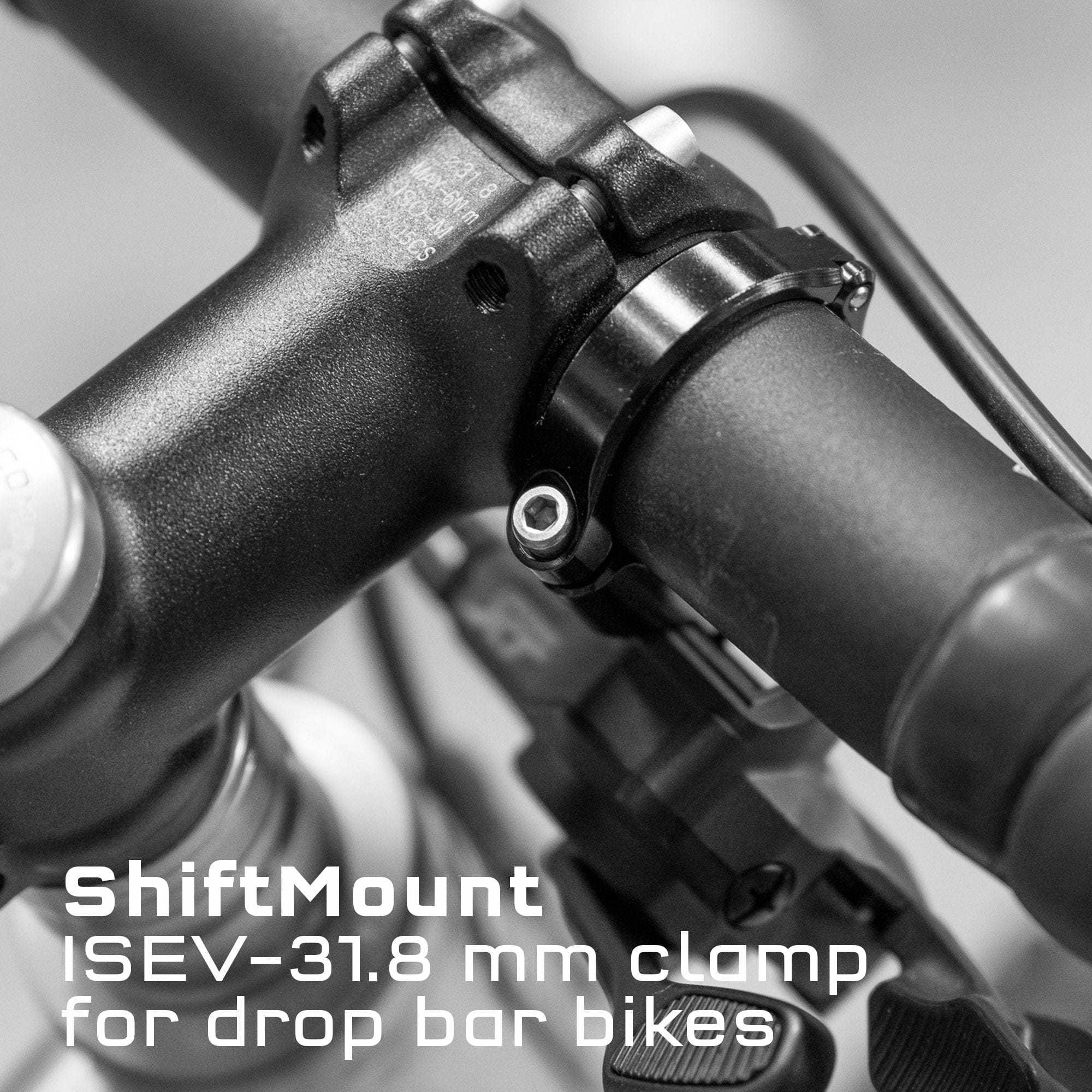

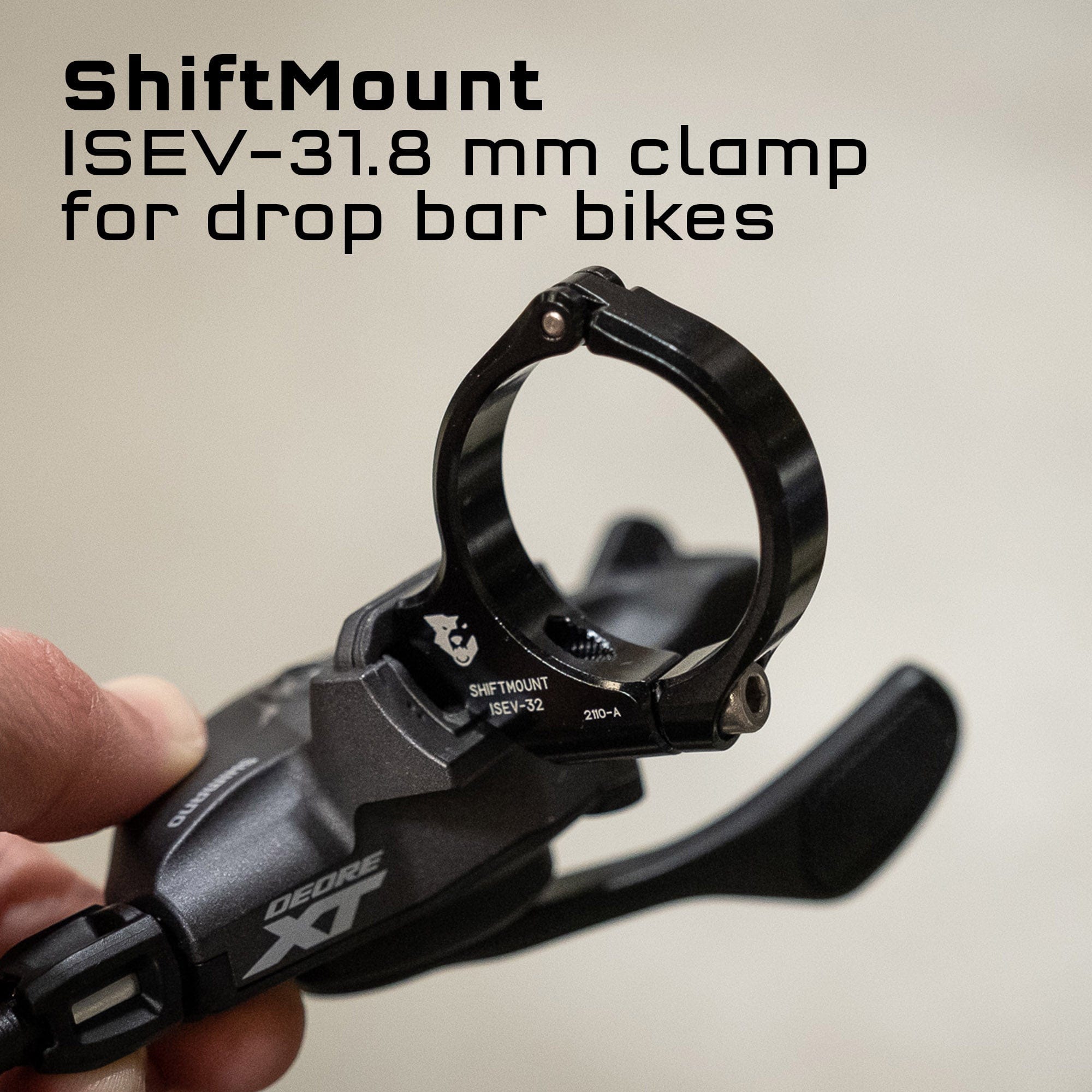

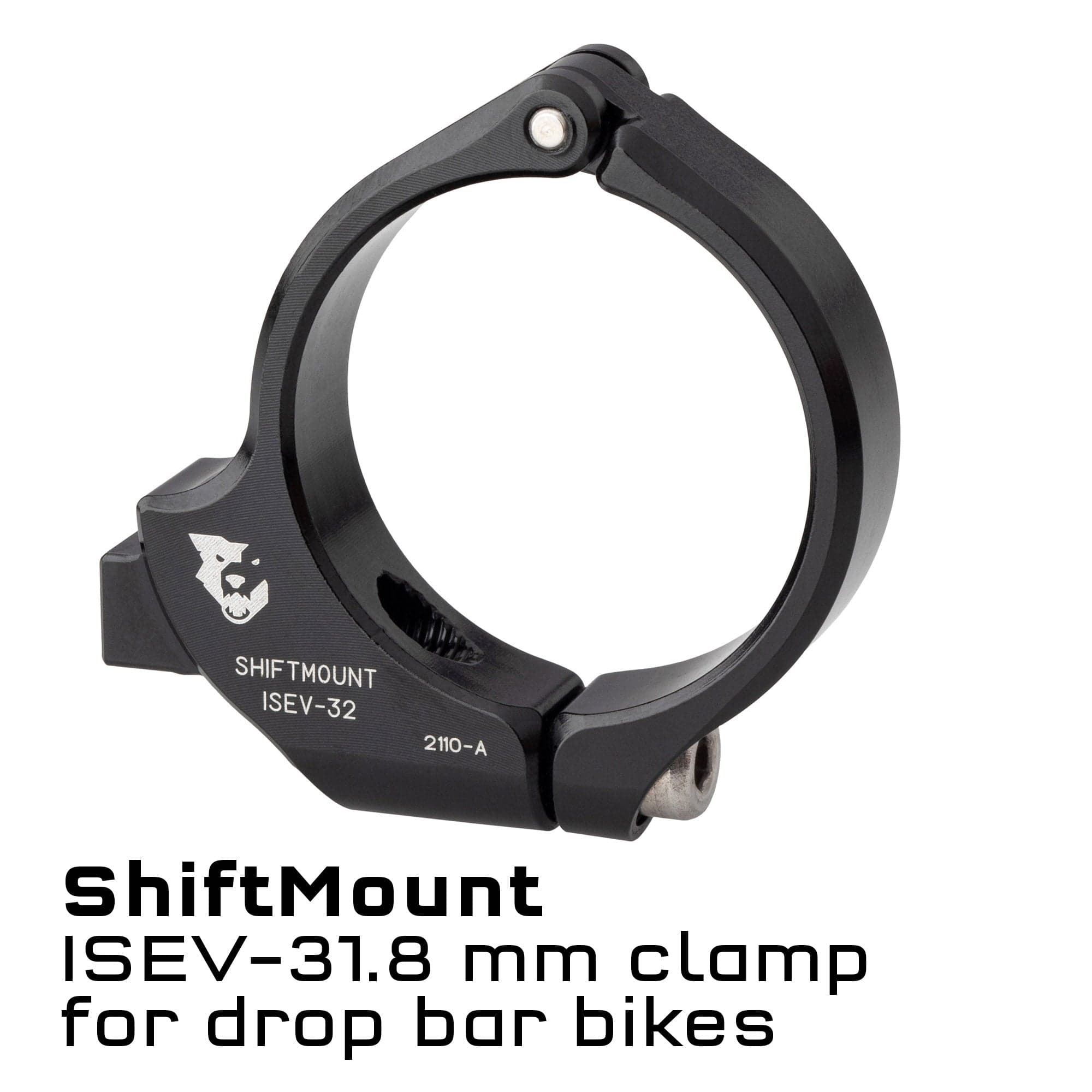

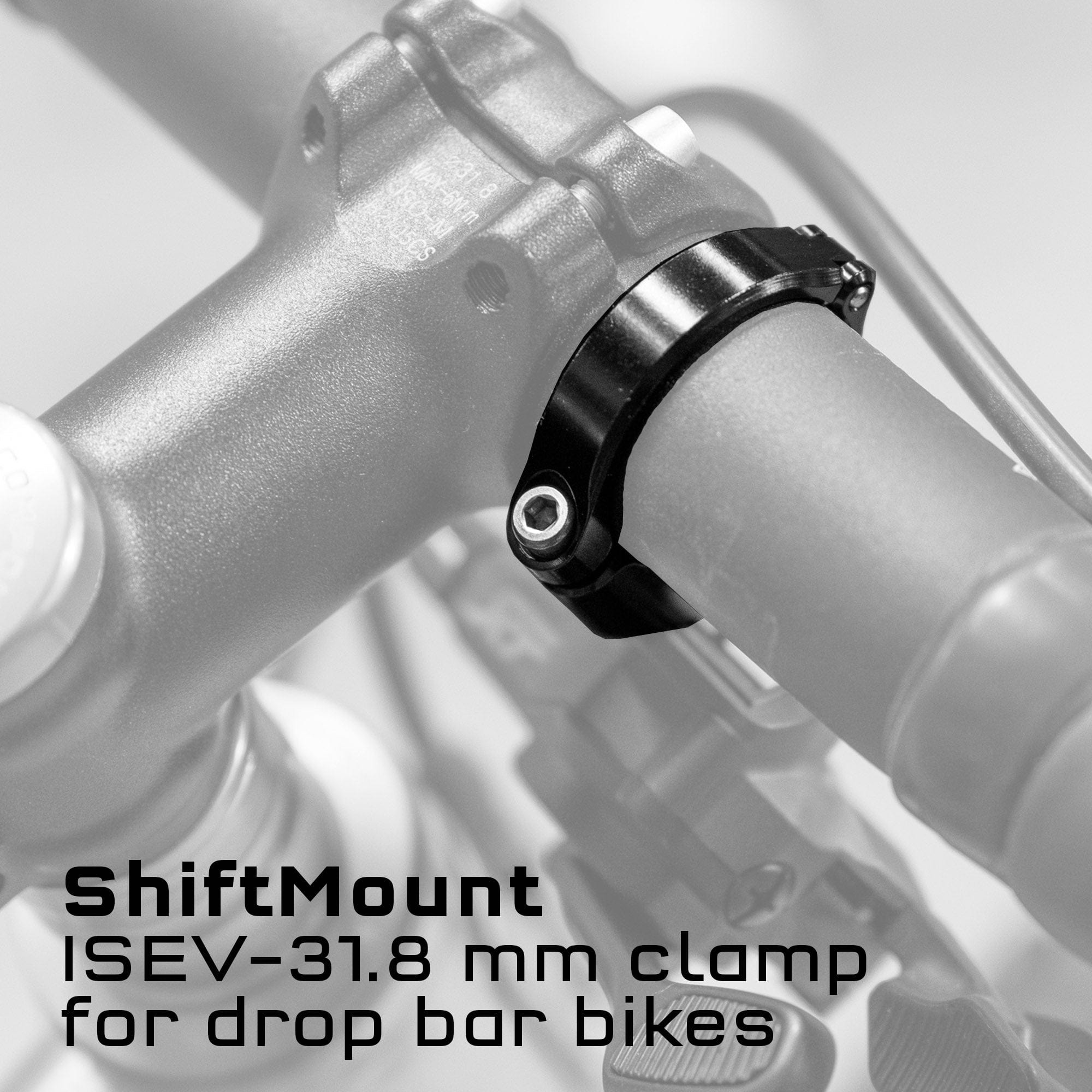

• ISEV-31.8 Clamp is for a Shimano I-SPEC EV shifter mounting directly to a 31.8 mm diameter road handlebar

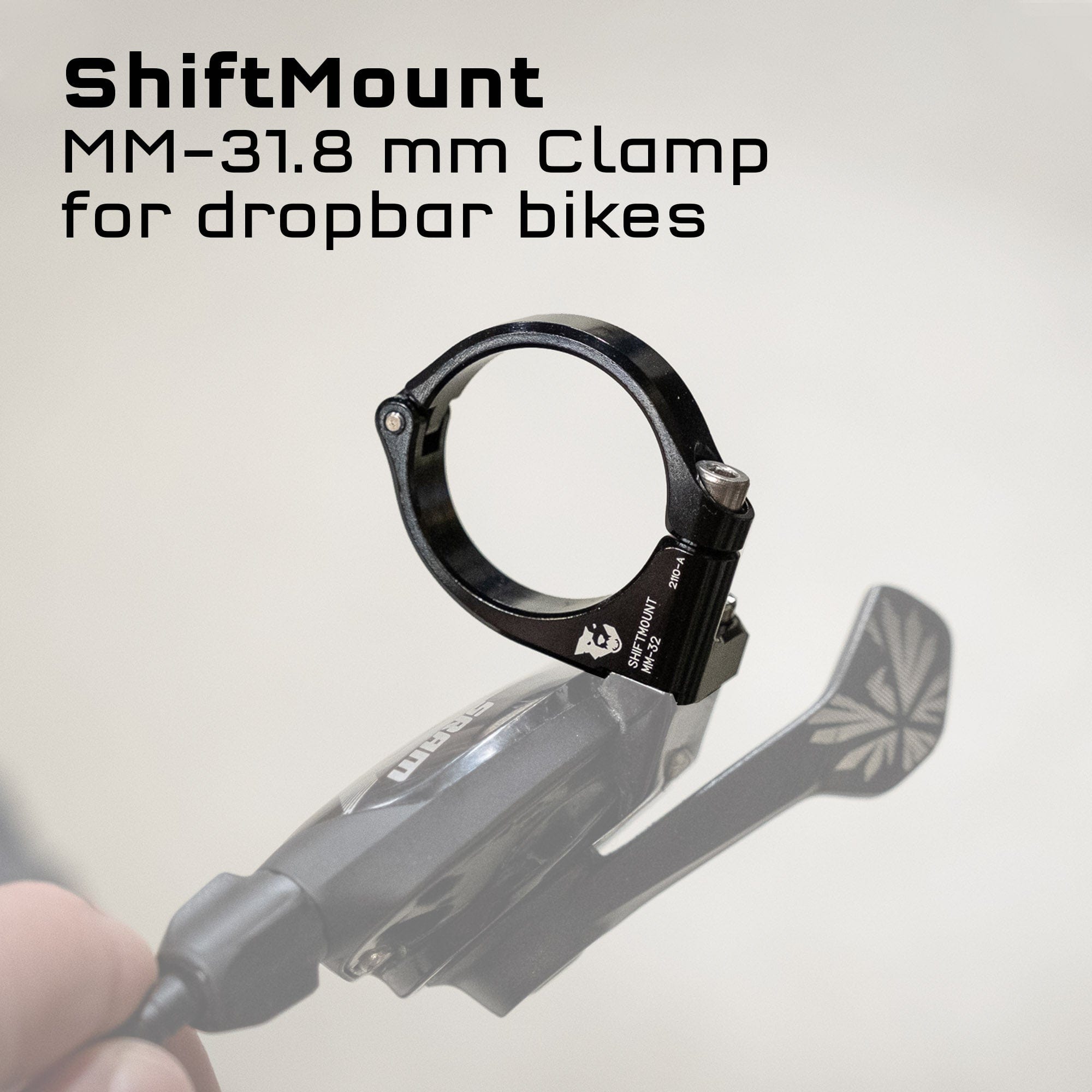

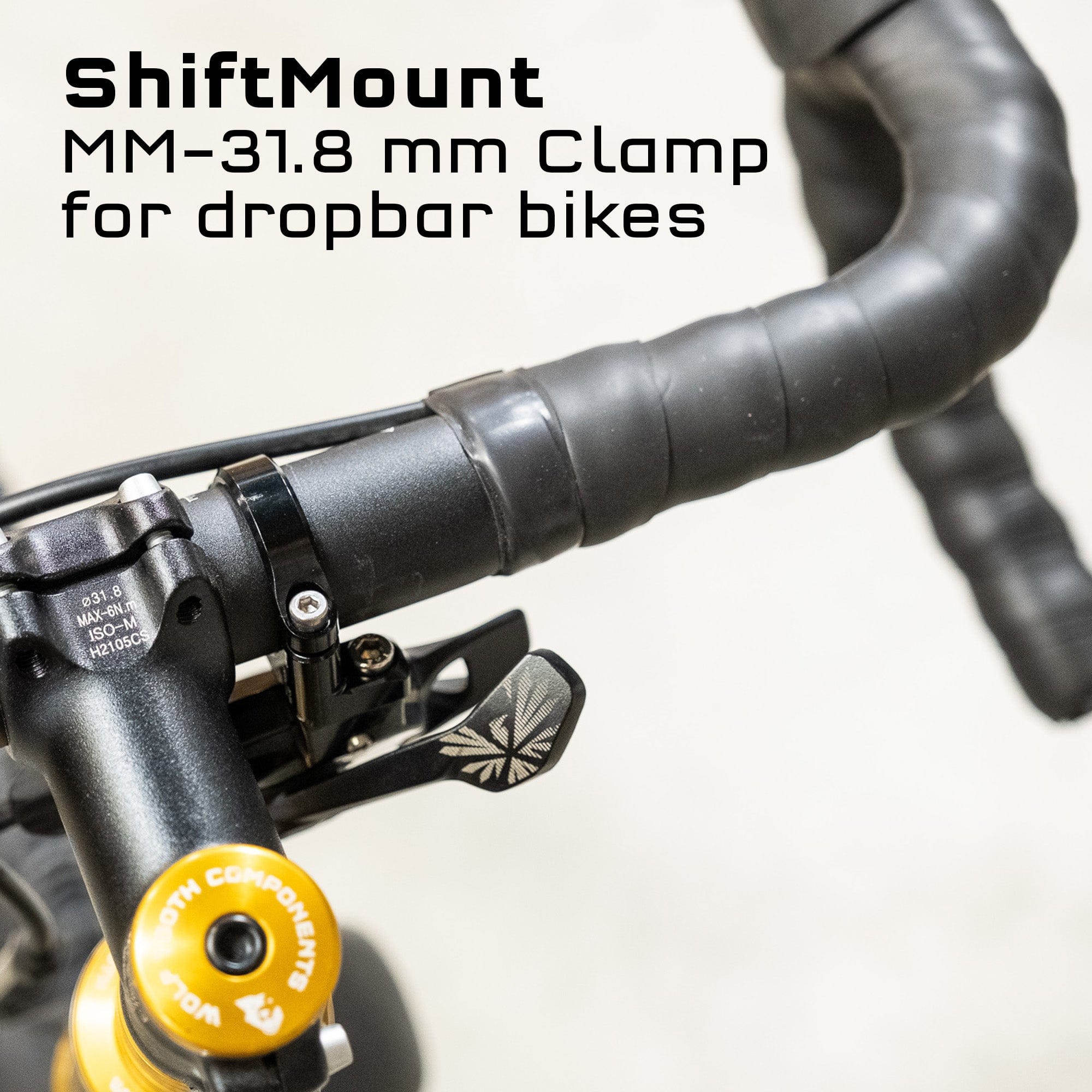

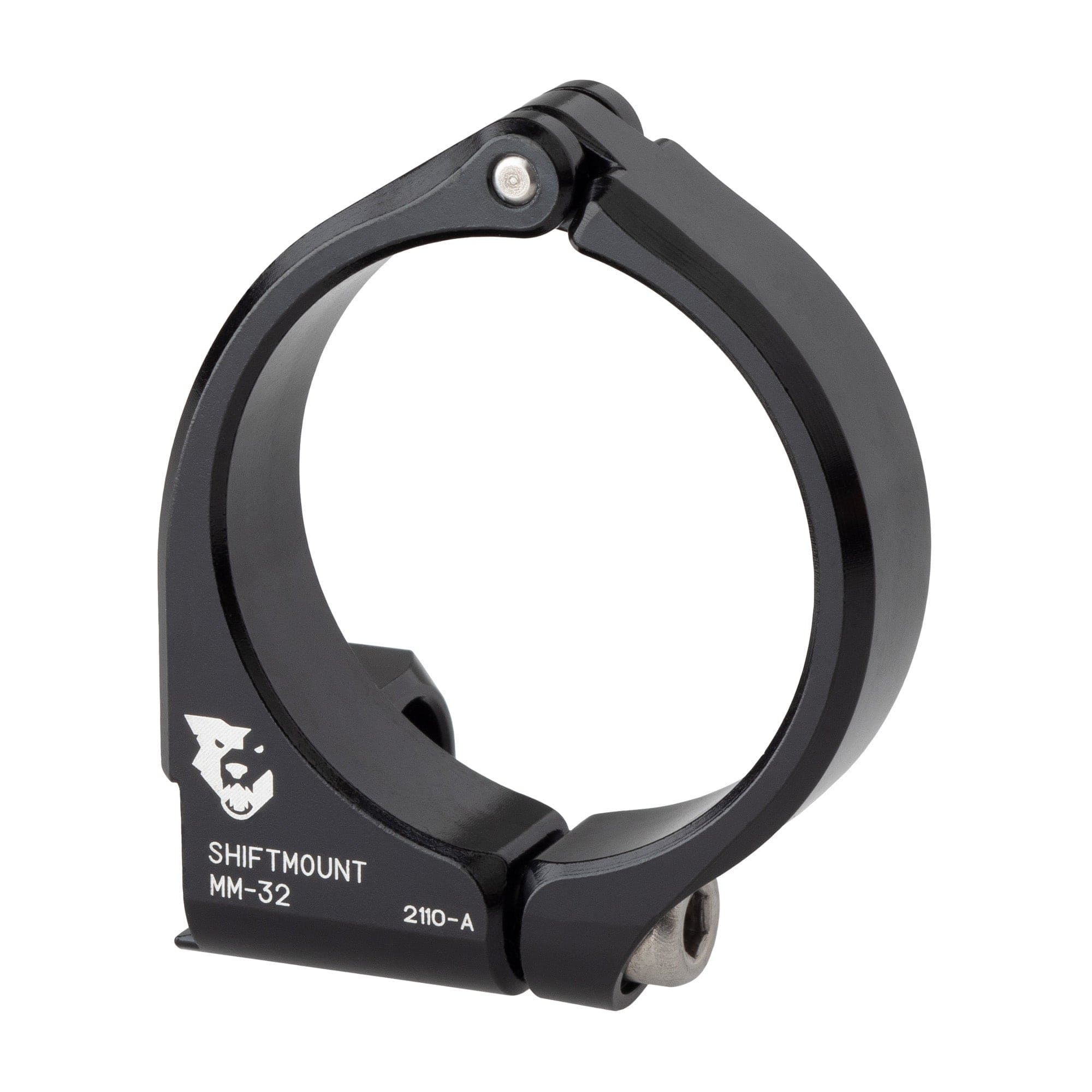

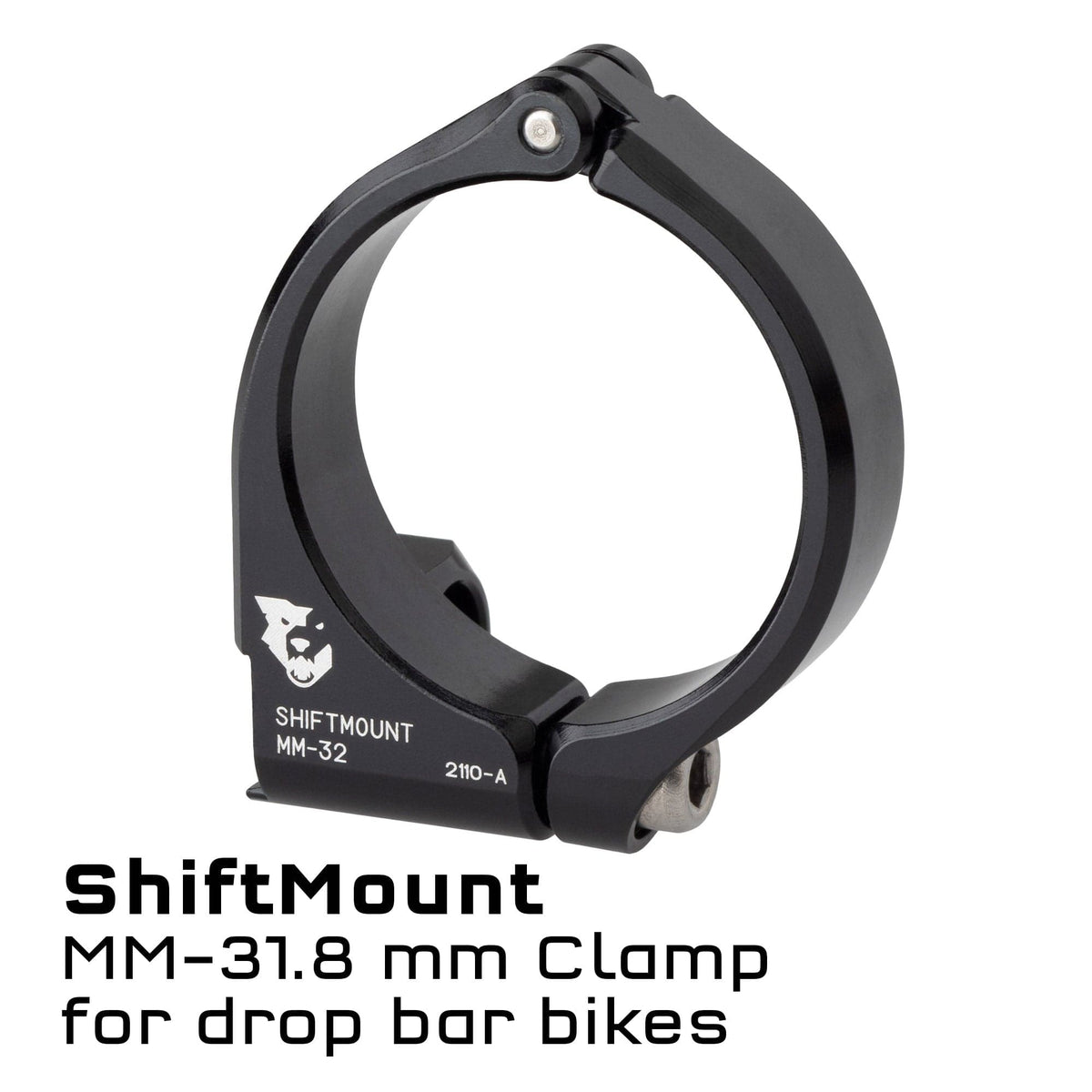

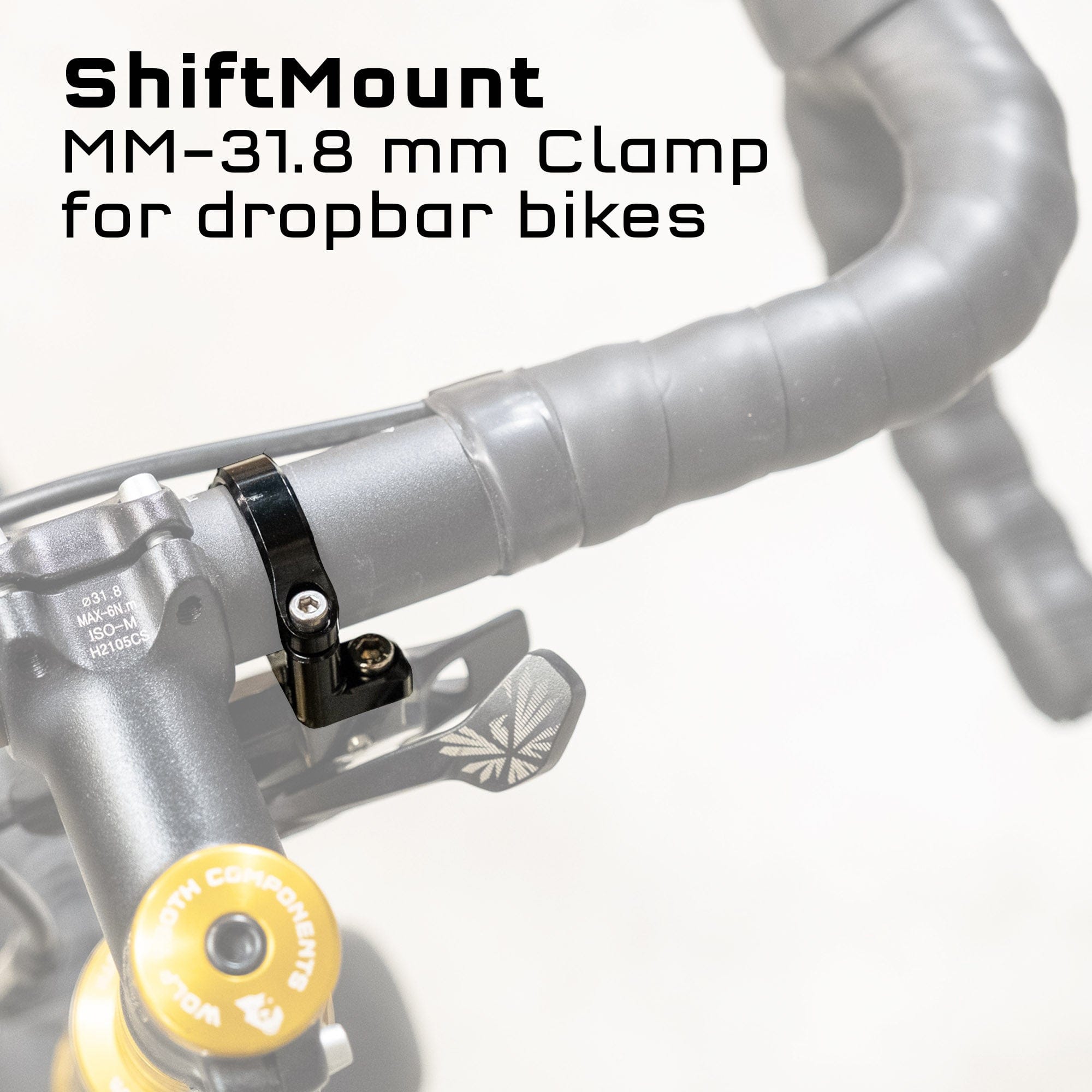

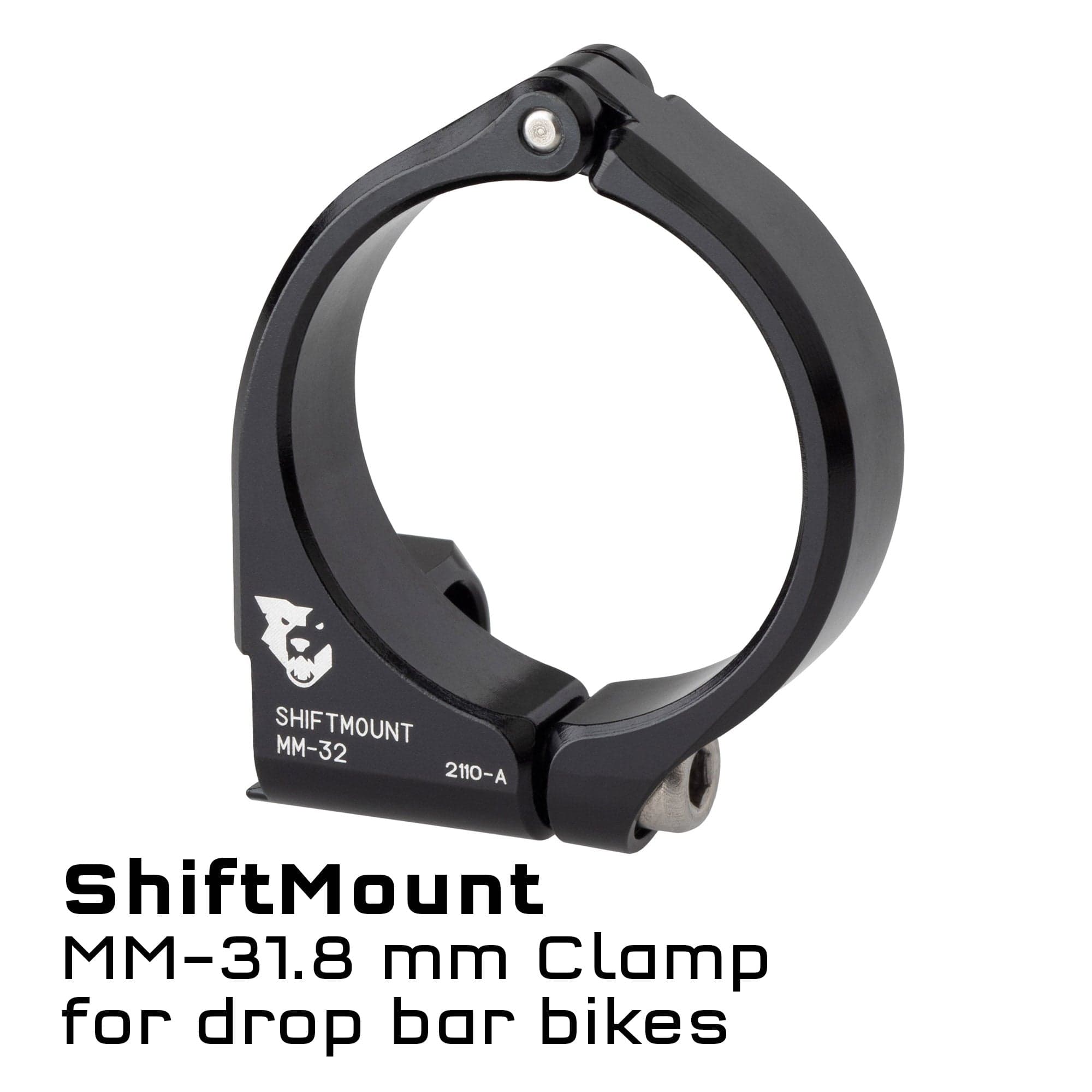

• MM-31.8 Clamp is for a SRAM MatchMaker shifter mounting directly to a 31.8 mm diameter road handlebar

Compatibility

• Designed to work with rear (right side) brakes and shifters.
• Consult the brake and shifter manufacturers to understand which mounting interface you have on your brakes and shifters.
• MM-MAG: There will be a gap at the top of the clamp, which is the opposite of where the gap is with stock clamp. This is done to create a hard joint where the shifter is mounted.

• MM-ISEV is compatible with M9100, M9120, M8100, and M7100 Brakes. Deore M6100 or M4100 brakes will mount but the positioning not optimal so we would consider them not compatible.
• MM-ISEV, MM-ISII, & MM-MAG: While these will technically mount to a SRAM AXS shifter pod, we do not recommend it. With SRAM AXS, the shift lever will be further toward the end of the bar, or closer to the rider's hand than is ideal for most riders..
• Shimano I-SPEC A, Hope, and TRP brakes are not supported.
• Shimano I-SPEC EV to Magura brakes is not supported because of geometric challenges.
• ISII- 22 Clamp is compatible with Shimano XT M8000 and XTR M9000 shifters.
• NOT compatible with Shimano SLX M7000, Deore M6000.
• ISEV-ISB, ISEV-ISII, ISEV-MM, ISEV-31.8 and ISEV-22 are NOT compatible with the SW-M8250 and SW-9250 Di2 shifters.
• For handlebar clamp ShiftMounts tighten clamp bolt to 1-2 Nm max torque.

Mounting Type by Brake Model

Related Products

• Other cockpit accessories

Tech Specs

Weight: (Including hardware) MM-ISII • 10.5g  |  MM-ISEV • 9g  |  ISEV-ISB • 10g  | ISEV-ISII • 6g  |  MM-MAG • 12g   |  ISEV-MM • 9.5g   |  ISII- 22 Clamp • 12.5g   |  ISEV- 22 Clamp • 10g   |  ISEV-31.8 Clamp • 16g   |  MM-31.8 Clamp • 17g

Material: 6061-T6 aluminum
