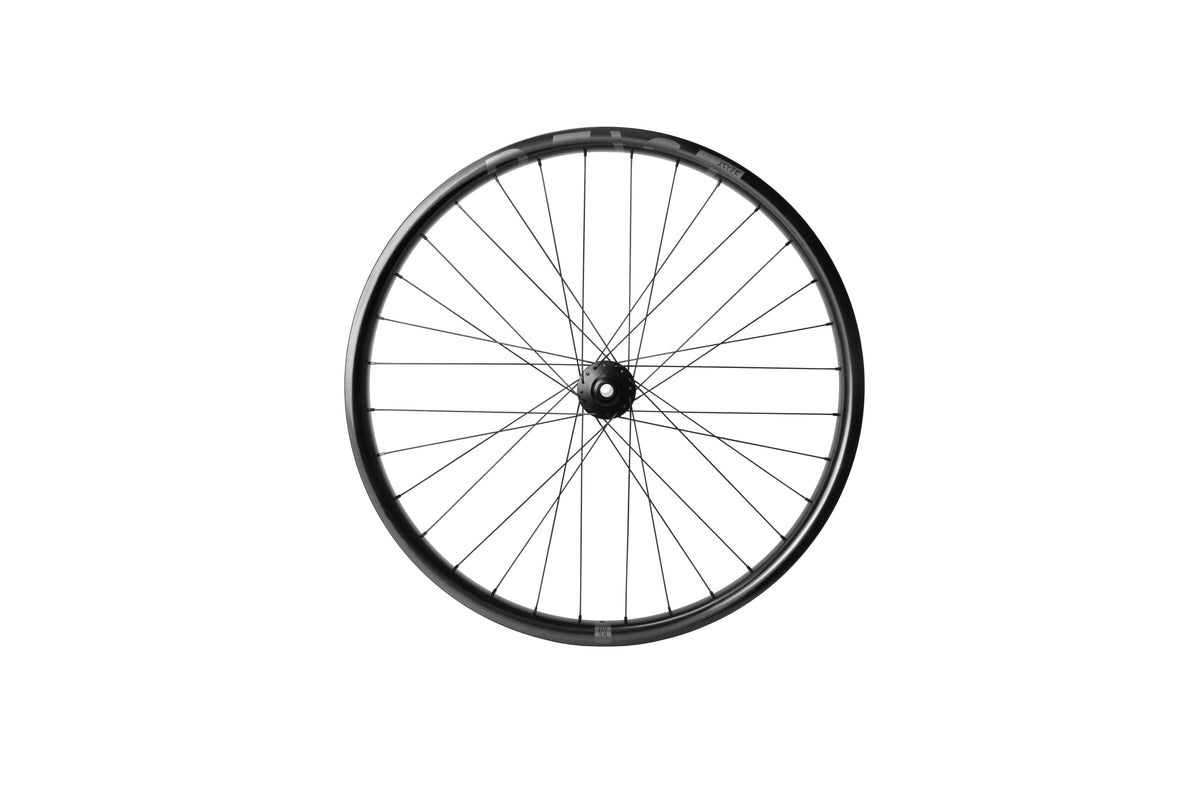

MTB HY35

Contact us for availability and Special Orders!

The era of the e-bike has begun, and e-bikes place high demands on components. eMTB wheels have to withstand greater loads and more miles on sometimes tough surfaces. The HY35 rims are adapted to the extreme demands of eMTBs.

Handmade in Germany.

Technical Details

• Material Carbon
• Range of Use Enduro | DH | Plus Bike | E-Bike
• Size 27.5″ | 29″

• Height 25 mm
• External Width 42.6 mm
• Internal Width 35 mm
• Rim Flange Width 3.8 mm
• Hole Count 28 | 32
• ERD 550 mm | 588 mm
• Asymmetrical Offset 3 mm
• Weight 530 g | 560 g
• Weight Tolerance 5 %
• Weight Limit none
• Colors UD-Finish:
• black

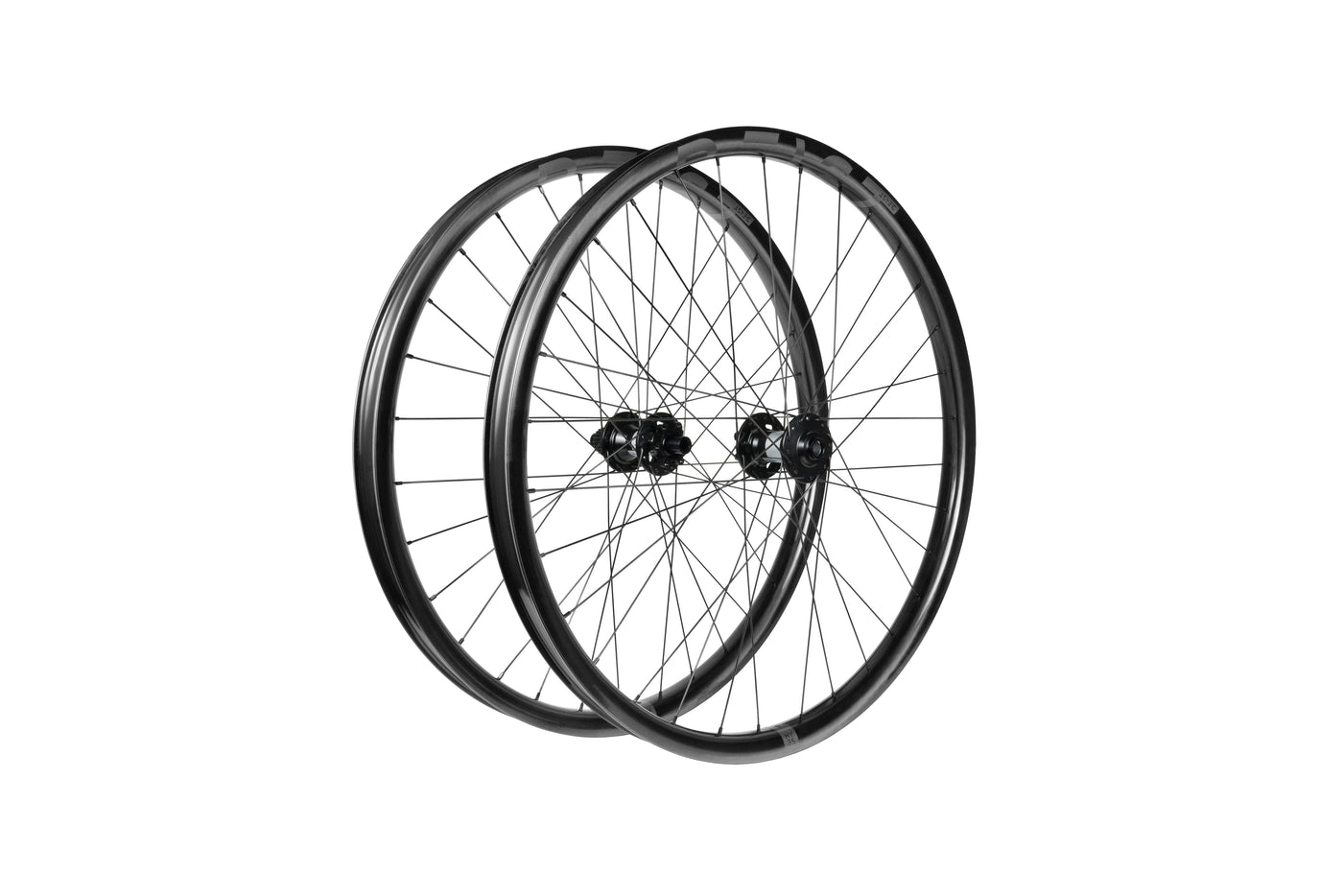

WHEELSET DETAILS

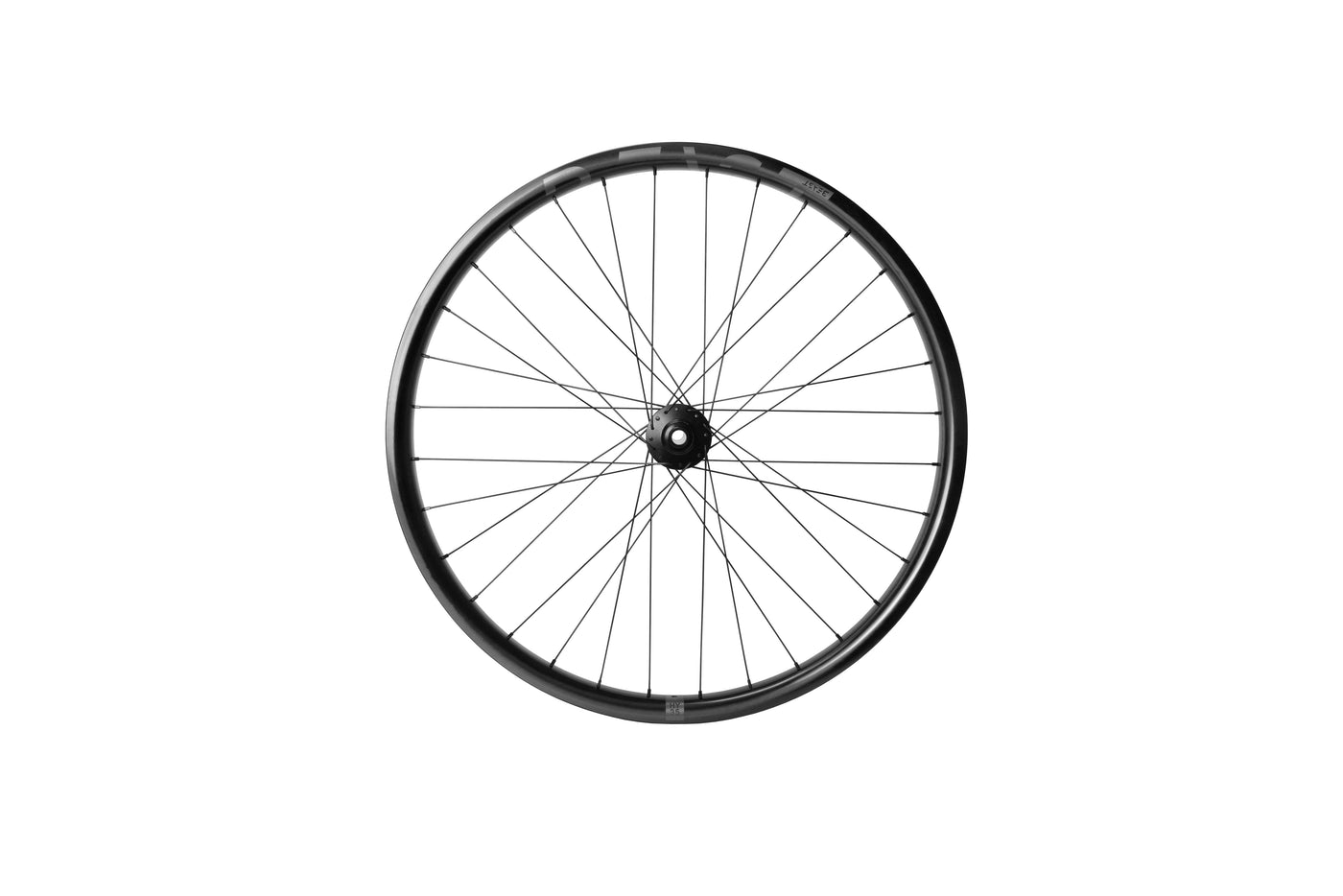

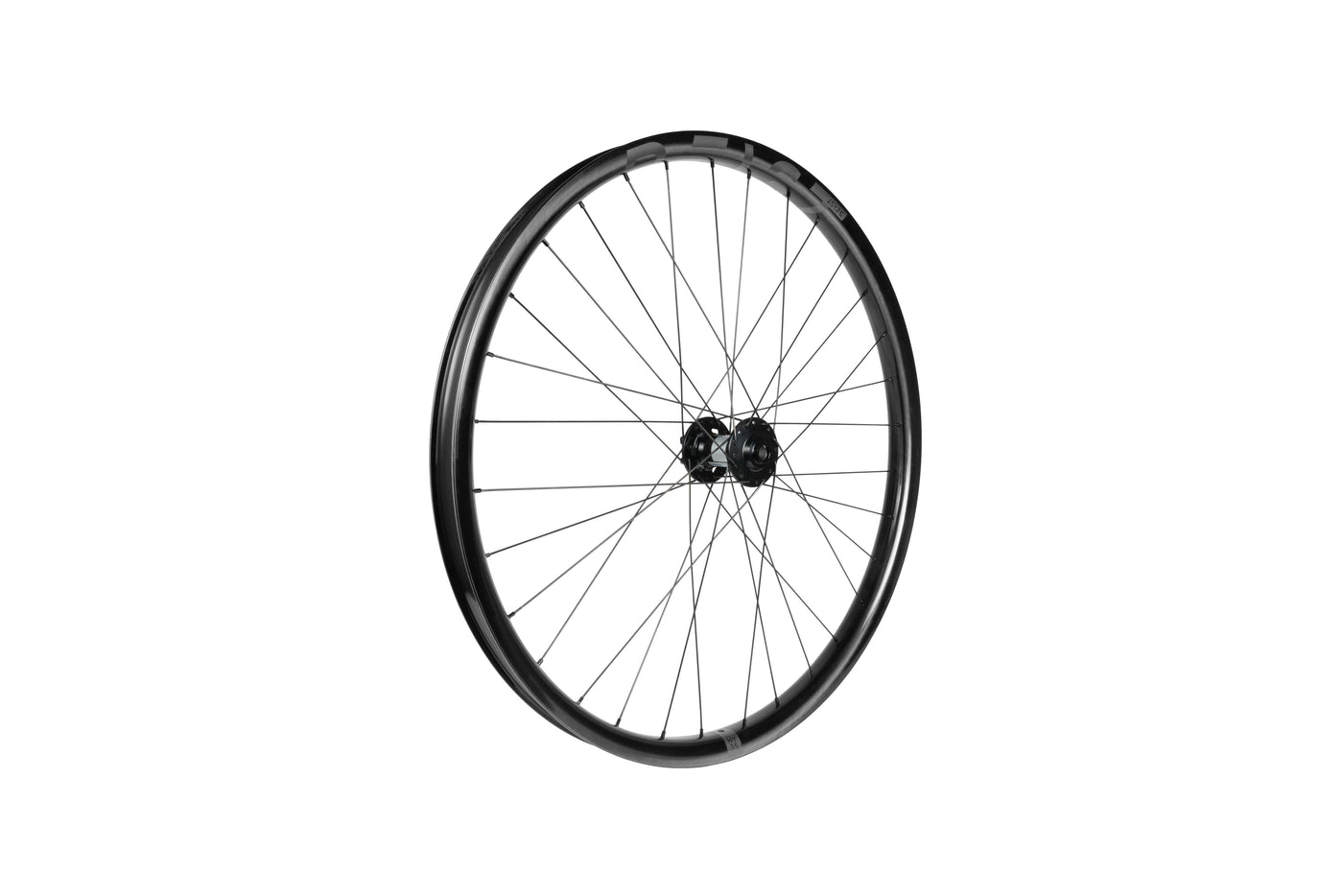

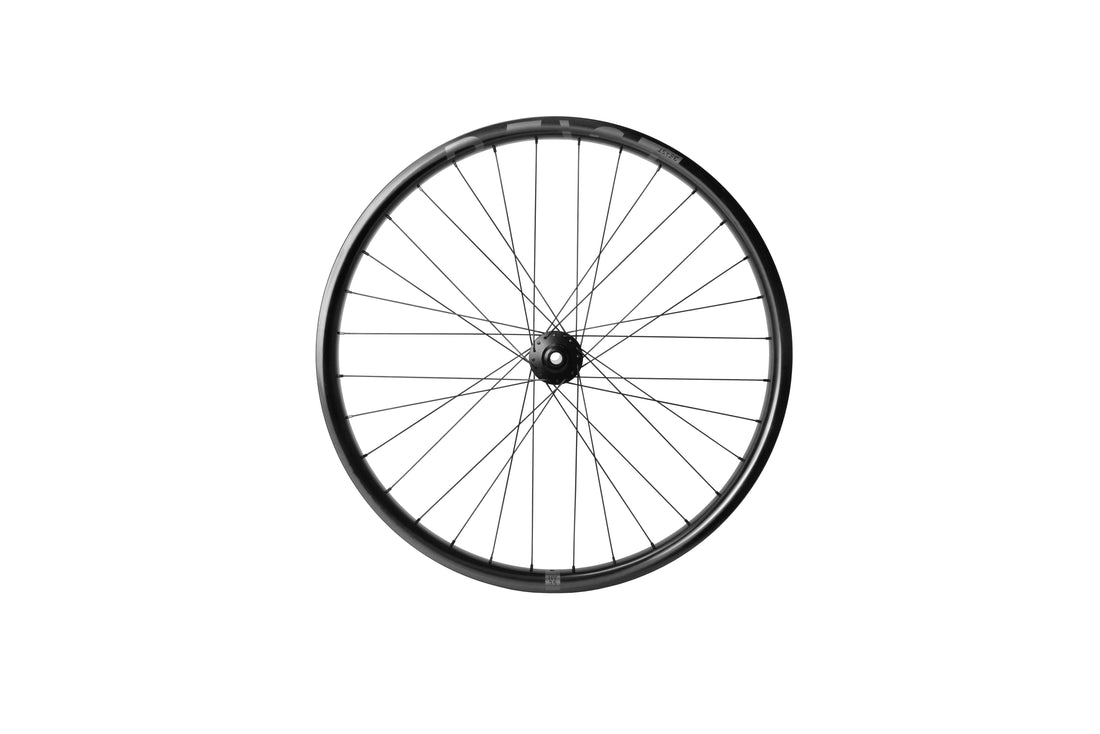

• Front Wheel 15 x 110 mm Boost

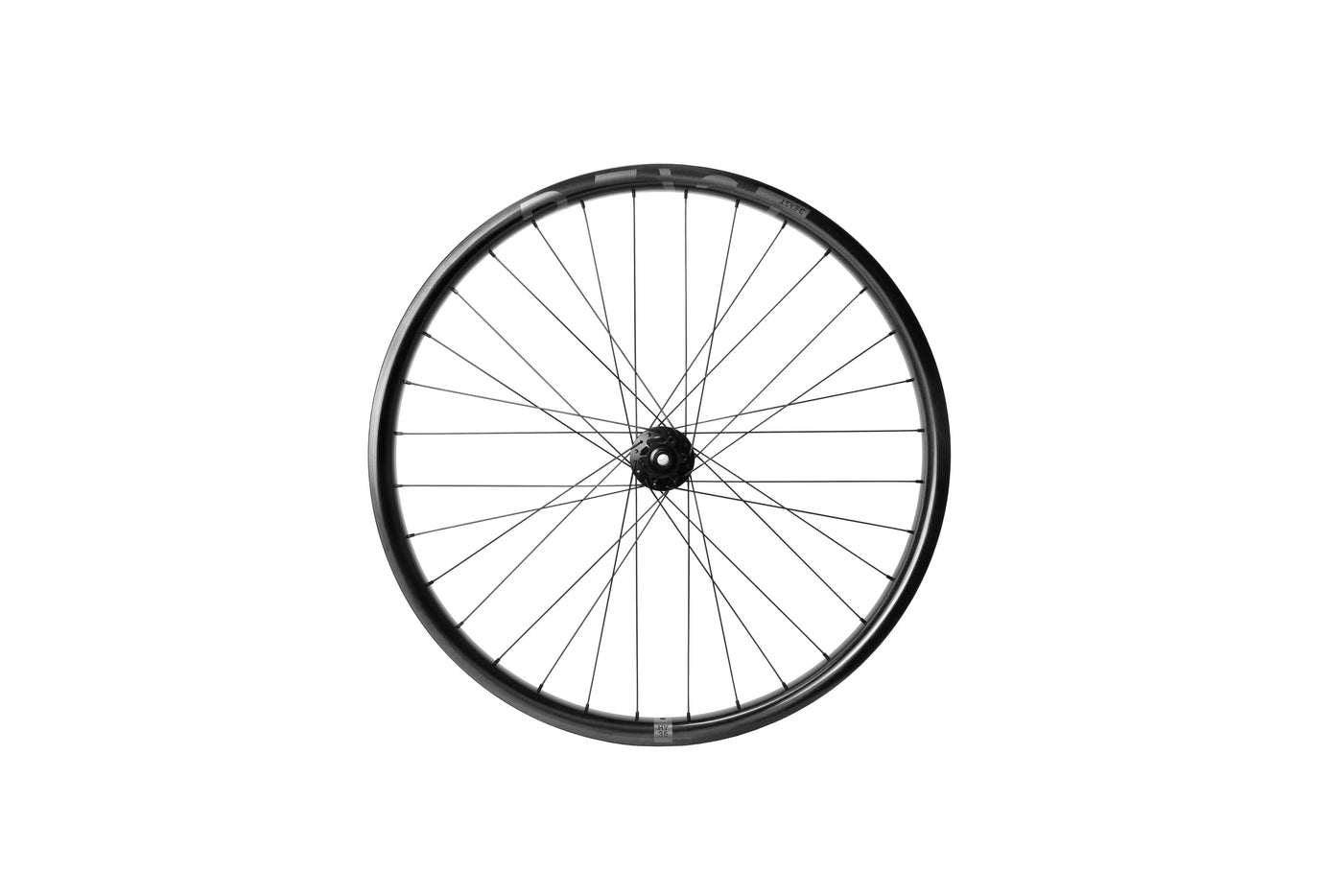

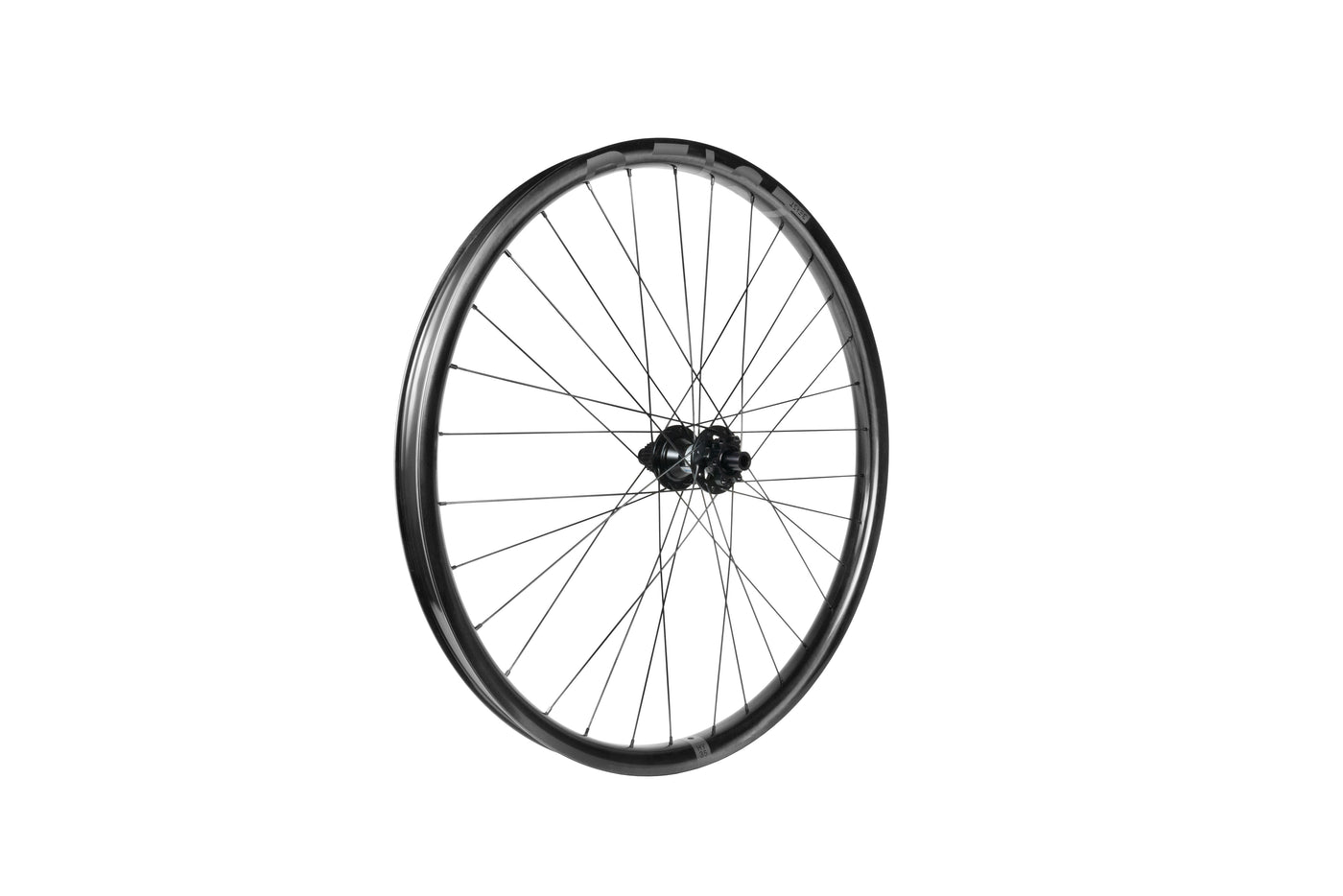

• Rear Wheel 12 x 148 mm Boost
• Hub DT Swiss 240 Hybrid
• Freewheel SRAM XD | Shimano HG | Microspline
• Spokes Sapim Force | black
• Nipple Sapim | Aluminium | black | external
• Rim Tape including
• Weigth 2080 g | 2140 g
• Weight Tolerance 5 %
• Weight Limit none

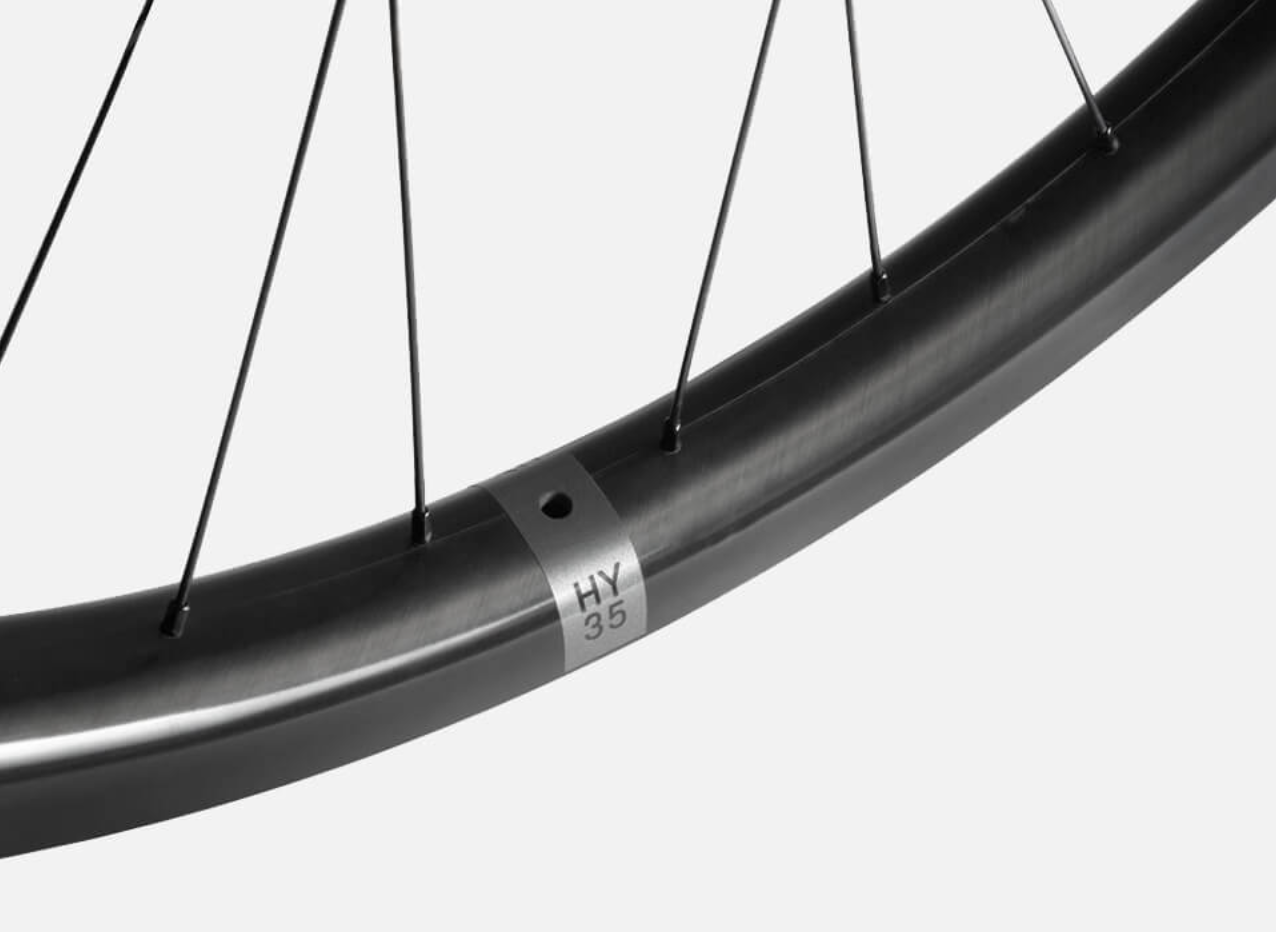

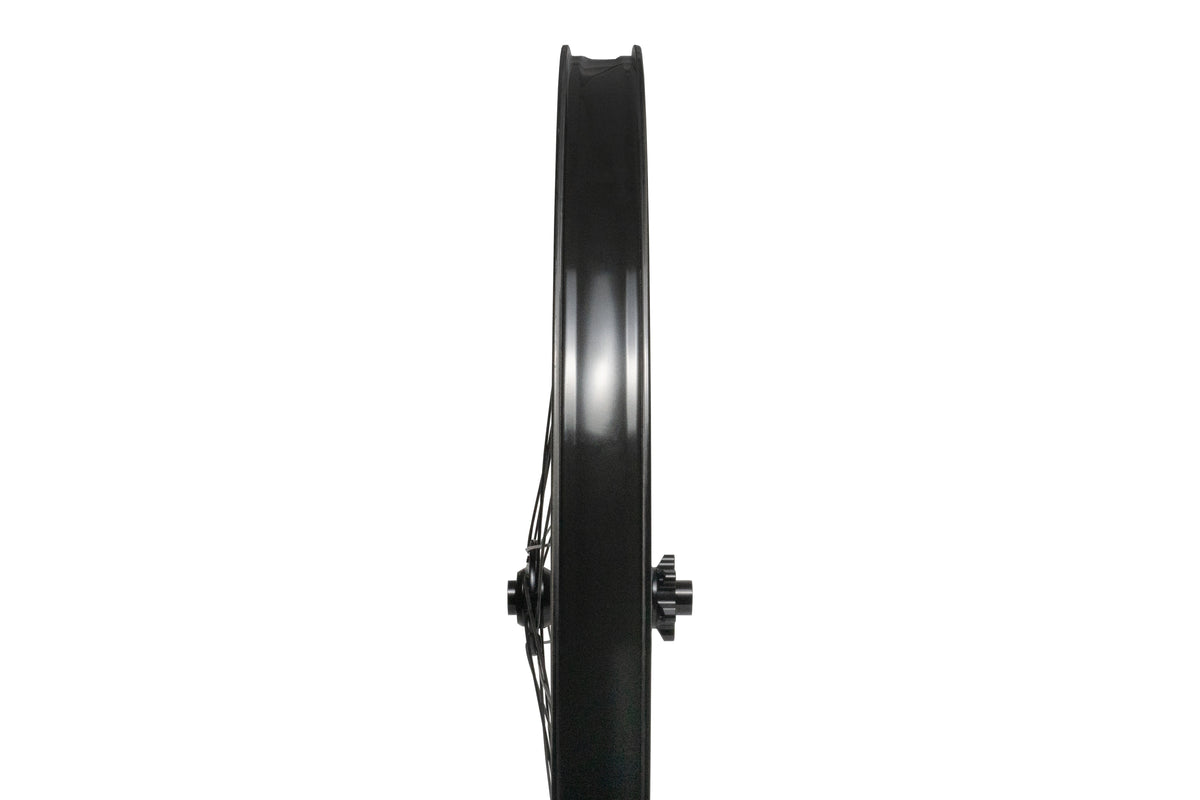

The special rim geometry, load-optimized layup, reinforced nipple seat and specially adapted rim flange mean that there’s nothing standing between you and killing it on your eMTB.

We meticulously spoke our wheels by hand.
