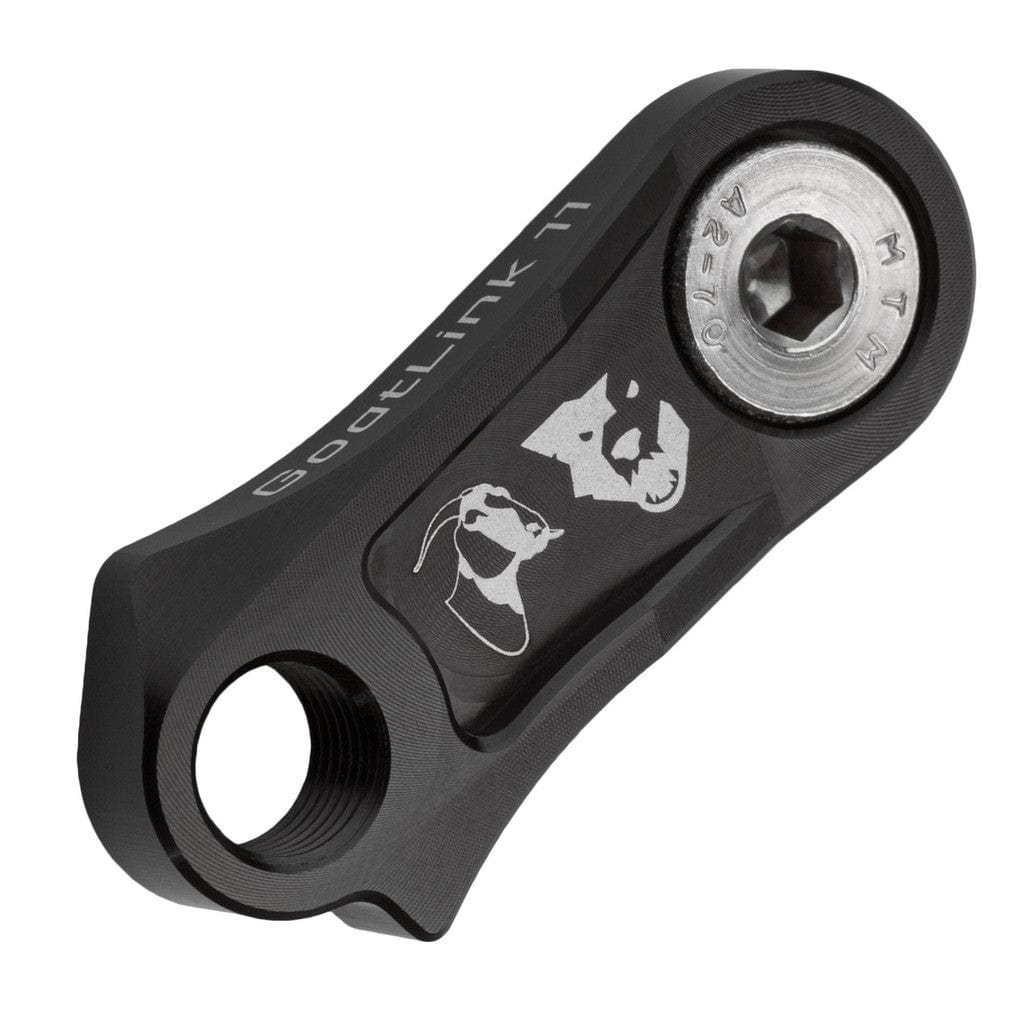

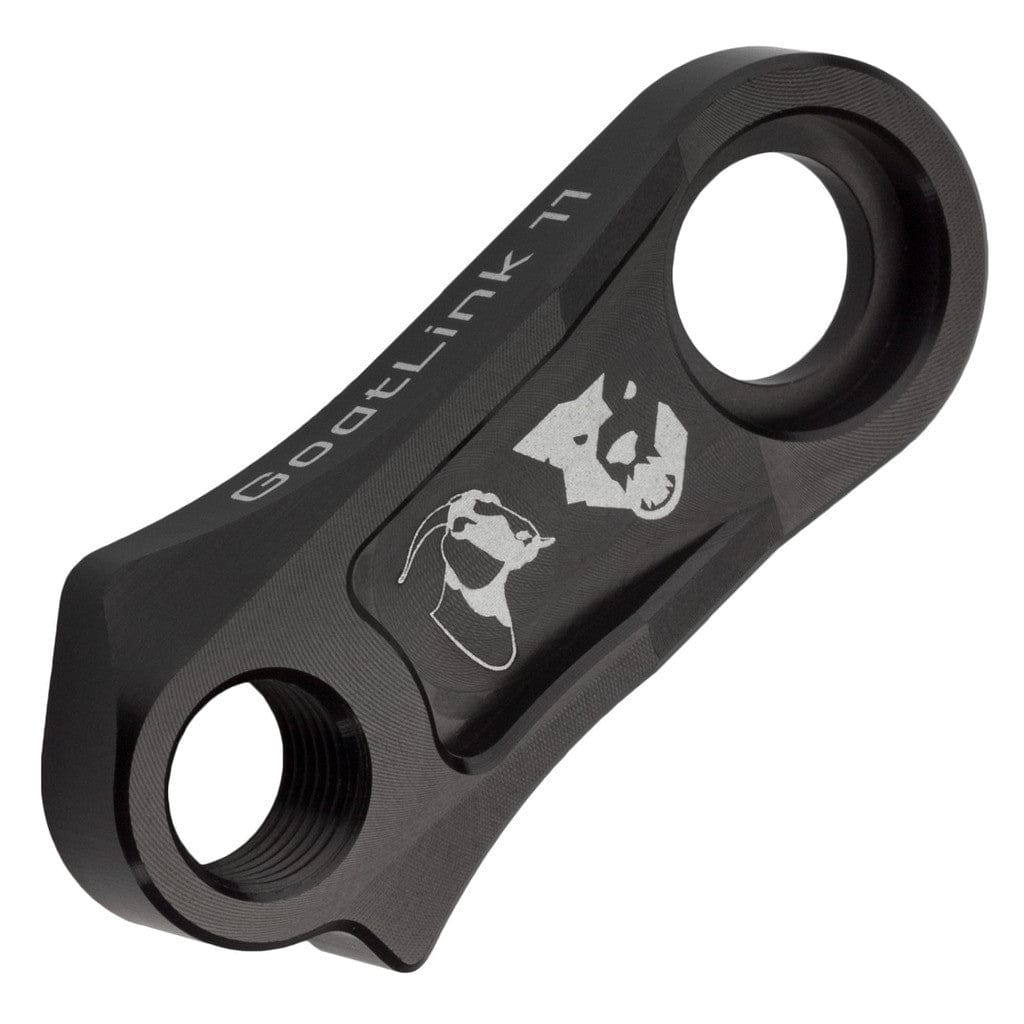

The GoatLink 11 hanger extension offsets the position of your 11-speed Shimano mountain bike rear derailleur allowing you to be able to run a wider range cassette while improving performance.
-
Same ergonomics and reliability of Shimano shifters and derailleurs
-
Gear range, simplicity and quietness of SRAM 1x11 drivetrain
-
High-performance and lightweight
This project began with the desire to run 11-speed Shimano derailleurs and shifters with SRAM 10-42t XD cassettes. Granted the combination can work without modification - but performance wasn't quite what we'd expect from Shimano and SRAM's finest.
When used with a 10-42t cassette, the GoatLink 11 re-positions SLX M7000, XT M8000 and XTR M9000 rear derailleurs such that free chain length between the cassette and the top derailleur pulley is within 1% of what Shimano intended while cassette tooth engagement in the smallest cog is improved by 27%.
Knowing that certain situations call for a range beyond that provided 10-42t or 11-42t cassettes, we tweaked the GoatLink 11 to also significantly improve Shimano 11spd rear derailleur performance with extended-range like the Wolf Tooth GCX 44t modified 10-44t XX1 or X01 cassette.
NOTE: GoatLink 11 repositions your derailleur to provide clearance for larger cassette cogs but it does not increase derailleur capacity. It is critical to find and understand your derailleur’s capacity before attempting to expand its gear range.
Compatibility
Cassette • Compatibility
11-40 • Not Required
11-42 • Not Required
11-45 • GS/SGS Derailleur
11-46 • GS/SGS Derailleur
10-42 • GS/SGS Derailleur
10-44 • GS/SGS Derailleur (Wolf Tooth GCX44)
10-45 • Not Optimized
9-44 • Not Optimized
Other notes:
- The GoatLink 11 is compatible with SLX M7000, XT M8000 and XTR M9000 series 11-speed Shimano rear derailleurs.
- Not compatible with Shimano RD-RX812 or RD-RX817 due to the 31T capacity limitation.
- The GoatLink 11 mounts only to standard derailleur hangers.
- Double chainrings (2x) is supported and requires a long cage (SGS) rear derailleur with no more than a 12t difference in front chainrings (with an 11-46t cassette).
- Triple chainrings are not supported.
- Direct Mount native frames and SRAM derailleurs are not supported.
Improvements with the GoatLink 11*:
10-42t • Improved by 99%
Free Chain in bottom cog (unsupported chain - shorter is better and will increase shifting precision):
10-44t • Improved by 32%
10-45t • Improved by 28%
11-45t • Improved by 36%
11-46t • Improved by 32%
9-44t • Improved by 26%
Chain Wrap in bottom cog:
10-42t • Improved by 27%
10-44t • Reduced by 9%
10-45t • Reduced by 7%
11-45t • Reduced by 8%
11-46t • Improved by 12%
9-44t • Reduced by 8%

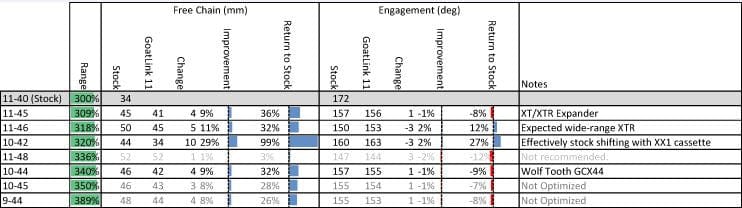

Summary in plot form - movement towards the red X is in the direction of goodness (more chain wrap and less free chain)
*Due to variations in derailleur hanger geometry, chainstay length, chainring size, B-screw adjustment, and suspension configuration, individual results will vary slightly.
Related Products
GoatLink for 10-speed Shimano mountain bike rear derailleur
Tech Specs
Weight: 19g
Material: 6061 aluminum
Included: stainless steel bolt
Torque: 8-10Nm
Made in the USA
