MTB ED30

Contact us for availability and Special Orders!

One of our pros describes the ED30 as “inconspicuous”, which is his idea of the highest praise possible. What he means is you don’t have to worry about this rim when you're racing; you can concentrate on your ride.

Handmade in Germany.

Technical Details

• Material Carbon
• Range of Use Enduro
• Price UD- and SQ-Finish black:

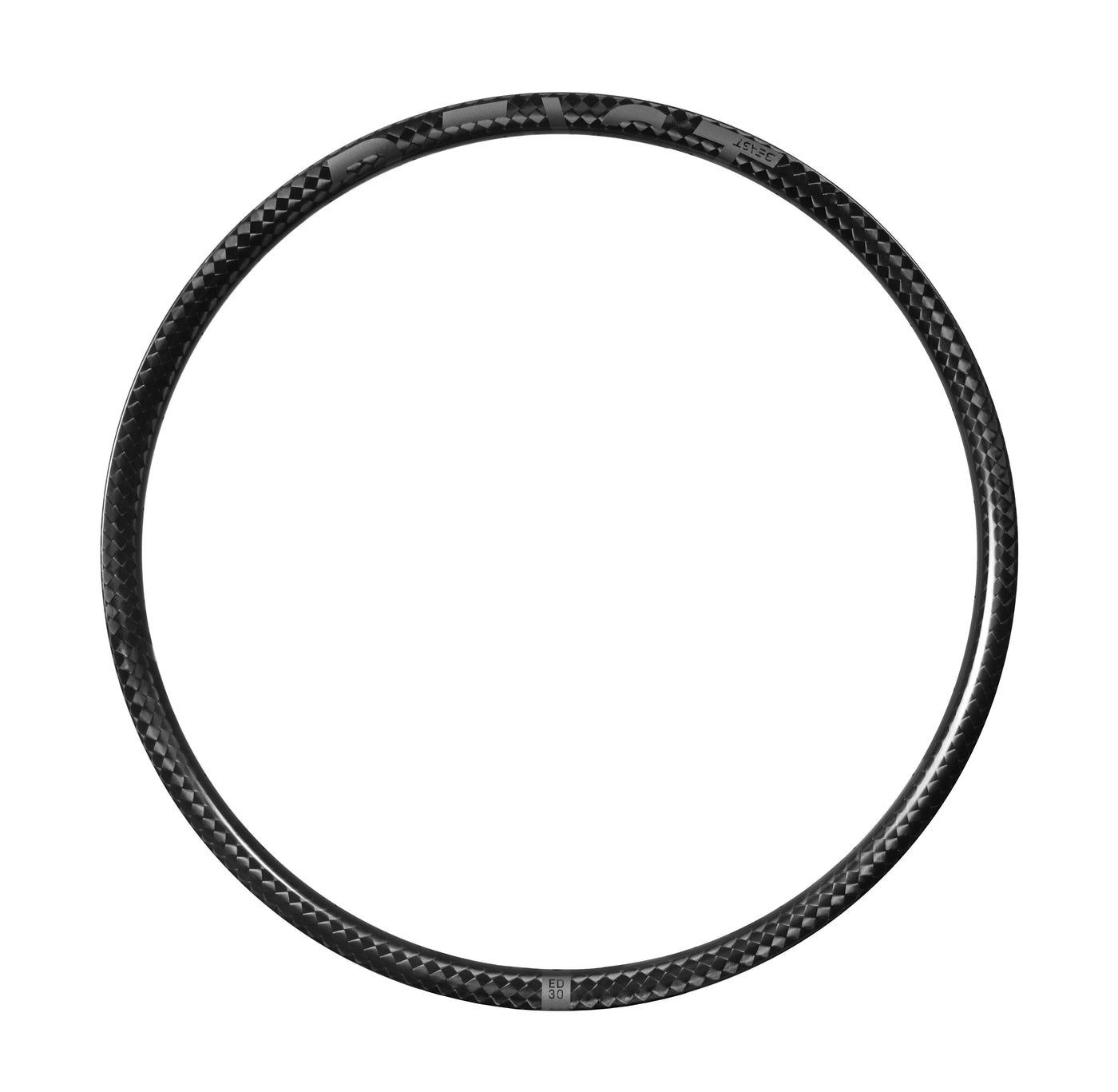

RIM DETAILS

• Size 27.5″ | 29″
• Height 25 mm
• External Width 36.6 mm
• Internal Width 30 mm
• Rim Flange Width 3.3 mm
• Hole Count 28 | 32
• ERD 551 mm | 587 mm
• Asymmetrical Offset 2 mm
• Weight 480 g | 510 g
• Weight Tolerance 5 %
• Weight Limit none
• Colors UD- and SQ-Finish: black

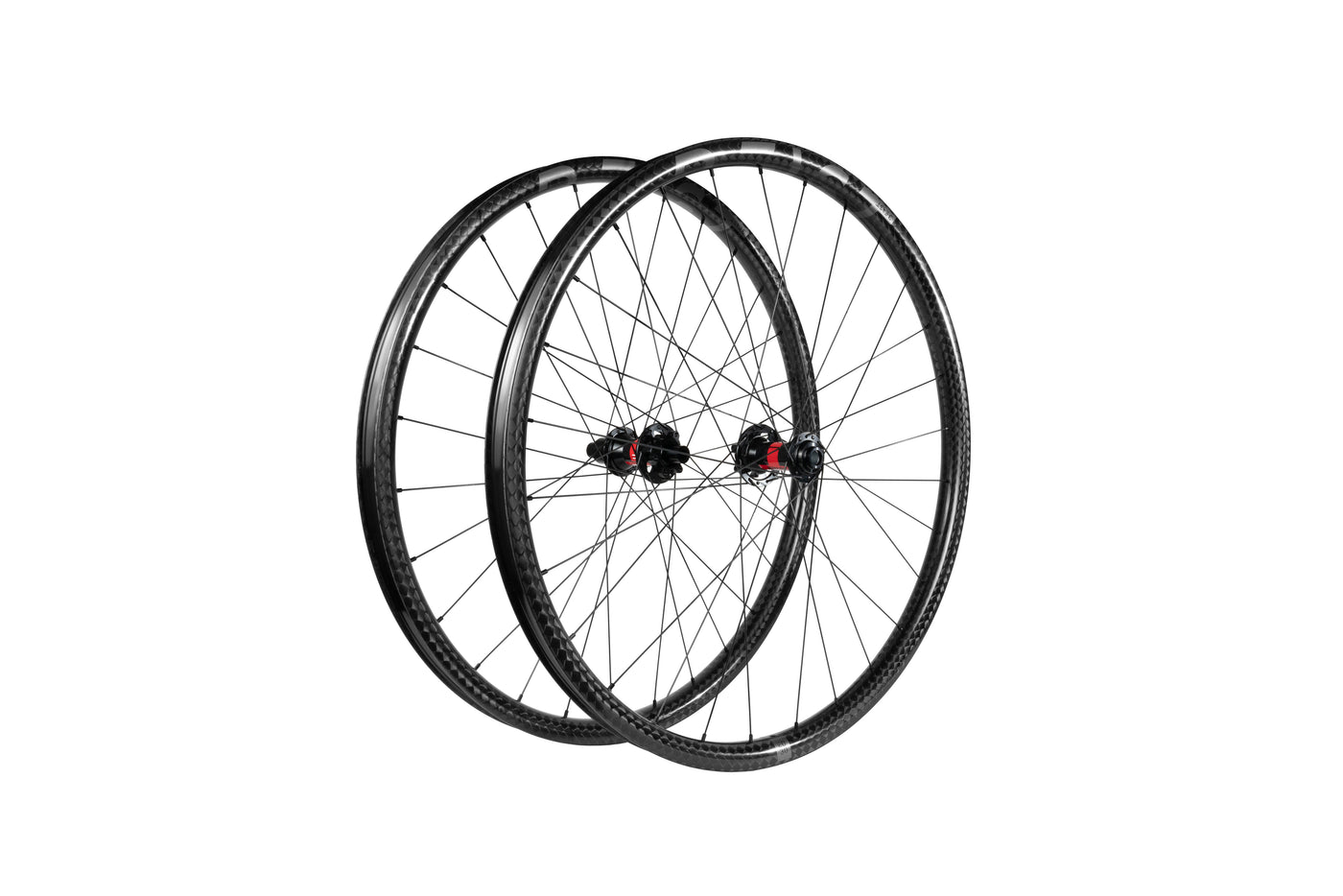

WHEELSET DETAILS

• Front wheel 15 x 110 mm Boost
• Rear wheel 12 x 148 mm Boost
• Hub DT Swiss 240 and 350
• Freewheel SRAM XD | Shimano HG | Microspline
• Spokes Sapim D-Light | black
• Nipple Sapim | Aluminium | black | external
• Rim Tape including
• Weight UD- and SQ-Finish:
• 1.700 g | 1.760 g (DT Swiss 240)
• 1.770 g | 1.830 g (DT Swiss 350)
• Weight Tolerance 5 %
• Weight Limit none

We developed this rim with the aim of producing a component that is sufficiently stiff and sturdy but still comfortable in harsh conditions and heavy-duty use. It has outstanding impact tolerance thanks to the reinforced rim flange. Even when the going gets tough and the trail really starts to shake you up, you’ll keep your cool. The ED30 won’t let you down.

We meticulously spoke our wheels by hand.
