MTB DH30

Contact us for availability and Special Orders!

The DH30 puts Beast Components’ entire know-how on show. It’s designed to do its job perfectly.

Handmade in Germany.

Technical Details

• Material Carbon
• Range of Use DH

RIM DETAILS

• Size 27.5″ | 29″
• Height 25 mm
• External Width 38 mm
• Internal Width 30 mm
• Rim Flange Width 4 mm
• Hole Count 28 | 32
• ERD 552 mm | 590 mm
• Asymmetrical Offset 2 mm
• Weight 560 g | 610 g
• Weight Tolernace 5 %
• Weight Limit none
• Colors UD-Finish: black

WHEELSET DEDAILS

• Front Wheel 15 x 110 mm Boost
• 20 x 110 mm Boost
• Rear Wheel 12 x 148 mm Boost
• 12 x 150 mm
• 12 x 157 mm
• Hub DT Swiss 240 and 350
• Freewheel SRAM XD | Shimano HG | Microspline
• Spoke Sapim Force | black
• Nipple Sapim | Aluminium | black
• Rim Tape including
• Weight 1960 g | 2030 g (DT Swiss 240)
• 2030 g | 2100 g (DT Swiss 350)
• Weight Tolernace 5 %
• Weight Limit none

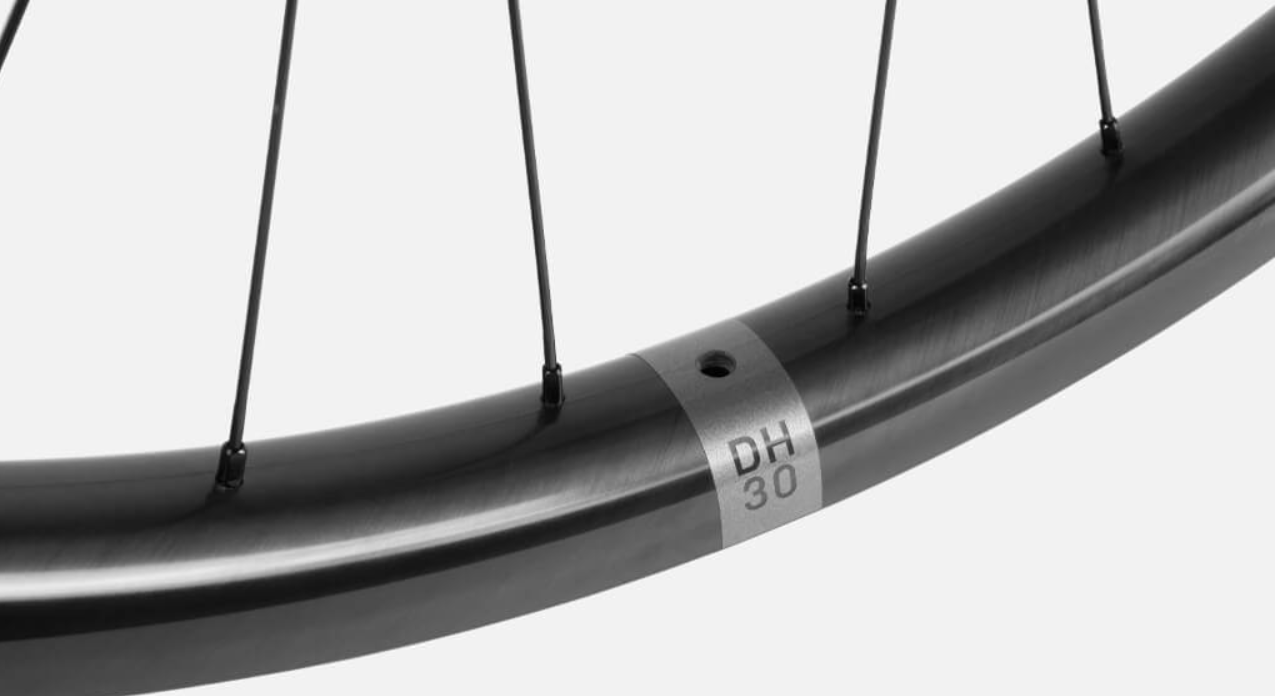

This rim caused us to add additional weights to our impact test stand. That’s because the 4 mm wide rim flanges can take a lot. The special geometry and the adapted layup make this downhill rim a reliable companion on any trail. It doesn’t get any more robust. As a wheelset it’s more wheel than you’ll ever need. Best. Ever.

We meticulously spoke our wheels by hand.
