Note: This is a CAMO Spider ONLY. A CAMO Chainring is required to complete this system.

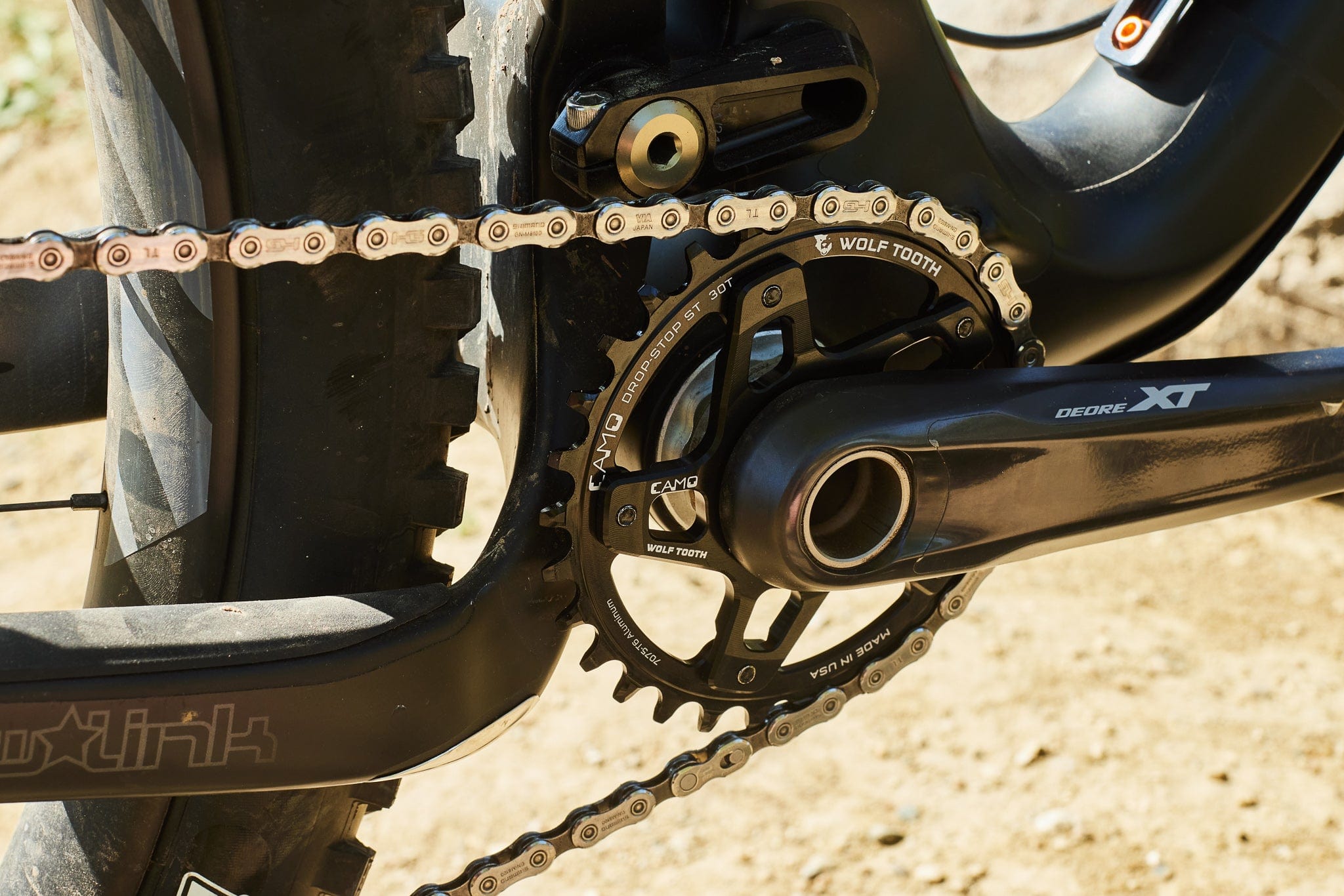

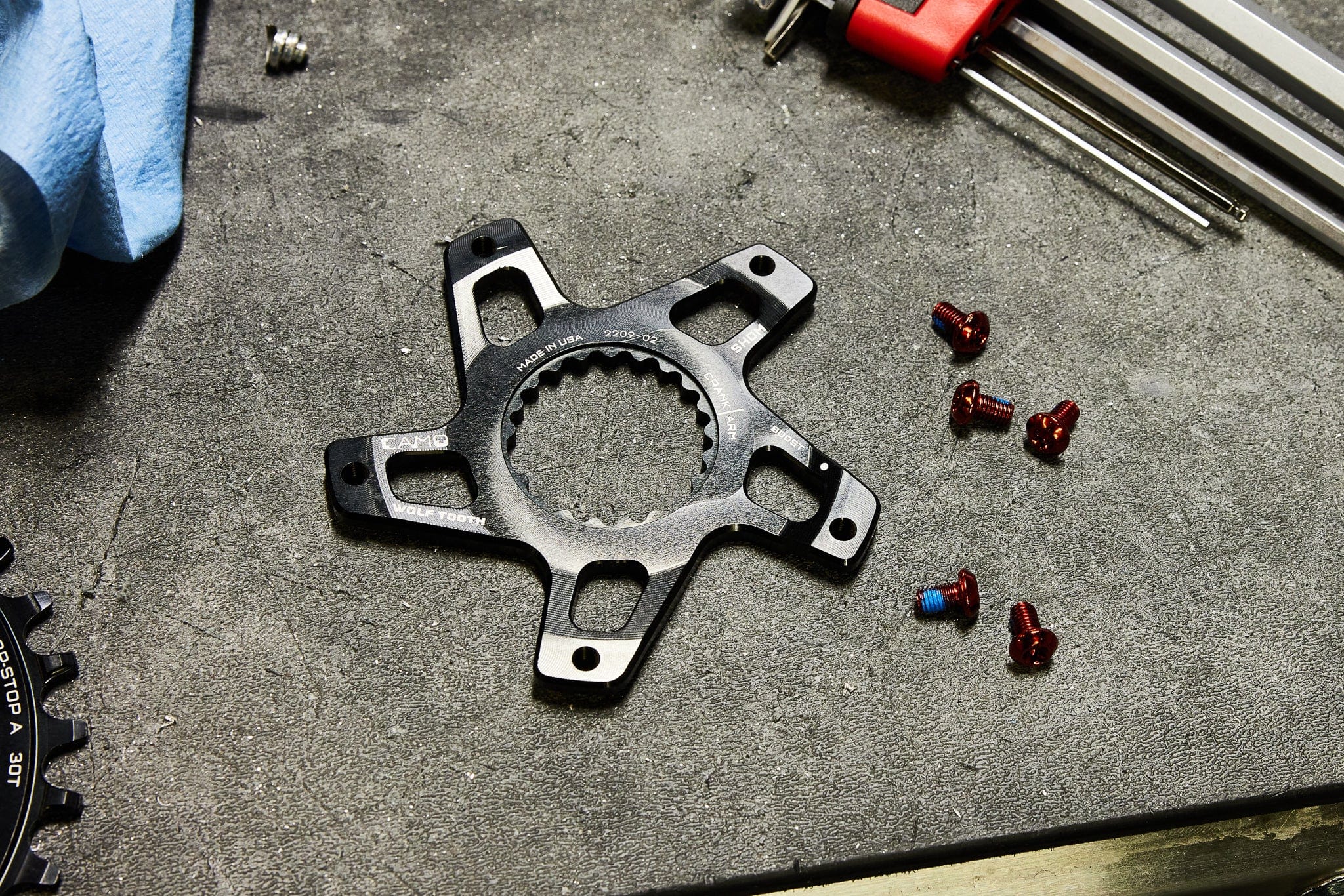

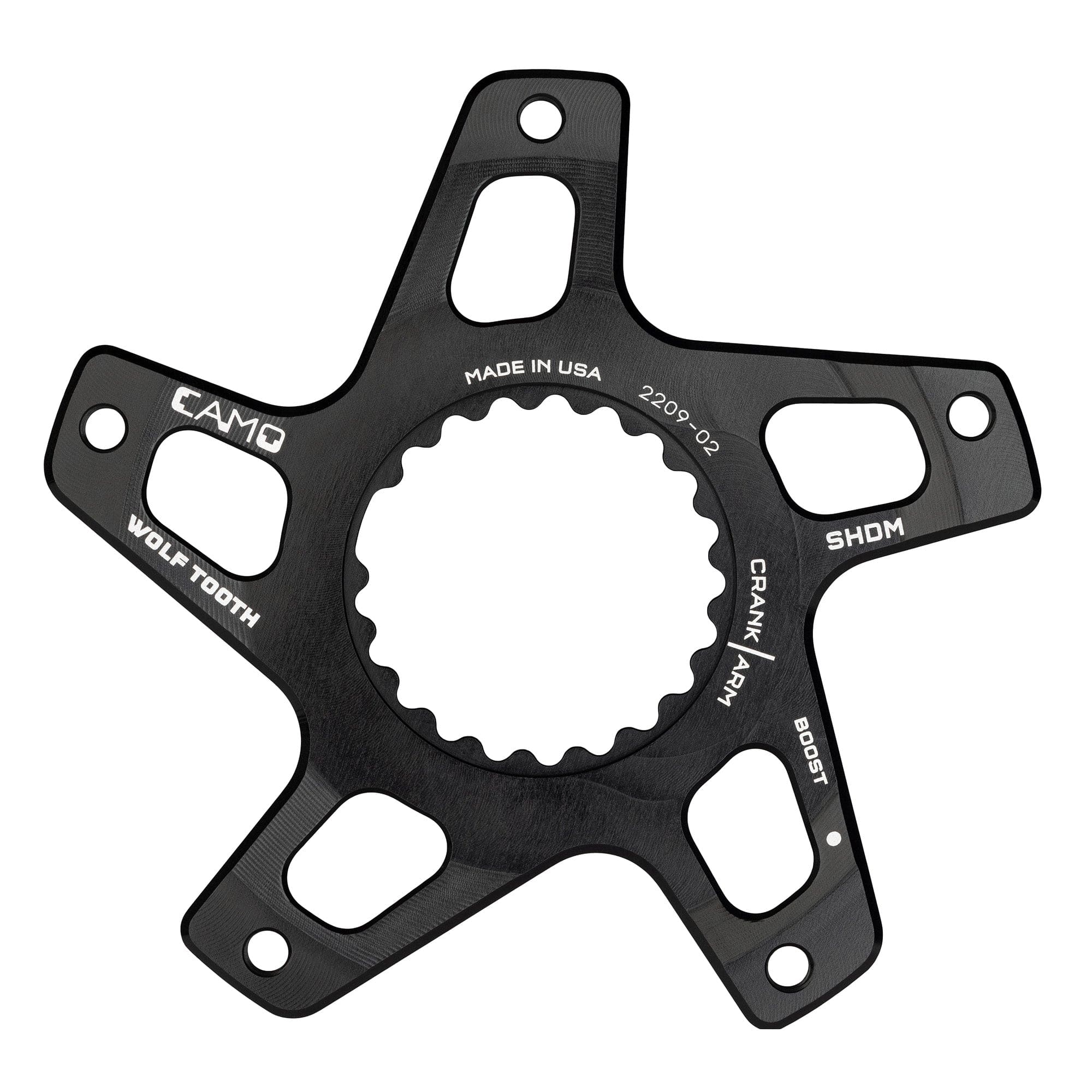

This is a spider for use with Shimano mountain bike cranksets that have a removable spider.
The CAMO chainring system was created by our engineers for Chainline And Material Optimization on direct mount style chainrings. The key advantages include:
-
Perfect chainline for wear and shifting precision
-
Optimal material usage for weight, stiffness, and wear
-
Spend less for chainring swapping by buying only the chainring, compared to chainrings that have an integrated spider
-
Swapping chainrings is very fast with only five small bolts and no nuts
-
Availability, as Wolf Tooth has many direct mount options: round or oval, stainless or aluminum, for several cranksets.
-
Color options add a bit of style to accent other colors of your bike or components
-
Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability
Compatibility
- This spider is designed to work with Shimano cranksets that have a removable spider.
- Not compatible with the XTR 9100-1, XTR 9100-2, or XTR 9130 crankset (narrow q-factor version)
- Currently available only for Boost chainline. The number and letter refer to the mm offset and direction from the mounting face to the centerline of the teeth:
- M5 (minus 5mm - Boost)
- dished towards the frame
- All Camo Spiders are not compatible with Bash Guide ISCG05
Installation notes:
- You will be able to access all bolts without removing the spider

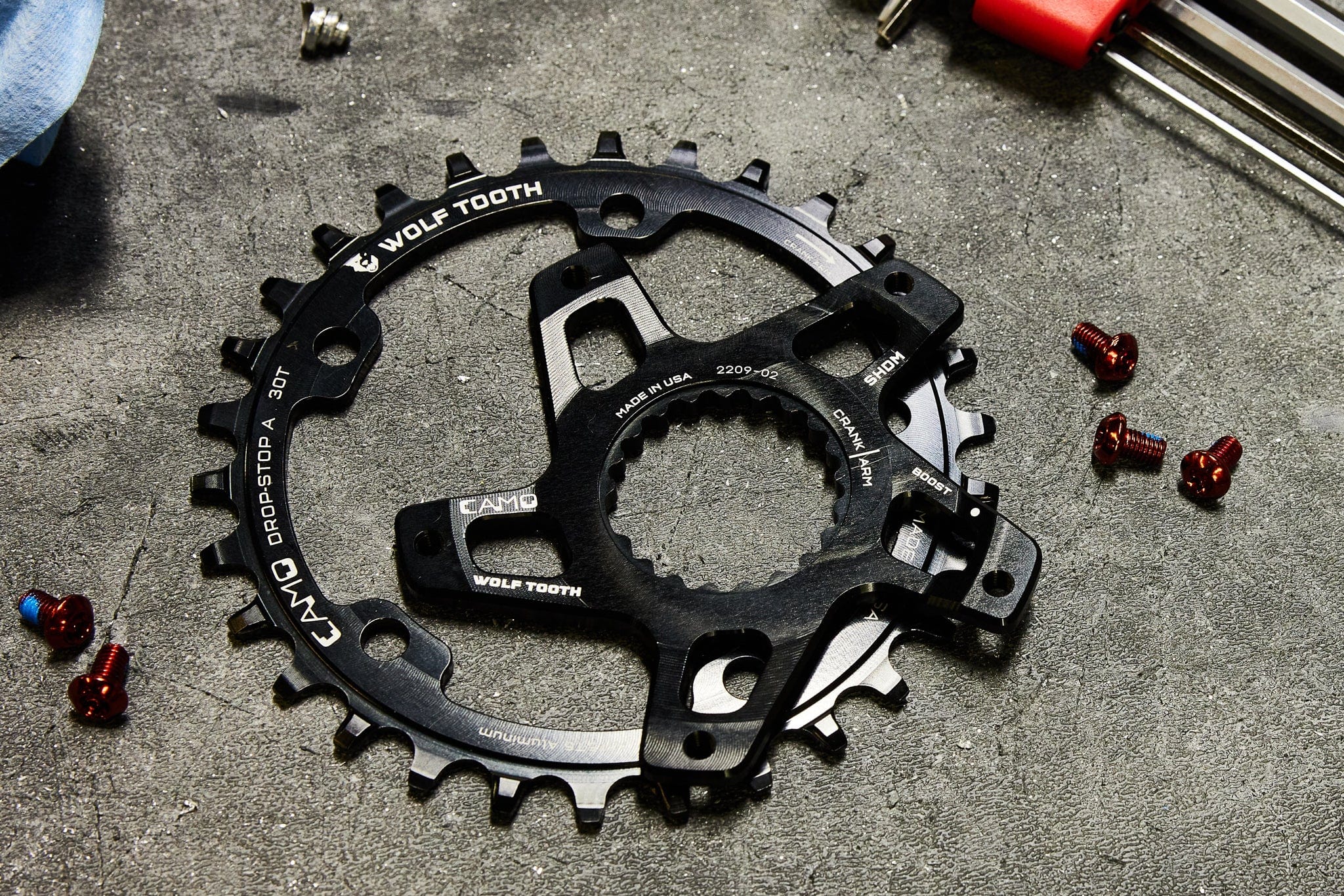

- Line up the little dot on the ring with the dot on the spider. Don't worry, you cannot install the ring in the wrong rotational orientation.
- Be sure the bosses on the spider "plug in" to the chainring.
- Torque bolts only to 4-5 Nm and use blue Loctite threadlocker
Related Products
- CAMO chainring - oval or round and stainless or aluminum
Tech Specs
Weight: 28g
Material: 7075-T6 aluminum
Included: ED coated steel bolts included
Made in USA
