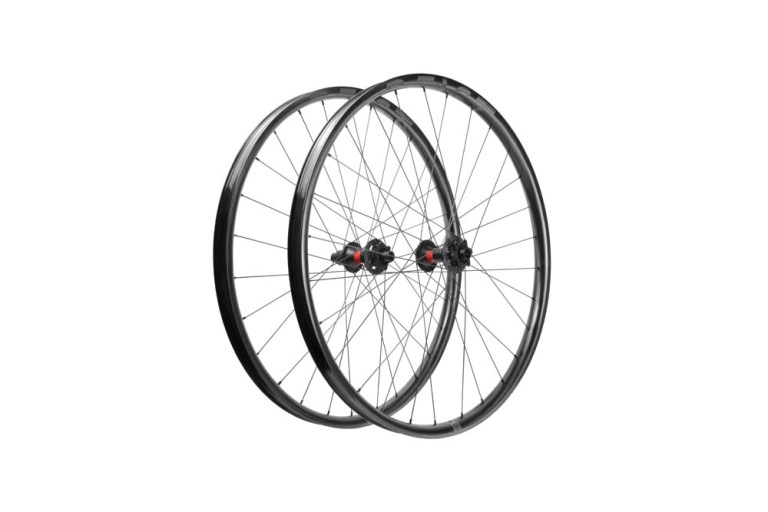

MTB XS30

Contact us for availability and Special Orders!

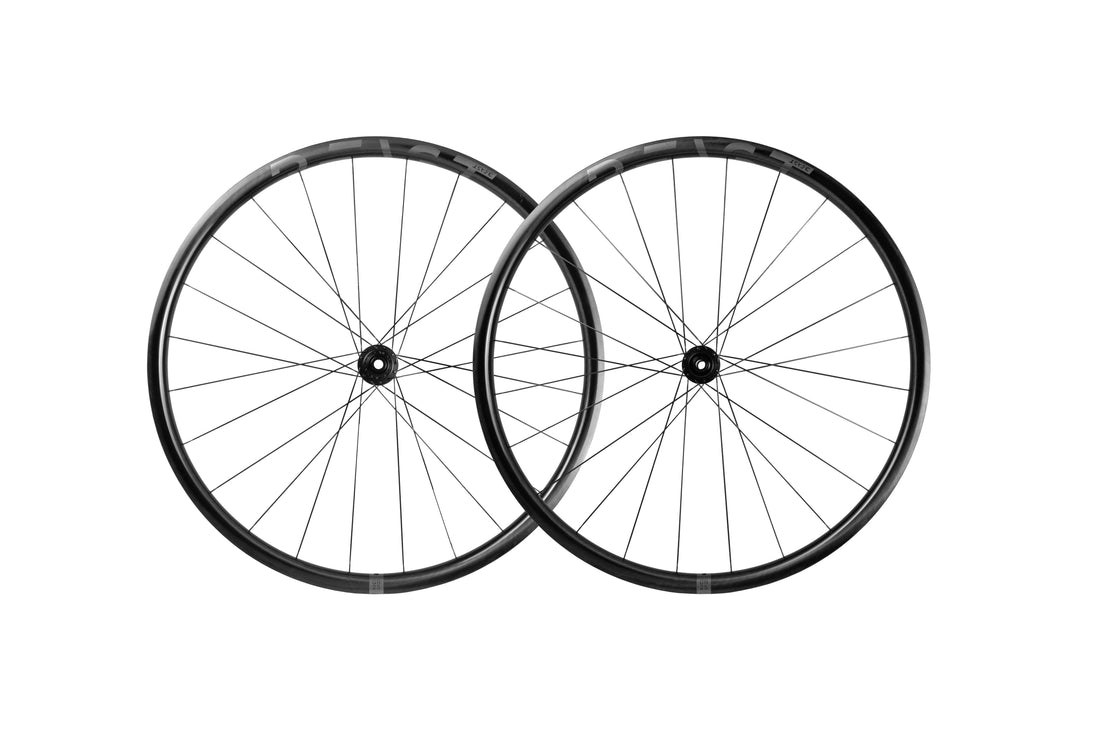

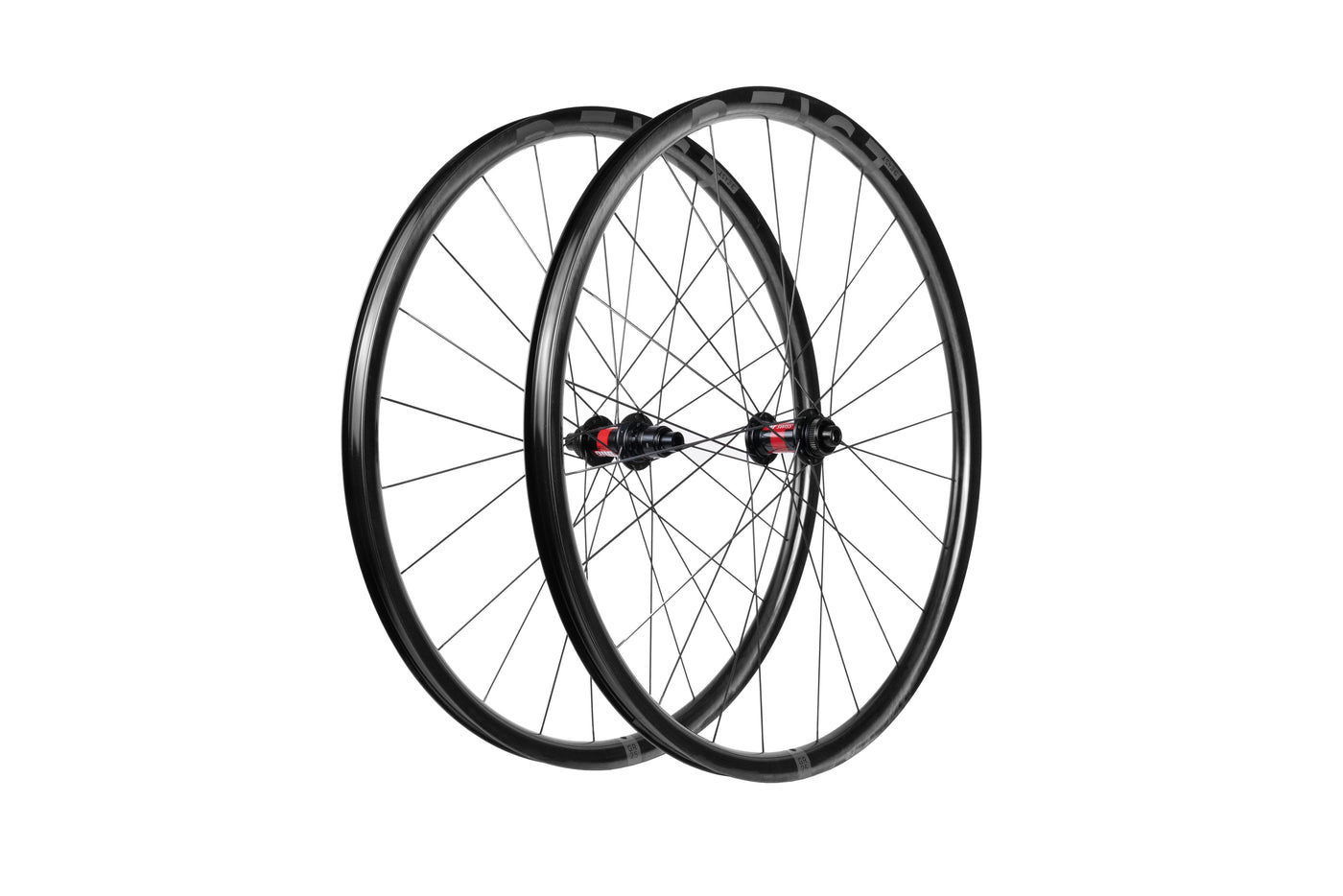

The XS30 is an enormously lightweight and sporty XC wheelset for all lightweight freaks. With just 315g, this XC rim should be one of the lightest on the market.

Handmade in Germany.

Technical Details

• Material Carbon
• Range of Use XC
• Price UD-Finish black:

RIM DETAILS

• Size 27,5″ | 29″
• Hight 20 mm
• External Width 35,7 mm
• Internal Width 30 mm
• Rim Flange Width 2,85 mm
• Hole Count 28 | 32
• ERD 596 mm
• Asymmetrical Offset 2 mm
• Weight tba | 330 g
• Weight Tolerance 5 %
• Weight Limit 115 kg (system weight)







WHEELSET DETAILS

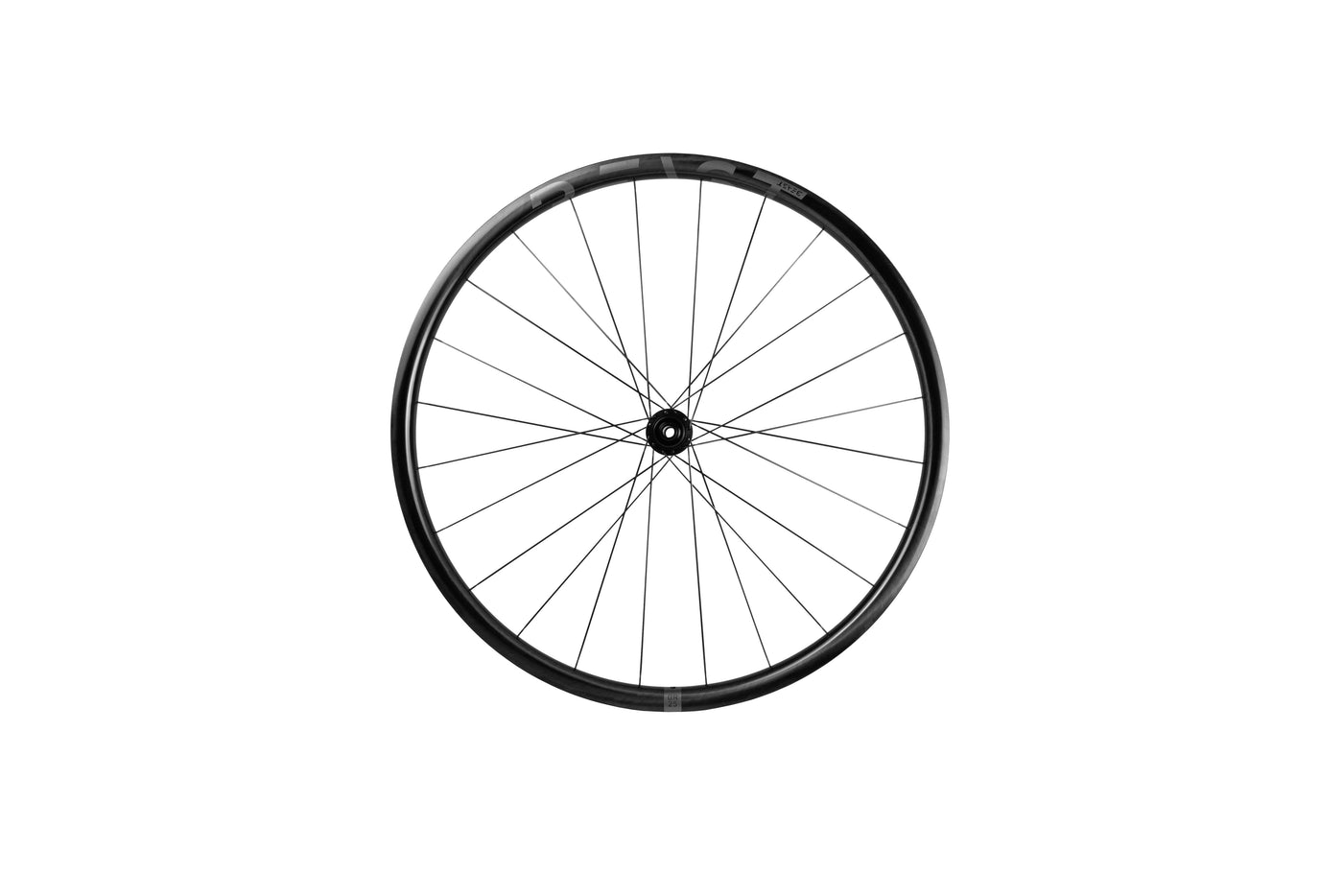

• Front wheel 15 x 110 mm Boost

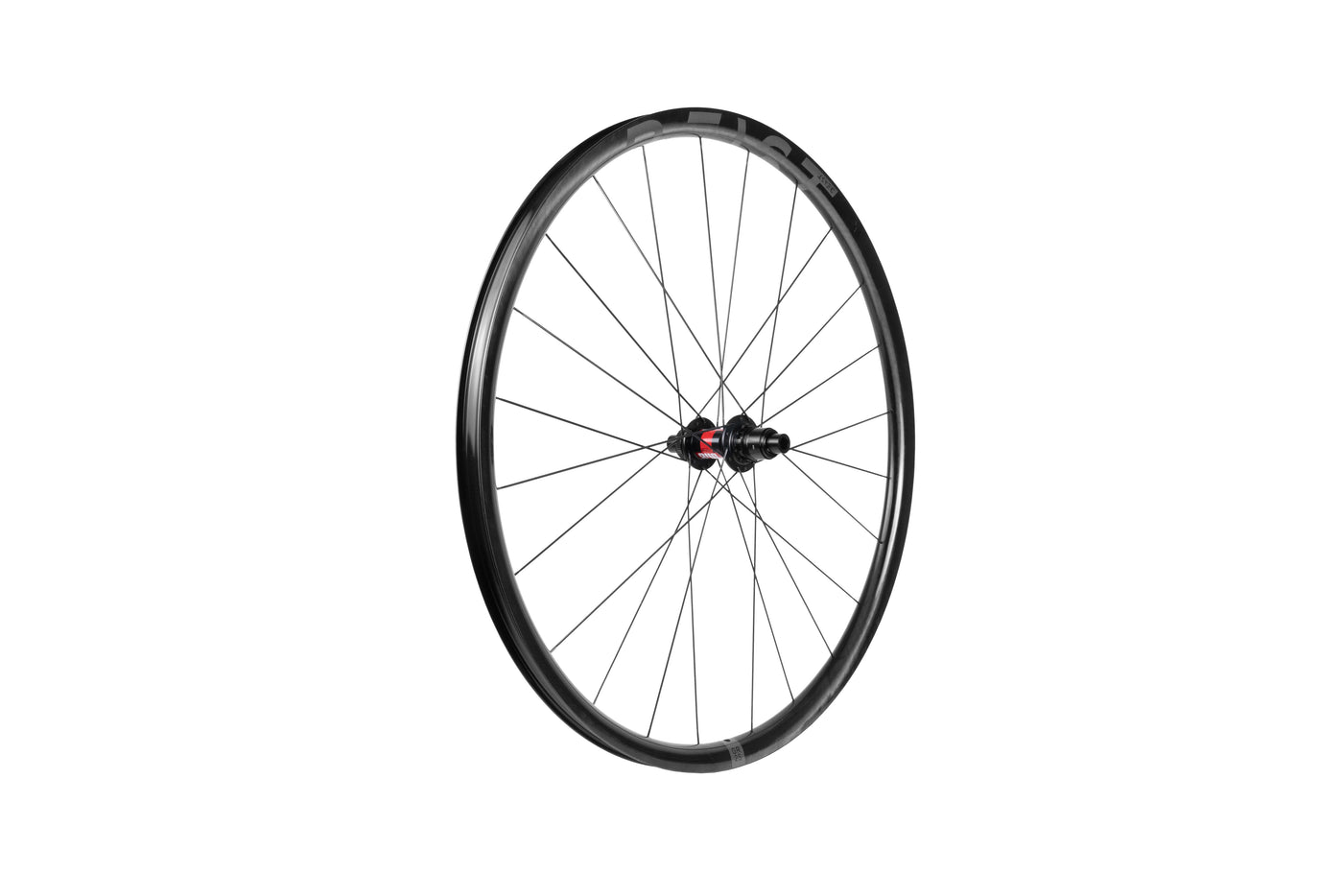

• Rear wheel 12 x 148 mm Boost
• Hub DT Swiss 240 and 350
• Freewheel SRAM XD | Shimano HG | Microspline
• Spokes Sapim CX-Ray | schwarz
• Nipple Sapim | Aluminium | schwarz | extern
• Rim Tape inklusive
• Weight tba | 1.380 g (DT Swiss 240)
• tba | 1450 g (DT Swiss 350)
• Weight Tolerance 5 %
• Weight Limit 115 kg (Systemgewicht)

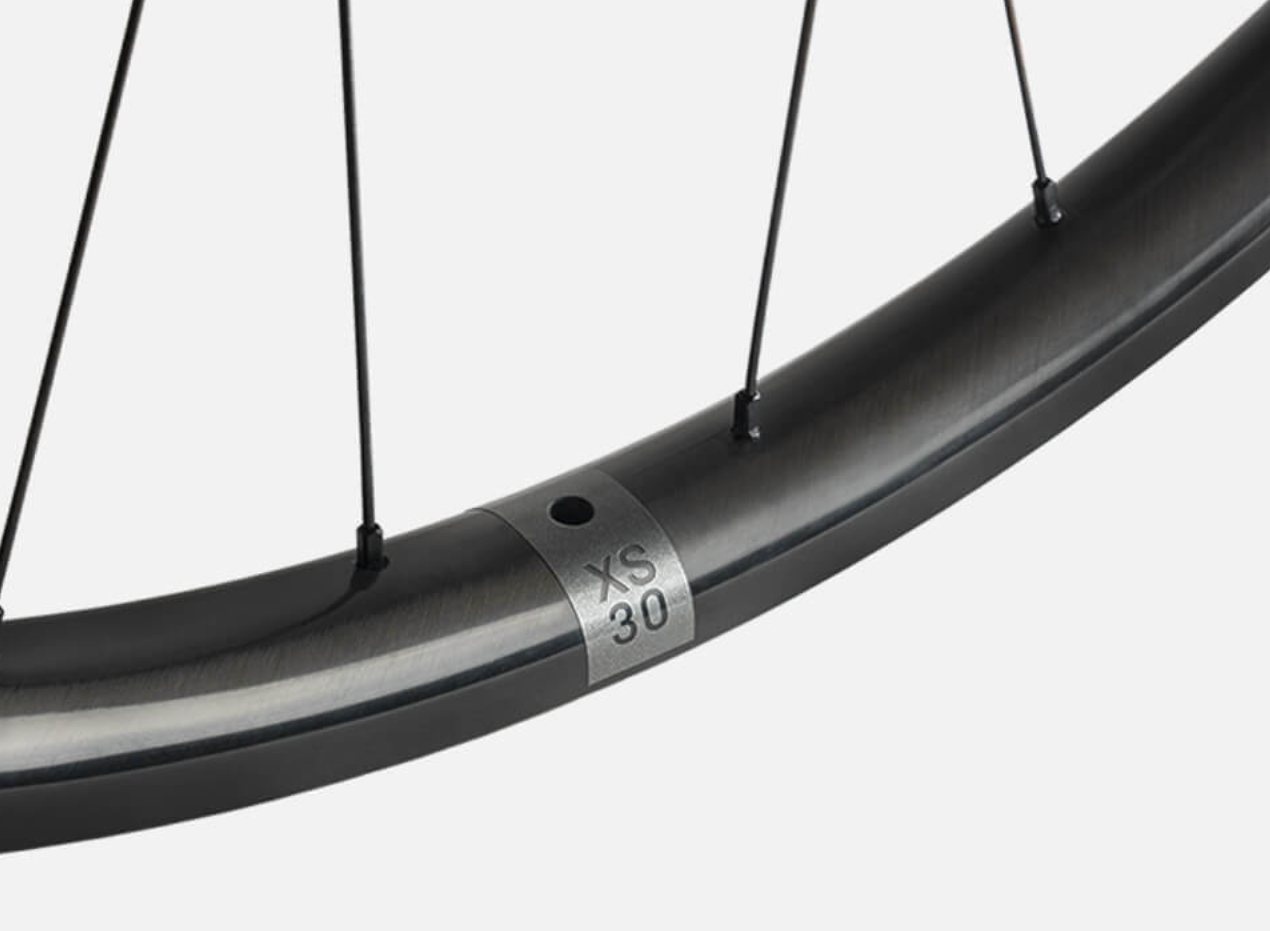

For the XS30 wheelset we use a special 35g carbon prepreg, which allows us to design a differentiated layer structure. Instead of a few thick layers, we use a lot of thin ones and thus have the possibility to use the material where it is needed. In return, it can be saved in other places, which leads to an optimal result in terms of weight vs. stability. So with about 330g weight per rim, they should be one of the lightest on the market. Through our Solid Edge Design, meaning the complete circumferential laminate in the rim flange, the rims also get a high puncture resistance. The XS30 is built for XC racers who pay attention to every gram and want to deliver the highest performance in the hunt for seconds.

We meticulously spoke our wheels by hand.
