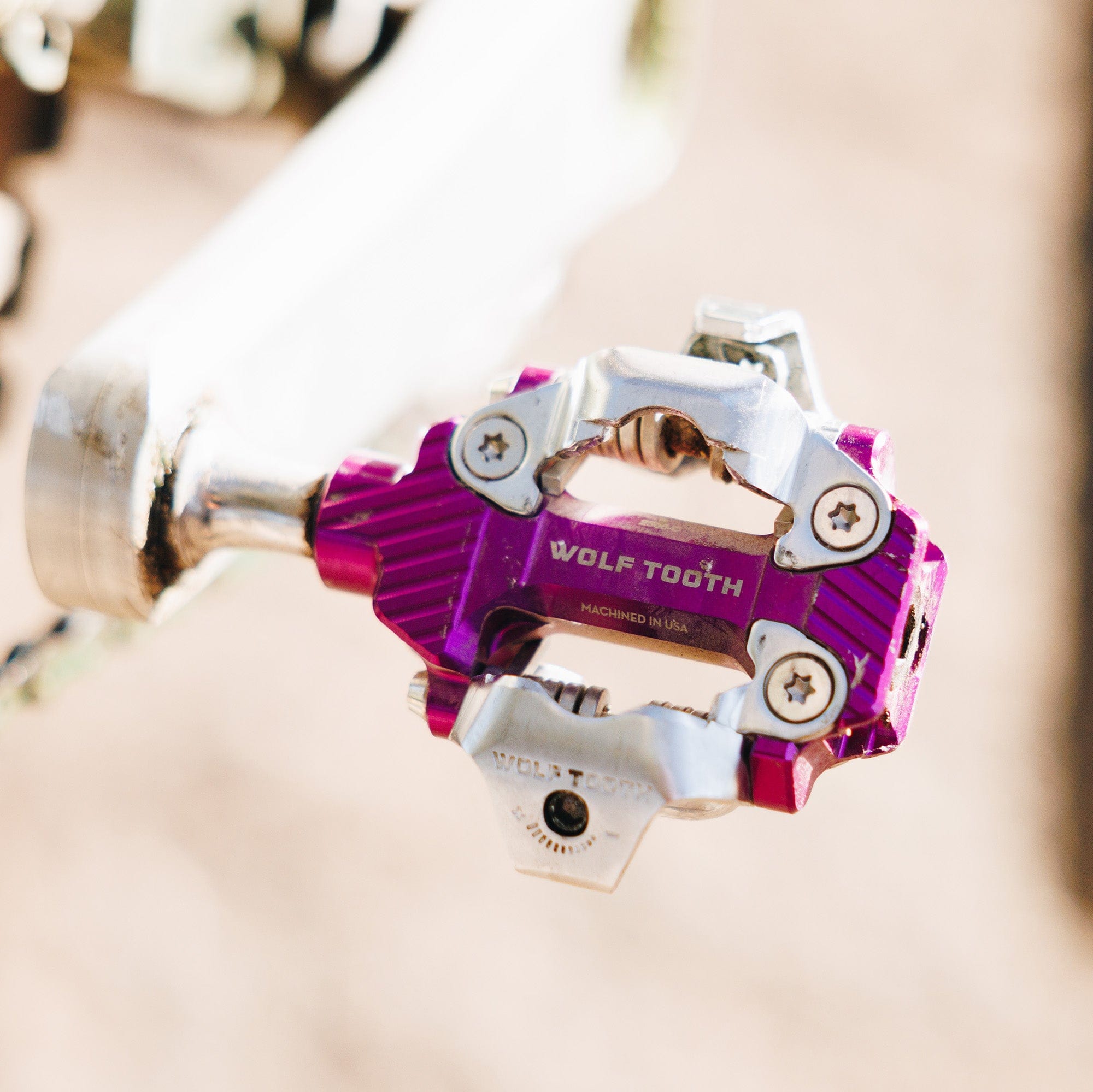

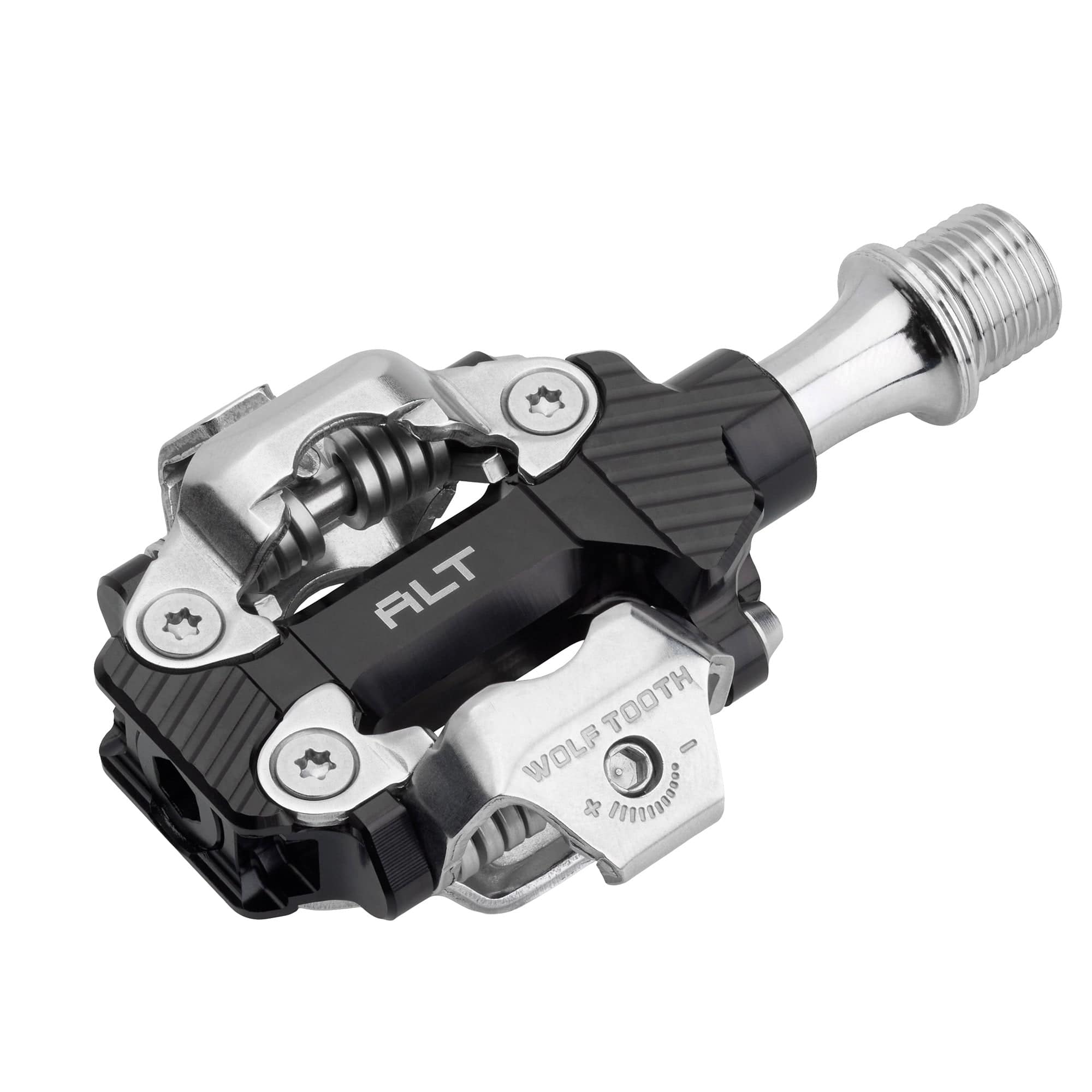

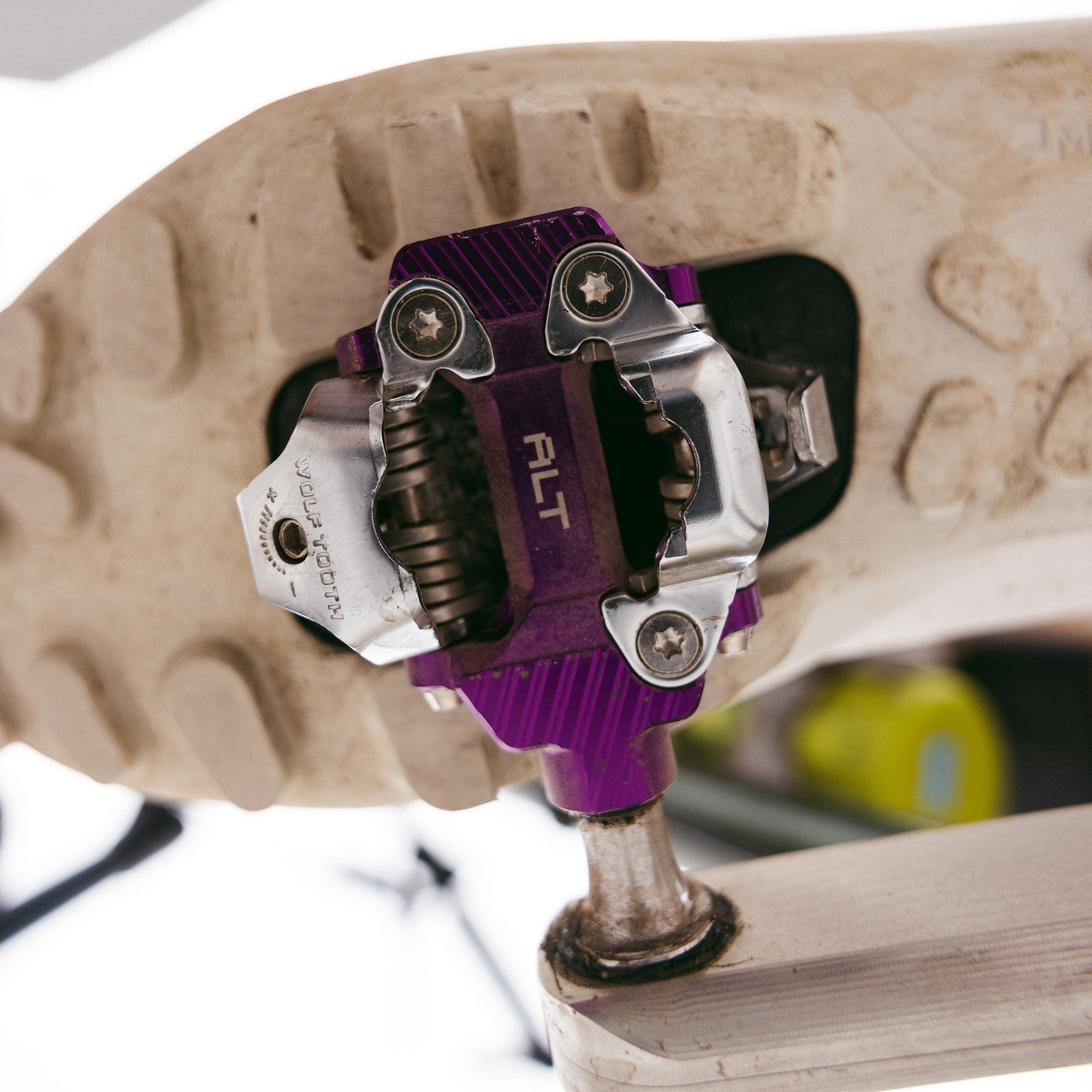

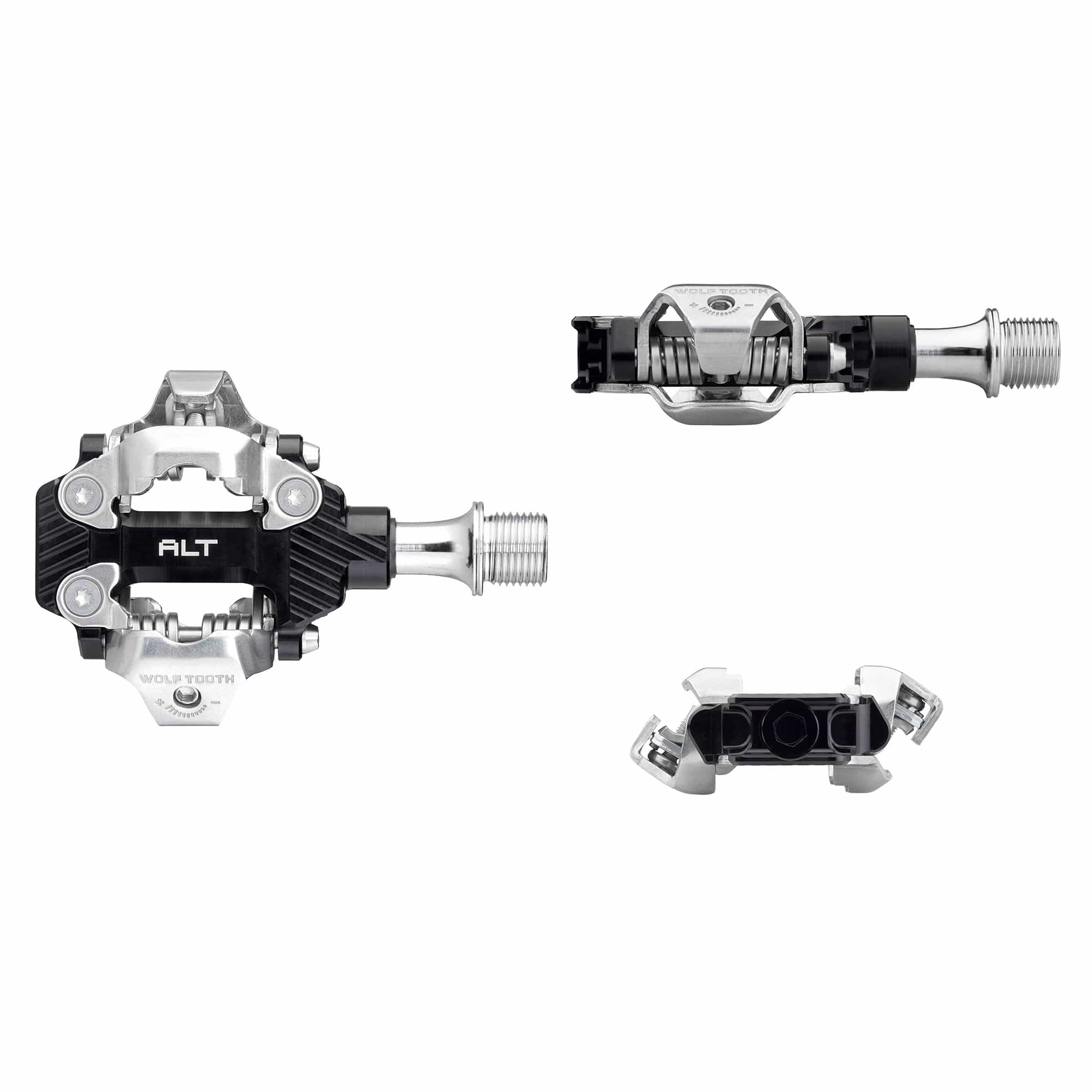

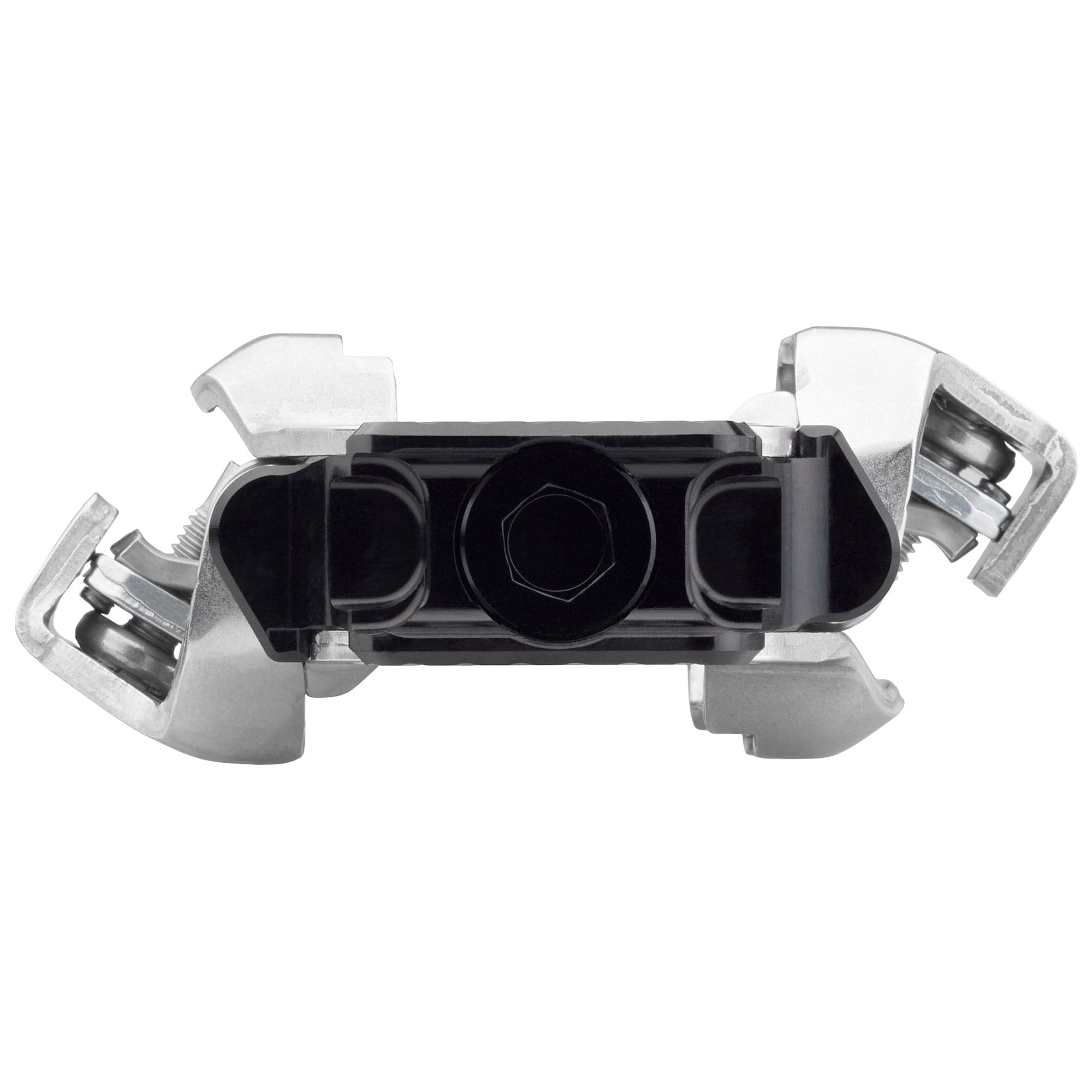

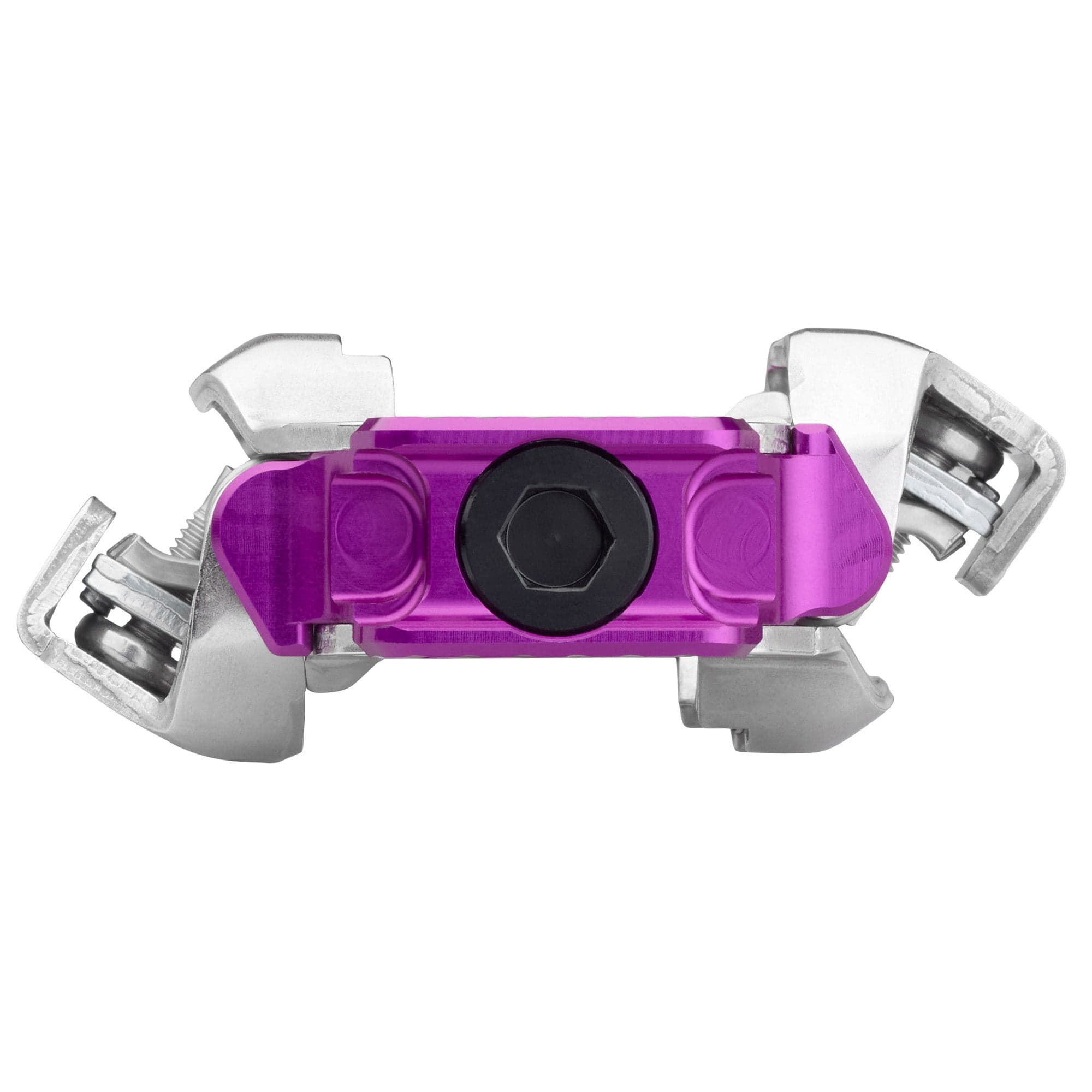

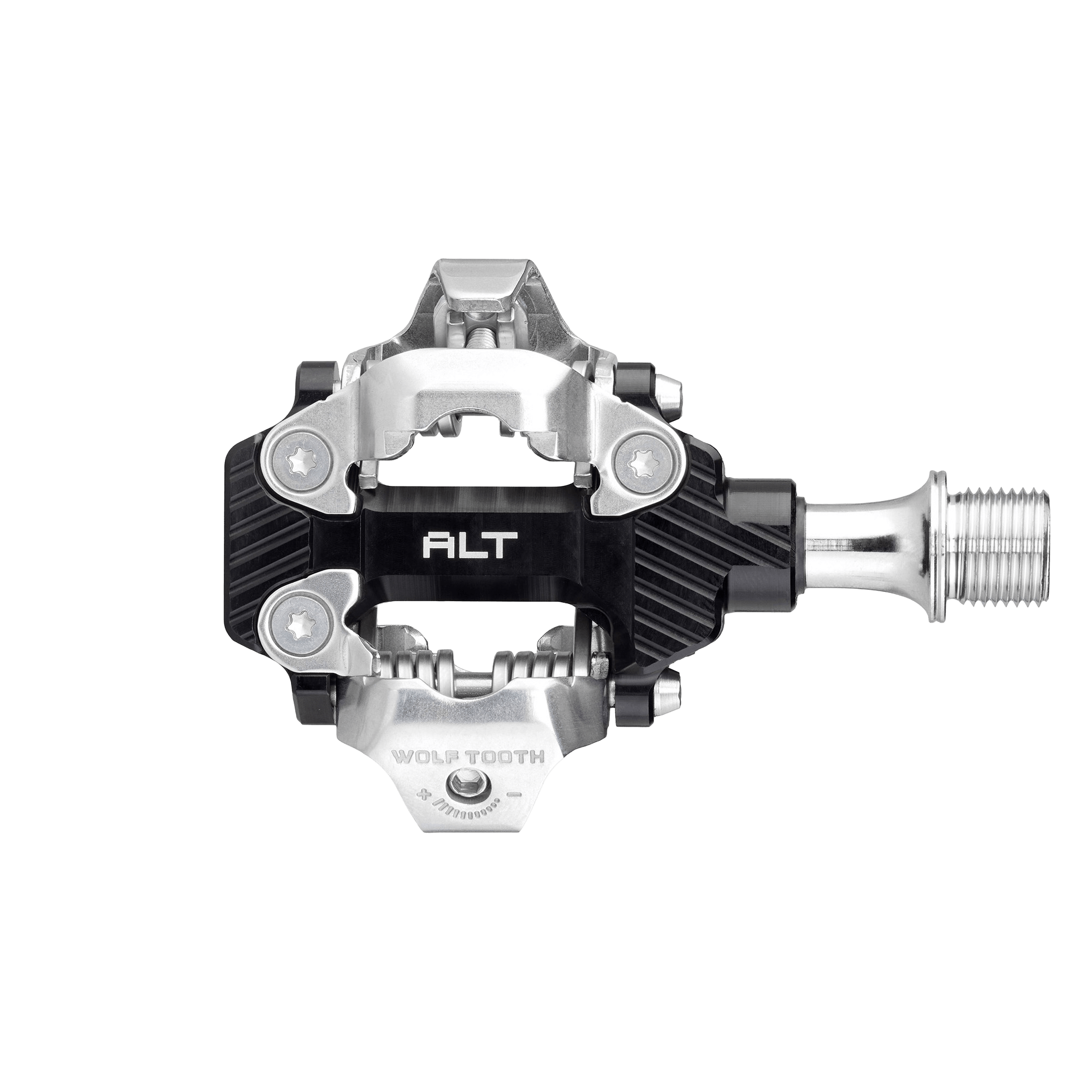

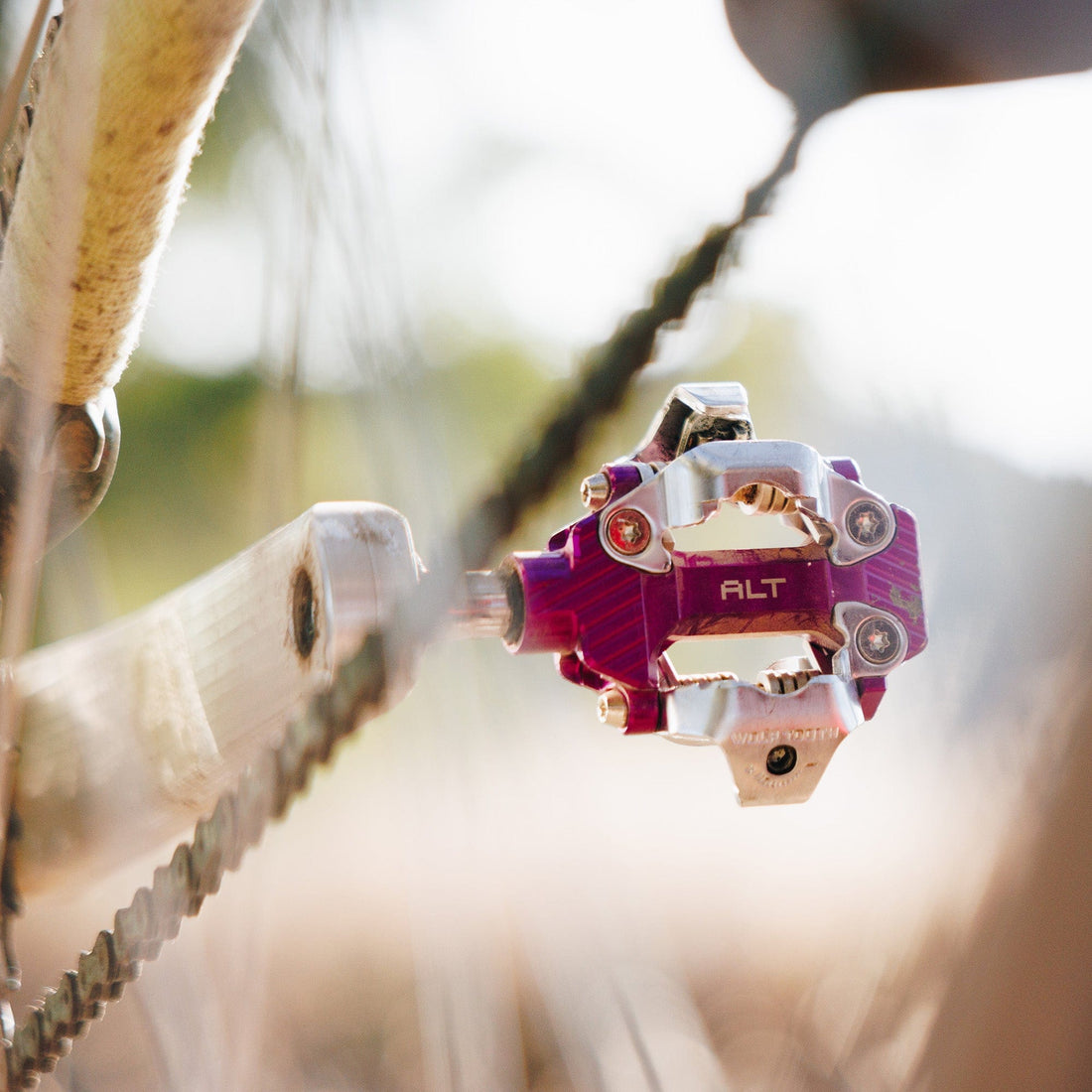

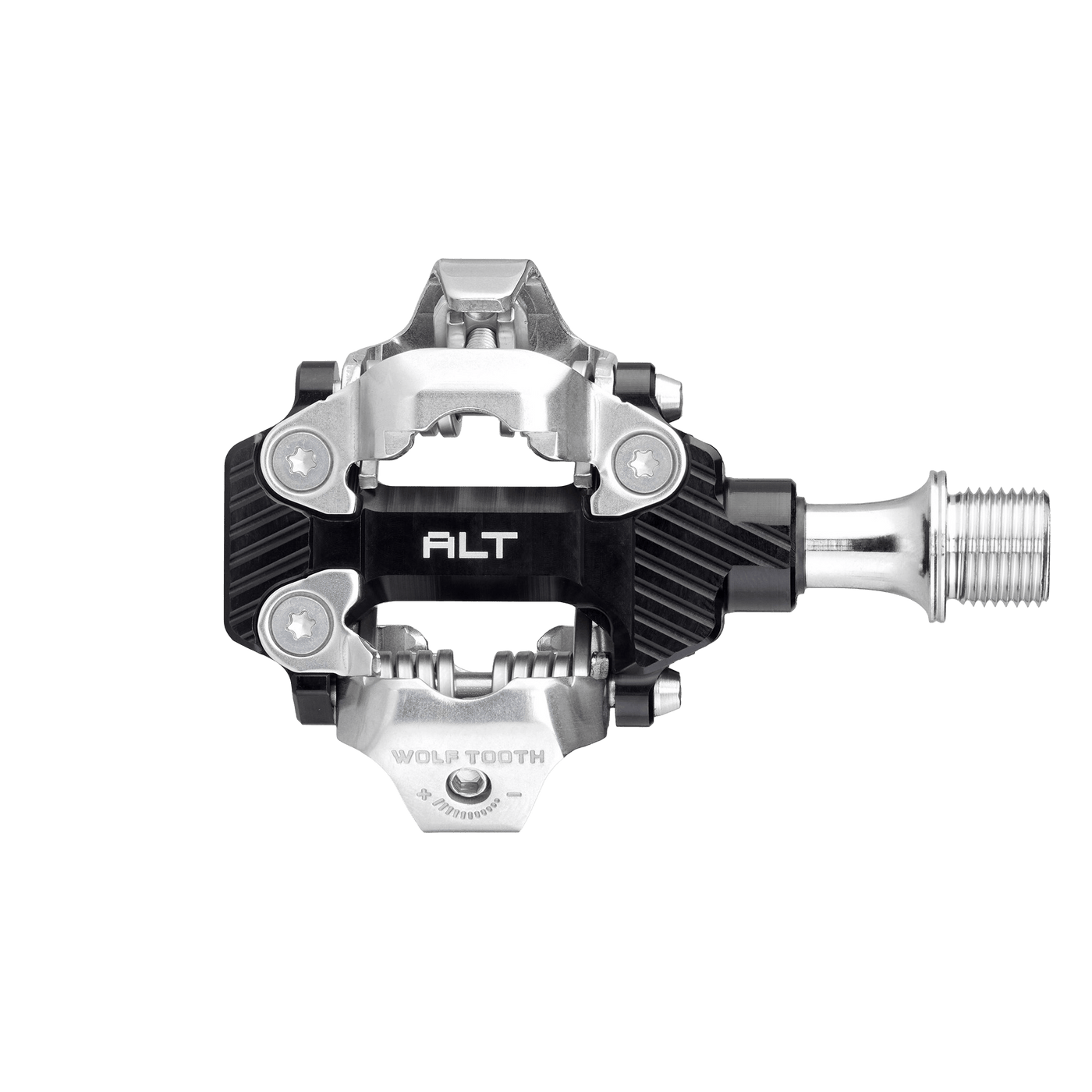

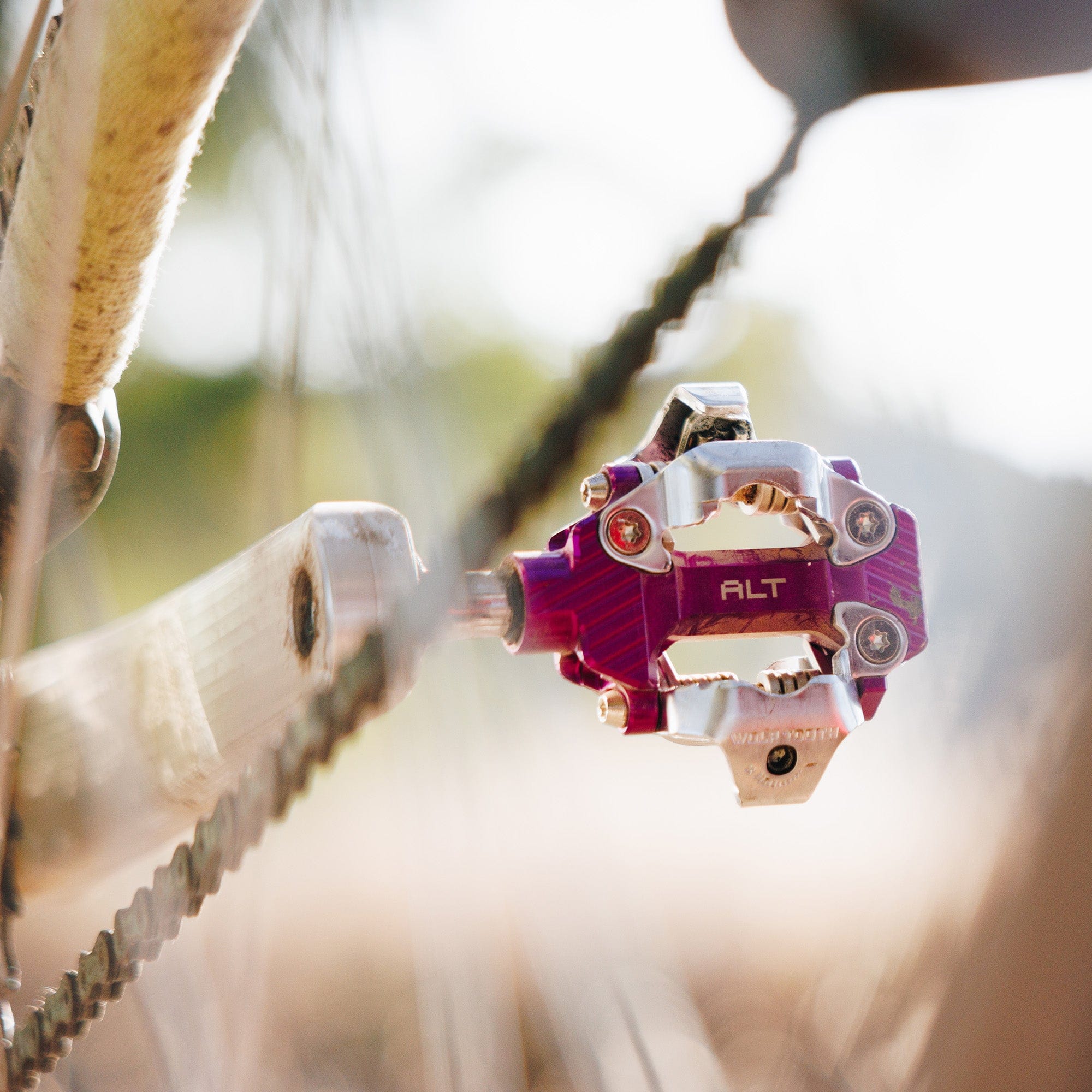

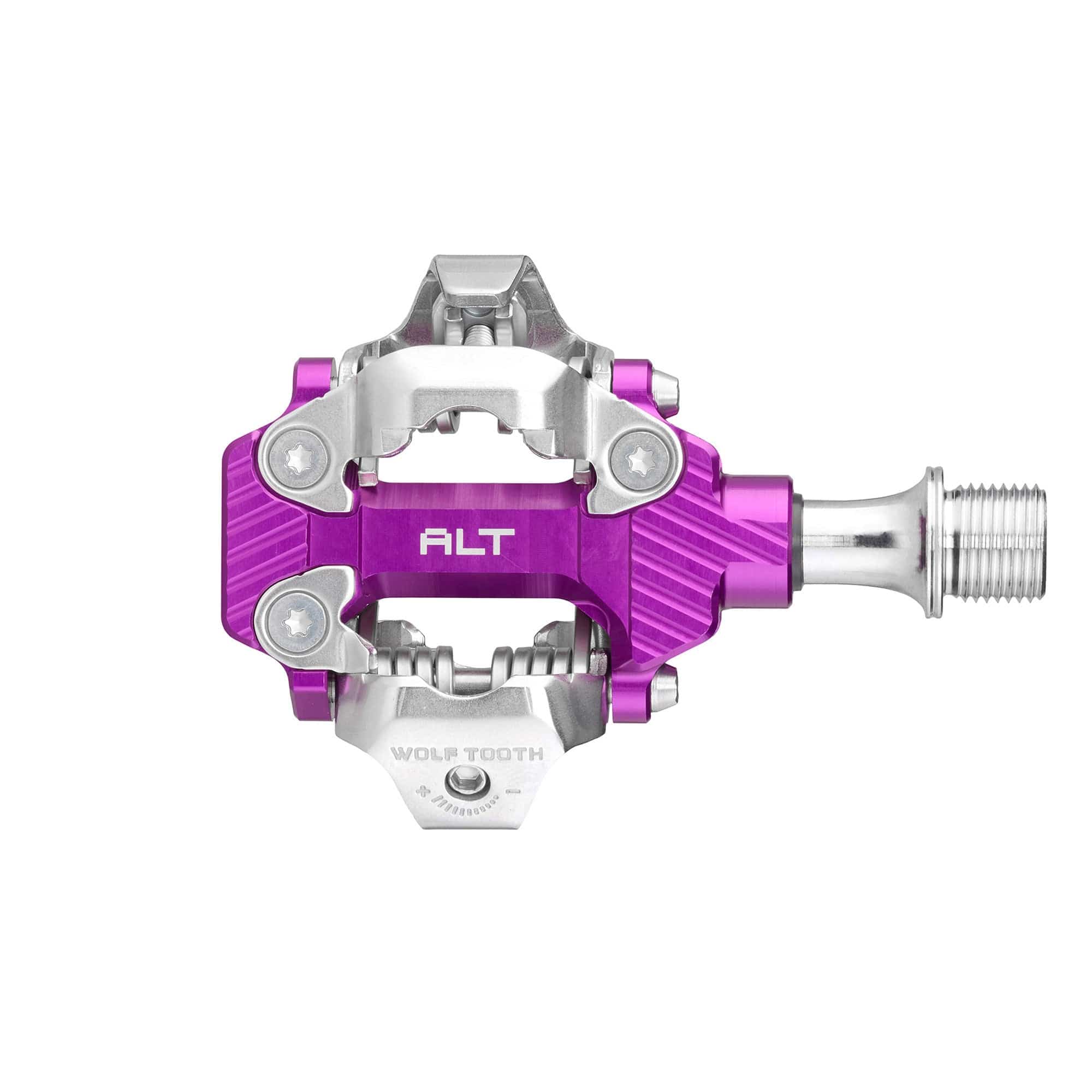

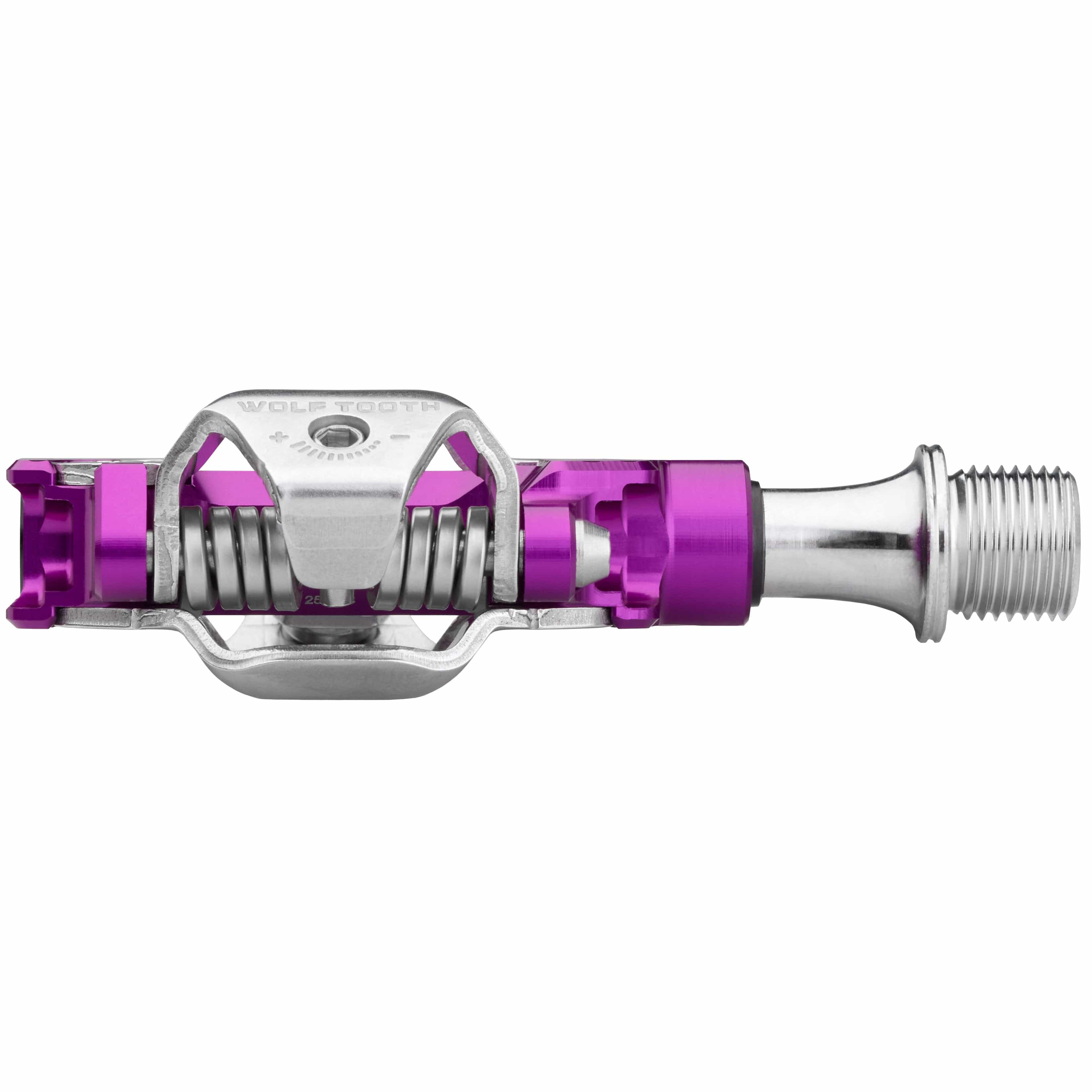

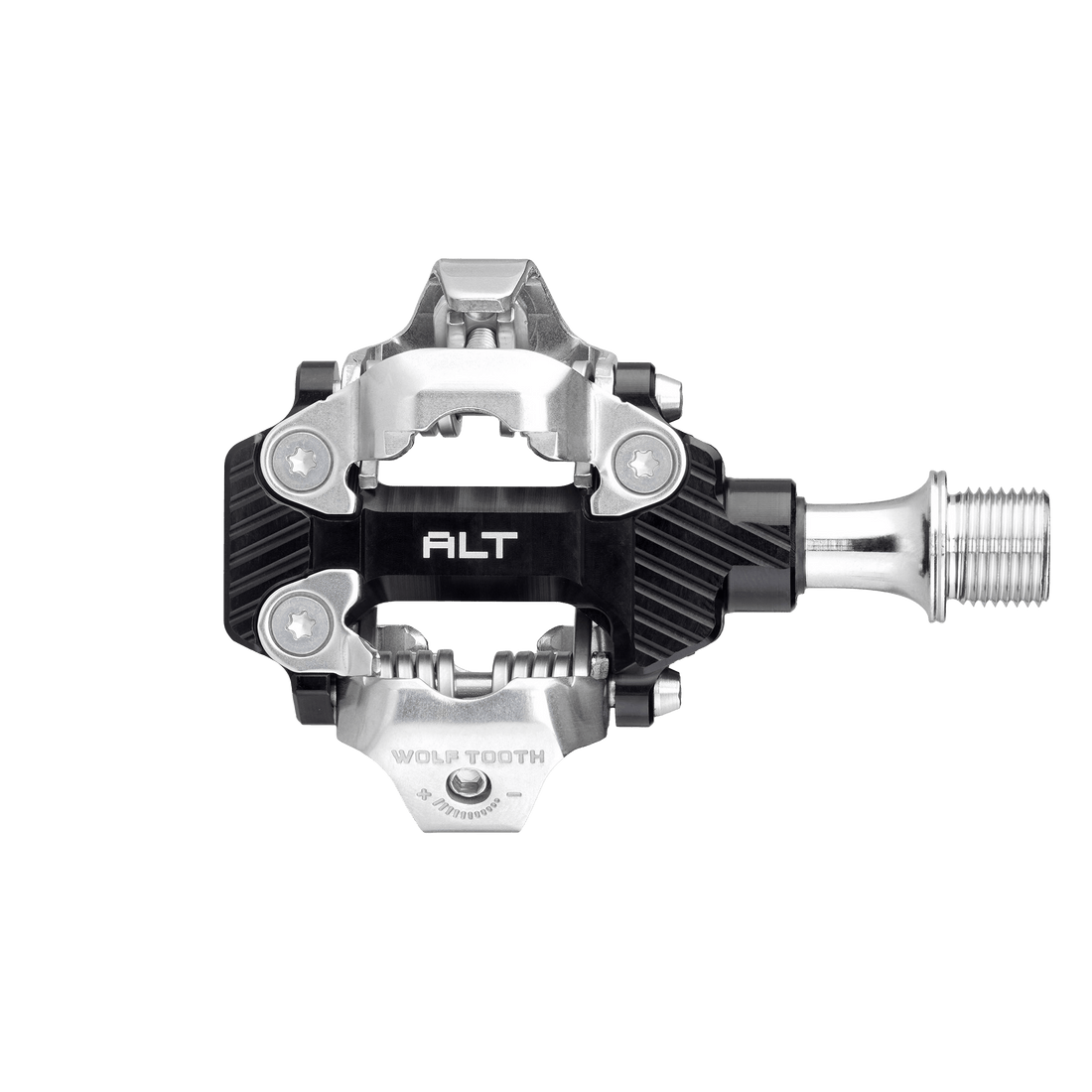

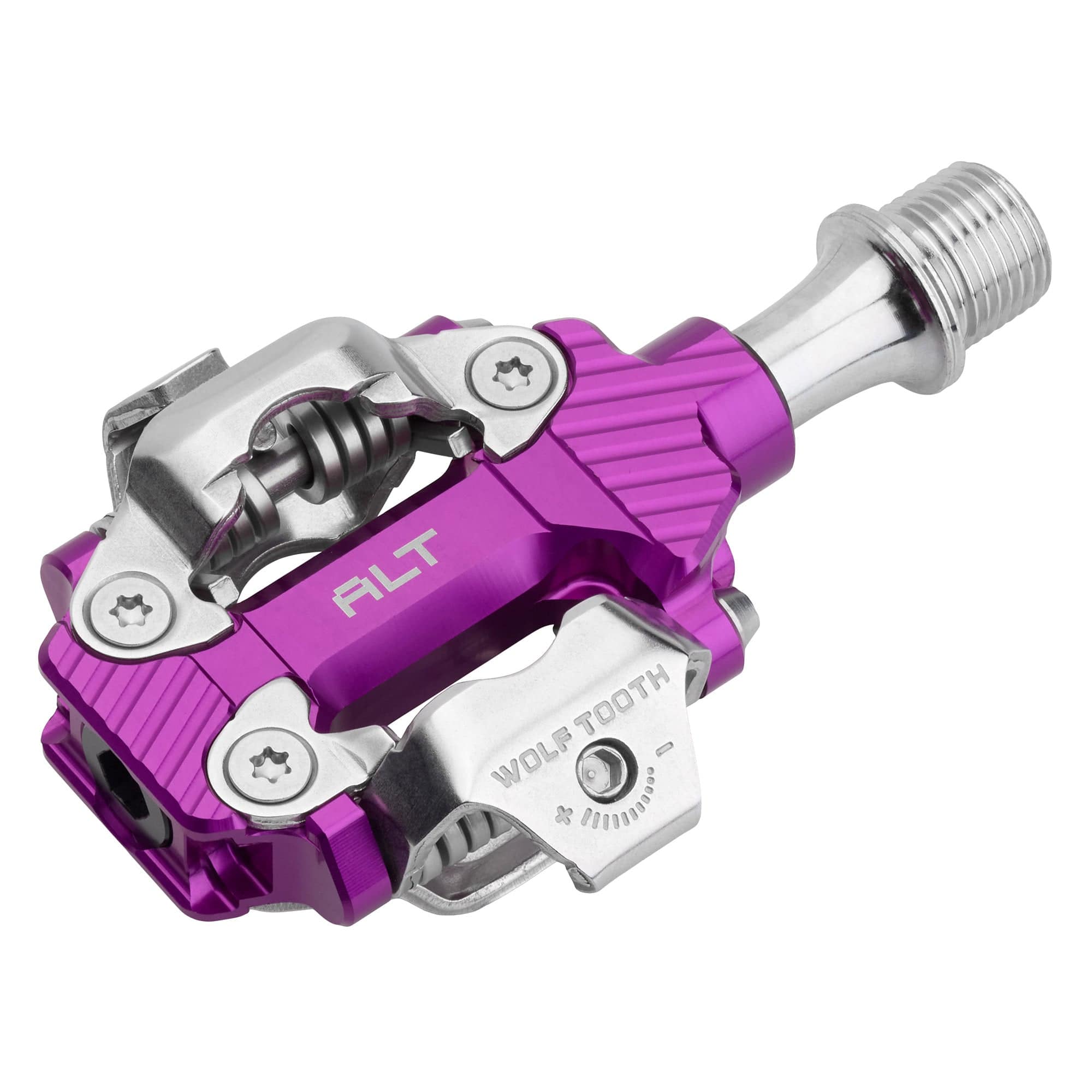

Wolf Tooth ALT XC Clipless Pedals are designed for commanding performance on trails and gravel roads. These pedals are simultaneously lighter and thinner than their Shimano, Hope, and HT counterparts, with an exceptionally low stack height, while also having more platform area for control and power transfer. This body design also features a more open center for better mud clearance than other clipless bike pedals. The SPD-compatible clip-in/out experience is quick and precise, with Wolf Tooth cleats included.
The ALT XC Clipless Pedals have an adjustable Q factor in 4 mm increments. Inside the pedal is a stainless steel axle, three bearings, and two spacers. The spacers and bearings can be rearranged for Q factors of 51, 55, or 59 mm. This is simple enough for anyone to do at home. A spacer kit including four 2 mm spacers is available for purchase to further fine-tune Q Factor adjustment. Like most Wolf Tooth components and accessories, replacement parts and service guides are available via Wolf Tooth Right to Repair.
- Thinner than the competition at 15 mm (compared to Shimano XTR 9200 at 16.5 mm, Hope RC at 18 mm, and HT M2 at 17.6 mm)
- Lighter than the competition at 294 g (compared to Shimano XTR 9200 at 316 g, Hope RC at 322 g, and HT M2 at 306 g)
- Larger platform area than the competition at 443 mm² (compared to Shimano XTR 9200 at 144 mm², Hope RC at 420 mm², and HT M2 at 357 mm²)
- Adjustable Q factor options of 51, 55, and 59 mm. Pedals ship in a 55 mm position.
- 5 degrees float | 12 degrees release
- SPD compatible
- Proven axle and bearing design from Waveform Aluminum Pedals
- Designed, tested, and machined at Wolf Tooth in Minnesota, USA
Recommended
- Apply WT-G Precision Bike Grease to the pedal threads before installing pedals on crankarms.
- All SPD pedals benefit from simple regular maintenance. For best performance apply a drop of oil to the rear binding every 50 hours of riding or if you notice higher than normal clip in/out force. See the service guide for more information.
Compatibility
- Compatible with SPD cleats; Wolf Tooth cleats included
- Fits all standard cranks with 9/16-20 tpi right- and left-hand threads – some kid’s bikes and vintage bikes may have smaller incompatible threads.
Tech Specs
Weight: 294g
Material:
Body: 6061-T6 aluminum CNC machined
Axle: heat-treated 17-4 PH stainless steel
Binding Cage: stainless steel; Hardware: stainless steel

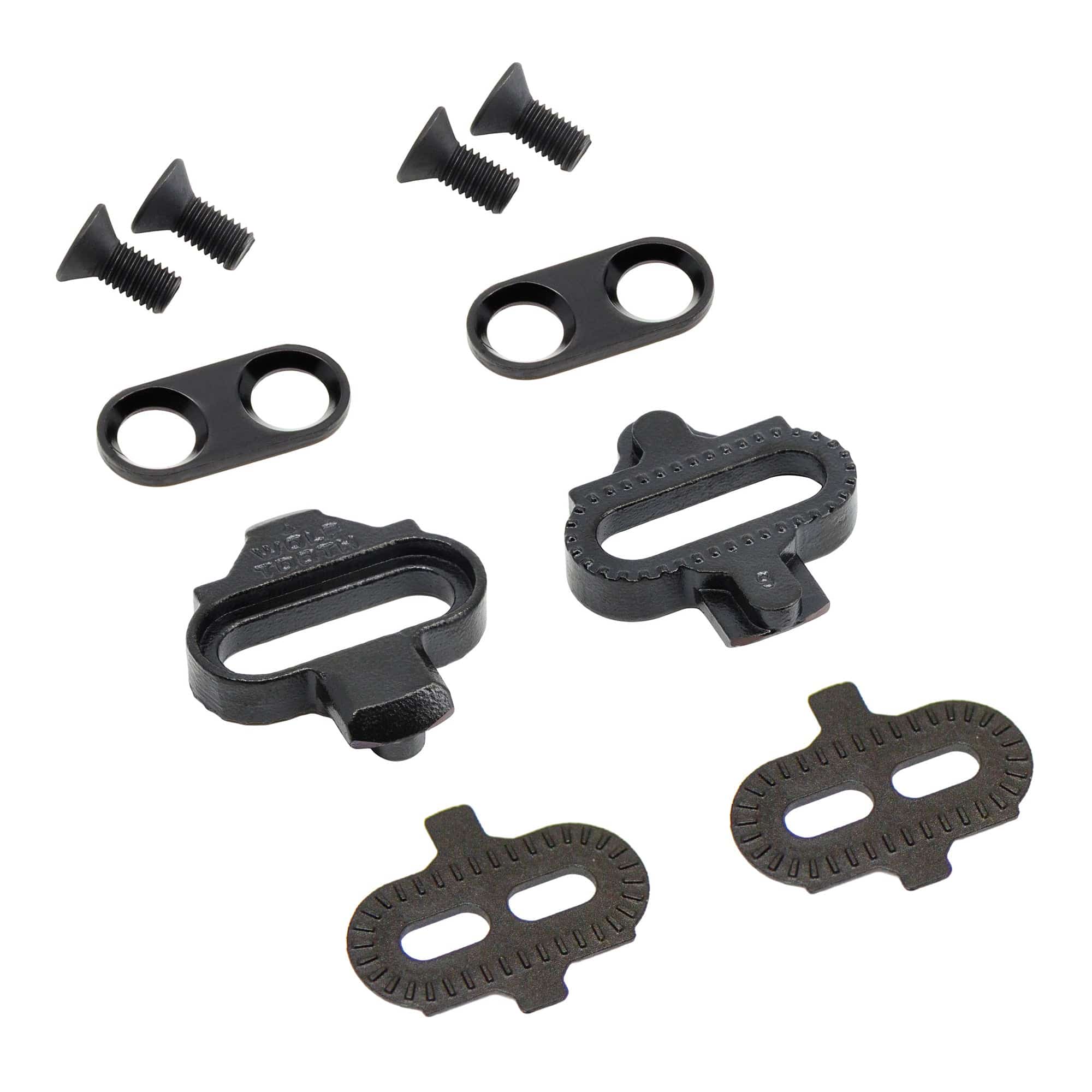

Included: pedals, cleats with shims and bolts
Patent Pending
Machined in the USA
