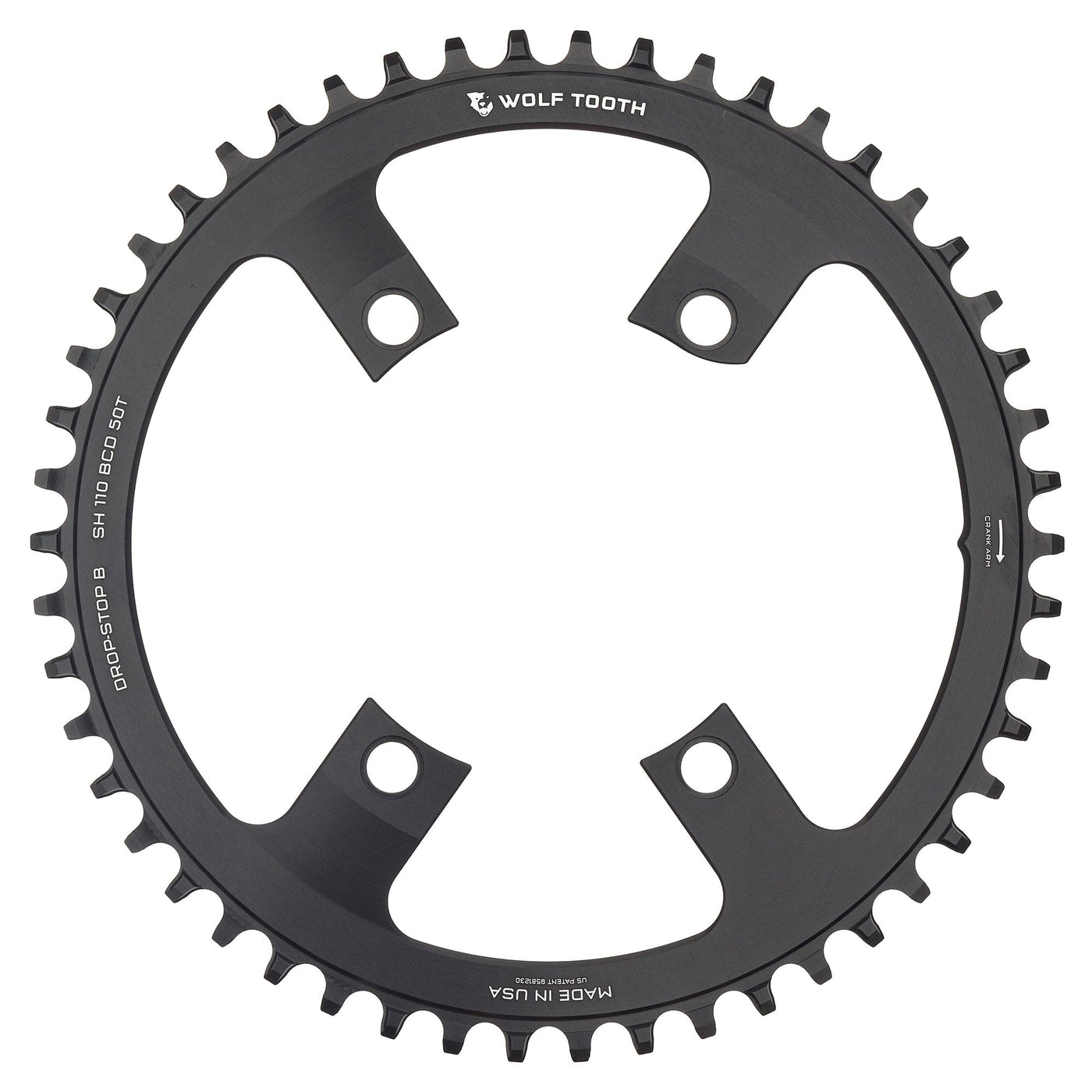

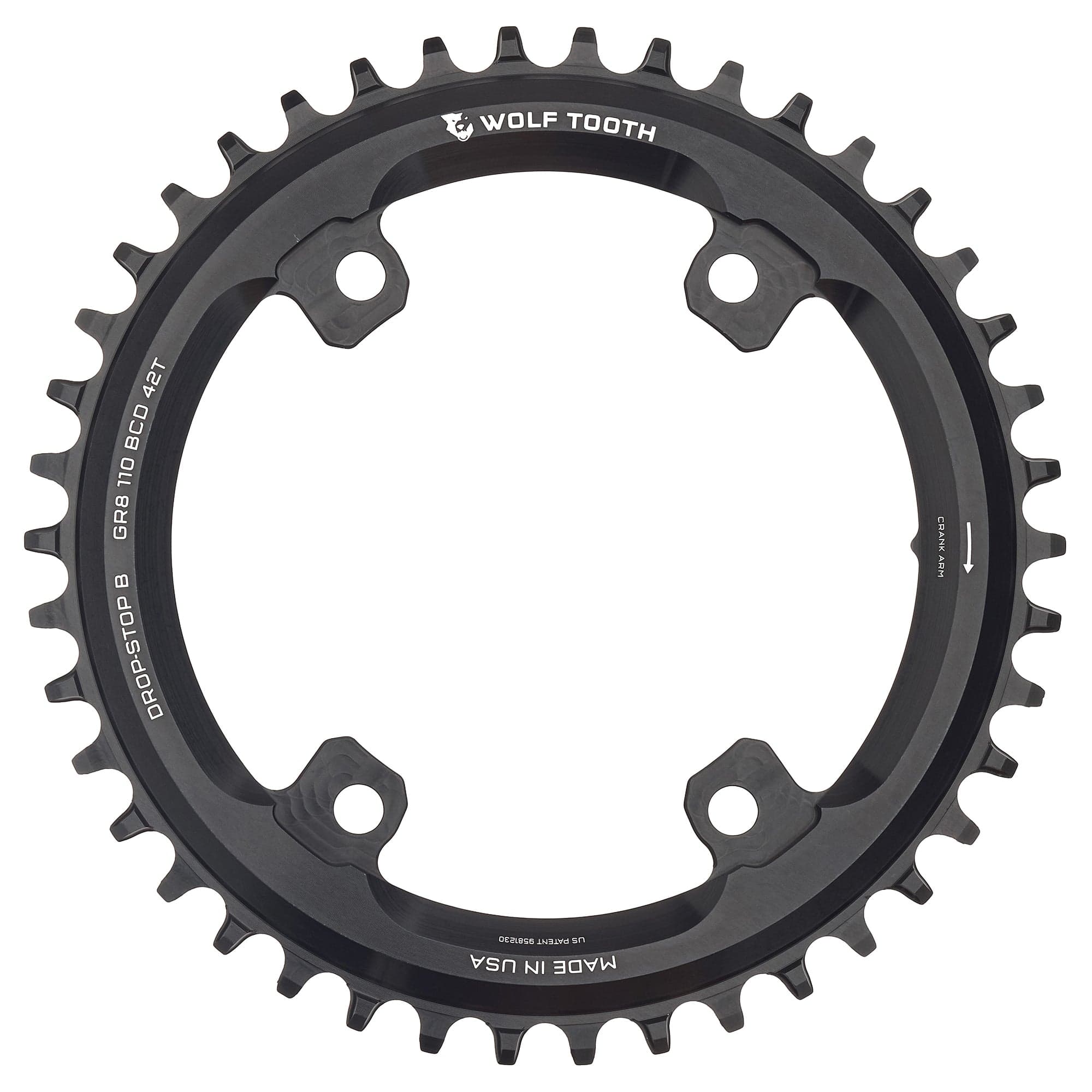

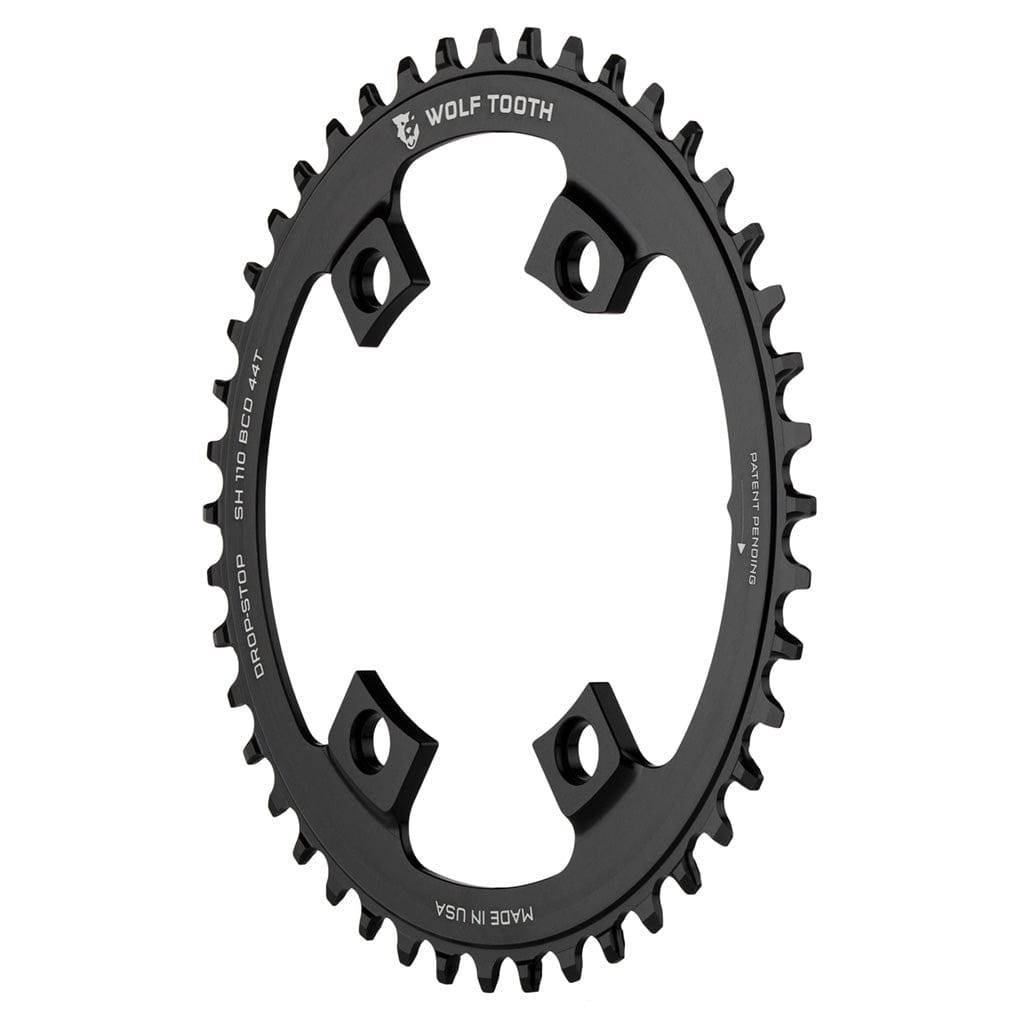

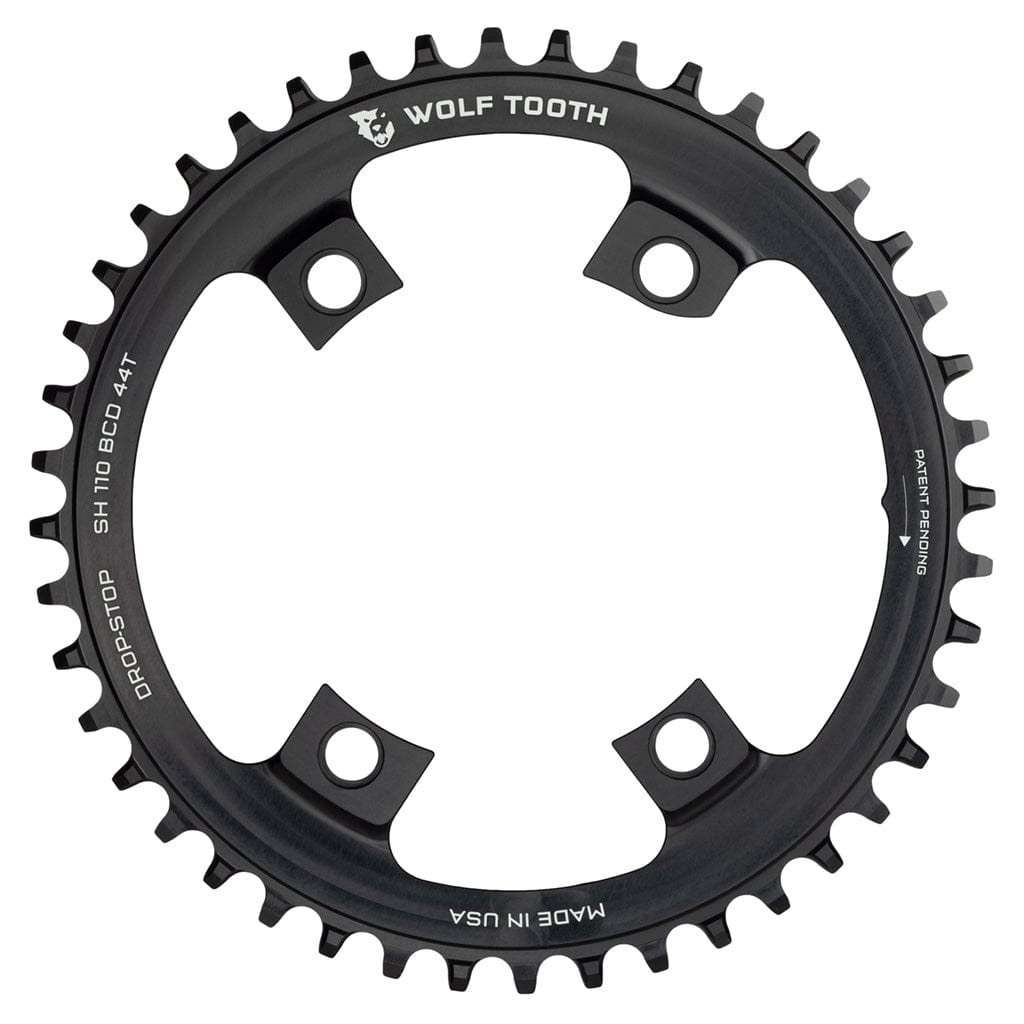

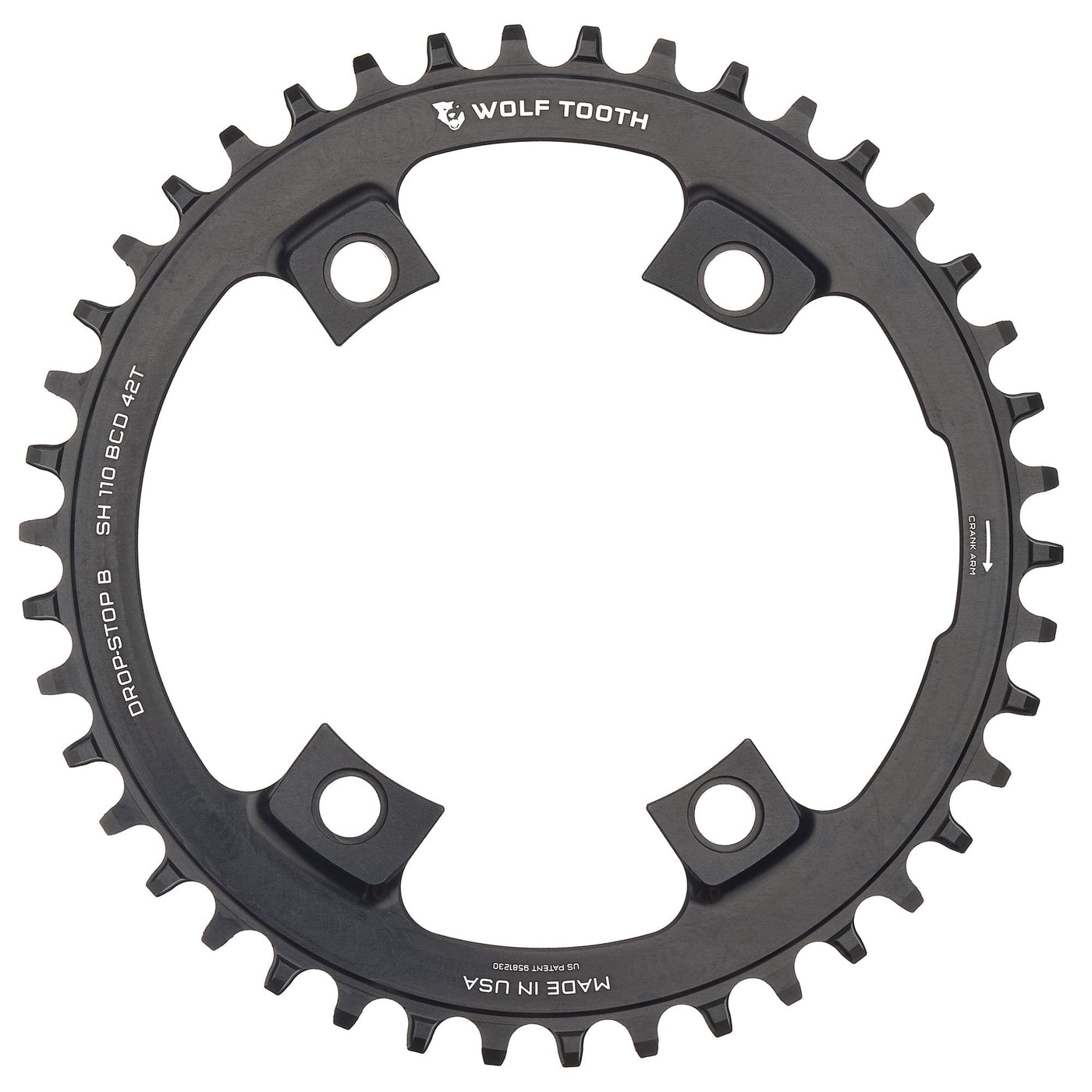

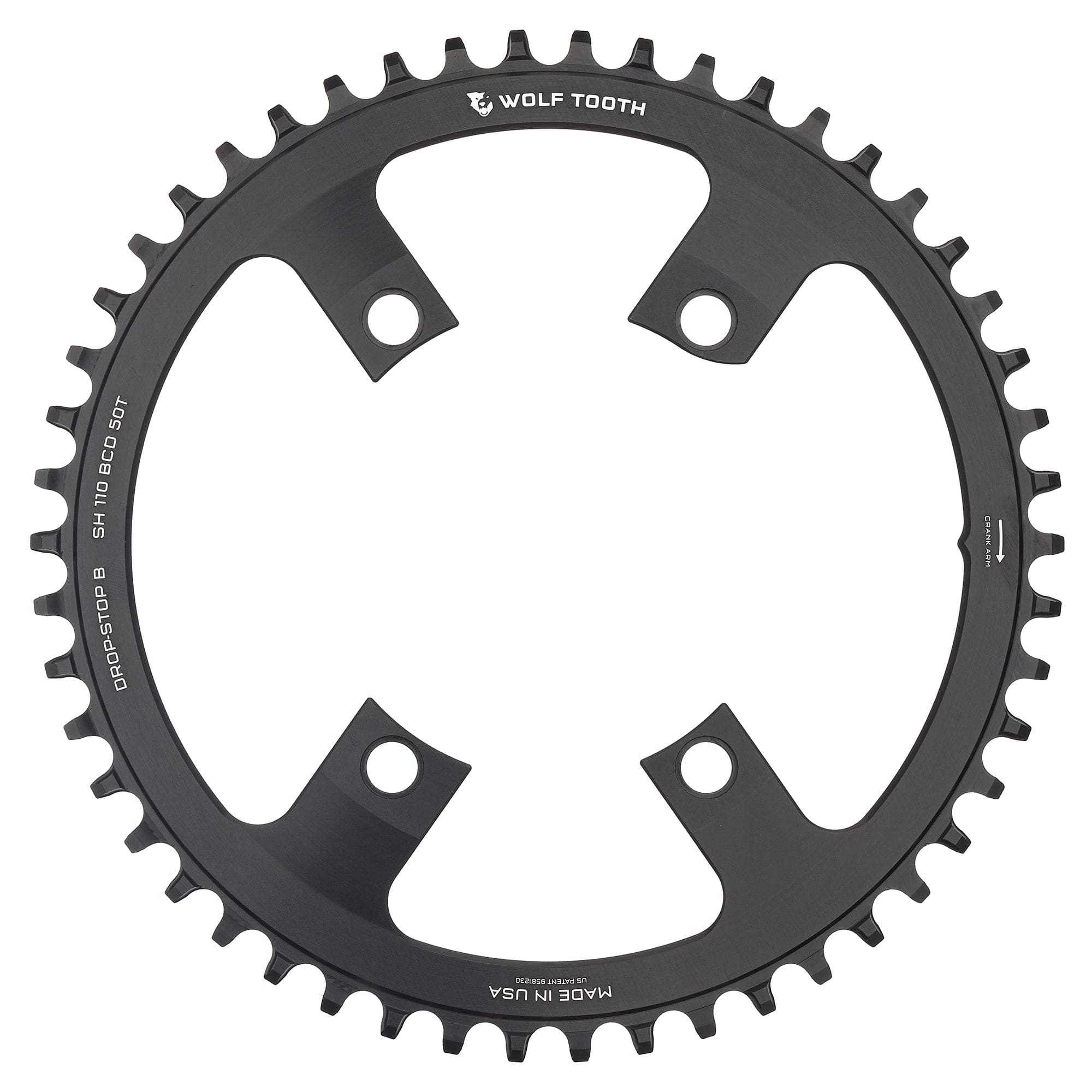

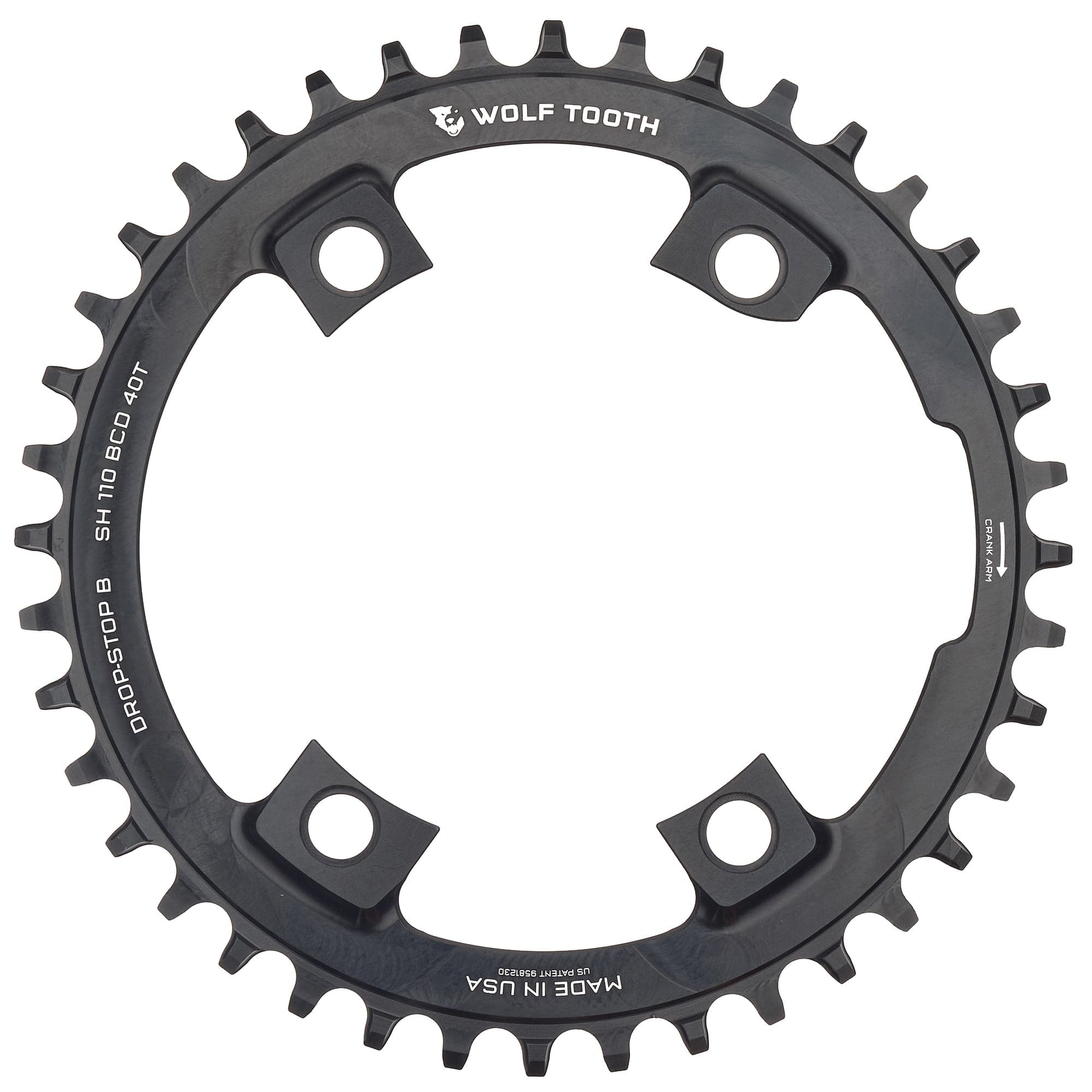

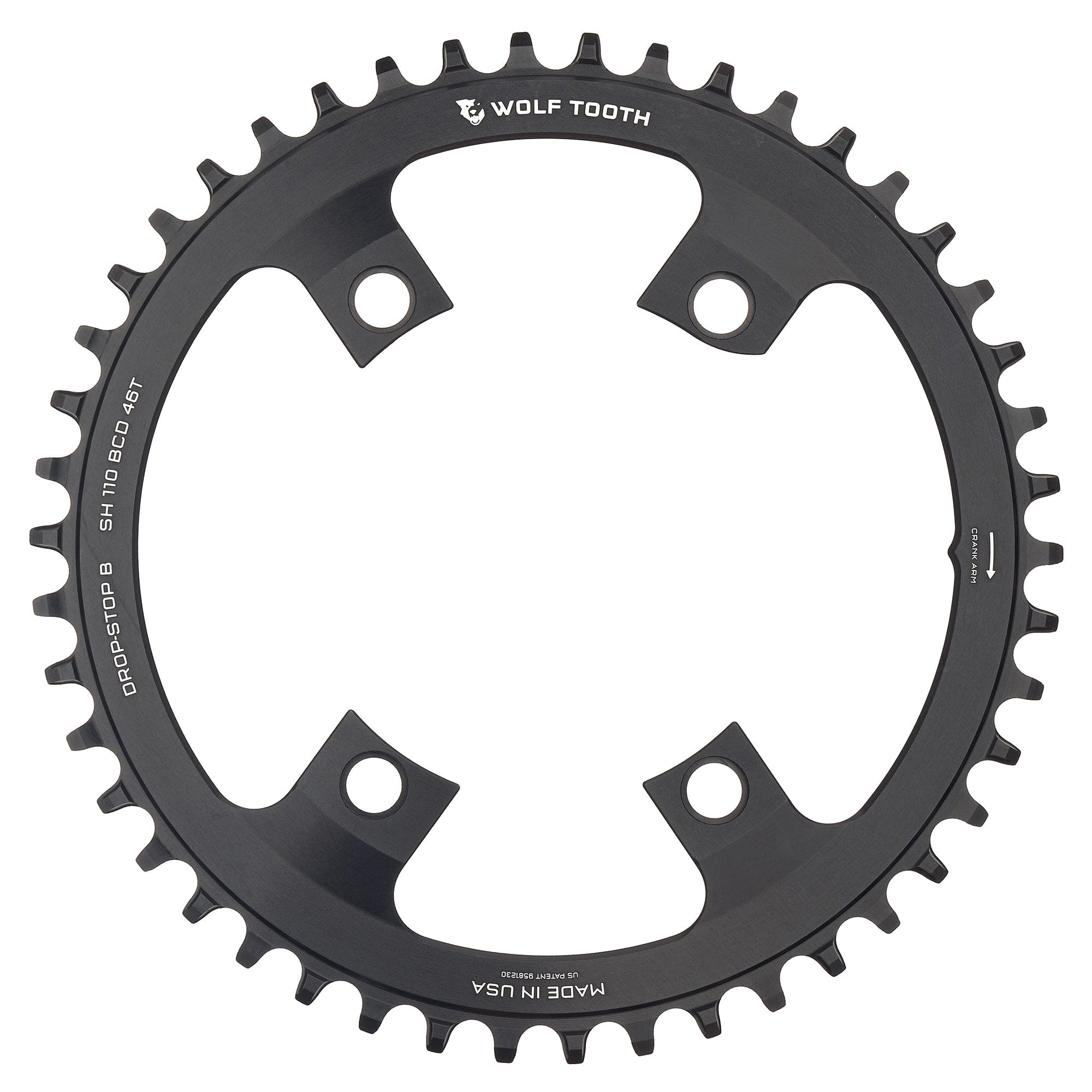

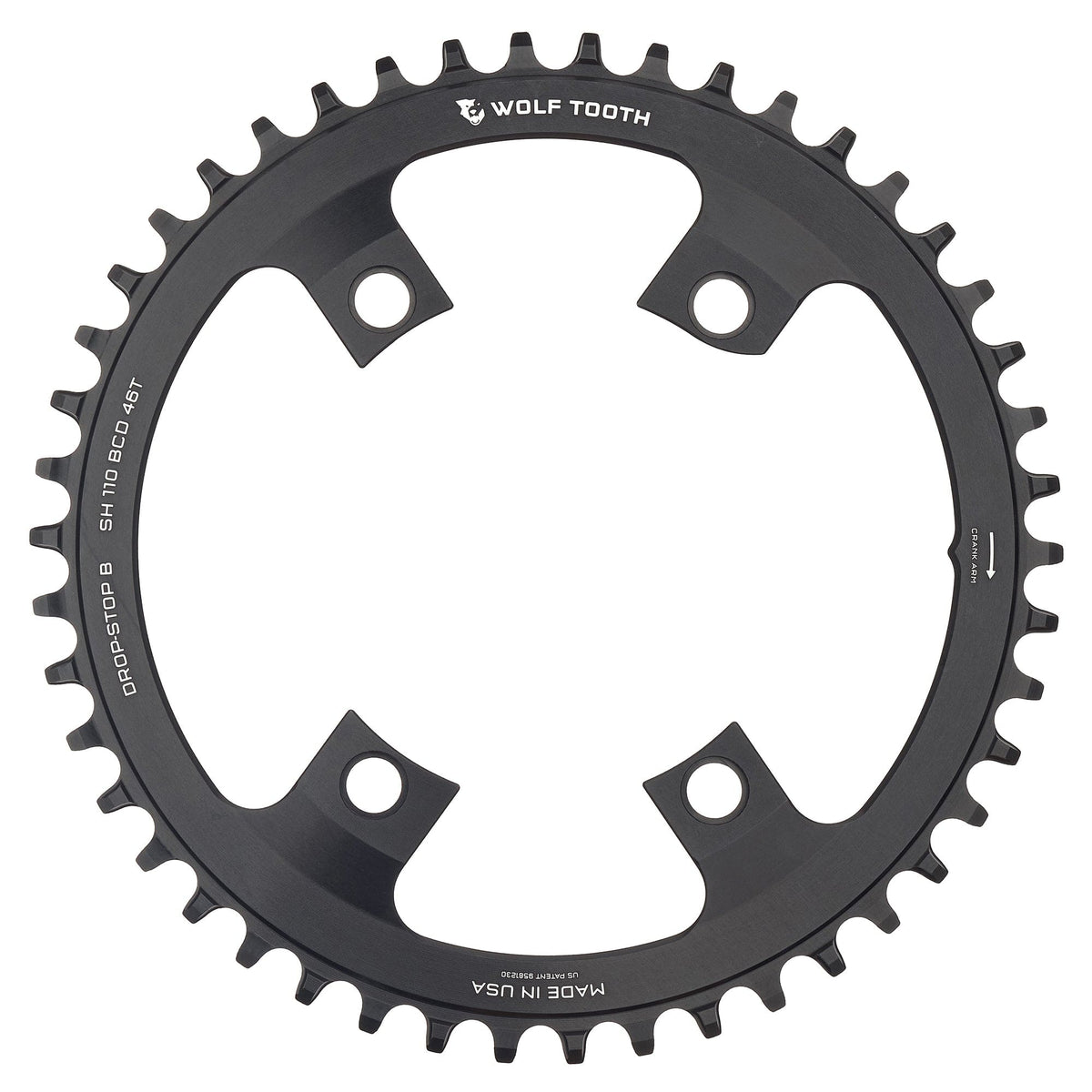

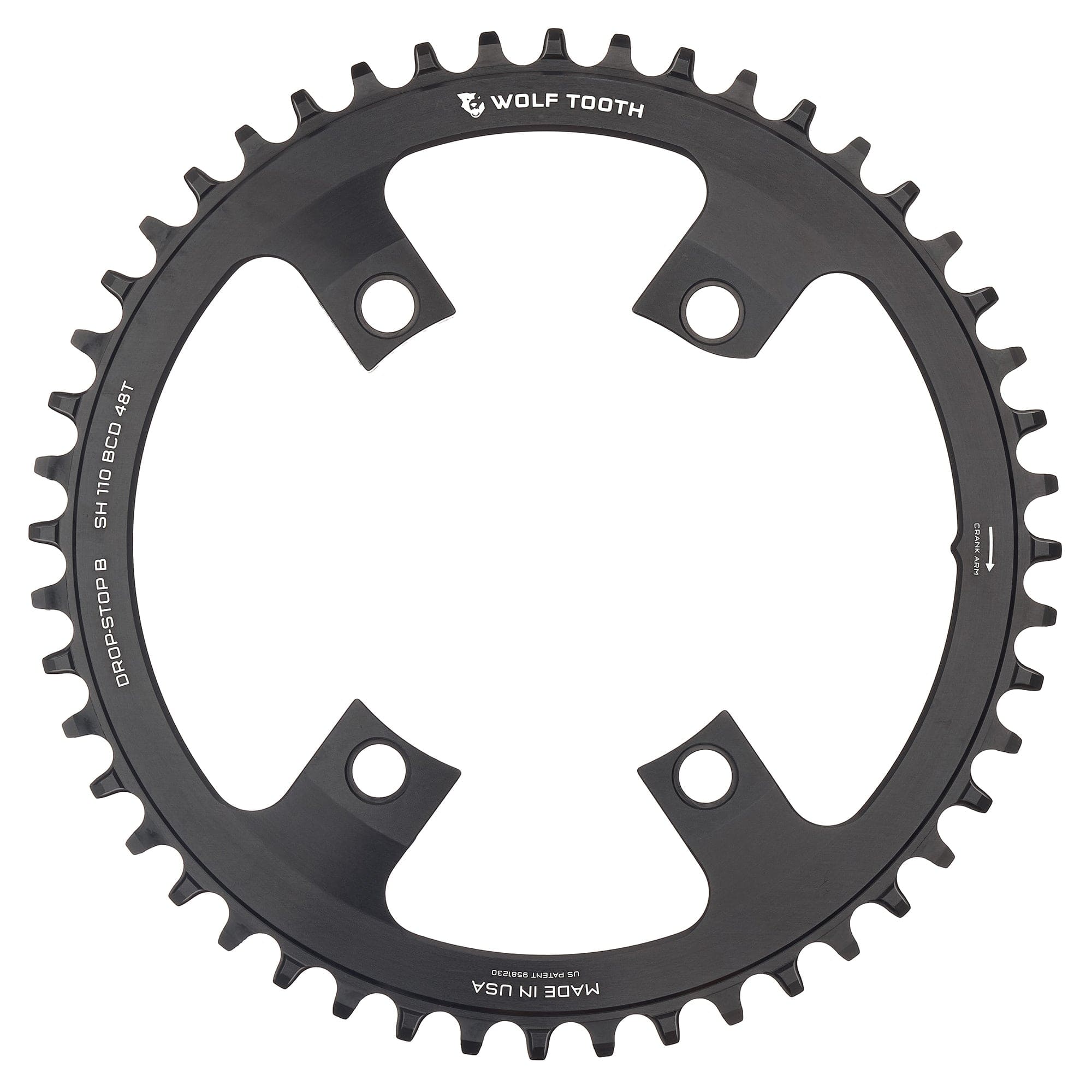

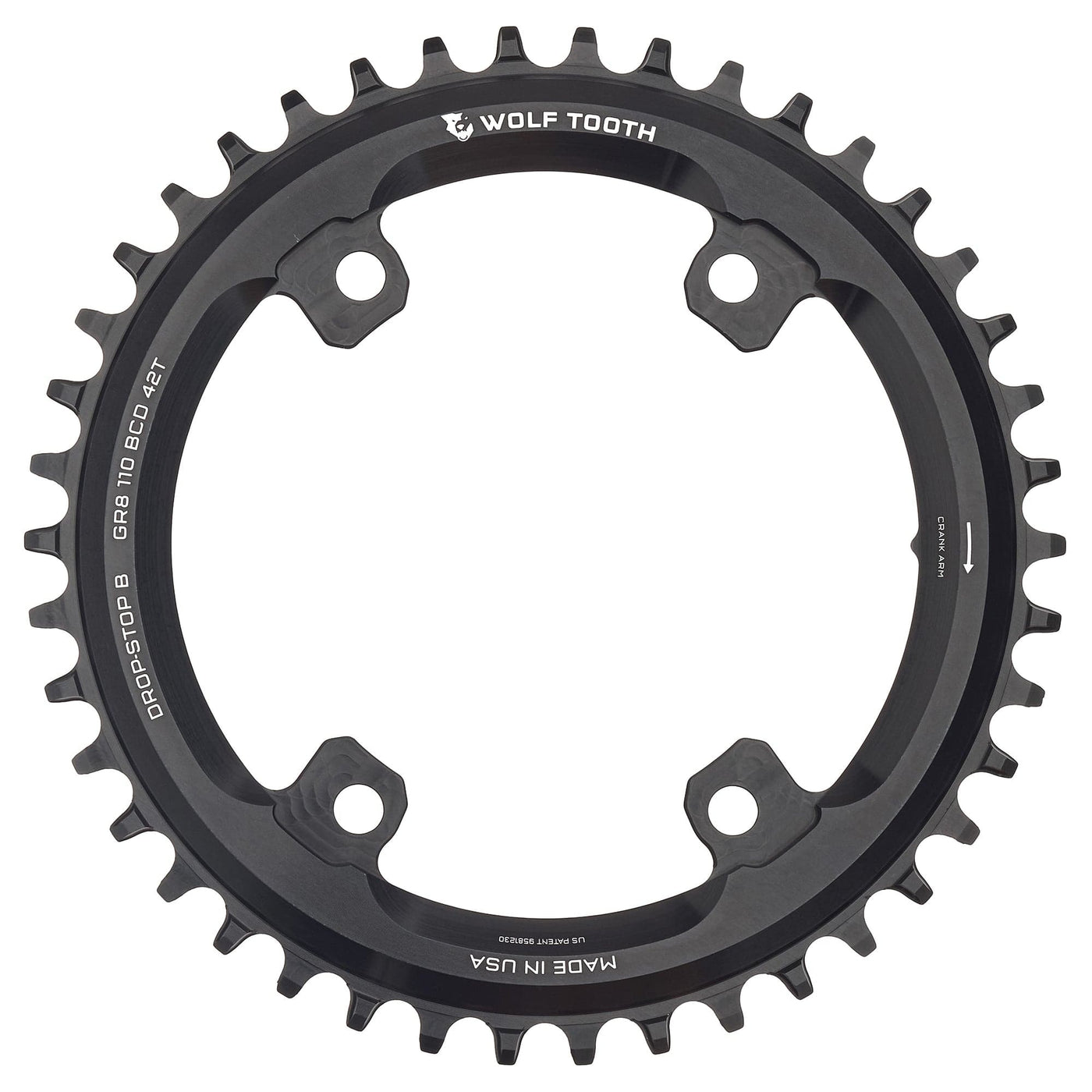

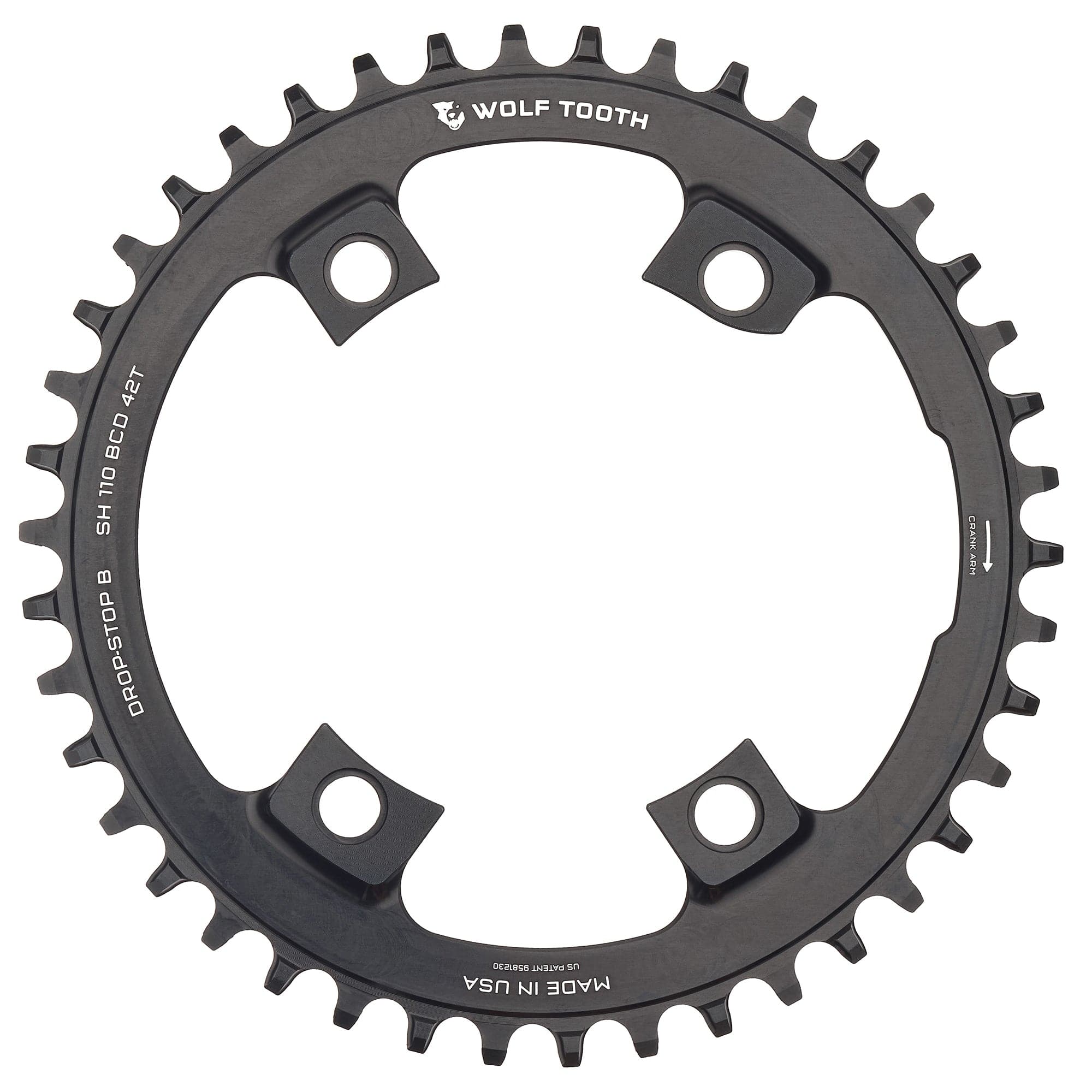

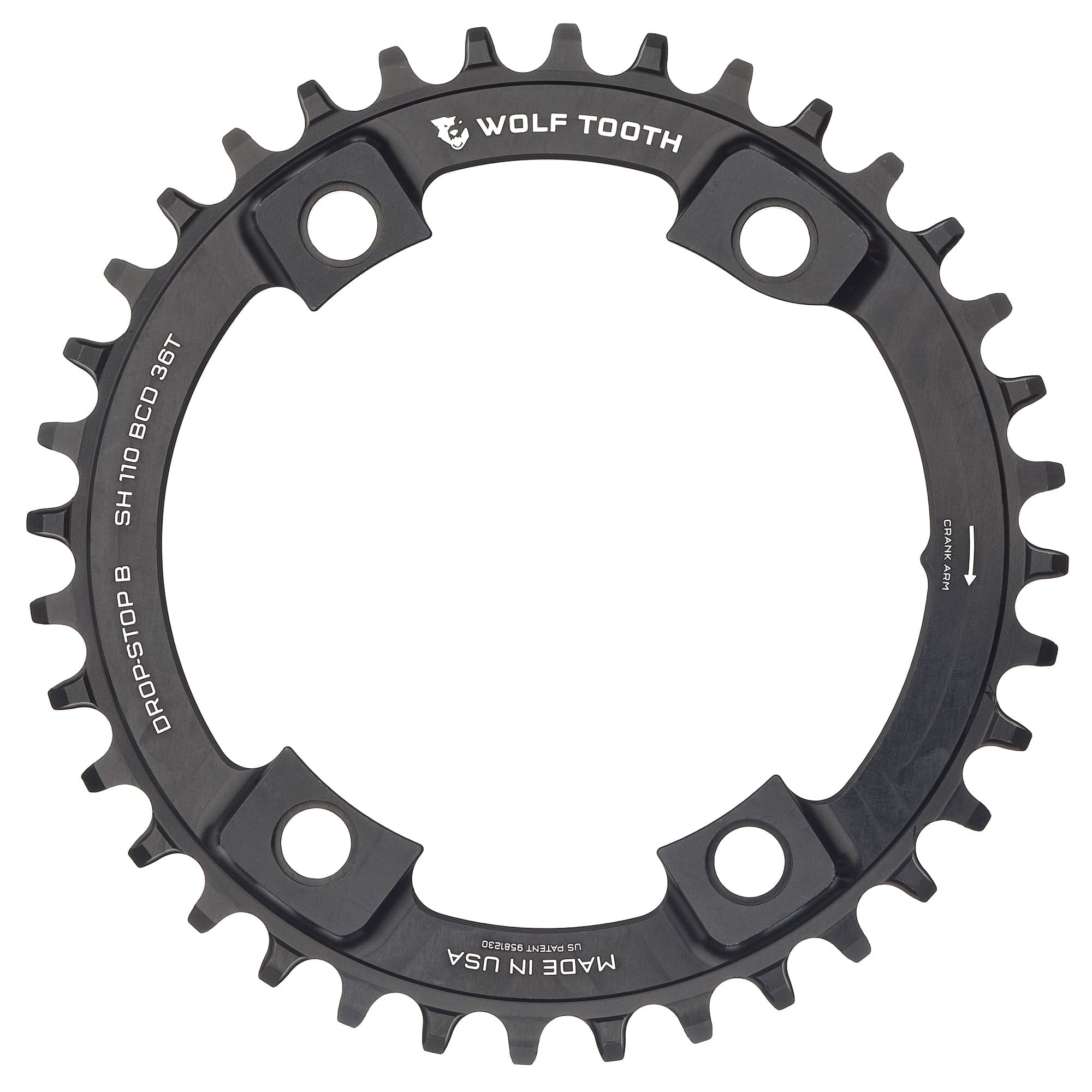

Wolf Tooth was first to market with cyclocross 1x specific chainrings because we saw cyclocross as the perfect use for our patent pending Drop-Stop® technology. These beautifully machined 110 BCD asymmetric 4-bolt chainrings are optimized for your 1x Shimano CX / road / gravel drivetrain whether you run Dura Ace 9000, Ultegra 6800, 105 5800, or Tiagra 4700. They are also offset for the ideal 1x chainline.
-
Fits 110 BCD Asymmetric 4-bolt Shimano cranks
-
Drop-Stop technology. On Wolf Tooth’s patented wide/narrow chainring, the wide side of the tooth has maximum contact on the drive side which spreads the load and improves chainring life. The narrow side allows clearance for mud and debris which reduces friction.
-
Alternating wide/narrow tooth pattern prevents chain derailment
Compatibility
- Fits 110 BCD asymmetric 4-bolt cranks
- All sizes compatible with Dura Ace 9000, Ultegra 6800, 105 5800, RS510, Tiagra 4700 or 4703, Sora R3000 or R3030, and Claris R2000 or R2030 cranks.
- 38-50t are compatible with 105 R7000, Ultegra R8000, and Dura-Ace R9100. The 36t chainring is NOT compatible with these cranks.
- NOT compatible with Dura-Ace R9200, Ultegra R8100, 105 R7100 Cranks, or GRX Cranks
- Size 42t and larger will work with the Dura Ace 9100 power meter

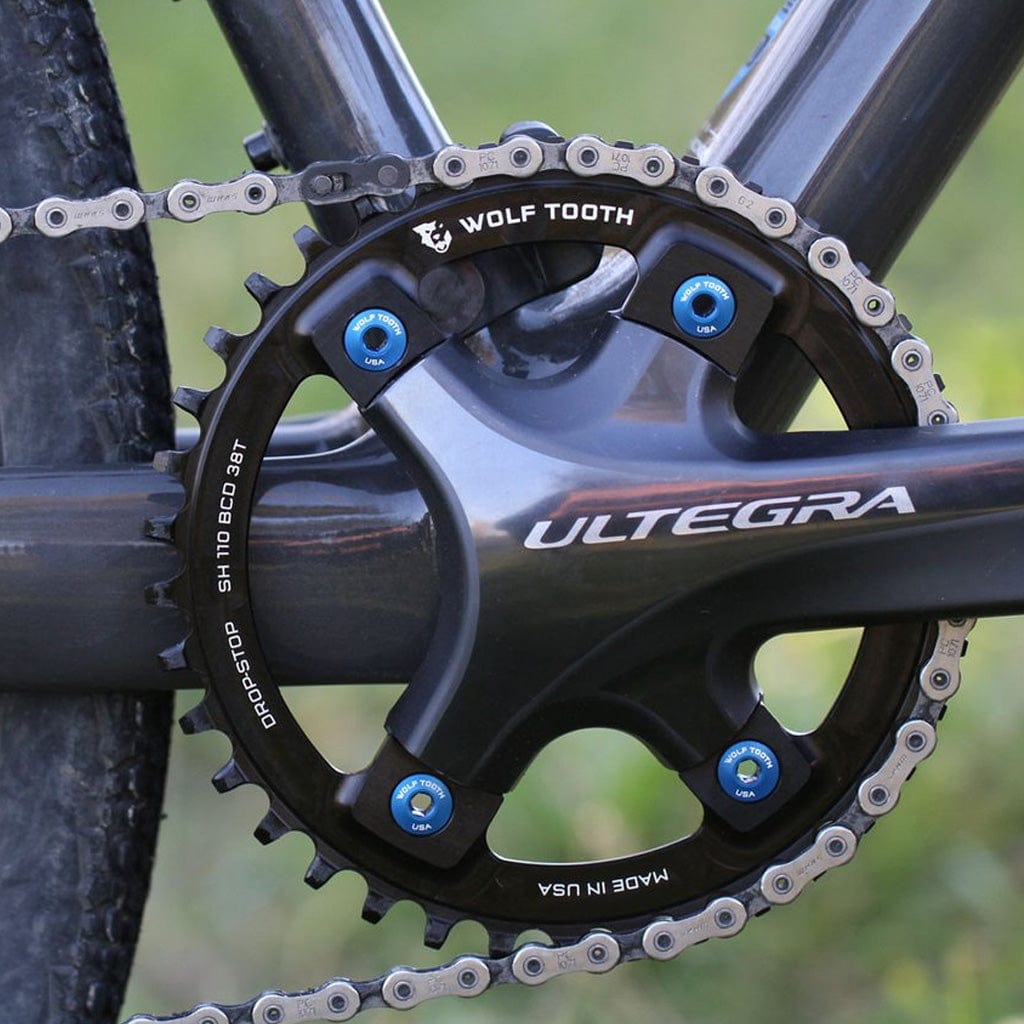

- Mounts in the big ring position of the cranks but is offset inward for perfect chainline.
- The stock 2x bolts will not work. You will need our 6mm bolts which are optimized for single ring mounting.
- Chainline 47.5mm
Recommendations
- Recommend the use of a clutch style rear derailleur for the best chain security.
- If you plan to ride in very muddy conditions, we recommend a chainguide or chainkeeper in addition to a clutch-type rear derailleur. Without these precautions, you may experience chaindrops and/or chainsuck.
Related Products
Chainring bolts - the stock 2x bolts will not work. You will need 6mm bolts which are optimized for single ring mounting
Tanpan - allows Shimano mountain bike rear derailleurs to be used with Shimano road shifters
RoadLink - allows for wide range cassettes to be used with Shimano road rear derailleurs
Tech Specs
Material: 7075-T6 aluminum
Weight: 38t • 66g | 40t • 74g | 42t • 81g | 44t • 90g
Made in the USA
